Exhaust egg crate grille 13x13 mm for false ceiling with double frame and hinge opening and push-pull system for easy filter installation and replacement.
Material: aluminium.
Finish: natural anodised.
Fastening: with visible screws.
Filter: COARSE class (G2) thickness 12 mm.
Opening/closing: with push-pull system.

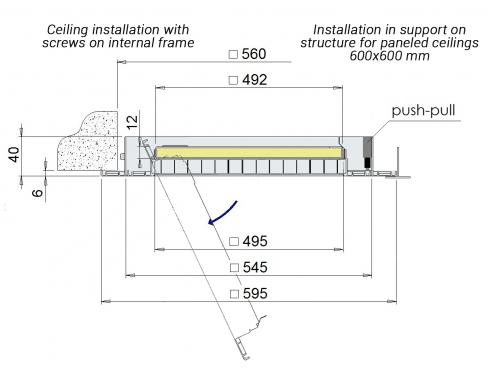

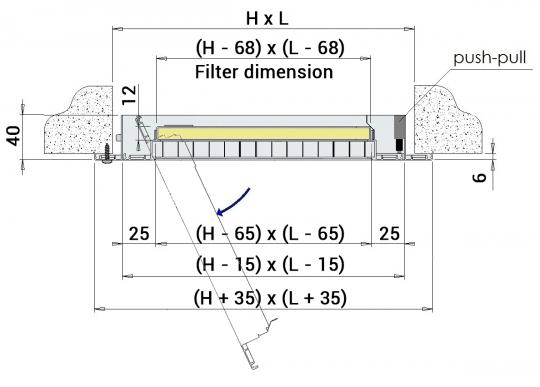

Installation is carried out by securing the external frame of the grille to the wall using screws or, for installation on modular 600x600 false ceilings, resting on the metal structure in place of the panel.
Grille for external or indoor air exhaust where dust pre-filtration is recommended.
Initial pressure drop lower than 40 Pa with 1.5 m/s speed on the filter.
- EPZ galvanised plenum;
- EPI insulated plenum.
Closing with screw or magnet;
white RAL 9016 painting or other RAL colours;
special dimensions.
H | L | ||||||
200 | 300 | 400 | 500 | 600 | 800 | 1000 | |
effective cross-section of the grille m² | |||||||
200 | 0,018 | 0,031 | 0,045 | 0,058 | 0,071 | 0,098 | 0,124 |
300 | 0,031 | 0,054 | 0,078 | 0,101 | 0,124 | 0,170 | 0,217 |
400 | 0,045 | 0,078 | 0,111 | 0,144 | 0,177 | 0,243 | 0,309 |
500 | 0,058 | 0,101 | 0,144 | 0,187 | 0,230 | 0,315 | 0,401 |
600 | 0,071 | 0,124 | 0,177 | 0,230 | 0,282 | 0,388 | 0,493 |
m³/h: flow rate
Pa: pressure drops in Pascal
dB(A): noise level
An air velocity on the filter of 1.5 m/s is recommended to contain pressure drops and maintain filtration efficiency;
the flow rate data in the table refers to the grille with the filter.
All dimensions are expressed in mm.
H |
V m/s |
L | ||||||
200 | 300 | 400 | 500 | 600 | 800 | 1000 | ||
Face velocity on the filter |
flow rate m³/h | |||||||
200 | 1,5 | 63 | 121 | 180 | 238 | 296 | 413 | 530 |
2 | 84 | 162 | 240 | 317 | 395 | 551 | 706 | |
300 | 1,5 | 121 | 234 | 346 | 458 | 571 | 795 | 1020 |
2 | 162 | 312 | 461 | 611 | 761 | 1060 | 1360 | |
400 | 1,5 | 180 | 346 | 512 | 679 | 845 | 1178 | 1510 |
2 | 240 | 461 | 683 | 905 | 1127 | 1570 | 2014 | |
500 | 1,5 | 238 | 458 | 679 | 899 | 1119 | 1560 | 2000 |
2 | 317 | 611 | 905 | 1199 | 1492 | 2080 | 2667 | |
600 | 1,5 | 296 | 571 | 845 | 1119 | 1394 | 1942 | 2491 |
2 | 395 | 761 | 1127 | 1492 | 1858 | 2590 | 3321 |
model | external frame size | effective section of the grid | effective filter section | Front speed on the filter | air flow rate |
mm | m2 | m2 | m/s | m3/h | |
EGQ-PUSH | 595x595 | 0,229 | 0,218 | 1,5 | 1180 |
2 | 1570 |
V m/s |
dB(A) |
1,5 | <20 |
2 | 20/25 |
V m/s |
Pa |
1,5 | 25/30 |
2 | 45/50 |
model L1 x H1 |
top connection | lateral connection | E | F |
model L1 x H1 |
top connection | lateral connection | E | F | ||||||||
P1 | no. connections | Ø d | P2 | no. connections | Ø d | P1 | no. connections | Ø d | P2 | no. connections | Ø d | ||||||
200x200 | 200 | 1 | 198 | 300 | 1 | 198 | 80 | 12 | 500x300 | 200 | 1 | 248 | 350 | 1 | 248 | 80 | 12 |
300x200 | 200 | 1 | 198 | 300 | 1 | 198 | 80 | 12 | 600x300 | 200 | 2 | 198 | 350 | 2 | 248 | 80 | 12 |
400x200 | 200 | 1 | 198 | 300 | 1 | 198 | 80 | 12 | 800x300 | 200 | 2 | 248 | 350 | 2 | 248 | 80 | 12 |
500x200 | 200 | 1 | 198 | 300 | 1 | 198 | 80 | 12 | 1000x300 | 200 | 2 | 248 | 350 | 2 | 248 | 80 | 12 |
600x200 | 200 | 2 | 198 | 300 | 2 | 198 | 80 | 12 | 400x400 | 200 | 1 | 298 | 350 | 1 | 298 | 80 | 12 |
800x200 | 200 | 2 | 198 | 300 | 2 | 198 | 80 | 12 | 500x400 | 200 | 1 | 298 | 350 | 1 | 298 | 80 | 12 |
1000x200 | 200 | 2 | 198 | 300 | 2 | 198 | 80 | 12 | 600x400 | 200 | 2 | 198 | 350 | 2 | 248 | 80 | 12 |
300x300 | 200 | 1 | 248 | 350 | 1 | 248 | 80 | 12 | 800x400 | 200 | 2 | 298 | 350 | 2 | 298 | 80 | 12 |
400x300 | 200 | 1 | 248 | 350 | 1 | 248 | 80 | 12 | 1000x400 | 200 | 2 | 298 | 400 | 2 | 298 | 80 | 12 |
All dimensions are espressed in mm.
model L1 x H1 |
lateral connection | E | F | ||
P2 | no. connections | Ø d | |||
560x560 | 300 | 1 | 250 | 80 | 12 |
Painted white RAL 9016 + 20%
H | L | ||||||||
200 | 300 | 400 | 500 | 600 | 800 | 1000 | |||
euro | euro | euro | euro | euro | euro | euro | |||
200 | 58,15 | 60,69 | 75,89 | 89,38 | 100,08 | 118,26 | 153,94 | ||
300 | 60,69 | 76,94 | 93,79 | 107,46 | 123,32 | 156,00 | 180,51 | ||
400 | 75,89 | 93,79 | 107,50 | 133,85 | 154,97 | 193,92 | 220,26 | ||
500 | 89,38 | 107,46 | 133,85 | 157,06 | 188,62 | 220,26 | 260,33 | ||
600 | 100,08 | 123,32 | 154,97 | 188,62 | 210,68 | 258,23 | 310,90 |
White painted RAL 9016 + 20%
model | external frame dimensions | euro |
mm | ||
EGQ-PUSH | 595x595 | 160,24 |
dimensions | top connection | lateral connection | ||
EPZ galvanized plenum | EPI isolated plenum | EPZ galvanized plenum | EPI isolated plenum | |
L1xH1 | euro | euro | euro | euro |
200x200 | 34,24 | 47,08 | 37,85 | 51,92 |
300x200 | 37,16 | 50,99 | 41,70 | 57,07 |
400x200 | 40,12 | 54,95 | 45,50 | 62,18 |
500x200 | 43,04 | 58,91 | 49,34 | 67,29 |
600x200 | 59,99 | 78,09 | 71,98 | 92,00 |
800x200 | 70,71 | 90,27 | 79,62 | 102,30 |
1000x200 | 76,59 | 98,19 | 76,59 | 112,52 |
300x300 | 41,20 | 56,14 | 49,27 | 67,06 |
400x300 | 55,34 | 71,90 | 64,75 | 84,54 |
500x300 | 58,72 | 76,43 | 69,44 | 90,88 |
600x300 | 69,52 | 88,69 | 77,59 | 99,53 |
800x300 | 84,97 | 112,40 | 99,72 | 132,19 |
1000x300 | 91,73 | 121,47 | 109,14 | 144,80 |
400x400 | 59,76 | 77,70 | 74,09 | 96,96 |
500x400 | 63,60 | 82,78 | 79,70 | 104,45 |
600x400 | 82,31 | 108,98 | 91,23 | 121,01 |
800x400 | 99,26 | 128,97 | 115,32 | 150,49 |
1000x400 | 117,67 | 153,18 | 142,65 | 186,69 |
