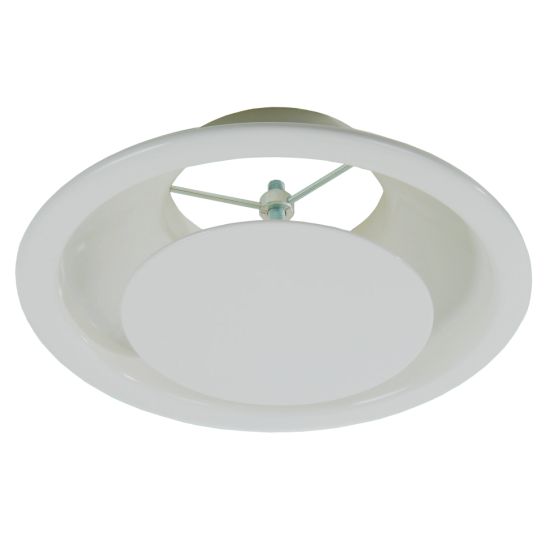

EDCS Circular diffusers with single adjustable cones
Description
Diffuser characteristics
Material: aluminium.
Finish: painted white RAL 9010.
Installation: with screws to the diffuser neck.
Use
Ducted air conditioning and treatment systems with installation height between 2.7 and 6 m.
Models
- EDCS circular diffusers with single adjustable cone

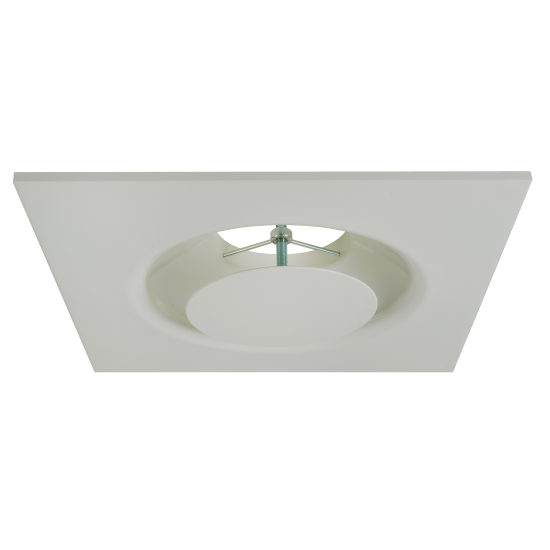

- EDCS-PQ circular diffusers with single adjustable cone on square panel 595x595 mm.
Accessories
- EPZ-DC galvanised plenum box;
- EPI-DC insulated plenum box;
- SD butterfly damper;
- EQUA equaliser;
- Fixing clips kit.

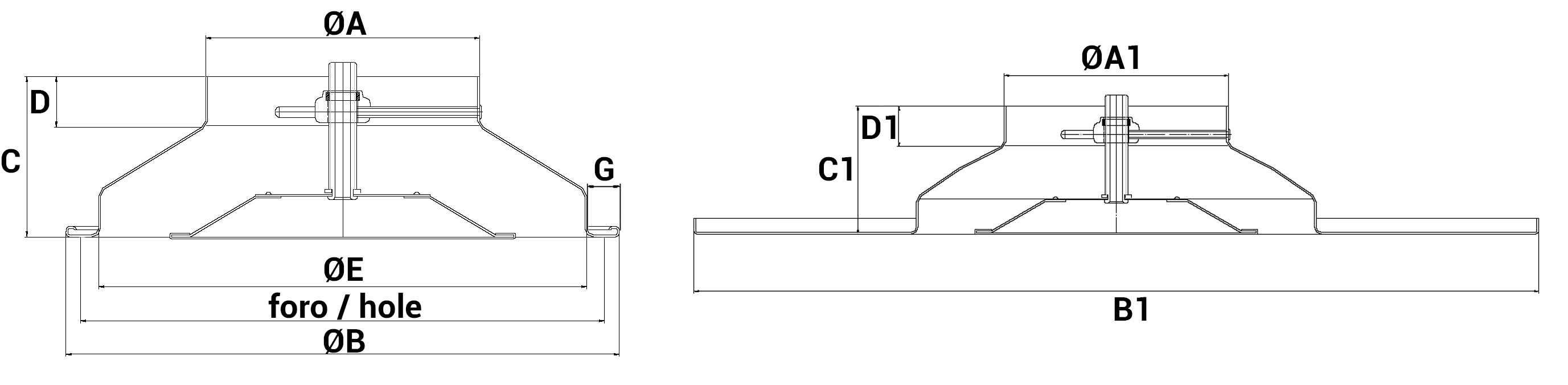

Dimensions
all dimensions are expressed in mm
| Models | EDCS | EDCS-PQ | |||||||||
| Ø A | Ø B | Ø E | Ø Hole | C | D | G | Ø A1 | B1 x B1 | C1 | D1 | |
| 100 | 96 | 250 | 195 | 225 | 85 | 33 | 25 | 96 | 595 x 595 | 85 | 33 |
| 150 | 145 | 330 | 280 | 308 | 90 | 25 | 23 | 146 | 595 x 595 | 90 | 23 |
| 160 | 156 | 330 | 280 | 308 | 90 | 27 | 23 | 156 | 595 x 595 | 90 | 28 |
| 200 | 196 | 445 | 370 | 410 | 115 | 37 | 35 | 196 | 595 x 595 | 115 | 37 |
| 250 | 246 | 535 | 460 | 500 | 135 | 37 | 35 | 246 | 595 x 595 | 135 | 37 |
Operating data
Vk: effective speed (m/s)
m³/h: flow rate
Pa: pressure drops in Pascal
L(m): air throw in metres calculated on ceiling installation, terminal velocity 0.25 m/s
dB(A): noise leve
| Models | 2 x digital output (6 terminalas, wire min. 0.5 mm² to max. 1.5 mm²) – NO/NC relays (125 V AC – 60 W) | Vk | 2 | 3 | 4 | 5 | 6 |
| m² | |||||||
| 100 | 0,0059 | m³/h | 38 | 57 | 75 | 95 | 115 |
| Pa | 7,6 | 17,2 | 30,6 | 47,7 | 68,7 | ||
| L(m) | 0,4 | 0,6 | 0,8 | 1,0 | 1,2 | ||
| 150 | 0,0149 | m³/h | 96 | 145 | 195 | 242 | 290 |
| Pa | 6,3 | 14,2 | 25,2 | 39,4 | 56,8 | ||
| L(m) | 0,7 | 1,1 | 1,5 | 1,9 | 2,2 | ||
| 160 | 0,0167 | m³/h | 108 | 163 | 217 | 271 | 325 |
| Pa | 6,1 | 13,8 | 24,5 | 38,3 | 55,1 | ||
| L(m) | 0,8 | 1,2 | 1,7 | 2,1 | 2,5 | ||
| 200 | 0,0279 | m³/h | 181 | 271 | 361 | 452 | 542 |
| Pa | 5,5 | 12,5 | 22,2 | 34,7 | 49,9 | ||
| L(m) | 1,2 | 1,7 | 2,3 | 2,9 | 3,5 | ||
| 250 | 0,0448 | m³/h | 291 | 435 | 580 | 725 | 870 |
| Pa | 5,0 | 11,3 | 20,1 | 31,5 | 45,3 | ||
| L(m) | 1,5 | 2,4 | 3,2 | 4,1 | 4,9 | ||
| Noise Level | dB(A) | 20 | 25 | 30 | 35 | 40 | |

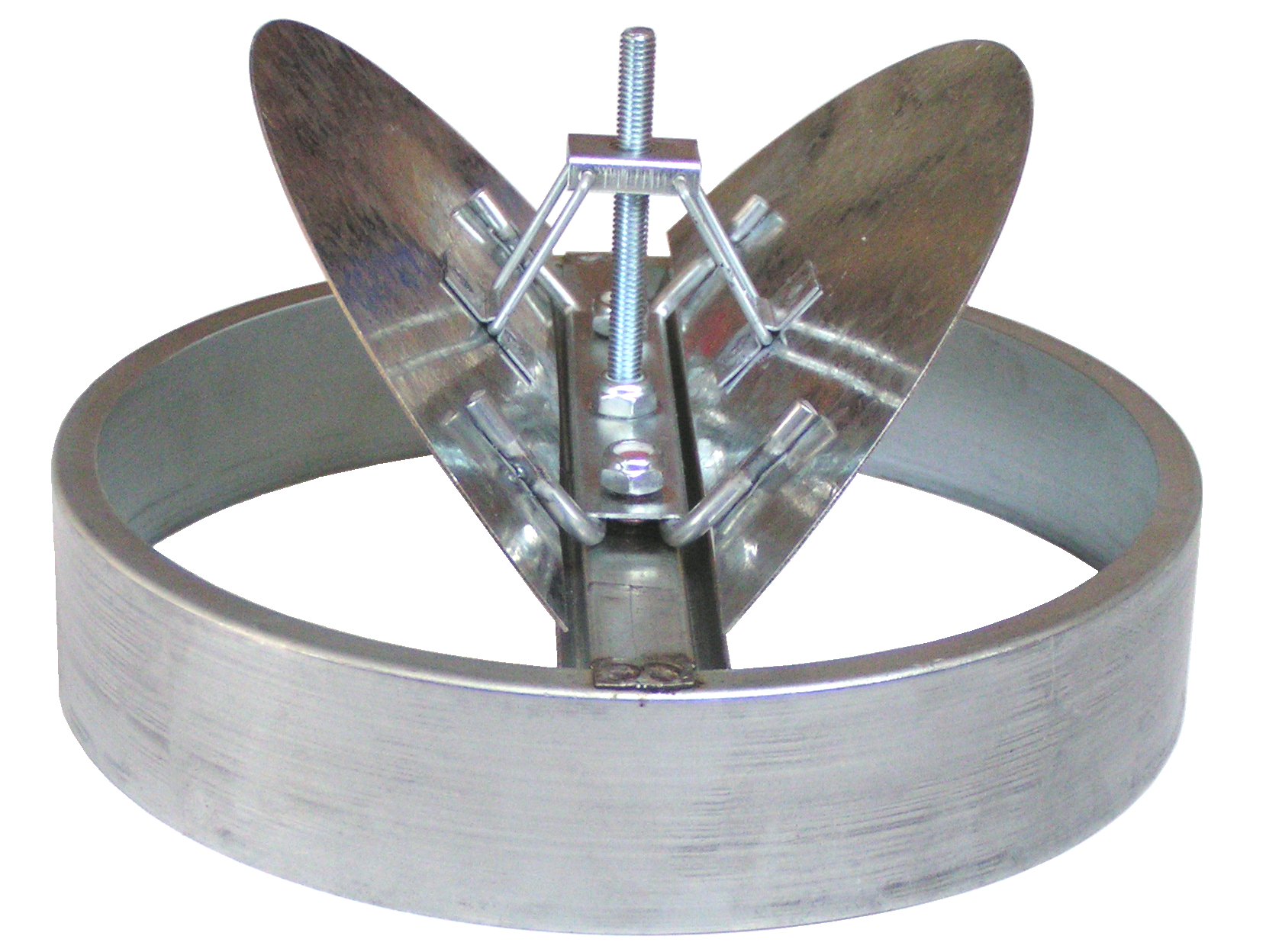

SD Butterfly damper
The SD butterfly damper is suitable for installation on circular diffusers and is made of galvanised steel; it comes with a sturdy adjustable opening/closing mechanism, which prevents vibrations and noise.
The damper is adjusted by turning the adjustment screw using a screwdriver, by inserting it trough the hole on the threaded bar of the diffuser..

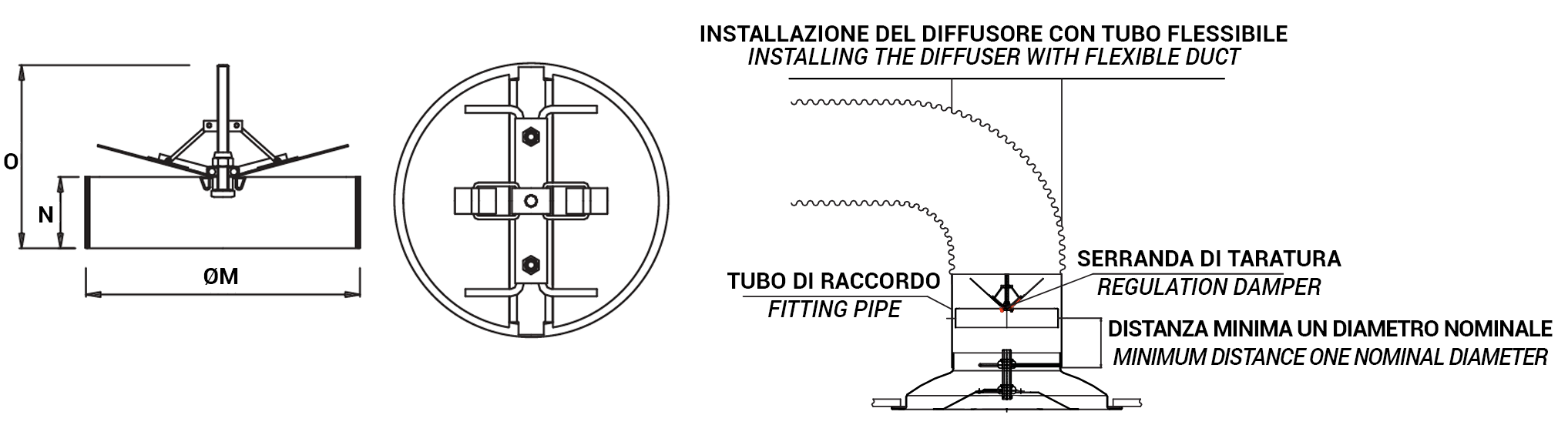

All dimensions are expressed in mm
| Models | ØM | N | O |
| 100 | 95 | 39 | 100 |
| 150 | 145 | 39 | 100 |
| 160 | 155 | 39 | 100 |
| 200 | 195 | 39 | 100 |
| 250 | 245 | 39 | 100 |

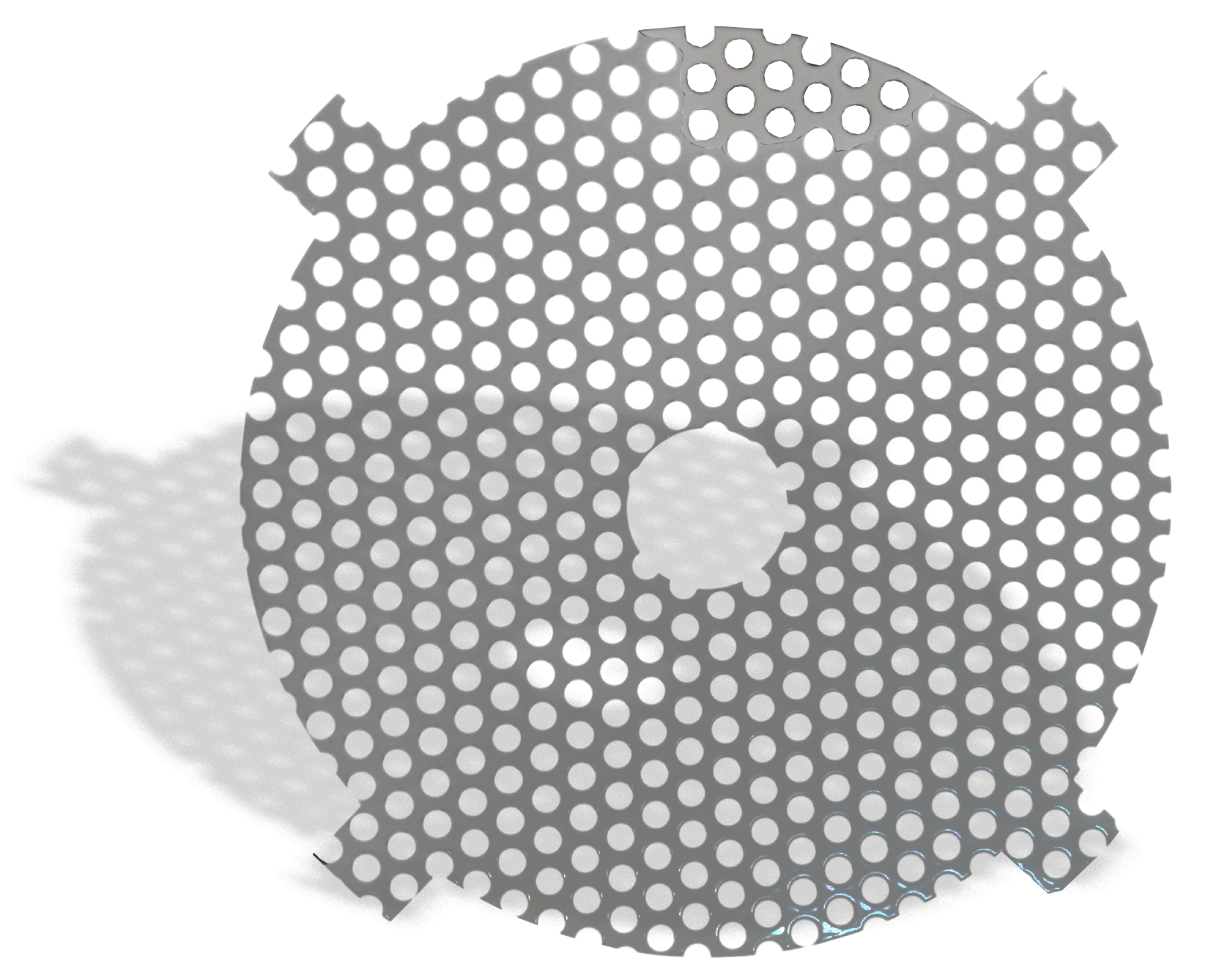

EQUA equaliser
The equaliser is an accessory used to split the air and distribute it evenly at the diffuser outlet.

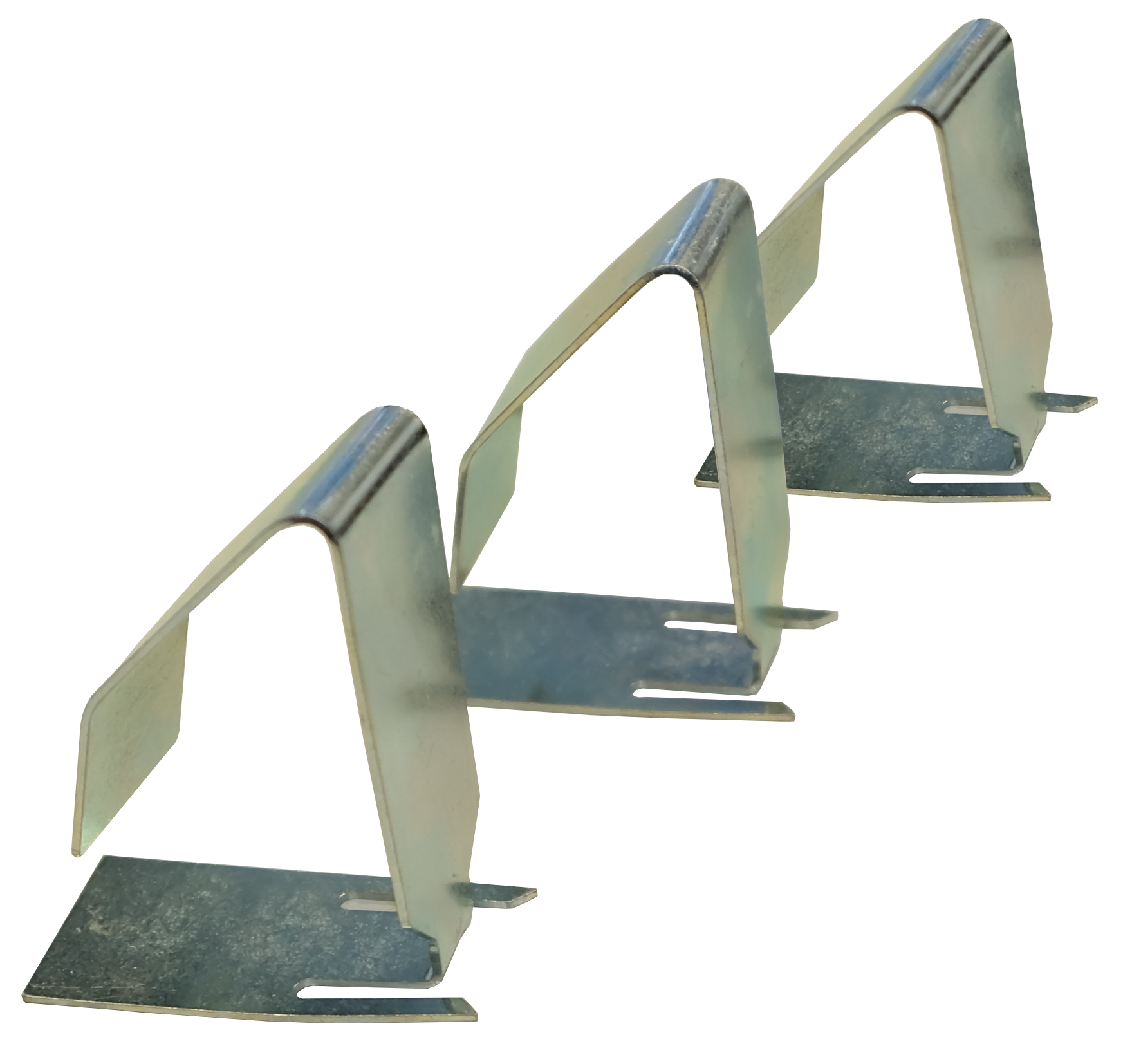

Fixing clips
Fixing clips for installation on plasterboard false ceilings or rigid false ceilings (3 pieces per pack).

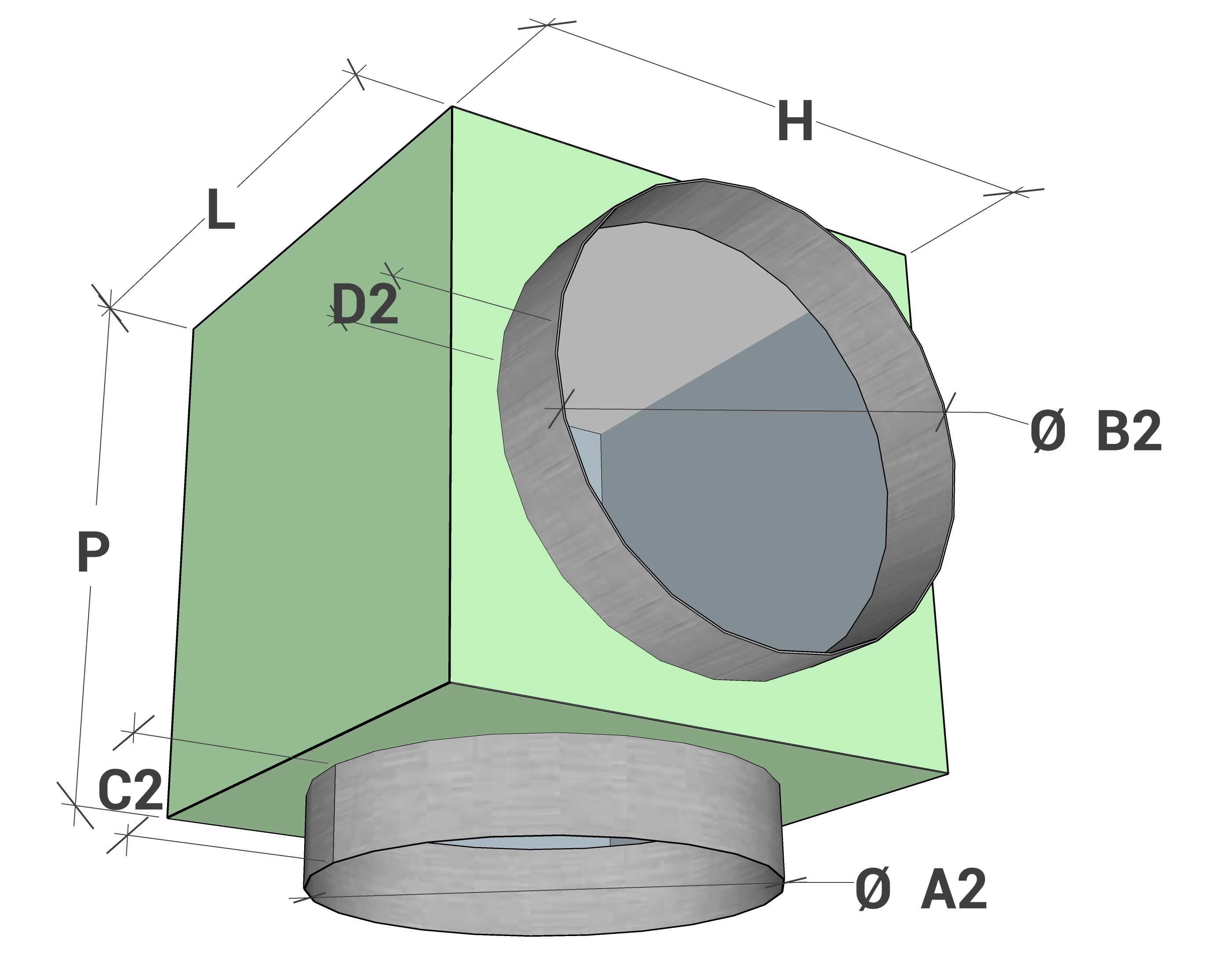

Plenum EPZ-DC EPI-DC
All measurements are expressed in mm.
| Models | L | H | P | ØA2 Diffuser | ØB2 Duct - Flexible or Rigid | C2 | D2 |
| 100 | 200 | 200 | 200 | 102 | 95 | 70 | 100 |
| 150 | 250 | 250 | 250 | 152 | 145 | 70 | 100 |
| 160 | 250 | 250 | 250 | 162 | 155 | 70 | 100 |
| 200 | 300 | 300 | 300 | 202 | 195 | 70 | 100 |
| 250 | 350 | 350 | 350 | 252 | 245 | 70 | 100 |
Price list
Models Diffuser EDCS-PQ - Diffuser on pannel 595x595 SD - Butterfly Damper EQUA - Equaliser EPZ-DC - Galvanised Plenum Box EPI-DC - Insulated Plenum Box euro euro euro euro euro euro 100 111,55 139,59 29,39 17,84 55,30 75,13 150 113,63 141,70 29,17 17,84 62,91 85,00 160 120,28 144,65 29,17 17,84 63,14 85,27 200 137,56 160,25 30,84 17,84 71,86 96,61 250 166,94 192,81 35,77 18,67 95,57 123,97
