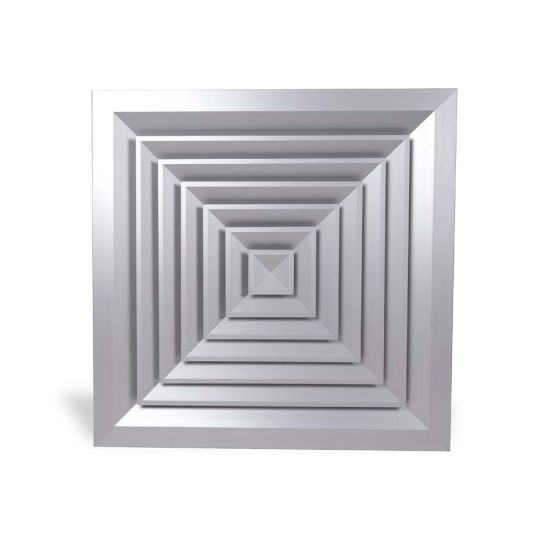

EDQ 10 Multidirectional square diffusers
Description
Multidirectional square diffusers with removable cones.
Characteristics
Material: aluminium.
Finish: natural anodised.
Installation: fastening by means of non-visible screws.
Finish: natural anodised.
Installation: fastening by means of non-visible screws.
Use
Very versatile diffuser, especially suitable in systems where it is necessary to control the air throw in specific directions.
On request
White RAL 9016 painting or other RAL colours (prices on request).
Accessories
- SC galvanised steel regulation damper with blades with opposing movement.
- EPZ-EDQ galvanised steel plenum.
- EPI-EDQ galvanised steel insulated plenum.
- EPZ-EDQ galvanised steel plenum.
- EPI-EDQ galvanised steel insulated plenum.
Operating data EDQ10
Vk: effective speed (m/s)
m³/h: flow rate
Pa: pressure drops in Pascal
L(m): air throw in metres calculated on ceiling installation, terminal velocity 0.25 m/s
dB(A): noise level

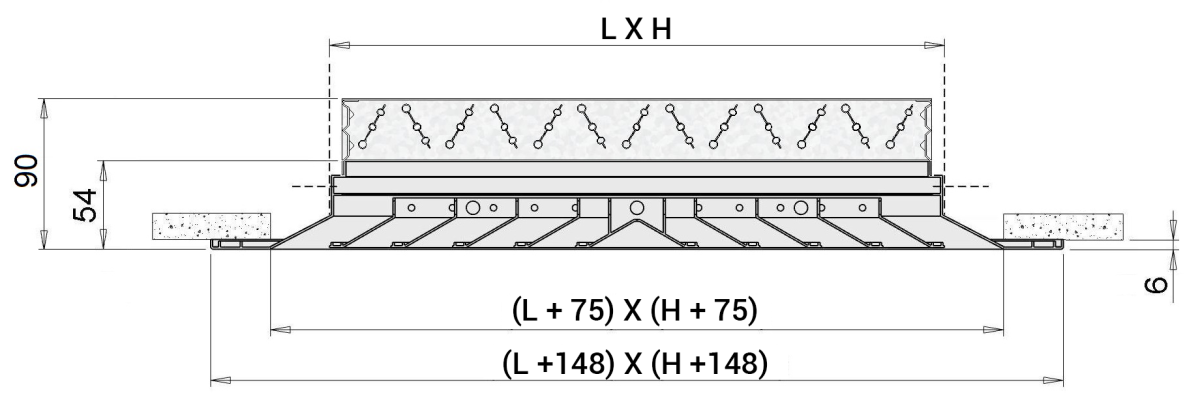

all dimensions are expressed in mm.
| Dimensions HxL | Vk (m/s) | 3 | 4 | 5 | 6 | ||||
| Effective Cross-Section m2 | m3/h | L(m) | m3/h | L(m) | m3/h | L(m) | m3/h | L(m) | |
| 150x150 | 0,010 | 108 | 1,2 | 144 | 1,6 | 180 | 2 | 216 | 2,6 |
| 225x225 | 0,022 | 238 | 1.8 | 317 | 2,5 | 396 | 3,2 | 475 | 3,8 |
| 300x300 | 0,038 | 410 | 2,4 | 547 | 3,2 | 686 | 4 | 820 | 4,8 |
| 375x375 | 0,058 | 626 | 2,9 | 835 | 3,9 | 1044 | 4,8 | 1253 | 5,8 |
| 450x450 | 0,085 | 918 | 3,6 | 1224 | 4,8 | 1530 | 6 | 1836 | 7,2 |
| 525x525 | 0,116 | 1253 | 4,2 | 1670 | 5,4 | 2088 | 7 | 2505 | 8,4 |
| 600x600 | 0,150 | 1620 | 4,6 | 2160 | 6,4 | 2700 | 7,8 | 3240 | 9,5 |
| Pressure Drop | Pa | 5 | 10 | 15 | 20 | ||||
| Noise Level | dB(A) | 20/25 | 30/35 | 35/40 | 40/45 | ||||

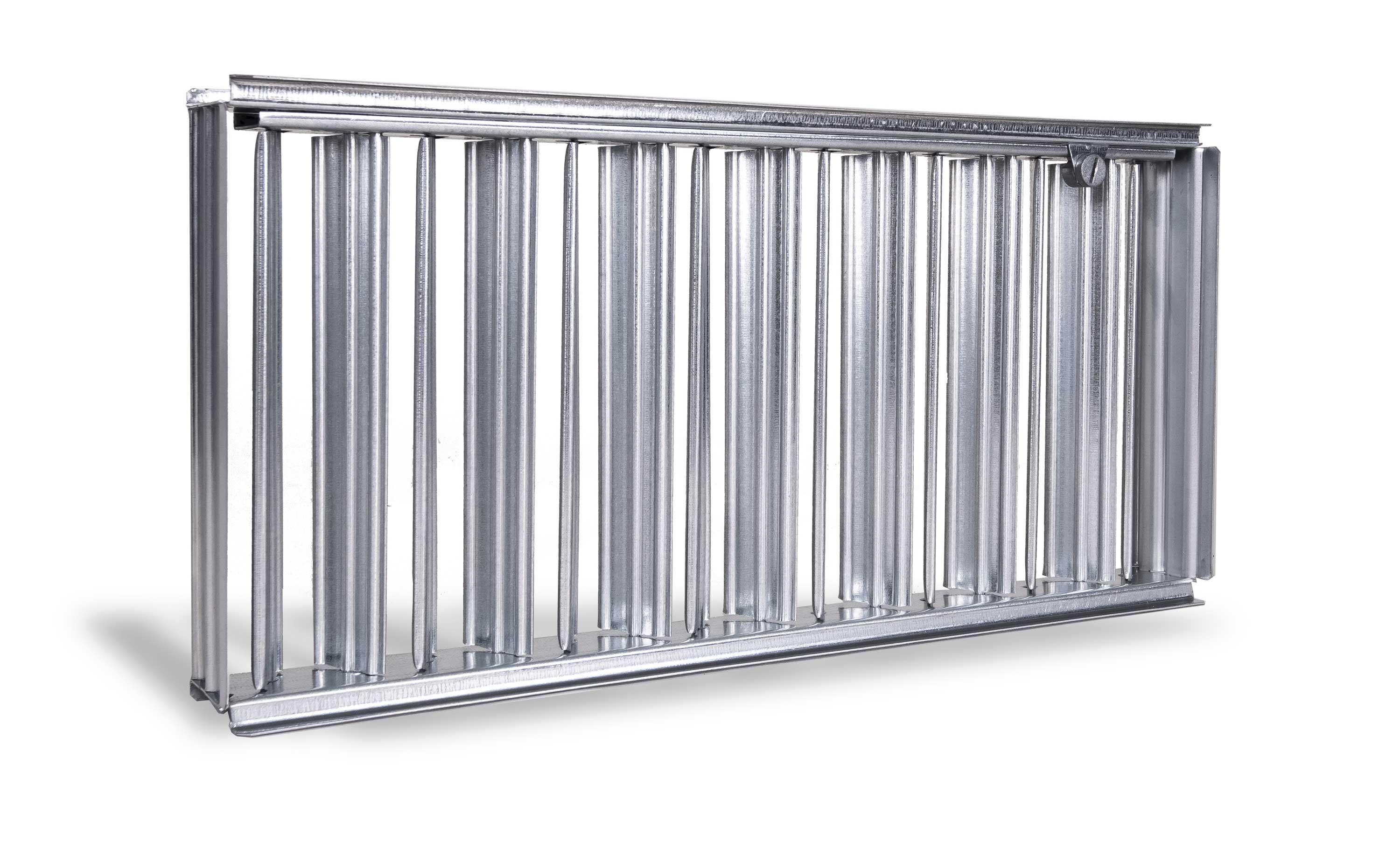

SC regulation damper
Galvanised steel regulation damper with blades with opposing movement.

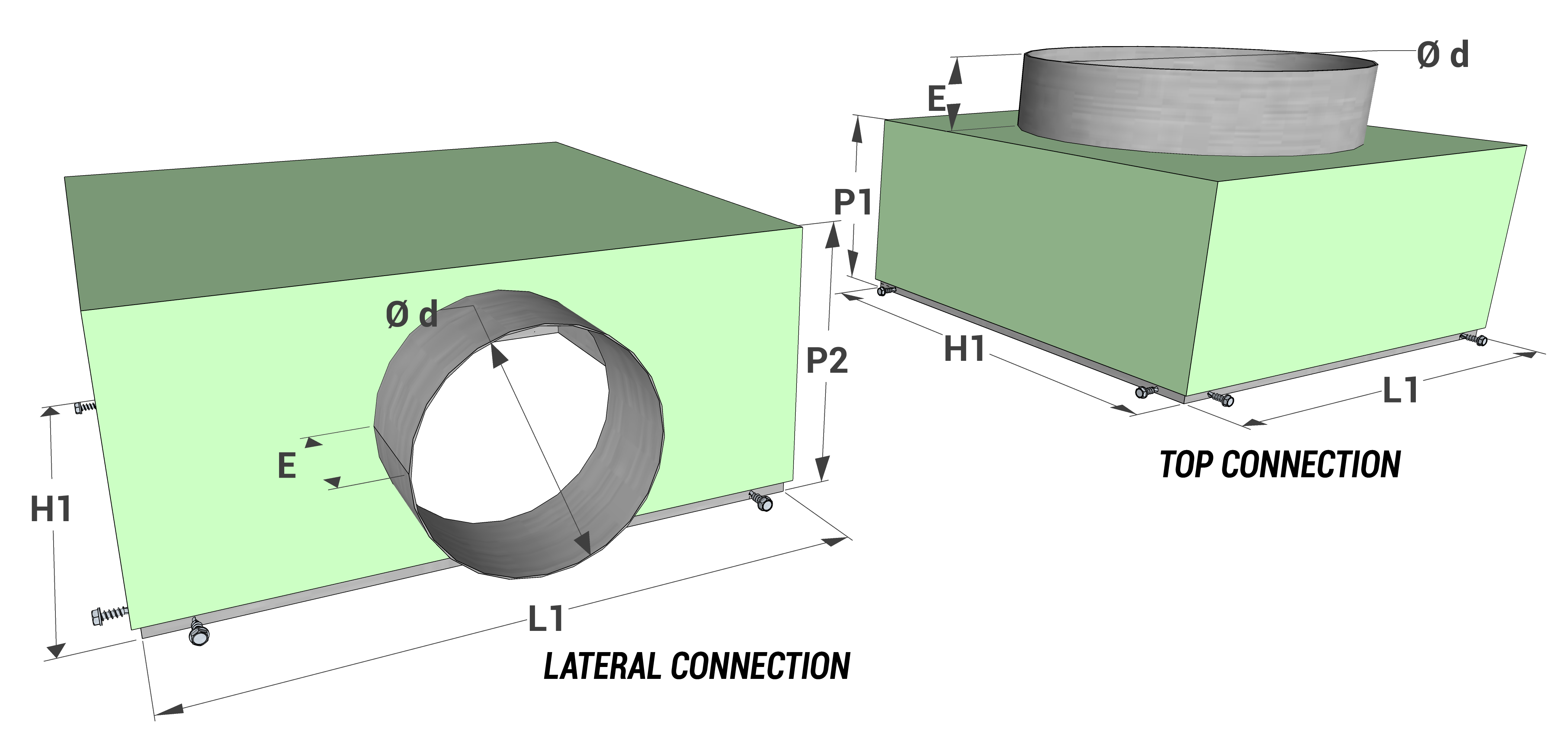

Plenum
| EDQ | L1 x H1 | Ø d | P1 | P2 | E |
| 150x150 | 155x155 | 125 | 200 | 245 | 50 |
| 225x225 | 230x230 | 150 | 200 | 270 | 50 |
| 300x300 | 305x305 | 200 | 200 | 320 | 50 |
| 375x375 | 380x380 | 200 | 200 | 320 | 50 |
| 450x450 | 455x455 | 250 | 250 | 370 | 50 |
| 525x525 | 530x530 | 300 | 200 | 400 | 50 |
| 600x600 | 605x605 | 300 | 200 | 400 | 50 |
Price list
Note: painted white RAL 9016 + 20%.
| Dimensions LxH | diffusore EDQ 10 | SC - Volume Damper SC | Lateral Connection | Top Connection | ||
| plenum zincato | PLENUM ISOLATO | plenum zincato | PLENUM ISOLATO | |||
| EPZ-EDQ | EPI-EDQ | EPZ-EDQ | EPI-EDQ | |||
| euro | euro | euro | euro | euro | euro | |
| 150x150 | 73,98 | 13,98 | 36,81 | 49,15 | 30,20 | 41,93 |
| 225x225 | 78,67 | 16,81 | 42,92 | 57,26 | 34,70 | 47,84 |
| 300x300 | 95,56 | 28,62 | 51,84 | 69,02 | 39,97 | 54,72 |
| 375x375 | 118,38 | 35,98 | 69,33 | 92,04 | 55,88 | 72,78 |
| 450x450 | 144,59 | 46,16 | 81,24 | 107,83 | 62,18 | 81,08 |
| 525x525 | 175,11 | 78,28 | 107,25 | 134,73 | 81,62 | 103,95 |
| 600x600 | 203,29 | 78,28 | 137,07 | 169,59 | 97,22 | 121,28 |
