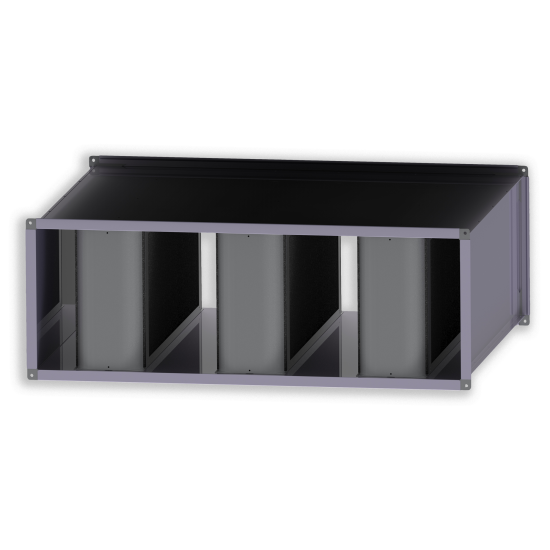

ESRS Rectangular silencers with sound-absorbing splitters
Description
Rectangular silencer with sound-absorbing splitters to control noise in air conditioning, heating and ventilation systems. The splitters, with an aerodynamic profile at the inlet and outlet, allow low pressure drops with excellent attenuation performances.
Characteristics
External structure: 0.8 m thick galvanised steel frame, 30 mm flange for lengths up to 6 m, 40 mm flange for longer lengths. Splitters: sound-absorbing splitters with 0.8 m thick galvanised steel frame, 50 kg/m³ density rock wool with anti-flaking surface and and micro-extended mesh.
Models

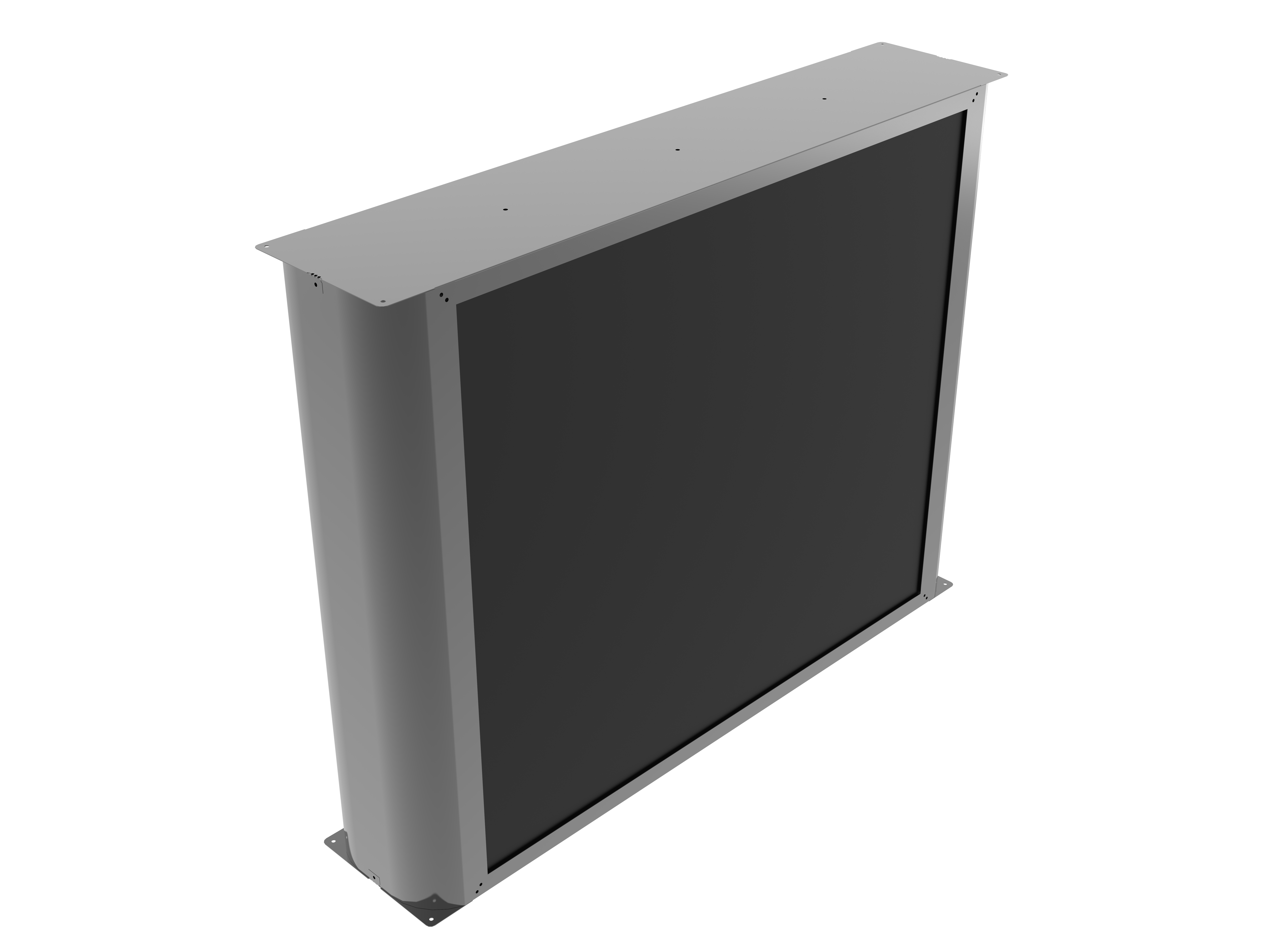

- ESRS-1- Versione standard con spessore setti 200 mm e passaggio aria 100 mm
- ESRS-2- Versione a richiesta con spessore setti 200 mm e passaggio aria 150 mm
On request
AISI 304 or AISI 316 stainless steel version.
Hygienic version with VDI 60/22 certified insulation.
Operating data and Price List ESRS-1

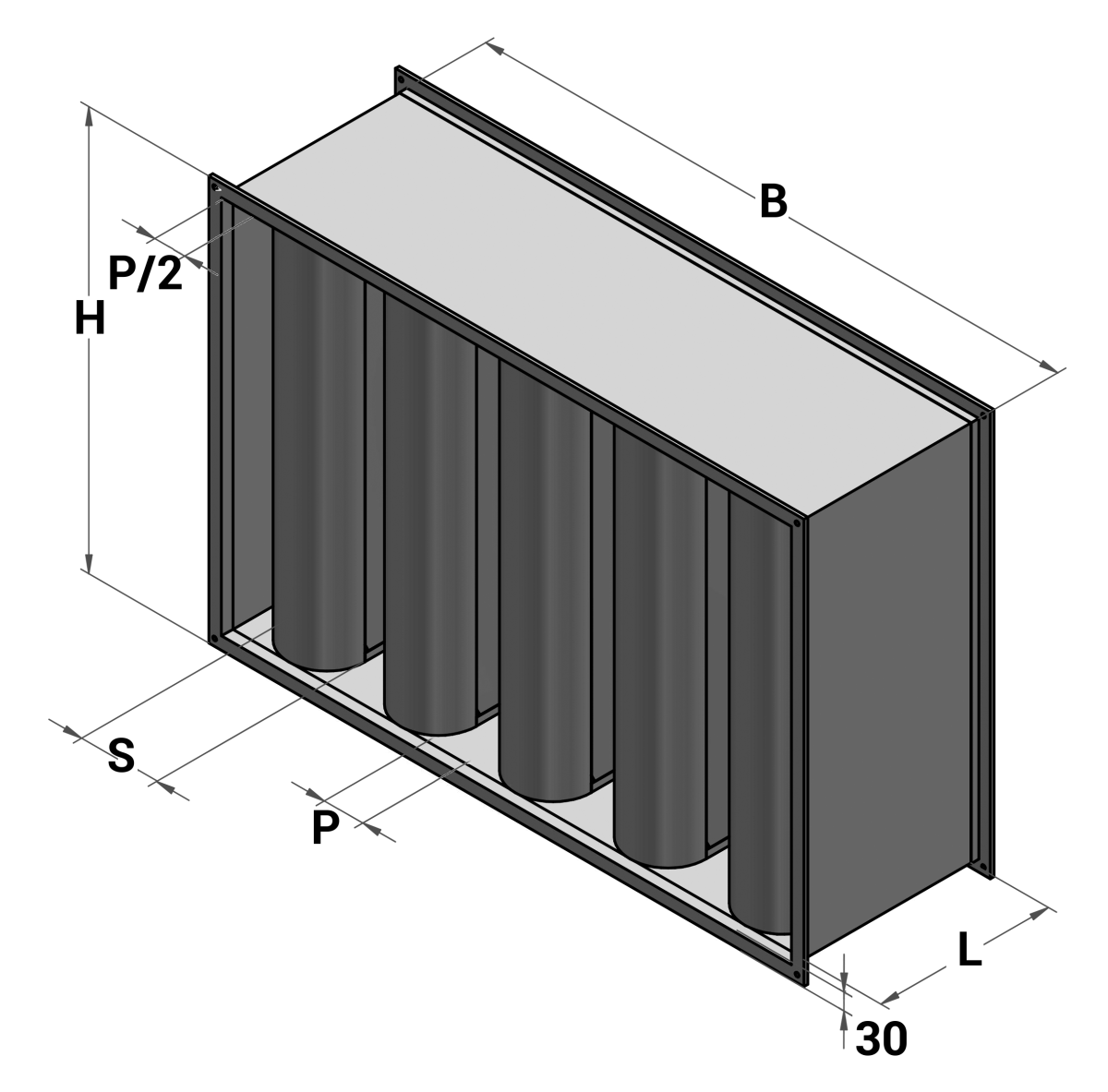

S: splitter thickness 200 mm
P: air passages 100 mm
Pa: pressure drop in Pascal for length 1200 mm.
all dimensions are expressed in mm
Dimensions
BxHFace Area Free Area Nr. of Fins Lenght (mm) Face Velocity (m/s) 2,5 3,5 4 Flow Rate m3/h 600 900 1200 1500 mm mq mq 33 Pa 63 Pa 78 Pa euro euro euro euro 300x300 0,09 0,03 1 810 1135 1300 243,47 311,65 390,32 468,68 300x450 0,135 0,05 1 1215 1705 1945 284,42 378,57 456,93 529,69 300x600 0,18 0,06 1 1620 2270 2595 335,89 429,71 507,75 618,69 600x300 0,18 0,06 2 1620 2270 2595 381,86 492,84 588,09 726,36 600x450 0,27 0,09 2 2430 3405 3890 439,87 558,06 697,69 859,16 600x600 0,36 0,12 2 3240 4540 5185 482,11 644,71 808,80 998,87 600x900 0,54 0,18 2 4860 6805 7780 617,52 831,50 1.049,06 1.286,68 900x300 0,27 0,09 3 2430 3405 3890 504,50 647,77 812,53 1.009,28 900x450 0,405 0,14 3 3645 5105 5835 569,05 761,75 964,96 1.199,76 900x600 0,54 0,18 3 4860 6805 7780 655,06 886,22 1.120,97 1.385,95 900x900 0,81 0,27 3 7290 10210 11665 844,75 1.144,65 1.441,19 1.761,34 900x1050 0,945 0,32 3 8505 11910 13610 956,00 1.286,68 1.609,53 1.963,03 900x1200 1,08 0,36 3 9720 13610 15555 1.050,63 1.412,34 1.764,53 2.149,89 1200x450 0,54 0,18 4 4860 6805 7780 719,69 975,97 1.235,82 1.536,09 1200x600 0,72 0,24 4 6480 9075 10370 829,48 1.131,30 1.430,93 1.765,50 1200x750 0,9 0,3 4 8100 11340 12960 953,37 1.294,79 1.628,68 2.000,13 1200x900 1,08 0,36 4 9720 13610 15555 1.075,56 1.823,83 2.236,54 2.236,54 1200x1050 1,26 0,42 4 11340 15680 18145 1.215,53 1.628,43 2.039,10 2.490,94 1200x1200 1,44 0,48 4 12960 18145 20740 1.336,24 1.784,92 2.233,81 2.733,02 1200x1500 1,8 0,6 4 16200 22680 25920 1.591,18 2.117,98 2.653,39 3.227,84 1500x600 0,9 0,3 5 8100 11340 12960 1.009,55 1.376,10 1.735,12 2.141,83 1500x750 1,125 0,38 5 10125 14175 16200 1.158,50 1.568,92 1.971,23 2.425,75 1500x900 1,35 0,45 5 12150 17010 19440 1.306,08 1.757,30 2.209,08 2.715,80 1500x1200 1,8 0,6 5 16200 22680 25920 1.616,12 2.160,09 2.712,67 3.314,49 1500x1500 2,25 0,75 5 20250 28350 32400 1.922,95 2.566,95 3.214,61 3.911,97 1500x1800 2,7 0,9 5 24300 34020 38880 2.252,60 2.996,12 3.737,36 4.527,23 1800x600 1,08 0,36 6 9720 13610 15555 1.187,97 1.617,06 2.036,68 2.519,98 1800x750 1,35 0,45 6 12150 17010 19440 1.362,29 1.838,61 2.315,50 2.857,52 1800x900 1,62 0,54 6 14580 20415 23330 1.532,80 2.063,63 2.596,01 3.196,37 1800x1200 2,16 0,72 6 19440 27220 31105 1.893,35 2.536,98 3.187,45 3.895,85 1800x1500 2,7 0,9 6 24300 34020 38880 2.256,53 3.017,22 3.775,63 4.592,86 1800x1800 3,24 1,08 6 29160 40825 46660 2.646,64 3.520,43 4.387,67 5.316,45 1800x2100 3,78 1,26 6 34020 47630 54435 3.116,53 4.098,56 5.074,54 6.129,04 2100x900 1,89 0,63 7 17010 23815 27220 1.756,99 2.366,47 2.987,05 3.675,63 2100x1200 2,52 0,84 7 22680 31755 36290 2.173,90 2.917,96 3.662,34 4.476,26 2100x1500 3,15 1,05 7 28350 39690 45360 2.591,26 3.466,19 4.335,91 5.274,89 2100x1800 3,78 1,26 7 34020 47630 54435 3.044,73 4.043,91 5.037,09 6.118,96
Sound Attenuation
Silencer Length Octave Bands (Hz) mm 63 125 250 500 1 K 2 K 4 K 8 K 600 3 4 9 16 20 21 13 7 900 4 6 14 25 31 34 20 11 1200 6 9 19 34 43 46 27 15 1500 7 11 24 43 >50 >50 32 18 1800 9 14 29 >50 >50 >50 36 20 2100 10 16 34 >50 >50 >50 39 22
Pressure Drops and Noise Generated
Face Section Velocity Pressure Drop Generated Noise V (m/s) Dpt Pa Lwa dB(A) 1 5 <20 2 21 32 3 47 44 4 78 52 5 125 57
Weights (Kg)
Dimensions
BxHLenght (mm) 600 900 1200 1500 mm Weight (Kg) Weight (Kg) Weight (Kg) Weight (Kg) 300x300 12 18 24 29 300x450 16 23 29 36 300x600 19 27 36 44 600x300 21 31 40 50 600x450 26 38 49 61 600x600 32 45 59 73 600x900 42 60 78 96 900x300 30 43 57 70 900x450 37 53 69 86 900x600 44 63 82 101 900x900 59 83 107 132 900x1050 65 93 120 147 900x1200 73 102 132 162 1200x450 48 69 89 110 1200x600 57 81 105 129 1200x750 66 93 212 149 1200x900 75 106 117 168 1200x1050 84 118 152 187 1200x1200 93 130 168 206 1200x1500 110 155 200 144 1500x600 69 99 128 158 1500x750 80 114 147 181 1500x900 91 129 166 204 1500x1200 112 158 204 249 1500x1500 134 188 242 195 1500x1800 155 217 279 341 1800x600 82 117 151 186 1800x750 95 134 173 213 1800x900 107 151 195 240 1800x1200 132 186 240 293 1800x1500 158 221 284 347 1800x1800 183 255 328 400 1800x2100 208 290 372 453 2100x900 124 174 225 276 2100x1200 152 214 275 337 2100x1500 181 253 326 398 2100x1800 210 293 376 459
