EDC 1-6 Multidirectional diffusers with curved blades

Description

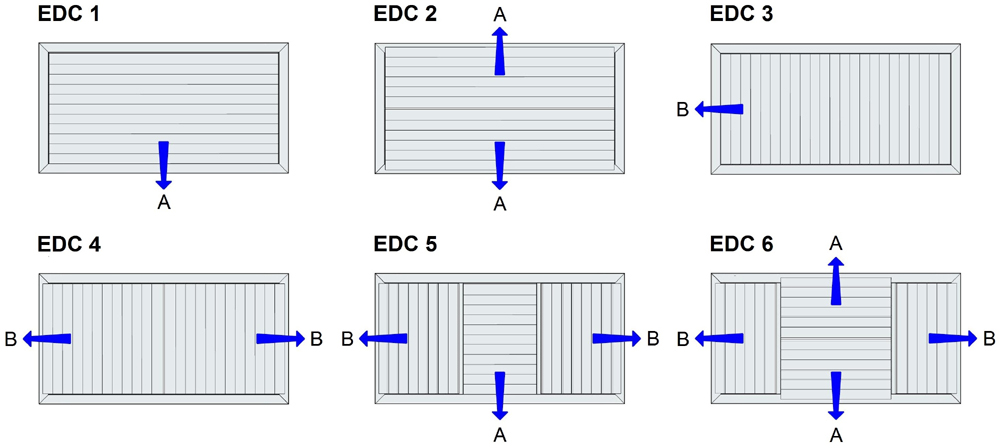

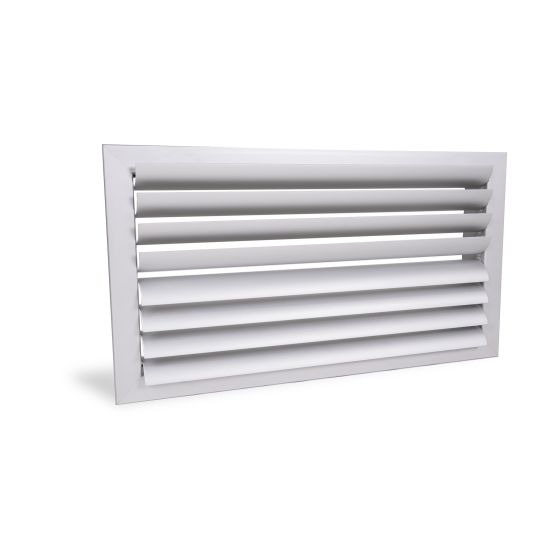

Aluminium diffusers with special, individually adjustable curved blades. 1, 2, 3 and 4-way possible.

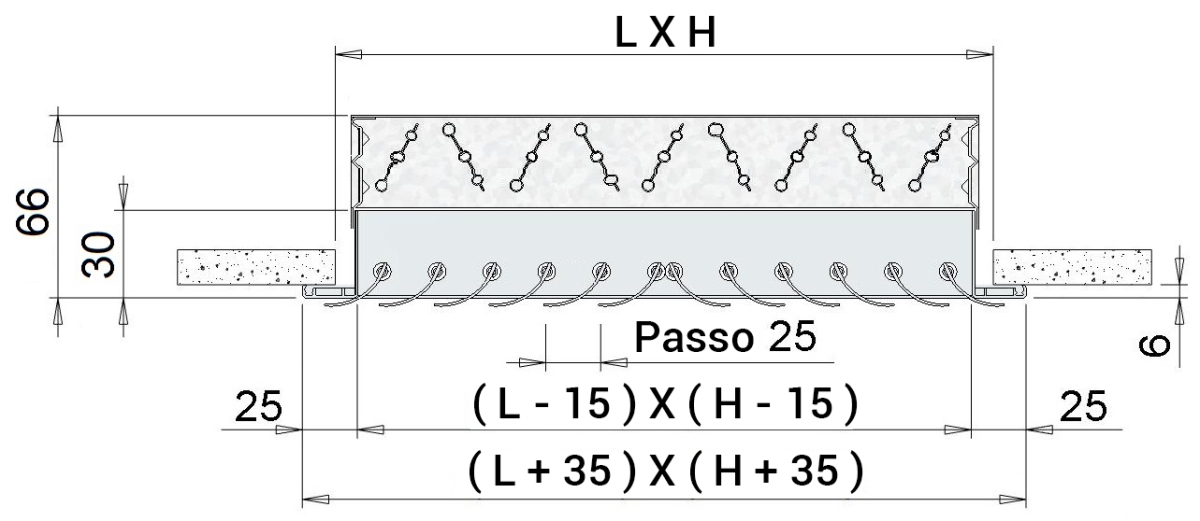

Characteristics

Material: aluminium.

Finish: natural anodised.

Standard installation: with clips (installation of the counter-frame recommended).

On request: holes for screws on the diffuser frame.

Use

Diffuser suitable for systems with low ceilings or where it is necessary to exploit the coanda effect (ceiling effect). It is also possible to adjust the air throw direction.

Accessories

EPZ galvanised plenum box;
EPI insulated plenum box;
SC volume damper with opposite blades;

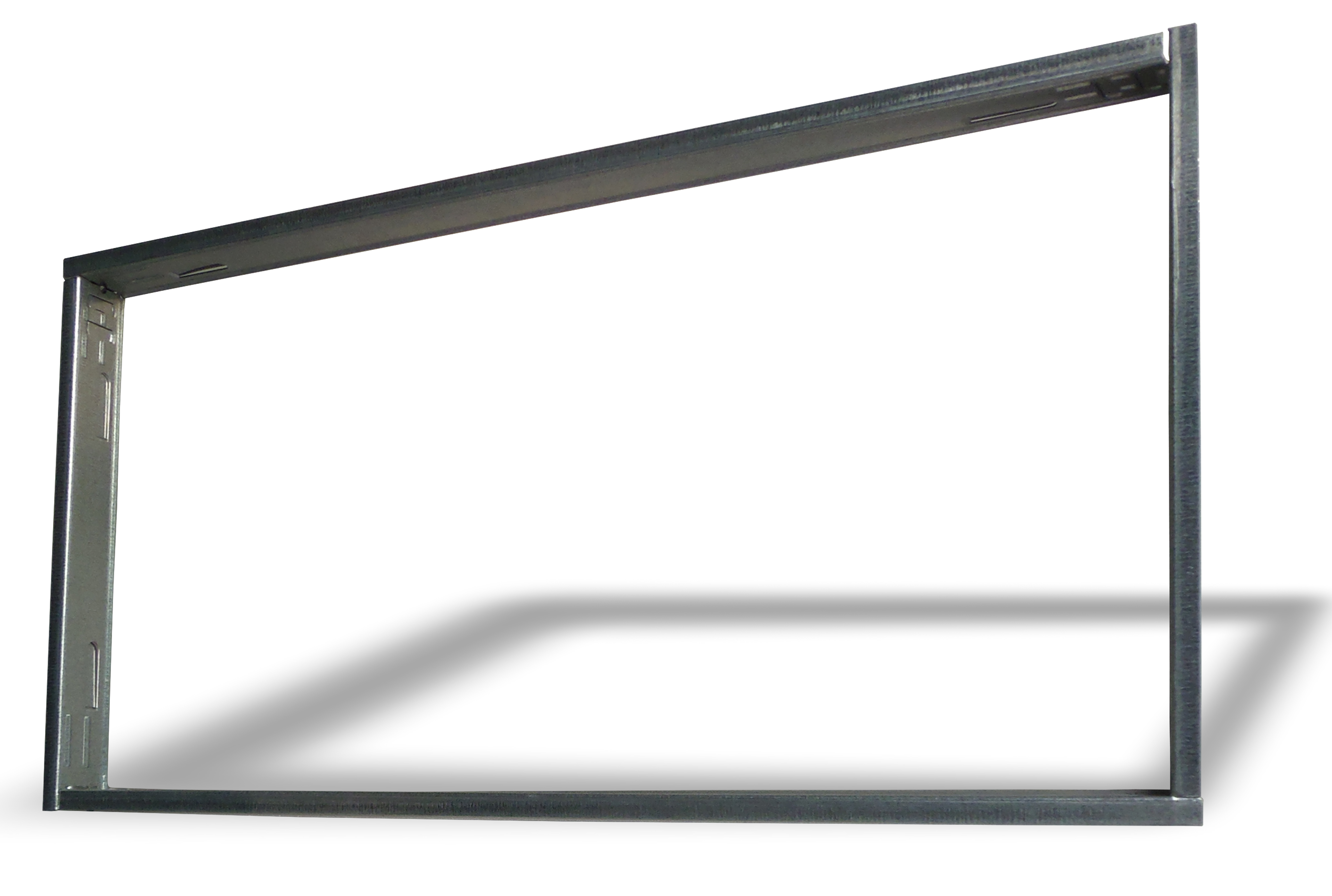

CT galvanised steel mounting-frame.

Operating Data

Vk: effective speed (m/s).
m³/h: flow rate.
Pa: pressure drops in Pascal.
L(m): horizontal air-throw in metres calculated on ceiling installation, terminal velocity 0.25 m/s.
dB(A): noise level.

Dimensions LxH	Effective Cross-Section (m2)	Vk (m/s)	3	5	7	Dimensions LxH	Effective Cross-Section (m2)	Vk (m/s)	3	5	7
200x100	0,0074	m³/h	80	133	187	400x200	0,0269	m³/h	290	483	677
		L(m)	2	3,5	5,3			L(m)	2,4	3,5	6,5
		Pa	7	17	30			Pa	7	20	39
		dB(A)	<20	24	32			dB(A)	<20	33	40
300x100	0,0111	m³/h	120	200	280	500x200	0,0324	m³/h	350	583	817
		L(m)	1,8	3,7	5			L(m)	2,5	4,3	6,8
		Pa	6	17	30			Pa	7	27	33
		dB(A)	<20	27	34			dB(A)	<20	32	39
400x100	0,0148	m³/h	160	267	373	600x200	0,0417	m³/h	450	750	1050
		L(m)	2,5	4	6			L(m)	2,5	5	7
		Pa	6	20	30			Pa	10	20	40
		dB(A)	<20	29	35			dB(A)	22	34	43
500x100	0,0185	m³/h	200	333	467	300x300	0,0324	m³/h	350	583	817
		L(m)	2,3	4	5,8			L(m)	2,5	4,3	6,8
		Pa	7	17	32			Pa	7	27	33
		dB(A)	<20	28	37			dB(A)	<20	32	39
600x100	0,0213	m³/h	230	383	537	400x300	0,0417	m³/h	450	750	1050
		L(m)	2,3	4	6			L(m)	2,5	5	7
		Pa	6	17	30			Pa	10	20	40
		dB(A)	<20	28	37			dB(A)	22	34	43
300x150	0,0167	m³/h	180	300	420	500x300	0,0546	m³/h	590	983	1377
		L(m)	2,3	4	6			L(m)	2,7	4,8	6,5
		Pa	6	17	35			Pa	7	20	32
		dB(A)	<20	28	37			dB(A)	25	35	42
400x150	0,0213	m³/h	230	383	537	600x300	0,0630	m³/h	680	1133	1587
		L(m)	2,3	4	6			L(m)	2,4	4,3	6,7
		Pa	6	17	30			Pa	6	17	28
		dB(A)	<20	28	37			dB(A)	22	33	41
500x150	0,0269	m³/h	290	483	677	400x400	0,0546	m³/h	590	983	1377
		L(m)	2,4	3,5	6,5			L(m)	2,7	4,8	6,5
		Pa	7	20	39			Pa	7	20	32
		dB(A)	<20	33	40			dB(A)	25	35	42
600x150	0,0324	m³/h	350	583	817	500x500	0,0880	m³/h	950	1583	2217
		L(m)	2,5	4,3	6,8			L(m)	2,8	5	7,2
		Pa	7	27	33			Pa	6	17	30
		dB(A)	<20	32	39			dB(A)	24	34	43
300x200	0,0213	m³/h	230	383	537	600x600	0,1259	m³/h	1360	2267	3173
		L(m)	2,3	4	6			L(m)	2,5	5,5	8
		Pa	6	17	30			Pa	5	20	30
		dB(A)	<20	28	37			dB(A)	23	39	44

SC - Volume Damper

Galvanised steel volume damper with opposite blades.

CT - Mounting-frame

Plenum Box

Models L1xH1	Top Connection			Lateral Connection			E	F	Models L1xH1	Top Connection			Lateral Connection			E	F
Models L1xH1	P1	Nr. Connections	Ø d	P2	Nr. Connections	Ø d	E	F	Models L1xH1	P1	Nr. Connections	Ø d	P2	Nr. Connections	Ø d	E	F
200x100	200	1	98	200	1	98	80	12	400x200	200	1	198	300	1	198	80	12
300x100	200	1	98	200	1	98	80	12	500x200	200	1	198	300	1	198	80	12
400x100	200	2	98	200	2	98	80	12	600x200	200	2	198	300	2	198	80	12
500x100	200	2	98	200	2	98	80	12	300x300	200	1	248	350	1	248	80	12
600x100	200	2	98	200	2	98	80	12	400x300	200	1	248	350	1	248	80	12
300x150	200	1	148	250	1	148	80	12	500x300	200	1	248	350	1	248	80	12
400x150	200	1	148	250	1	148	80	12	600x300	200	2	198	350	2	248	80	12
500x150	200	2	148	250	2	148	80	12	400x400	200	1	298	400	1	298	80	12
600x150	200	2	148	250	2	148	80	12	500x500	200	2	248	400	2	248	80	12
300x200	200	1	198	300	1	198	80	12	600x600	200	2	298	400	2	298	80	12

Price List

Note: painted white RAL 9016 + 20%.

Dimensions L1xH1	EDC1	EDC2	EDC3	EDC4	EDC5	EDC6	SC - Volume Damper	CT - Mounting-frame
	Eur	Eur	Eur	Eur	Eur	Eur	Eur	Eur
200x100	32,18	32,18	35,15	35,15	-	-	14,15	15,12
300x100	34,02	34,02	36,99	36,99	-	-	15,41	15,12
400x100	36,76	36,76	42,47	42,47	-	-	18,44	16,79
500x100	39,54	39,54	43,46	43,46	-	-	22,01	18,47
600x100	42,30	42,30	46,22	46,22	-	-	25,18	20,19
300x150	47,81	47,81	51,80	51,80	-	-	18,06	16,79
400x150	50,55	50,55	55,49	55,49	-	-	21,28	18,47
500x150	53,32	53,32	58,28	58,28	-	-	24,64	22,16
600x150	54,26	54,26	60,11	60,11	-	-	28,08	24,19
300x200	50,55	50,55	55,18	55,18	75,85	75,85	23,98	18,47
400x200	54,26	54,26	60,11	60,11	81,37	81,37	26,32	21,35
500x200	60,67	60,67	66,58	66,58	91,04	91,04	30,92	24,19
600x200	66,20	66,20	72,61	72,61	99,34	99,34	35,62	25,91
300x300	69,88	69,88	78,60	78,60	104,83	104,83	29,76	22,16
400x300	75,39	75,39	83,21	83,21	113,08	113,08	36,84	25,91
500x300	81,83	81,83	89,72	89,72	122,75	122,75	40,56	29,57
600x300	89,20	89,20	97,88	98,36	133,81	133,81	44,34	31,31
400x400	100,55	100,55	110,33	110,33	154,41	154,41	42,19	29,57
500x500	136,39	136,39	148,65	148,65	204,62	204,62	65,57	36,97
600x600	178,52	178,52	196,67	196,67	270,10	270,10	81,41	44,03

Accessories

Models L1 x H1	Plenum box with Top Connection		Plenum box with Lateral Connection		Models L1 x H1	Plenum box with Top Connection		Plenum box with Lateral Connection
Models L1 x H1	EPZ - Plenum Box	EPI - Insulated Plenum Box	EPZ - Plenum Box	EPI - Insulated Plenum Box	Models L1 x H1	EPZ - Plenum Box	EPI - Insulated Plenum Box	EPZ - Plenum Box	EPI - Insulated Plenum Box
200x100	31,29	43,48	31,29	43,48	400x200	41,72	57,15	47,32	64,67
300x100	33,85	46,96	33,85	46,96	500x200	44,76	61,27	51,31	69,98
400x100	36,45	59,19	44,84	59,19	600x200	59,03	81,21	74,86	95,68
500x100	47,43	62,67	47,43	62,67	300x300	42,85	58,39	51,24	69,74
600x100	41,64	66,14	50,03	66,14	400x300	57,55	74,78	67,34	87,92
300x150	35,77	49,96	38,37	52,83	500x300	61,07	79,49	72,22	94,52
400x150	39,08	53,83	41,64	57,27	600x300	72,30	92,24	80,69	103,51
500x150	50,32	66,30	53,35	70,38	400x400	62,15	80,81	77,05	100,84
600x150	44,72	70,06	56,63	74,78	500x500	86,73	114,62	105,31	139,60
300x200	38,65	53,03	43,37	59,35	600x600	115,62	150,39	137,88	180,33
