EDE-FB Fixed Geometry Swirl Diffuser
Description
High induction swirl diffusers on 600x600 square panel with fixed curved deflectors.
Characteristics
Material: steel.
Finish: painted white RAL 9016.
Installation: with lateral or central screws on plenum mounting bridge.
Use
Diffuser suitable for installation heights between 2.6 and 4 m.
Accessories
- EPZ-EDE-FB galvanised plenum box with damper and mounting bridge;
- EPI-EDE-FB insulated plenum box with damper and mounting bridge;
- Screw and cap.
Dimensions
All dimensions are expressed in mm.
Models L x H Ø D C1 300 / 598 598x598 90 260 400 / 598 598x598 117 337 500 / 598 598x598 153 440 600 / 598 598x598 178 537
Operating Data
- Vk: effective speed (m/s).
- m³/h: flow rate.
- Pa: pressure drops in Pascal.
- L(m): air throw in metres calculated on ceiling installation, terminal velocity 0.25 m/s.
- dB(A): noise level.
| Models | Effective Section | Vk | 2 | 3 | 4 | 5 | 6 | 7 |
| m² | ||||||||
| 300 / 598 | 0,0102 | m³/h | 74 | 110 | 147 | 184 | 220 | 257 |
| Pa | 4 | 9 | 16 | 25 | 36 | 49 | ||
| L(m) | 1,2 | 1,7 | 2,3 | 2,9 | 3,4 | 4,0 | ||
| dB(A) | <20 | 22 | 24 | 28 | 34 | 37 | ||
| 400 / 598 | 0,0175 | m³/h | 126 | 189 | 252 | 315 | 378 | 441 |
| Pa | 4 | 9 | 16 | 26 | 37 | 51 | ||
| L(m) | 1,5 | 2,3 | 3,0 | 3,8 | 4,5 | 5,3 | ||
| dB(A) | <20 | <20 | 24 | 28 | 34 | 40 | ||
| 500 / 598 | 0,0266 | m³/h | 192 | 287 | 383 | 479 | 574 | 670 |
| Pa | 4 | 9 | 17 | 26 | 38 | 52 | ||
| L(m) | 1,9 | 2,8 | 3,7 | 4,6 | 5,6 | 6,5 | ||
| dB(A) | <20 | 22 | 30 | 42 | 44 | 47 | ||
| 600 / 598 | 0,0374 | m³/h | 269 | 404 | 538 | 673 | 808 | 942 |
| Pa | 4 | 10 | 17 | 27 | 39 | 53 | ||
| L(m) | 2,2 | 3,3 | 4,4 | 5,5 | 6,6 | 7,7 | ||
| dB(A) | <20 | 22 | 30 | 37 | 42 | 45 |

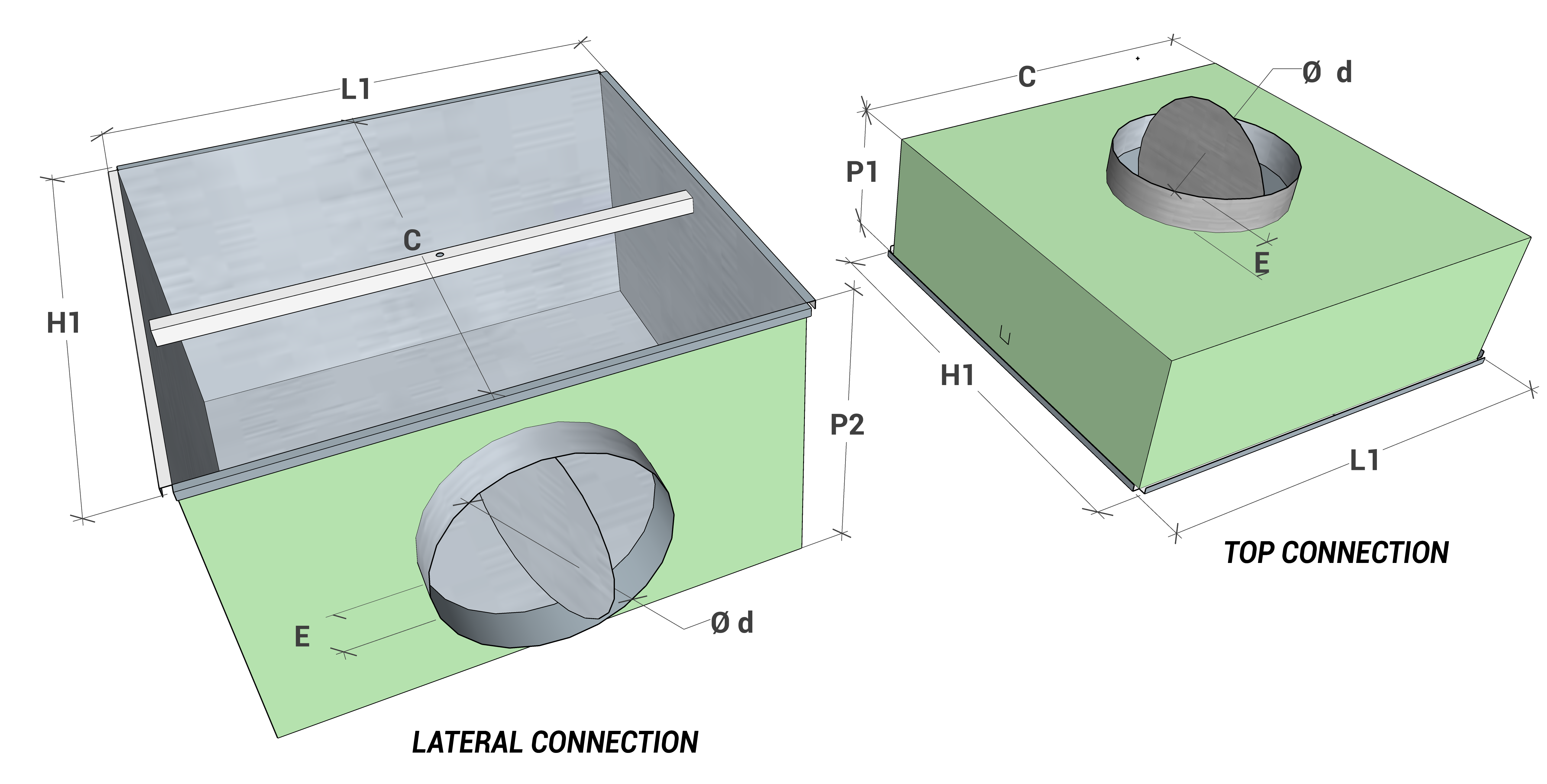

Plenum Dimension
All dimensions are expressed in mm.
Plenum Box Compatible Diffuser Overall Dimensions L1 x H1 (mm) Ø d P1 P2 〼 C E 300 EDE-FB 300 / 598 292x292 146 200 250 260 50 400 EDE-FB 400 / 598 392x392 198 200 300 360 50 500 EDE-FB 500 / 598 492x492 198 200 300 460 50 600 EDE-FB 300 / 598 592x592 248 200 350 560 50 EDE-FB 400 / 598 EDE-FB 500 / 598 EDE-FB 600 / 598
Price List
Price List for Plenum with Lateral Connection
For plenum with top connection, price on request.
