EDE1 - EDE1R High Induction Swirl Diffuser
Description

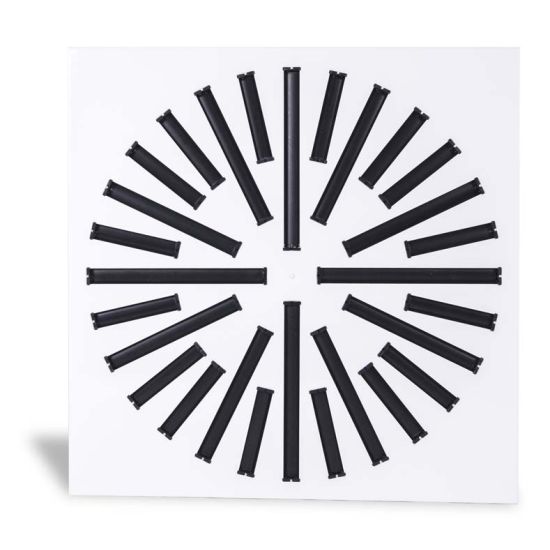

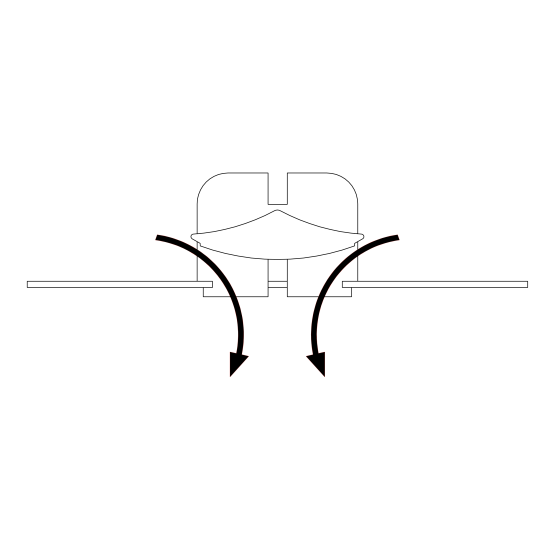

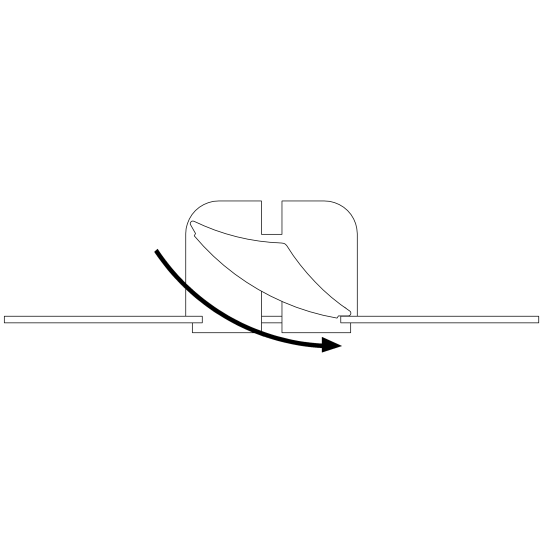

EDE1 - High induction swirl diffusers with adjustable deflectors on square panel.
EDE1R - High induction swirl diffusers with adjustable deflectors on circular panel.
Features
Material: galvanized steel panel and ABS deflectors.
Finish:
- white RAL 9016 painted panel;
- black ABS deflectors.
Installation on plenum box with lateral non-visible screws or with mounting bridge and central hole on the diffuser (screw and cap for installation with fixing bracket supplied with the diffuser).
Use
Accessories

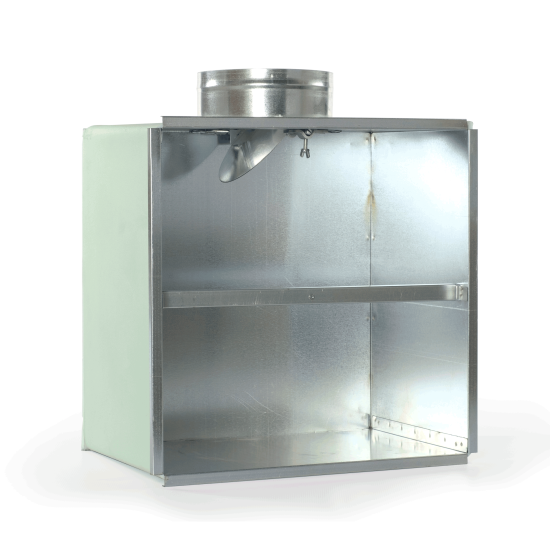

- EPZ-EDE galvanized steel plenum box with damper and mounting bridge;
- EPZ-EDE-EQ galvanized steel plenum box with damper, equalizer and mounting bridge;
- EPI-EDE insulated plenum box with damper and mounting bridge;
- EPI-EDE-EQ insulated plenum box with damper, equalizer and mounting bridge.
Special executions
Notes
The plenum boxes available on stock are insulated, with damper, lateral connection and mounting bridge.

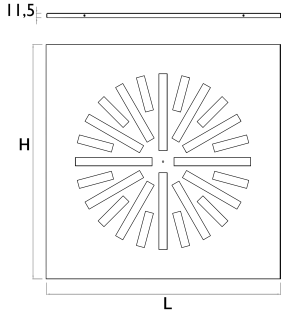

Diffuser Dimensions
Models EDE1 L x H (mm) 300 295x295 400 395x395 500 495x495 600 595x595 625 620x620 800 795x795
Operating Data
Vk: effective speed (m/s)
m³/h: flow rate
Pa: pressure drops in Pascal
L(m): air throw in metres calculated on ceiling installation, terminal velocity 0.25 m/s
dB(A): noise level
Models 2 x digital output (6 terminalas, wire min. 0.5 mm² to max. 1.5 mm²) – NO/NC relays (125 V AC – 60 W) Vk 2 3 4 5 6 3 terminals x max. 1.5 mm² m² 300 0,0081 m³/h 60 90 120 145 175 8 Pa 5 11 20 32 47 L(m) 0,9 1,3 1,7 2,2 2,9 400 0,0164 m³/h 120 175 235 295 355 12 Pa 5 11 20 32 47 L(m) 1,1 1,6 2,1 2,7 3,3 500 0,0354 m³/h 255 380 510 635 765 24 Pa 5 12 21 33 48 L(m) 1,6 2,4 3,1 3,9 4,8 600 0,0506 m³/h 365 545 730 910 1090 28 Pa 5 12 21 33 48 L(m) 1,9 2,8 3,7 4,7 5,6 625 0,0506 m³/h 365 545 730 910 1090 28 Pa 5 12 21 33 48 L(m) 1,9 2,8 3,7 4,7 5,6 800 0,0787 m³/h 565 850 1135 1415 1700 28 Pa 5 12 21 33 48 L(m) 2,4 3,6 4,8 5,9 7,2 Noise Level dB(A) 20 25 30 35 40

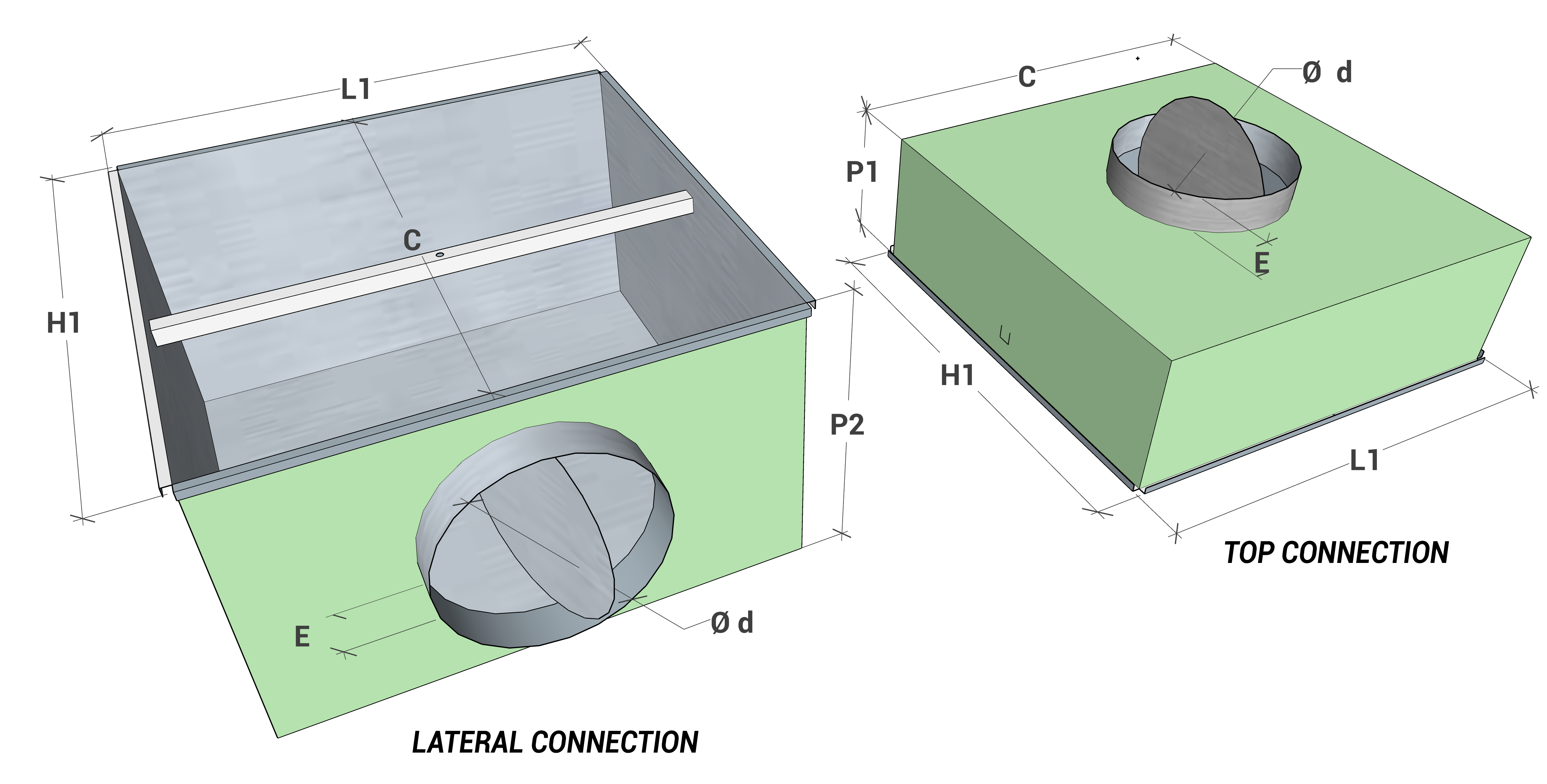

Plenum Box Dimensions
All dimensions are expressed in mm
Plenum Box Compatible Diffuser Overall dimensions L1 × H1 Ø d P1 P2 〼 C E 300 EDE1 300 292x292 146 200 250 260 50 EDE1 300/600 400 EDE1 400 392x392 198 200 300 360 50 EDE1 400/600 500 EDE1 500 492x492 198 200 300 460 50 EDE1 500/600 600 EDE1 600 592x592 248 200 350 560 50 EDE1 300/600 EDE1 400/600 EDE1 500/600 625 EDE1 625 617x617 248 200 350 585 50 800 EDE1 800 792x792 298 250 400 760 50
Price List
Price of EDE1R on request
| Models | 300 | 400 | 500 | 600 | 625 | 800 |
| euro | euro | euro | euro | euro | euro | |
| EDE1 | 41,62 | 46,99 | 68,48 | 71,77 | 116,48 | 188,52 |
Price List for Plenum Box with Lateral Connection
For plenum box with top connection, prices on request
For EDE1R plenum box, prices on request
Models Description 300 400 500 600 625 800 euro euro euro euro euro euro EPZ-EDE Galvanised plenum box with damper and mounting bridge 76,51 91,25 106,02 124,93 156,25 209,28 EPZ-EDE-EQ Galvanised steel plenum box with damper, equalizer and mounting bridge 88,69 104,49 125,32 155,56 188,76 258,93 EPI-EDE Insulated plenum box with damper and mounting bridge 90,23 110,52 130,16 153,14 194,91 262,39 EPI-EDE-EQ Insulated plenum box with damper, equalizer and mounting bridge 102,87 124,59 150,18 184,96 225,69 312,04
