EDE2S High Induction Swirl Diffuser
Description
Features

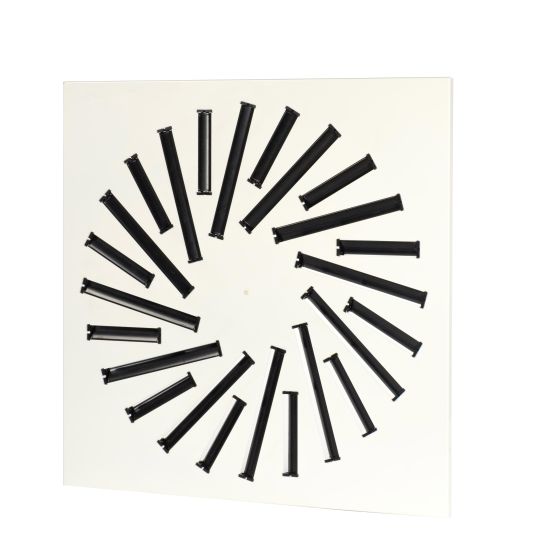

Material: galvanized steel panel and ABS deflectors.
Finish:
- white RAL 9016 painted panel;
- black ABS deflectors.
Installation on plenum box with lateral non-visible screws or with mounting bridge and central hole on the diffuser (screw and cap for installation with fixing bracket supplied with the diffuser).

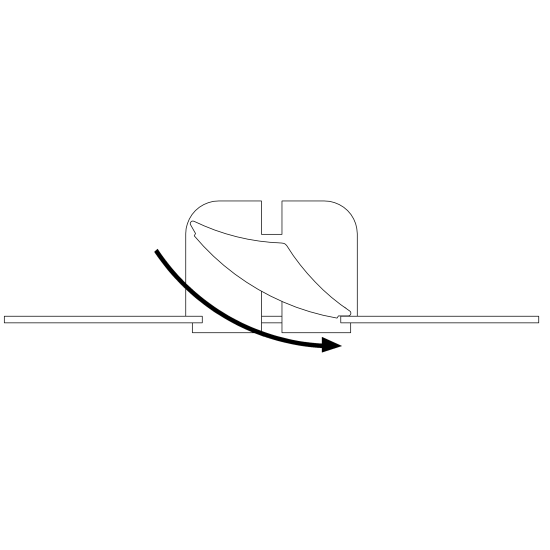

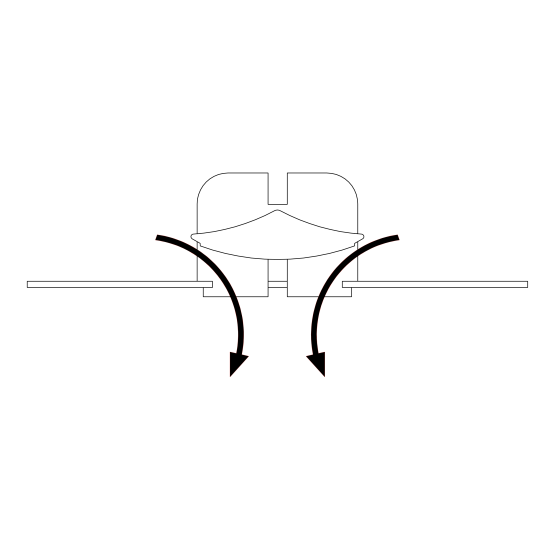

Use
Accessories

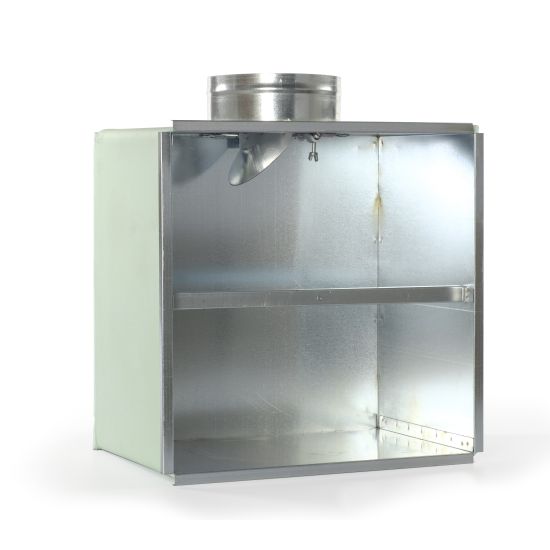

- EPZ-EDE galvanized steel plenum box with damper and mounting bridge;
- EPZ-EDE-EQ galvanized steel plenum box with damper, equalizer and mounting bridge;
- EPI-EDE insulated plenum box with damper and mounting bridge;
- EPI-EDE-EQ insulated plenum box with damper, equalizer and mounting bridge.
Special executions
Notes

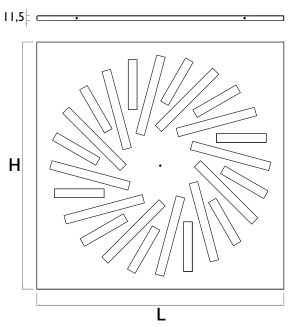

Diffuser Dimensions
Technical Drawing Model EDE2S L x H (mm)
600x600 595x595
Operating Data
- Vk: effective speed (m/s).
- m³/h: flow rate.
- Pa: pressure drops in Pascal.
- L(m): air throw in metres calculated on ceiling installation, terminal velocity 0.25 m/s.
- dB(A): noise level.
| Model | Effective Section | Vk | 2 | 3 | 4 | 5 | 6 | Number of Deflectors |
| m² | ||||||||
| 600 | 0,0431 | m³/h | 310 | 465 | 620 | 775 | 930 | 24 |
| Pa | 3 | 7 | 14 | 24 | 38 | |||
| L(m) | 1,8 | 2,6 | 3,5 | 4,4 | 5,3 | |||
| Noise Level | dB(A) | 20 | 25 | 30 | 35 | 40 | ||

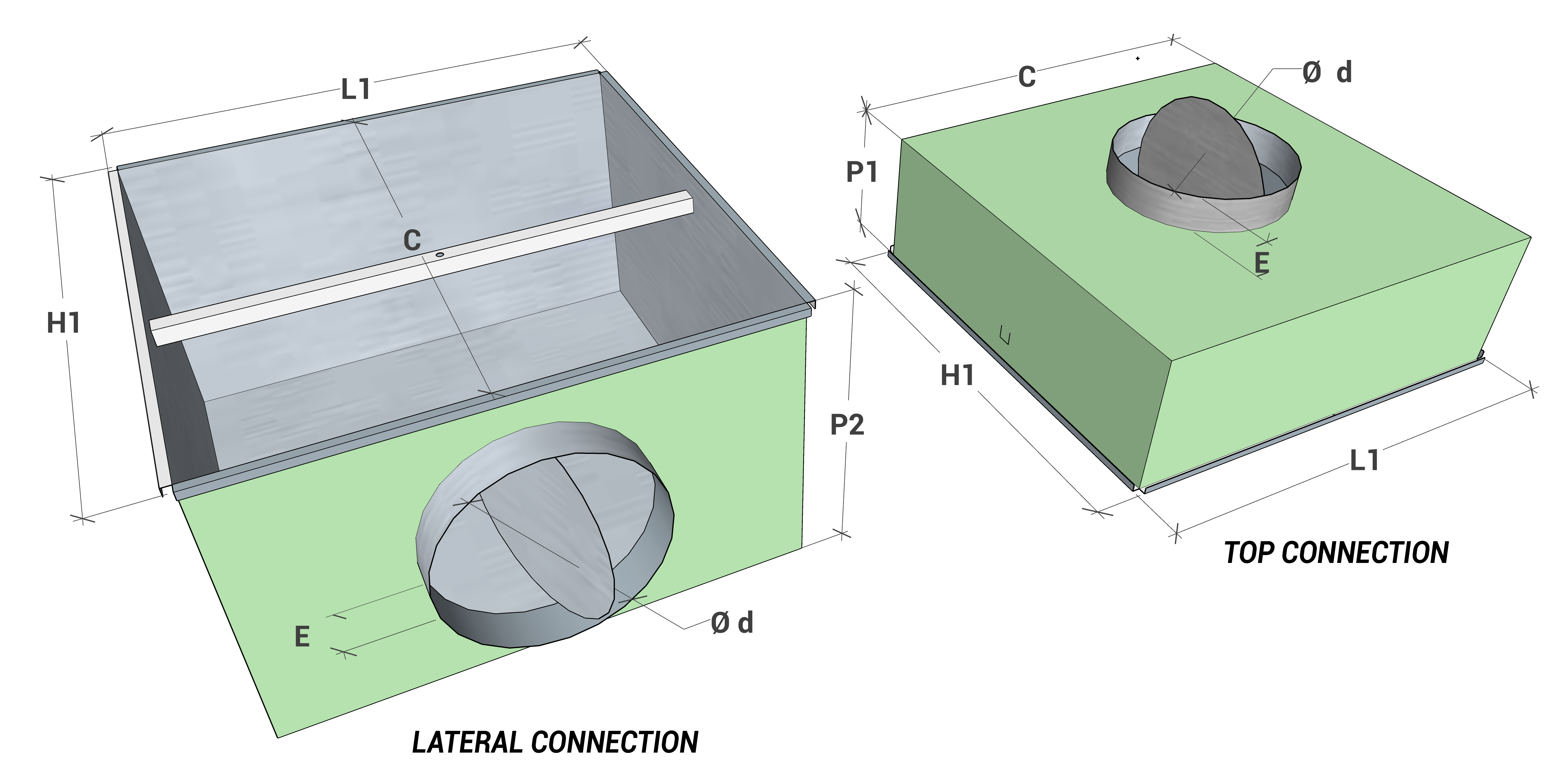

Plenum Box Dimensions
All dimensions are expressed in mm.
Model Overall Dimensions L1 x H1 (mm) Ø d P1 P2 〼 C E 600 592x592 248 200 350 560 50
Price List
Model 600 € EDE2S 131,88
Price List for Plenum Box with Lateral Connection
For plenum box with top connection, price on request.
Model Description 600 € EPZ-EDE Galvanised plenum box with damper and mounting bridge 129,93 EPZ-EDE-EQ Galvanised steel plenum box with damper, equalizer and mounting bridge 161,78 EPI-EDE Insulated plenum box with damper and mounting bridge 159,27 EPI-EDE-EQ Insulated plenum box with damper, equalizer and mounting bridge 192,36
