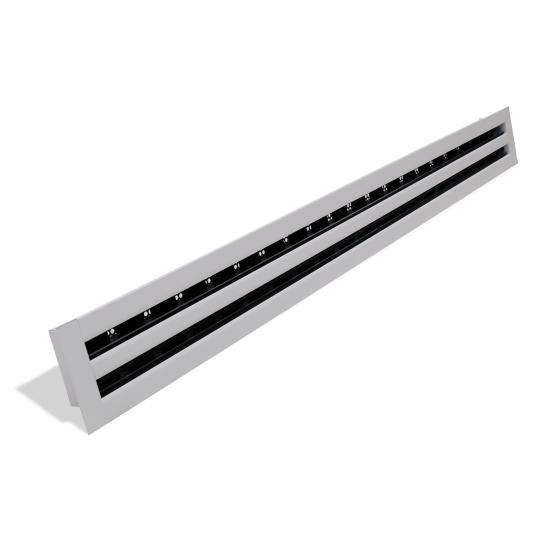

EDFL EDFLB Linear slot diffusers with deflectors
Description
Linear slot diffuser with aerodynamic aluminium profile and adjustable deflectors for optimal air throw control. Also available with equalizer and sliding regulation damper.
Characteristics
Material: aluminium.
EDFL finish: natural anodised aluminium frame and black painted aluminium deflectors.
EDFLB finish: white RAL 9016 painted aluminium frame and deflector.
Slots: from 1 to 4 in standard version, 5 or 6 on request.
Installation: directly on duct or on plenum box with mounting bridge.
Possible dimensions in one single piece:
- minimum length 300 mm;
- maximum length 2000 mm.
Continues lines possible with continues line kit.
Use
Diffuser suitable for both air supply and exhaust in large rooms. Its modularity allows for great freedom of design.
Models
- EDFL-10 return diffusers (without deflectors).
- EDFL-20 supply diffusers with black deflectors.
- EDFLB-20 white RAL9016 supply diffusers with white deflectors.
- EDFL-30 return diffusers with damper.
- EDFL-40 supply diffusers with black deflectors and sliding damper.
- EDFLB-40 white RAL9016 supply diffusers with white deflectors and sliding damper.
- EDFL-50 supply diffusers with black deflectors, equaliser and sliding damper. EDFLB-50 white RAL9016 supply diffusers with white deflectors, equaliser and sliding damper.
Accessories
- EPZ-EDFL - Galvanised plenum box;
- EPI-EDFL - Insulated plenum box;
- EDFL-90° - Corner connection;
- Mounting bridges;
- Continues line kit.

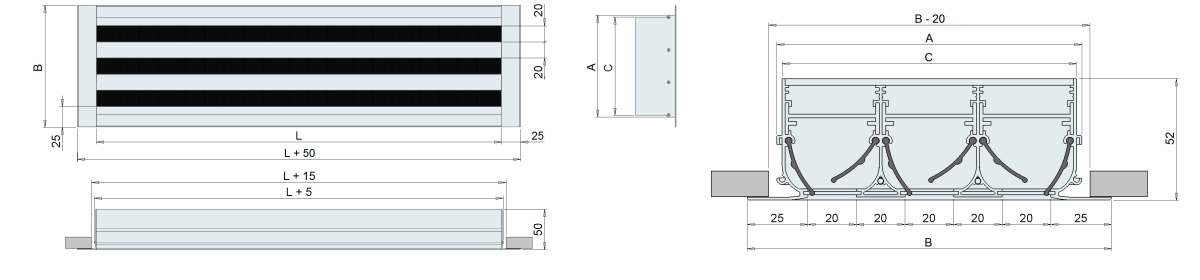

Linear Diffuser dimensions
All dimensions are expressed in mm.
Nr. Slots L A B C Nr. of Mounting Bridges 1 Slot 600 46 70 41 2 800 2 1000 2 1200 2 1500 2 2000 2 2 Slot 600 86 110 81 2 800 2 1000 2 1200 2 1500 2 2000 2 3 Slot 600 126 150 121 2 800 2 1000 2 1200 2 1500 2 2000 3 4 Slot 600 166 190 161 2 800 2 1000 2 1200 2 1500 2 2000 3
Operating Data
Data referring to 1m long diffusers, with a terminal throw velocity Vt=0.25 m/s and with a temperature differential of 10/12°C, in ceiling installations and with lateral air throw.
Data referring to diffusers without damper or with open sliding damper.
Data referring to diffusers with deflectors in the working position with a 50% reduction of the air passage surface.
The position of the deflectors reduces the effective cross-section. When the deflectors are fully open or when the diffuser is used for air exhaust, the flow rates expressed in m³/h indicated in the table may be higher.
- Vk: effective speed (m/s).
- m³/h: flow rate.
- Pa: pressure drops in Pascal.
- L(m): air throw in metres calculated on ceiling installation, terminal velocity 0.25 m/s.
- dB(A): noise level.
| Nr. Slots | Effective Cross-Section (m2) | Air-volume and Air-throw | ||||||
| 1 Slot | 0,0097 | m³/h | 70 | 105 | 140 | 175 | 210 | 245 |
| L(m) | 1.8 | 2.7 | 3.6 | 4.5 | 5.4 | 6.3 | ||
| 2 Slot | 0,0194 | m3/h | 140 | 210 | 280 | 350 | 420 | 490 |
| L(m) | 2.5 | 3.8 | 5 | 6.3 | 7.5 | 8.8 | ||
| 3 Slot | 0,0291 | m³/h | 210 | 315 | 420 | 525 | 630 | 735 |
| L(m) | 3 | 4.7 | 6 | 7.8 | 9.3 | 11 | ||
| 4 Slot | 0,0388 | m3/h | 280 | 420 | 560 | 700 | 840 | 980 |
| L(m) | 3.5 | 5.4 | 7 | 9 | 11 | 12.6 | ||
| Vk | m/s | 2 | 3 | 4 | 5 | 6 | 7 | |
| Pressure Drop | Pa | 8 | 15 | 26 | 40 | 55 | 70 | |
| Noise Level | dB(A) | <20 | 22 | 32 | 37 | 44 | 48 | |

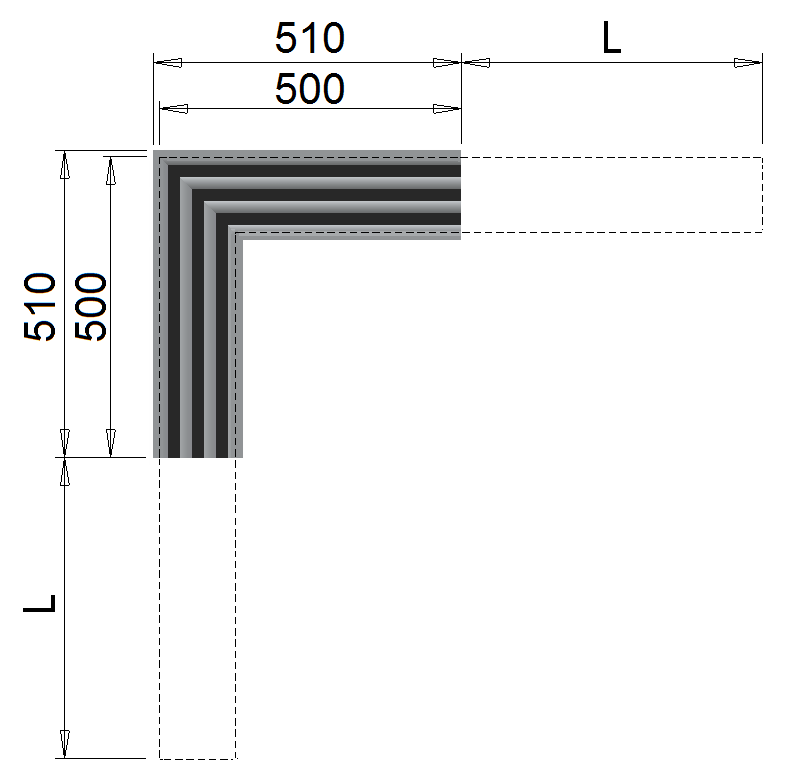

Corner Connection
Aesthetic connecting element between the two linear diffuser lines with a 90° angle and 500 mm length on each side. It has no ventilation features.
All measurements are expressed in mm.

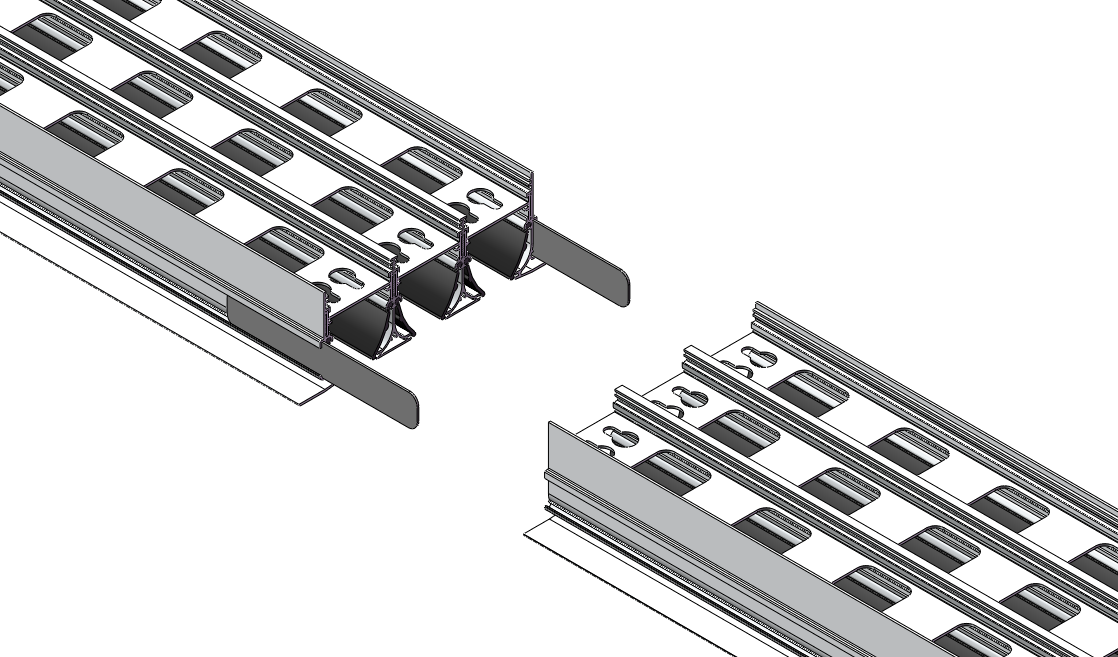

Continues Line Kit
The continuity kit is an accessory required to create continuous lines of linear diffusers longer than 2 metres. It is made up of two junction plates that allow for the alignment and connection of two components of the line.

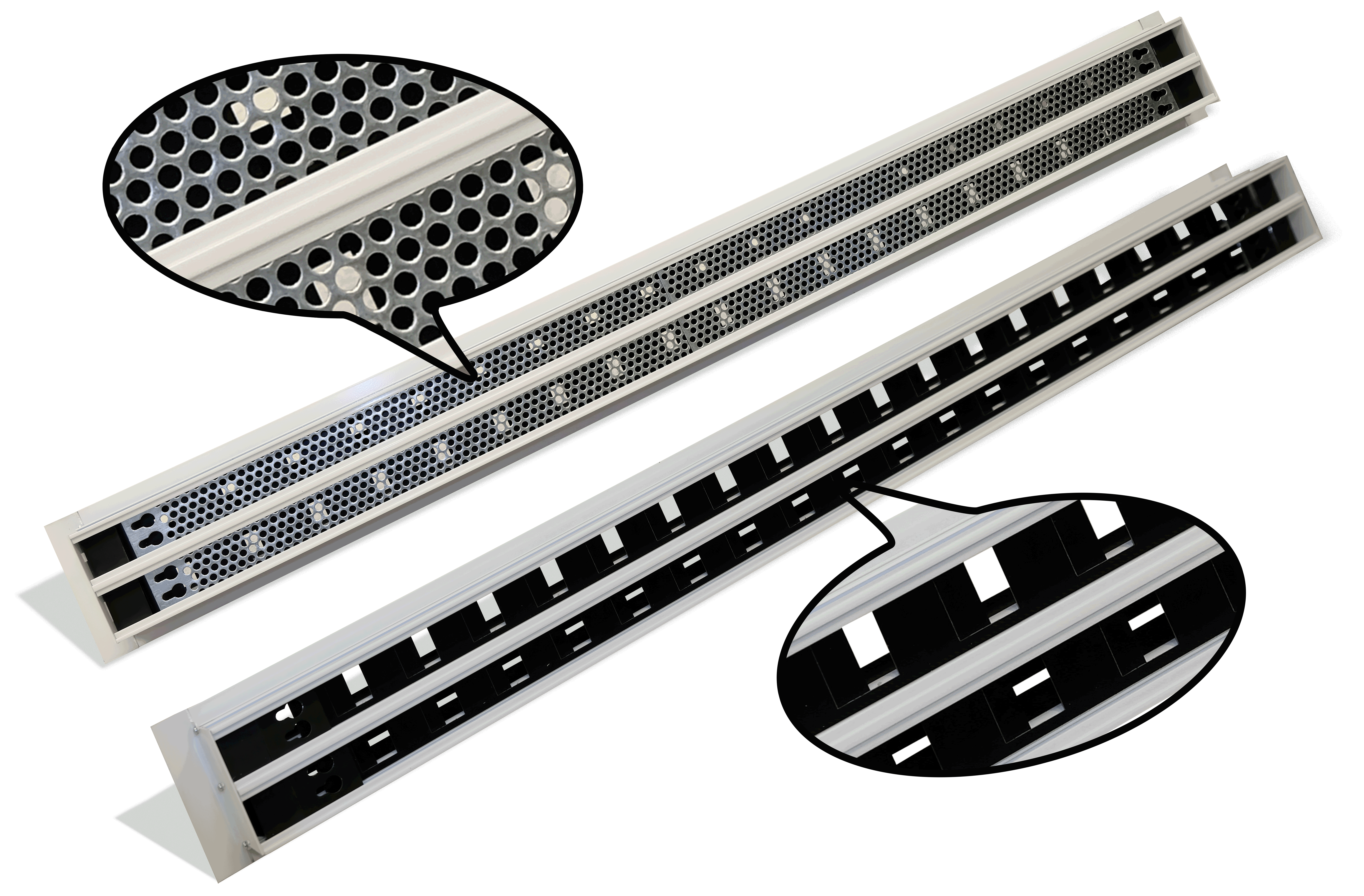

Equalizer and Sliding Damper

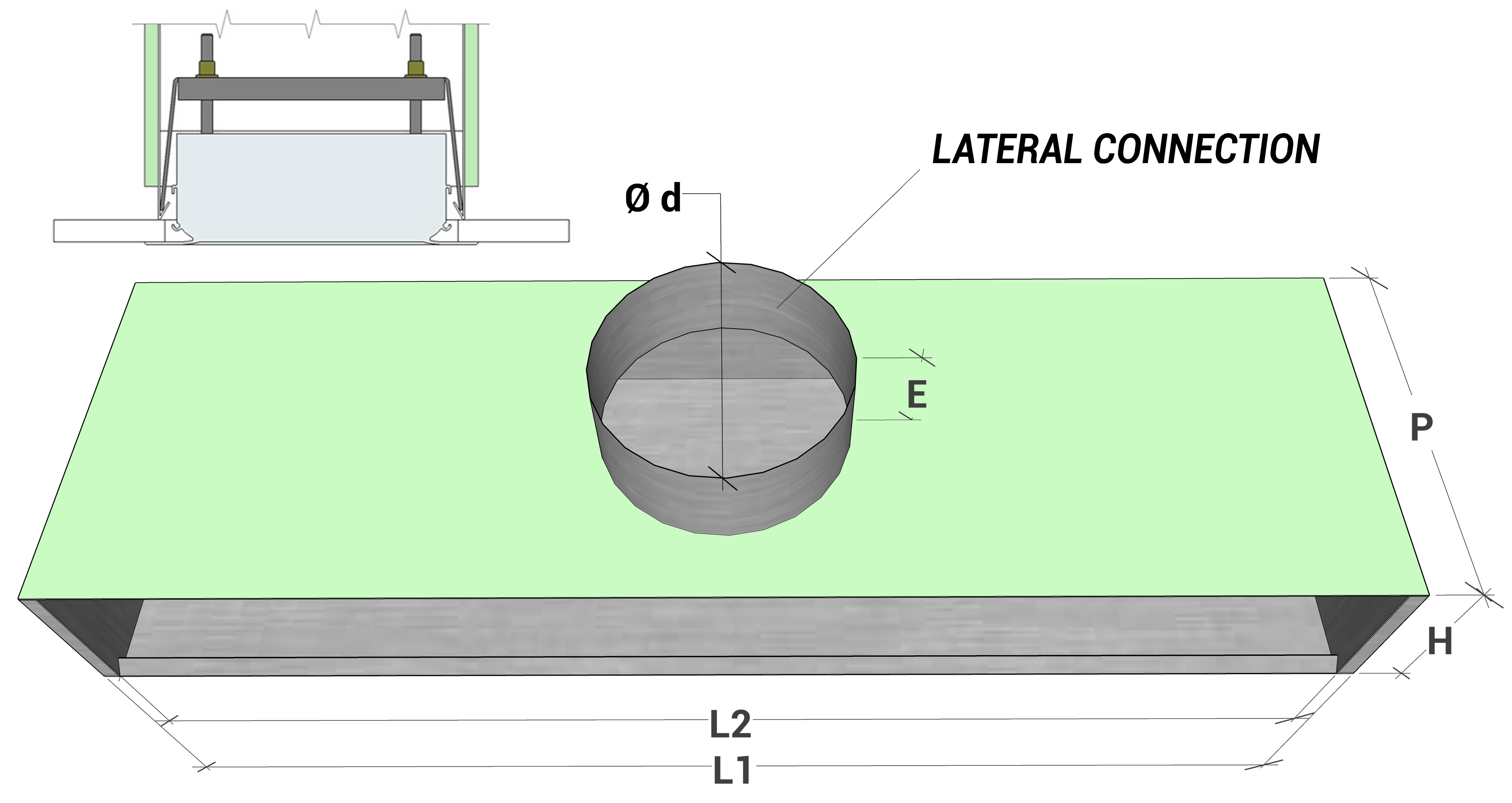

Plenum Dimensions and Mounting Bridge system
All dimensions are expressed in mm
Nr. Slots L Plenum Box Dimensions L1 L2 Nr. Lat. Connections Ø d P H E 1 Slot 600 645 615 1 98 300 58 80 800 845 815 1 1000 1045 1015 1 1200 1245 1215 2 1500 1545 1515 2 2000 2045 2015 2 2 Slot 600 645 615 1 148 300 98 80 800 845 815 1 1000 1045 1015 1 1200 1245 1215 2 1500 1545 1515 2 2000 2045 2015 2 3 Slot 600 645 615 1 198 300 138 80 800 845 815 1 1000 1045 1015 1 1200 1245 1215 2 1500 1545 1515 2 2000 2045 2015 2 4 Slot 600 645 615 1 198 300 178 80 800 845 815 1 1000 1045 1015 1 1200 1245 1215 2 1500 1545 1515 2 2000 2045 2015 2
Installation
Price List
Natural anodised aluminium frame and black painted aluminium deflectors.
Ral 9010 painted with black deflectors + 20%
Price List
Ral 9016 version with Ral 9016 deflectors.
Lenght (m) EDFLB-20 EDFLB-40 EDFLB-50 EPZ-EDFL - Plenum box EPI-EDFL - Insulated Plenum Box Eur Eur Eur Eur Eur 1
Slot600 50,23 62,19 65,94 51,27 66,66 800 57,39 68,14 75,31 57,55 73,62 1000 64,58 74,12 86,04 63,78 82,01 1200 71,81 86,12 97,96 70,06 92,20 1500 82,50 98,03 109,96 80,77 104,27 2000 100,42 119,60 136,19 103,31 135,17 2 Slot 600 74,05 87,91 100,39 54,24 70,54 800 84,62 100,42 114,68 60,87 77,97 1000 92,06 114,75 130,21 69,46 88,85 1200 99,61 129,13 145,80 76,10 99,67 1500 118,38 147,04 172,04 88,00 112,99 2000 147,06 184,11 211,48 112,10 145,91 3 Slot 600 89,98 116,19 134,82 57,19 74,41 800 102,79 132,72 154,08 64,19 82,25 1000 116,00 150,61 176,85 73,78 94,32 1200 129,25 168,58 199,46 80,77 105,79 1500 154,21 199,65 232,99 93,88 120,42 2000 192,47 247,51 290,37 119,58 155,23 4 Slot 600 115,86 143,37 168,44 62,11 80,37 800 132,40 163,78 192,40 69,46 88,64 1000 142,26 187,67 223,36 76,81 98,48 1200 163,82 211,67 254,44 84,21 110,54 1500 188,90 248,66 292,80 97,83 125,85 2000 237,92 309,66 364,45 124,46 161,90
Price list
Accessory Price List
