EDFLN EDFLBN Linear slot diffusers with rotating PVC deflectors
Description

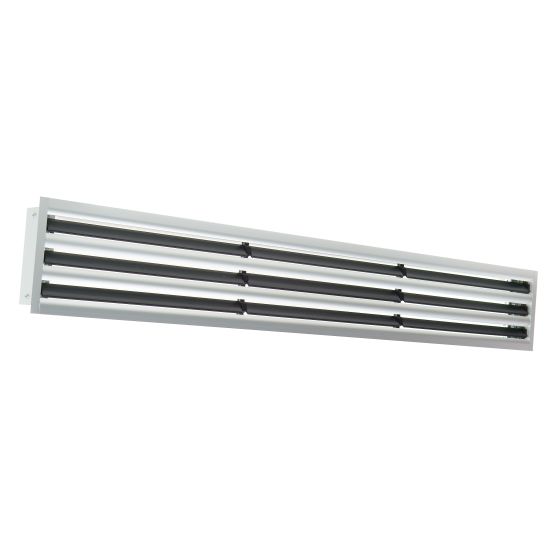

Aluminum diffuser with adjustable rotating deflectors for optimal air throw control. Also available with sliding regulation damper.
Features
Material: aluminium.
Finish: natural anodised.
Supports: black ABS.
Deflectors: black PVC.
Installation: duct or plenum box.
Use
Diffuser suitable for both air supply and exhaust in large rooms; its modularity allows for great freedom of design.
Models
- EDFLN-10 exhaust diffusers (without deflectors).
- EDFLN-20 supply diffusers with black ABS deflectors.
- EDFLBN-20 white RAL9010 supply diffusers with black ABS deflectors.
- EDFLN-40 supply diffusers with black ABS deflectors and sliding damper. EDFLBN-40 white RAL9010 supply diffusers with black ABS deflectors and sliding damper.
- EDFLN-50 supply diffusers with black ABS deflectors, equalizer and sliding damper.
- EDFLBN-50 white RAL9010 supply diffusers with black ABS deflectors, equalizer and sliding damper.
Accessories
- EPZ-EDFLN - Galvanized Plenum Box;
- EPI-EDFLN - Insulated plenum box;
- EDFLN-90° - Corner connection;
- Continues Line Kit.
On request
White ABS deflectors.

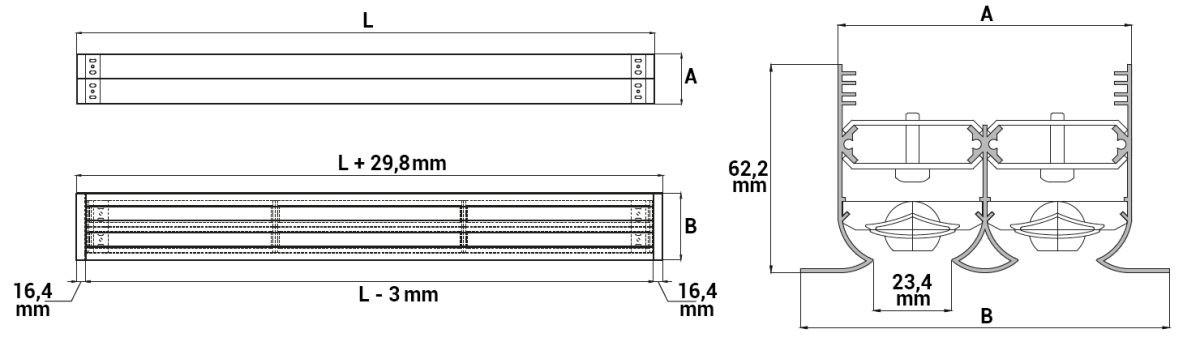

Linear Diffuser dimensions
All dimensions are expressed in mm.
Nr. Slots L A B Nr. of Mounting Bridges 1 Slot 800 44,4 67 2 2 Slot 87,6 110,2 2 3 Slot 130,8 153,4 2 4 Slot 174 196,6 2 1 Slot 1000 44,4 67 2 2 Slot 87,6 110,2 2 3 Slot 130,8 153,4 2 4 Slot 174 196,6 2 1 Slot 1500 44,4 67 3 2 Slot 87,6 110,2 3 3 Slot 130,8 153,4 3 4 Slot 174 196,6 3 1 Slot 2000 44,4 67 4 2 Slot 87,6 110,2 4 3 Slot 130,8 153,4 4 4 Slot 174 196,6 4
Operating data
- Data referring to 1m long diffusers.
- Vk: effective speed (m/s).
- m³/h: air flow rate.
- Pa: pressure drops in Pascal.
- Lo(m): horizontal air throw in metres calculated on ceiling flush installation and terminal velocity 0.25 m/s.
- Lv(m): vertical air throw in metres calculated on ceiling flush installation and terminal velocity 0.25 m/s.
- dB(A): noise level.
| Nr. Slots | Effective Cross-Section (m2) | Air-volume and Air-throw | |||||||
| 1 Slot | 0,0099 | m3/h | 72 | 107 | 143 | 179 | 215 | 251 | 287 |
| Pa | 4 | 9 | 15 | 24 | 35 | 47 | 61 | ||
| Lo(m) | 2,6 | 4,0 | 5,3 | 6,6 | 7,9 | 9,2 | 10,5 | ||
| Lv(m) | 1,8 | 2,8 | 3,7 | 4,6 | 5,5 | 6,5 | 7,4 | ||
| 2 Slot | 0,0199 | m3/h | 143 | 215 | 287 | 358 | 430 | 501 | 573 |
| Pa | 5 | 10 | 18 | 29 | 41 | 56 | 74 | ||
| Lo(m) | 3,8 | 5,6 | 7,5 | 9,4 | 11,3 | 13,2 | 15,1 | ||
| Lv(m) | 2,6 | 4,0 | 5,3 | 6,6 | 7,9 | 9,2 | 10,5 | ||
| 3 Slot | 0,0298 | m3/h | 215 | 322 | 430 | 537 | 645 | 752 | 860 |
| Pa | 6 | 14 | 26 | 40 | 58 | 79 | 103 | ||
| Lo(m) | 4,4 | 6,7 | 8,9 | 11,1 | 13,3 | 15,6 | 17,8 | ||
| Lv(m) | 3,1 | 4,7 | 6,2 | 7,8 | 9,3 | 10,9 | 12,4 | ||
| 4 Slot | 0,0398 | m3/h | 287 | 430 | 573 | 716 | 860 | 1003 | 1146 |
| Pa | 10 | 23 | 41 | 64 | 92 | 125 | 163 | ||
| Lo(m) | 5,0 | 7,6 | 10,1 | 12,6 | 15,1 | 17,6 | 20,2 | ||
| Lv(m) | 3,5 | 5,3 | 7,1 | 8,8 | 10,6 | 12,4 | 14,1 | ||
| Vk | m/s | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |
| Noise Level | dB(A) | 25-30 | 30-35 | 35-40 | 40-45 | 42-48 | 45-50 | 50-55 | |
Air Throw Characteristics
Corner Connection
Aesthetic connecting element between the two linear diffuser lines with a 90° angle and 400 mm length on each side.
All measurements are expressed in mm.
Continues Line kit

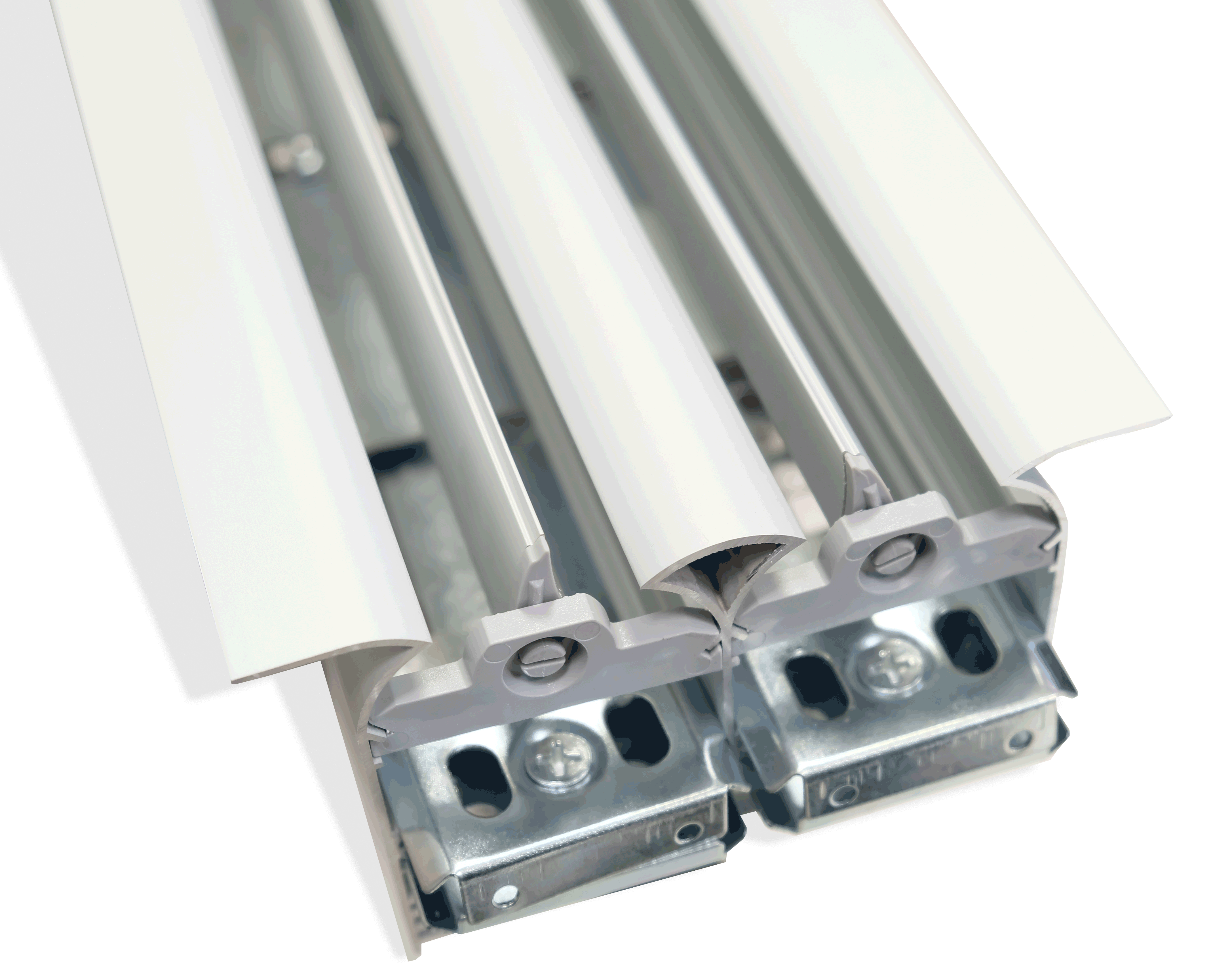

The continues line kit is an accessory required to create continuous lines of linear diffusers longer than 2 meters. It is made up of two junction plates that allow for the alignment and connection of two components of the line.

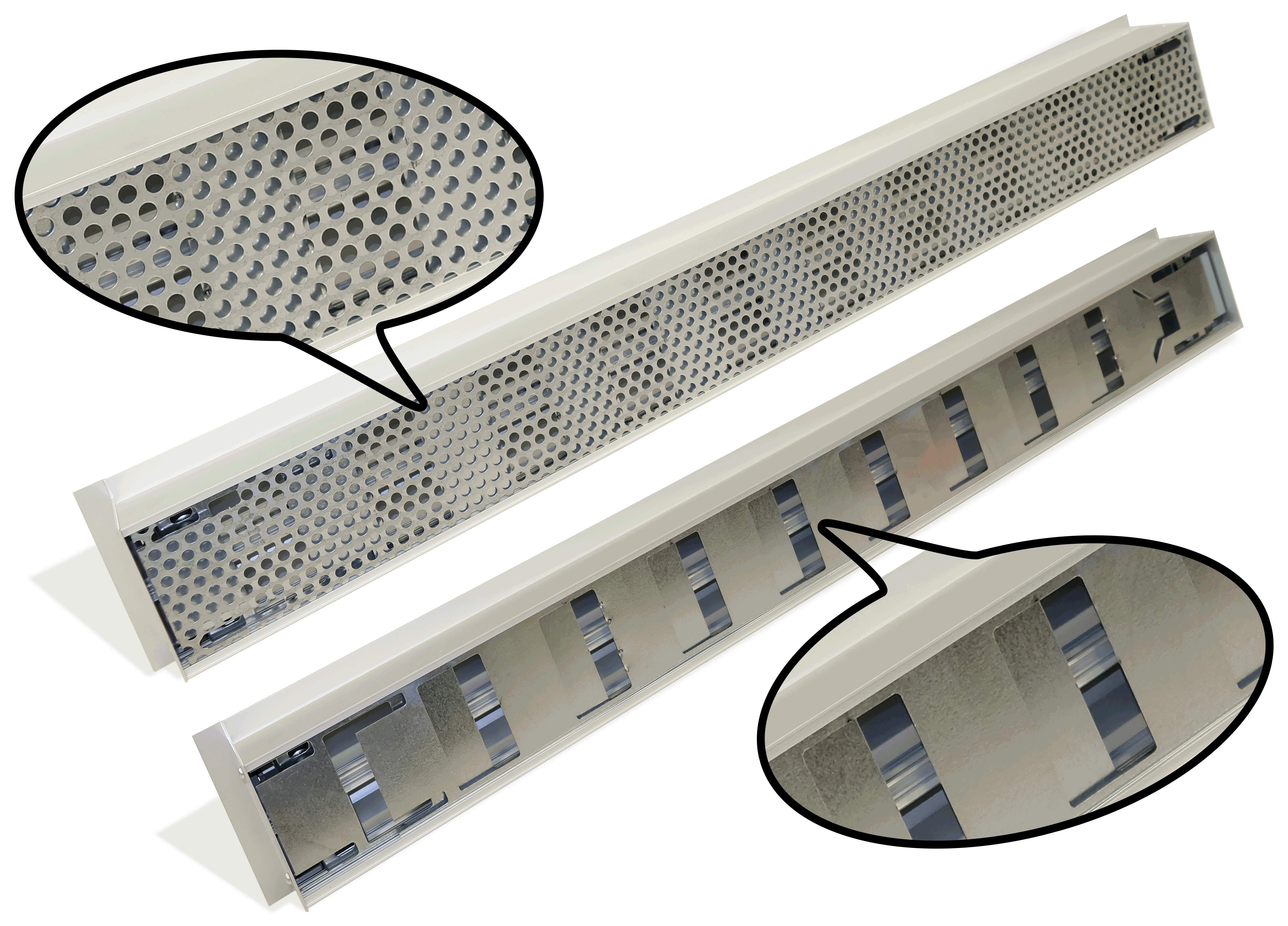

Equalizer and sliding damper
Plenum dimensions and mounting bridges system
All dimensions are expressed in mm.
Nr. Slots L Plenum Box Dimensions L1 Nr. Lat. Connections Ø d P H E 1 Slot 800 815 1 123 200 59 80 1000 1015 1 1500 1515 2 2000 2015 2 2 Slot 800 815 1 148 240 102 80 1000 1015 1 1500 1515 2 2000 2015 2 3 Slot 800 815 1 148 240 145 80 1000 1015 1 1500 1515 2 2000 2015 2 4 Slot 800 815 1 198 285 189 80 1000 1015 1 1500 1515 2 2000 2015 2
Price list
For dimensions other than those indicated: 15% increase compared to the bigger dimension indicated in the table.
Models EDFLN-10 EDFLN-20 EDFLN-40 EDFLN-50 EPZ-EDFLN - Galvanised Plenum Box EPI-EDFLN - Insulated Plenum Box Eur Eur Eur Eur Eur Eur 1
Slot800 51,57 58,07 72,26 81,87 57,31 73,37 1000 57,78 69,46 88,14 99,44 63,54 81,65 1500 83,15 98,34 121,52 136,79 80,41 103,83 2000 103,62 122,27 151,03 170,48 102,91 134,72 2 Slot 800 75,85 88,82 114,19 131,46 60,79 77,85 1000 84,67 107,76 136,79 156,93 69,38 88,76 1500 120,48 150,85 189,02 215,90 87,92 112,86 2000 149,70 186,98 234,21 268,09 112,06 145,80 3 Slot 800 100,36 119,83 158,01 182,85 64,30 82,33 1000 111,34 146,32 189,71 218,63 73,93 94,48 1500 158,04 203,62 260,06 298,55 94,12 120,58 2000 196,01 251,94 322,74 371,02 119,90 155,51 4 Slot 800 130,93 156,89 207,82 240,30 69,86 89,00 1000 138,33 185,49 243,05 280,75 77,29 98,91 1500 194,93 255,72 332,02 382,16 98,48 126,41 2000 242,06 316,65 411,18 473,73 125,26 162,66
