EDLH-EDLHB Hidden multi-slot linear diffusers

Description

Hidden linear diffuser with single or multi slots, width 20 or 30 mm, with aluminium aerodynamic profile and adjustable deflectors for optimal air throw control. Also available with equalizer and sliding damper.

Features

Material: aluminium.

EDLH finish: RAL9005 black painted aluminium.

EDLHB finish: RAL9016 white painted aluminium

Slots number: from 1 to 3.

Slots width: 20 or 30 mm.

Installation: by plenum box with mounting bridge.

Possible dimensions in one piece:

Minimum length 300 mm:
Maximum length 2000 mm;

Use

Diffuser suitable for both air supply and exhaust in large rooms. Its modularity allows great freedom of design. The EDLH system is designed for the use on plasterboard walls and false ceiling with width 12,5 mm.

Models

EDLH10-FA - EDLHB10-FA hidden linear diffusers 20 mm slot without deflectors (exhaust).
EDLH20-FA - EDLHB20-FA hidden linear diffusers 20 mm slot with deflectors (supply).
EDLH30-FA - EDLHB30-FA hidden linear diffusers 20 mm slot without deflectors, with sliding damper (exhaust).
EDLH40-FA - EDLHB40-FA hidden linear diffusers 20 mm slot with deflectors and sliding damper (supply).
EDLH10-FB - EDLHB10-FB hidden linear diffusers 30 mm slot without deflectors (exhaust).
EDLH20-FB - EDLHB20-FB hidden linear diffusers 30 mm slot with deflectors (supply).
EDLH30-FB - EDLHB30-FB hidden linear diffusers 30 mm slot without deflectors, with sliding damper (exhaust).
EDLH40-FB - EDLHB40-FB hidden linear diffusers 30 mm slot with deflectors and sliding damper (supply).

Accessories

EPZ-EDL - Galvanized steel plenum box;
EPI-EDL - Insulated plenum box;
Mounting bridge;
Continues line kit.

On demand

Possibility of installation in continuity.

Plenum box with ovalised rear connection.

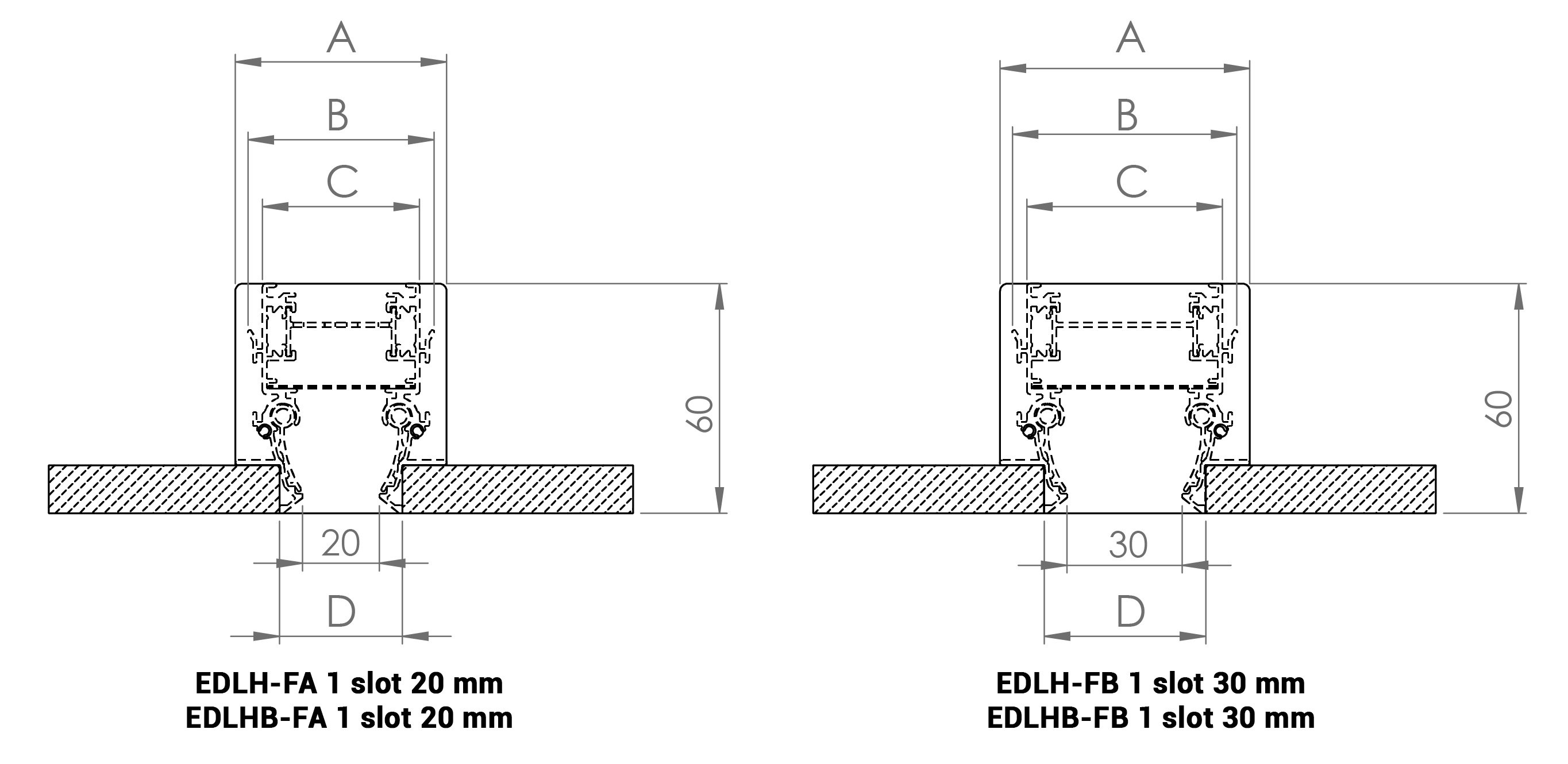

EDLH - EDLHB / 1F (Single-slot diffuser dimensions)

All dimensions are expressed in mm

1 Slot	L	A	B	C	D	Nr. of Mounting Bridges

Slot da 20 mm	800	55	48	41	34	2
	1000					2
	1200					2
	1500					2
	2000					2
Slot da 30 mm	800	65	58	51	44	2
	1000					2
	1200					2
	1500					2
	2000					2

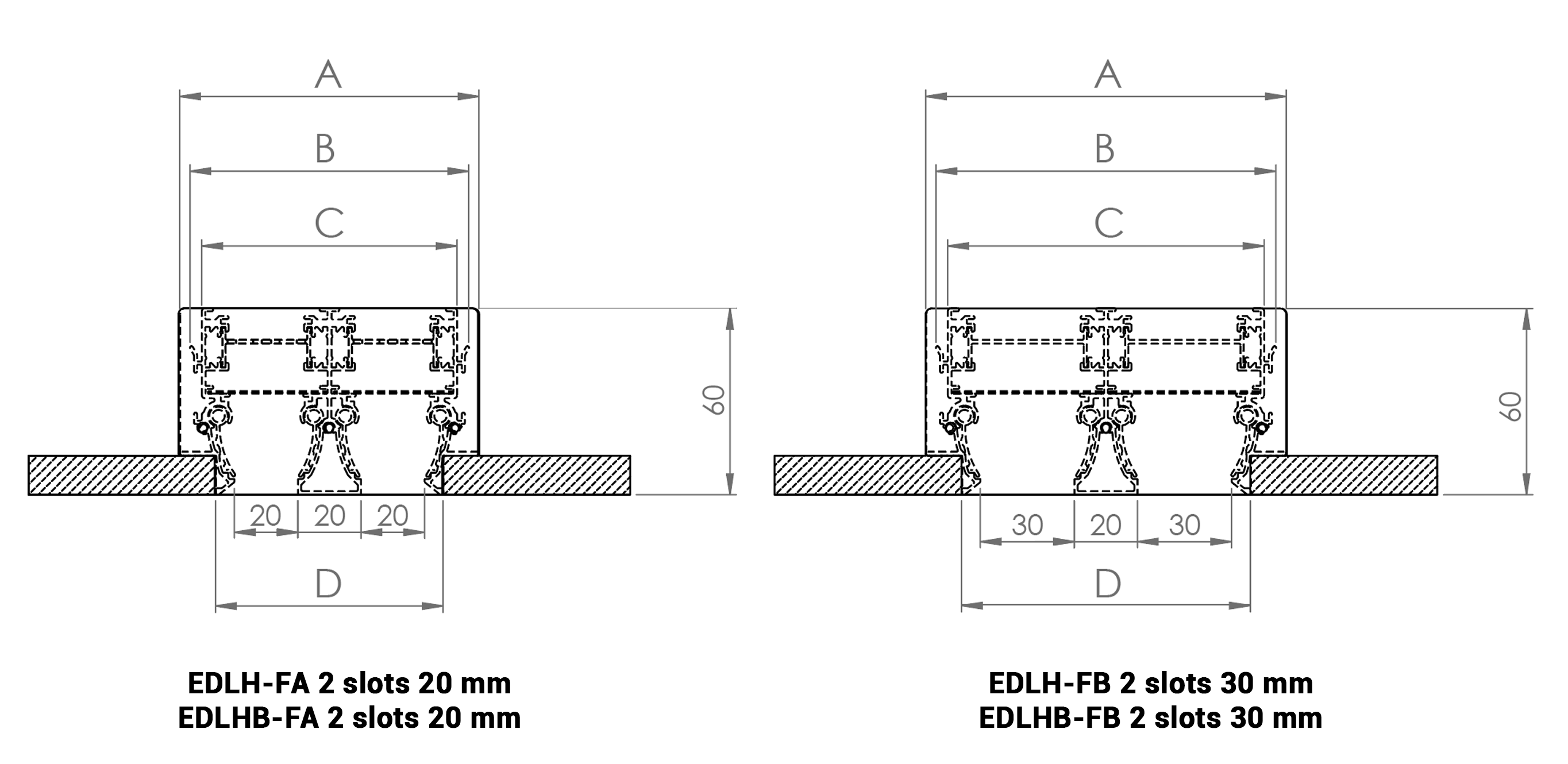

EDLH - EDLHB / 2F (Double-slot diffuser dimensions)

2 Slot	L	A	B	C	D	Nr. of Mounting Bridges

Slot da 20 mm	800	95	88	81	74	2
	1000					2
	1200					2
	1500					2
	2000					2
Slot da 30 mm	800	115	108	101	94	2
	1000					2
	1200					2
	1500					2
	2000					2

EDLH - EDLHB / 3F (Triple-slot diffuser dimensions)

3 Slot	L	A	B	C	D	Nr. of Mounting Bridges

Slot da 20 mm	800	135	128	121	114	2
	1000					2
	1200					2
	1500					2
	2000					3
Slot da 30 mm	800	165	158	151	144	2
	1000					2
	1200					2
	1500					2
	2000					3

Operating Data

Data refers to 1 m long diffusers, with a terminal velocity Vt = 0.25 m/s, flush-mounted on the ceiling and with horizontal air throw (Coanda effect).

Values refer to the diffuser without damper or with sliding damper fully open.
Values refer to the diffuser with deflectors set in operating position, with 50% free area reduction.

The deflector position reduces the effective area. With deflectors fully open, or when the diffuser is used for return air, the airflow rates (m³/h) shown in the table may vary.

Vk: effective speed (m/s).
m³/h: flow rate.
Pa: pressure drops in Pascal.
L(m): air throw in metres calculated on ceiling installation, terminal velocity 0.25 m/s.
dB(A): noise level.

Slot	Dimensions Slot	Effective Cross-Section (m2)	Air-volume and Air-throw
1 Slot	Slot da 20 mm	0,0097	m³/h	70	105	140	175	210	245
	Slot da 20 mm	0,0097	L(m)	1.8	2.7	3.6	4.5	5.4	6.3
	Slot da 30 mm	0,0146	m³/h	105	158	210	262	315	368
		0,0146	L(m)	1,6	2,5	3,4	4,2	5	5,8
		Noise Level	dB(A)	<20	22	32	37	44	48
2 Slot	Slot da 20 mm	0,0194	m³/h	140	210	280	350	420	490
	Slot da 20 mm	0,0194	L(m)	2,6	3,9	5,1	6,4	7,7	9,0
	Slot da 30 mm	0,0292	m³/h	210	316	420	524	630	736
		0,0292	L(m)	2,3	3,6	4,9	6,0	7,1	8,3
		Noise Level	dB(A)	<20	24	34	39	46	50
3 Slot	Slot da 20 mm	0,0291	m³/h	210	315	420	525	630	735
	Slot da 20 mm	0,0291	L(m)	3,9	5,8	7,7	9,6	11,6	13,5
	Slot da 30 mm	0,0438	m³/h	315	474	630	786	945	1104
		0,0438	L(m)	3,4	5,4	7,3	9,0	10,7	12,4
		Noise Level	dB(A)	<20	26	36	41	48	52
Vk			m/s	2	3	4	5	6	7
Pressure Drop			Pa	7	15	26	41	59	80

Corner connection

Aesthetic connecting element between the two linear diffuser lines with a 90° angle and 500 mm length on each side. It has no ventilation features.

All measurements are expressed in mm.

Corner

Continuity Kit

The continuity kit is an accessory required to create continuous lines of linear diffusers longer than 2 metres. It is made up of two junction plates that allow for the alignment and connection of two components of the line.

Air Throw Characteristics

Plenum dimensions and fixing bracket system

1 Slot	L	Plenum Box Dimensions
1 Slot	L	L1	L2	Nr. Lat. Connections	Ø d	P	H	E	F
Slot da 20 mm	800	800	770	1	145	240	65	80	49
	1000	1000	970	1
	1200	1200	1170	2
	1500	1500	1470	2
	2000	2000	1970	2
Slot da 30 mm	800	800	770	1	145	240	75	80	49
	1000	1000	970	1
	1200	1200	1170	2
	1500	1500	1470	2
	2000	2000	1970	2

2 Slot	L	Plenum Box Dimensions
2 Slot	L	L1	L2	Nr. Lat. Connections	Ø d	P	H	E	F
Slot da 20 mm	800	800	770	2	145	300	105	80	49
	1000	1000	970	2
	1200	1200	1170	2
	1500	1500	1470	2
	2000	2000	1970	2
Slot da 30 mm	800	800	770	2	198	300	125	80	49
	1000	1000	970	2
	1200	1200	1170	2
	1500	1500	1470	2
	2000	2000	1970	2

3 Slot	L	Plenum Box Dimensions
3 Slot	L	L1	L2	Nr. Lat. Connections	Ø d	P	H	E	F
Slot da 20 mm	800	800	770	2	198	300	145	80	49
	1000	1000	970	2
	1200	1200	1170	2
	1500	1500	1470	2
	2000	2000	1970	2
Slot da 30 mm	800	800	770	2	198	300	165	80	49
	1000	1000	970	2
	1200	1200	1170	2
	1500	1500	1470	2
	2000	2000	1970	2

Price List for EDLH-FA - 1 slot - black RAL9005 - 20 mm slot

EDLH-FA	Lenght	EDLH10-FA	EDLH20-FA	EDLH30-FA	EDLH40-FA	EPZ-EDL - Plenum Box	EPI-EDL - Insulated Plenum Box
1 Slot		Eur	Eur	Eur	Eur	Eur	Eur
Slot da 20 mm	800	51,91	54,37	61,04	67,65	59,72	76,52
	1000	58,33	61,20	67,79	75,44	64,98	83,53
	1200	69,27	73,98	82,47	90,42	81,58	107,84
	1500	78,85	84,61	92,56	102,19	87,92	113,08
	2000	100,40	104,05	118,49	129,89	100,41	132,19

Price List for EDLH-FA - 2 slot - black RAL9005 - 20 mm slots

EDLH-FA	Lenght	EDLH10-FA	EDLH20-FA	EDLH30-FA	EDLH40-FA	EPZ-EDL - Plenum Box	EPI-EDL - Insulated Plenum Box
2 Slot		Eur	Eur	Eur	Eur	Eur	Eur
Slot da 20 mm	800	90,72	97,50	107,18	121,52	69,98	92,30
	1000	101,27	109,28	118,69	135,31	75,51	98,84
	1200	119,61	131,62	144,23	162,18	86,69	114,88
	1500	135,43	159,59	160,83	182,67	90,65	125,26
	2000	172,05	207,72	205,89	232,33	103,83	146,98

Price List for EDLH-FA - 3 slot - black RAL9005 - 20 mm slots

EDLH-FA	Lenght	EDLH10-FA	EDLH20-FA	EDLH30-FA	EDLH40-FA	EPZ-EDL - Plenum Box	EPI-EDL - Insulated Plenum Box
3 Slot		Eur	Eur	Eur	Eur	Eur	Eur
Slot da 20 mm	800	118,88	130,84	141,28	163,56	75,13	97,86
	1000	132,91	146,79	156,85	182,51	81,78	106,98
	1200	157,89	177,63	192,35	220,21	93,27	125,06
	1500	178,83	215,44	214,24	247,89	99,26	137,82
	2000	228,39	281,49	275,70	316,59	115,09	163,62

Price List for EDLH -FB - 1 slot - black RAL9005 - 30 mm slot

EDLH-FB	Lenght	EDLH10-FB	EDLH20-FB	EDLH30-FB	EDLH40-FB	EPZ-EDL - Plenum Box	EPI-EDL - Insulated Plenum Box
1 Slot		Eur	Eur	Eur	Eur	Eur	Eur
Slot da 30 mm	800	52,94	58,91	62,26	69,01	60,29	78,56
	1000	59,48	65,68	69,14	76,94	65,64	84,55
	1200	76,20	83,50	90,71	99,48	85,04	108,27
	1500	86,74	94,36	101,81	112,39	88,77	114,06
	2000	102,40	113,08	120,85	132,48	101,49	132,89

Price List for EDLH -FB - 2 slot - black RAL9005 - 30 mm slots

EDLH-FB	Lenght	EDLH10-FB	EDLH20-FB	EDLH30-FB	EDLH40-FB	EPZ-EDL - Plenum Box	EPI-EDL - Insulated Plenum Box
2 Slot		Eur	Eur	Eur	Eur	Eur	Eur
Slot da 30 mm	800	97,08	104,31	114,67	130,02	67,90	93,24
	1000	108,36	116,92	126,98	144,77	74,74	102,95
	1200	127,98	140,83	154,31	173,52	95,65	127,21
	1500	144,91	170,75	172,08	195,45	101,07	139,43
	2000	184,08	222,25	220,30	248,58	117,36	164,40

Price List for EDLH -FB - 3 slot - black RAL9005 - 30 mm slots

EDLH-FB	Lenght	EDLH10-FB	EDLH20-FB	EDLH30-FB	EDLH40-FB	EPZ-EDL - Plenum Box	EPI-EDL - Insulated Plenum Box
3 Slot		Eur	Eur	Eur	Eur	Eur	Eur
Slot da 30 mm	800	127,19	139,99	151,16	175,00	76,36	100,01
	1000	142,20	157,05	167,82	195,27	83,20	108,82
	1200	168,93	190,07	205,80	235,61	95,65	127,21
	1500	191,34	230,52	229,23	265,23	101,07	139,94
	2000	244,37	301,17	294,99	338,74	117,36	166,36

Price List for EDLHB-FA - 1 slot - white RAL9016 - 20 mm slot

EDLHB-FA	Lenght	EDLHB10-FA	EDLHB20-FA	EDLHB30-FA	EDLHB40-FA	EPZ-EDL - Plenum Box	EPI-EDL - Insulated Plenum Box
1 Slot		Eur	Eur	Eur	Eur	Eur	Eur
Slot da 20 mm	800	51,91	54,37	61,04	67,65	59,72	76,52
	1000	58,33	61,20	67,79	75,44	64,98	83,53
	1200	69,27	73,98	82,47	90,42	81,58	107,84
	1500	78,85	89,94	92,56	102,19	87,92	113,08
	2000	100,40	104,05	118,49	129,89	100,41	132,19

PriceList for EDLHB-FA - 2 slot - white RAL9016 - 20 mm slots

EDLHB-FA	Lenght	EDLHB10-FA	EDLHB20-FA	EDLHB30-FA	EDLHB40-FA	EPZ-EDL - Plenum Box	EPI-EDL - Insulated Plenum Box
2 Slot		Eur	Eur	Eur	Eur	Eur	Eur
Slot da 20 mm	800	90,72	97,50	107,18	121,52	69,98	92,30
	1000	101,27	109,28	118,69	135,31	75,51	98,84
	1200	119,61	131,62	144,23	162,18	86,69	114,88
	1500	135,43	159,59	160,83	182,67	90,65	125,26
	2000	172,05	207,72	205,89	232,33	103,83	146,98

Price List for EDLHB-FA - 3 slot - white RAL9016 - 20 mm slots

EDLHB-FA	Lenght	EDLHB10-FA	EDLHB20-FA	EDLHB30-FA	EDLHB40-FA	EPZ-EDL - Plenum Box	EPI-EDL - Insulated Plenum Box
3 Slot		Eur	Eur	Eur	Eur	Eur	Eur
Slot da 20 mm	800	118,88	130,84	141,28	163,56	75,13	97,86
	1000	132,91	146,79	156,85	182,51	81,78	106,98
	1200	157,89	177,63	192,35	220,21	93,27	125,06
	1500	178,83	215,44	214,24	247,89	99,26	137,82
	2000	228,39	281,49	275,70	316,59	115,09	163,62

Price List for EDLHB -FB - 1 slot - white RAL9016 - 30 mm slot

EDLHB-FB	Lenght	EDLHB10-FB	EDLHB20-FB	EDLHB30-FB	EDLHB40-FB	EPZ-EDL - Plenum Box	EPI-EDL - Insulated Plenum Box
1 Slot		Eur	Eur	Eur	Eur	Eur	Eur
Slot da 30 mm	800	52,94	58,91	62,26	69,01	60,29	78,56
	1000	59,48	65,68	69,14	76,94	65,64	84,55
	1200	76,20	83,50	90,71	99,48	85,04	108,27
	1500	86,74	94,36	101,81	112,39	88,77	114,06
	2000	102,40	113,08	120,85	132,48	101,49	132,89

Price List for EDLHB-FB - 2 slot - white RAL9016 - 30 mm slots

EDLHB-FB	Lenght	EDLHB10-FB	EDLHB20-FB	EDLHB30-FB	EDLHB40-FB	EPZ-EDL - Plenum Box	EPI-EDL - Insulated Plenum Box
2 Slot		Eur	Eur	Eur	Eur	Eur	Eur
Slot da 30 mm	800	97,08	104,31	114,67	130,02	67,90	93,24
	1000	108,36	116,92	126,98	144,77	74,74	102,95
	1200	127,98	140,83	154,31	173,52	95,65	127,21
	1500	144,91	170,75	172,08	195,45	101,07	139,43
	2000	184,08	222,25	220,30	248,58	117,36	164,40

Price List for EDLHB-FB - 3 slot - white RAL9016 - 30 mm slots

EDLHB-FB	Lenght	EDLHB10-FB	EDLHB20-FB	EDLHB30-FB	EDLHB40-FB	EPZ-EDL - Plenum Box	EPI-EDL - Insulated Plenum Box
3 Slot		Eur	Eur	Eur	Eur	Eur	Eur
Slot da 30 mm	800	127,19	139,99	151,16	175,00	76,36	100,01
	1000	142,20	157,05	167,82	195,27	83,20	108,82
	1200	168,93	190,07	205,80	235,61	95,65	127,21
	1500	191,34	230,52	229,23	265,23	101,07	139,94
	2000	244,37	301,17	294,99	338,74	117,36	166,36

Price List

Mounting Bridge and Continuity Kit	Eur
Fixing bridge for single-slot diffusers, EDLS–EDLH series.	12,23
Fixing bridge for two-slots diffusers, EDLS–EDLH series, FA version.	12,23
Fixing bridge for two-slots diffusers, EDLS–EDLH series, FB version.	12,23
Fixing bridge for three-slots diffusers, EDLS–EDLH series, FA version.	12,23
Fixing bridge for three-slots diffusers, EDLS–EDLH series, FB version.	12,23
Continues Line Kit.	2,30

Aesthetic Corner Price List

Aesthetic Corner without deflectors	EDLH-FA	EDLH-FB	EDLHB-FA	EDLHB-FB
Aesthetic Corner without deflectors	Eur	Eur	Eur	Eur
1 Slot	116,67	118,97	116,67	118,97
2 Slot	202,55	216,71	202,55	216,71
3 Slot	265,83	284,40	265,83	284,40
Continues Line Kit.	2,30	2,30	2,30	2,30
