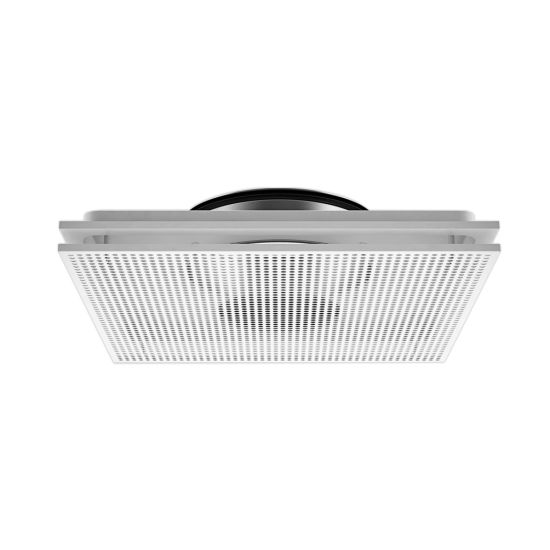

EDQF1 Square diffusers with perforated front plate
Description
Square diffusers for ceiling installation with perforated front plate.
Characteristics
Material: steel.
Finish: painted white RAL 9010.
Installation: by means of non-visible screws.
Use
Thanks to its special construction, it is a very versatile diffuser. Recommended for both supply and exhaust air. It can be supplied with various accessories that guarantee optimal diffuser operation.

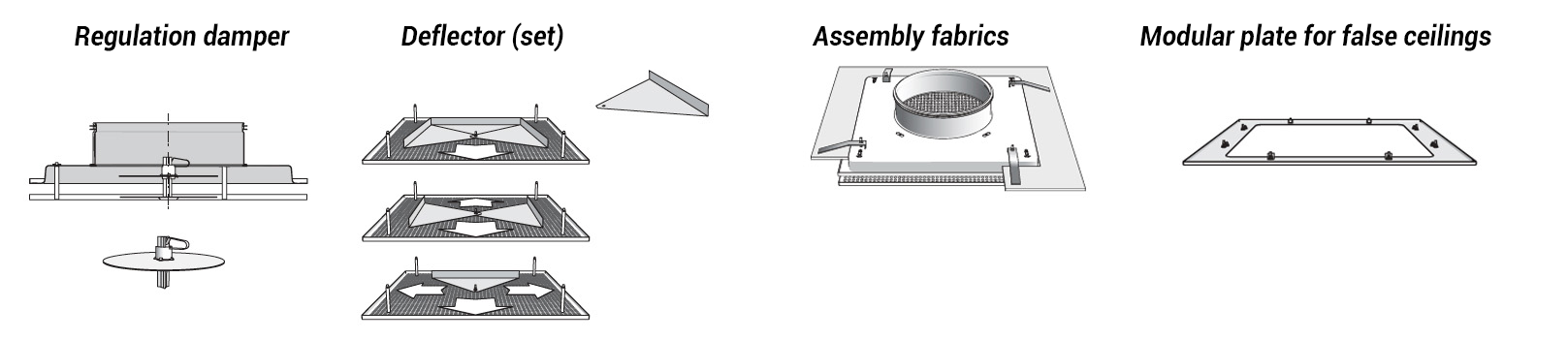

Accessories
- EPZ-DC galvanised plenum;
- EPI-DC insulated plenum;
- EDZ regulation damper;
- EDDAZ directional deflectors;
- EDDDZ mounting brackets;
- EDLM-Q plate for false ceilings to install the diffuser on a modular false ceiling 600mm x 600mm.

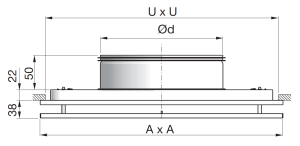

Dimensions
all dimensions are expressed in mm
Models Ø d AxA UxU (Hole Size) Effective Section Weight mm mm mm m² Kg 125 125 235 200 0,018 0,9 160 160 295 260 0,023 1,4 200 200 395 360 0,03 2,2 250 250 495 460 0,043 3,0 315 315 595 560 0,057 4,3 400 400 595 560 0,075 4,4
Operating Data
- Vk: effective speed (m/s).
- m³/h: flow rate.
- Pa: pressure drops in Pascal.
- L(m): air throw in metres calculated on ceiling installation, terminal velocity 0.20 m/s.
- dB(A): noise level.
| Models | Vk | 2,5 | 3 | 3,5 | 4 | 5 |
| 125 | m³/h | 162 | 194 | 227 | 259 | 324 |
| L(m) | 1,6 | 1,9 | 2,2 | 2,4 | 3,0 | |
| Pa | 10 | 14 | 19 | 25 | 38 | |
| dB(A) | 30 | 35 | 40 | 47 | 50 | |
| 160 | m³/h | 207 | 248 | 290 | 331 | 414 |
| L(m) | 1,8 | 2,1 | 2,4 | 2,7 | 3,3 | |
| Pa | 8 | 11 | 15 | 19 | 30 | |
| dB(A) | <20 | 23 | 28 | 35 | 42 | |
| 200 | m³/h | 270 | 324 | 378 | 432 | 540 |
| L(m) | 2,0 | 2,4 | 2,8 | 3,1 | 3,8 | |
| Pa | 9 | 9 | 13 | 17 | 26 | |
| dB(A) | <20 | 22 | 27 | 33 | 43 | |
| 250 | m³/h | 387 | 464 | 542 | 619 | 774 |
| L(m) | 2,5 | 3,0 | 3,4 | 3,9 | 4,8 | |
| Pa | 7 | 10 | 14 | 18 | 27 | |
| dB(A) | <20 | 25 | 32 | 35 | 43 | |
| 315 | m³/h | 513 | 616 | 718 | 821 | 1026 |
| L(m) | 2,9 | 3,5 | 4,0 | 4,5 | 5,5 | |
| Pa | 6 | 9 | 12 | 16 | 24 | |
| dB(A) | <20 | 22 | 27 | 33 | 42 | |
| 400 | m³/h | 675 | 810 | 945 | 1080 | 1350 |
| L(m) | 3,4 | 4,0 | 4,6 | 5,2 | 6,3 | |
| Pa | 5 | 7 | 10 | 13 | 21 | |
| dB(A) | <20 | <20 | 26 | 31 | 40 |
Accessories

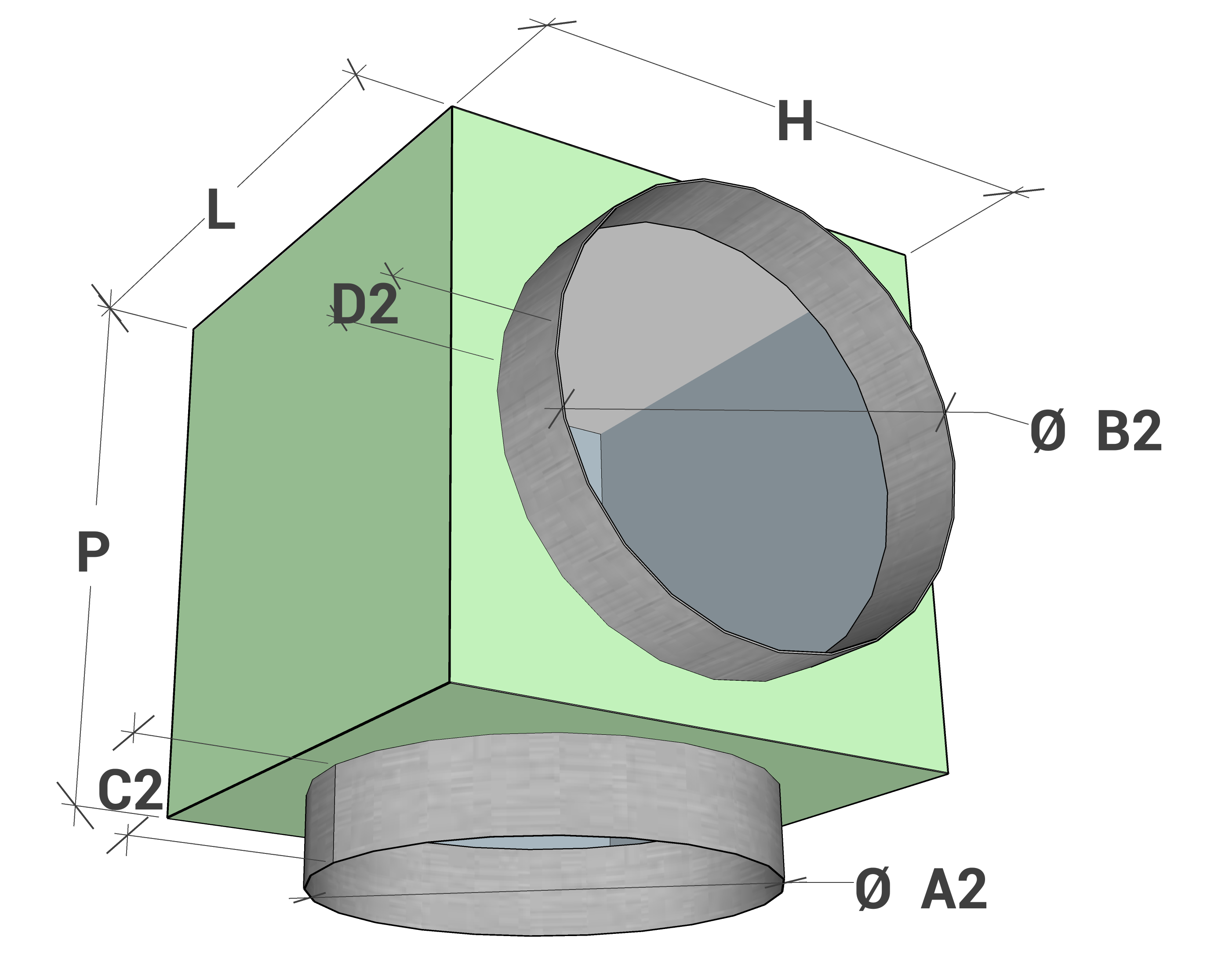

Plenum EPZ-DC EPI-DC
All measurements are expressed in mm.
| Models | L | H | P | Ø A2 Diffuser | Ø B2 Duct - Flexible or Rigid | C2 | D2 |
| 125 | 200 | 200 | 200 | 127 | 125 | 70 | 100 |
| 160 | 250 | 250 | 250 | 162 | 155 | 70 | 100 |
| 200 | 300 | 300 | 300 | 202 | 195 | 70 | 100 |
| 250 | 350 | 350 | 350 | 252 | 245 | 70 | 100 |
| 315 | 400 | 400 | 400 | 317 | 310 | 70 | 100 |
| 400 | 500 | 500 | 500 | 402 | 395 | 70 | 100 |
Price list
Models Diffuser EDZ - Regulation Damper EDDAZ - Deflectors EDDDZ - Mounting Brackets EDLM-Q - Plate for false ceiling EPZ-DC - Galvanised Plenum Box EPI-DC - Insulated Plenum Box Eur Eur Eur Eur Eur Eur Eur 125 197,49 45,34 42,19 63,28 187,71 56,76 83,93 160 212,30 61,30 44,21 63,28 187,71 63,14 85,27 200 272,78 65,13 52,64 63,28 187,71 71,86 96,61 250 323,38 72,80 57,78 63,28 187,71 95,57 123,97 315 425,83 83,65 82,54 63,28 - 107,56 139,61 400 444,34 94,51 84,38 63,28 - 142,45 183,34
