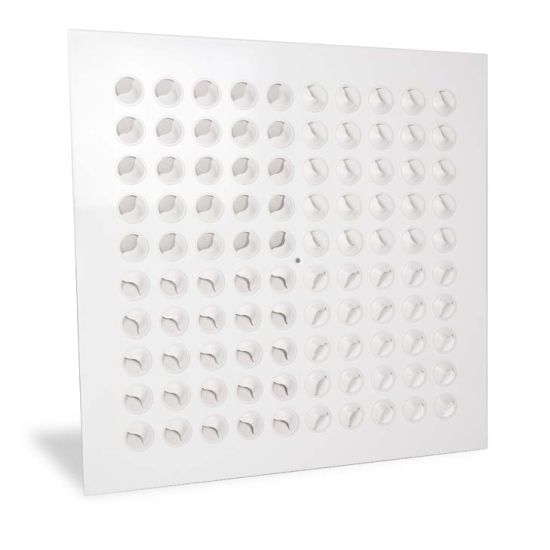

EDQMQ Multi-nozzle Diffusers
Description
Multi-nozzle diffusers equipped with 360° adjustable deflector nozzles in square geometry.
Features
Material: panel in galvanised steel.
Nozzles: white ABS RAL 9016.
Finish: painted RAL 9016.
Installation on plenum box with lateral, non-visible screws or with mounting bridge inside plenum box and central screw on the diffuser.
Use
Multi-nozzle diffusers suitable for installation in rooms with a height between 2.5 and 4 m, both in heating and cooling mode.
Accessories
- EPZ-EDE - Galvanized steel plenum box with damper and mounting bridge;
- EPZ-EDE-EQ - Galvanized steel plenum box with damper, equalizer and mounting bridge;
- EPI-EDE - Insulated plenum box with damper and mounting bridge;
- EPI-EDE-EQ - Insulated plenum box with damper, equalizer and mounting bridge.
On request
Painting of panel only (not the white nozzles) in different RAL colours.

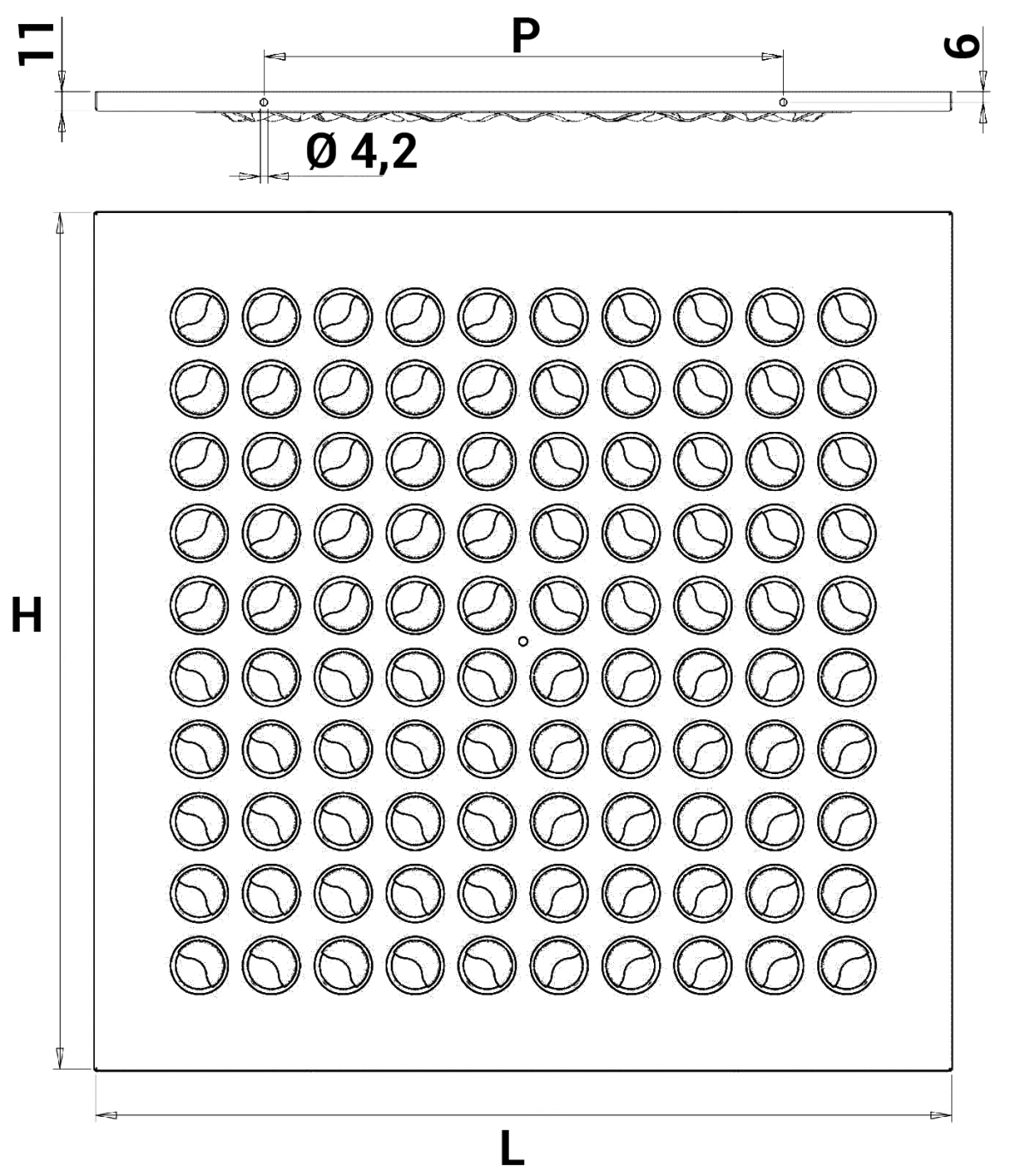

Dimensions
all dimensions are expressed in mm
| Models | L | H | P |
| 400 | 395 | 395 | 200 |
| 500 | 495 | 495 | 300 |
| 600 | 595 | 595 | 400 |
Operating Data
Vk: effective speed (m/s)
m³/h: flow rate
Pa: pressure drops in Pascal
L(m): air throw in metres referring to diffuser installed with Plenum + equaliser and open damper, terminal velocity 0.25 m/s
dB(A): noise level
Models 2 x digital output (6 terminalas, wire min. 0.5 mm² to max. 1.5 mm²) – NO/NC relays (125 V AC – 60 W) Vk (m/s) 3 4 5 6 8 Nr. of Nozzles m² 400 0,0083 m³/h 90 120 150 180 240 36 L(m) 1,1 1,5 1,9 2,3 3 500 0,0148 m³/h 160 210 264 317 420 64 L(m) 1,6 2,1 2,7 3,3 4 600 0,0229 m³/h 248 330 413 495 660 100 L(m) 2,1 2,7 3,4 4,1 5 Noise Level dB(A) 20 25 30 35 40 - Pressure Drop Pa 15 22 30 42 70 -

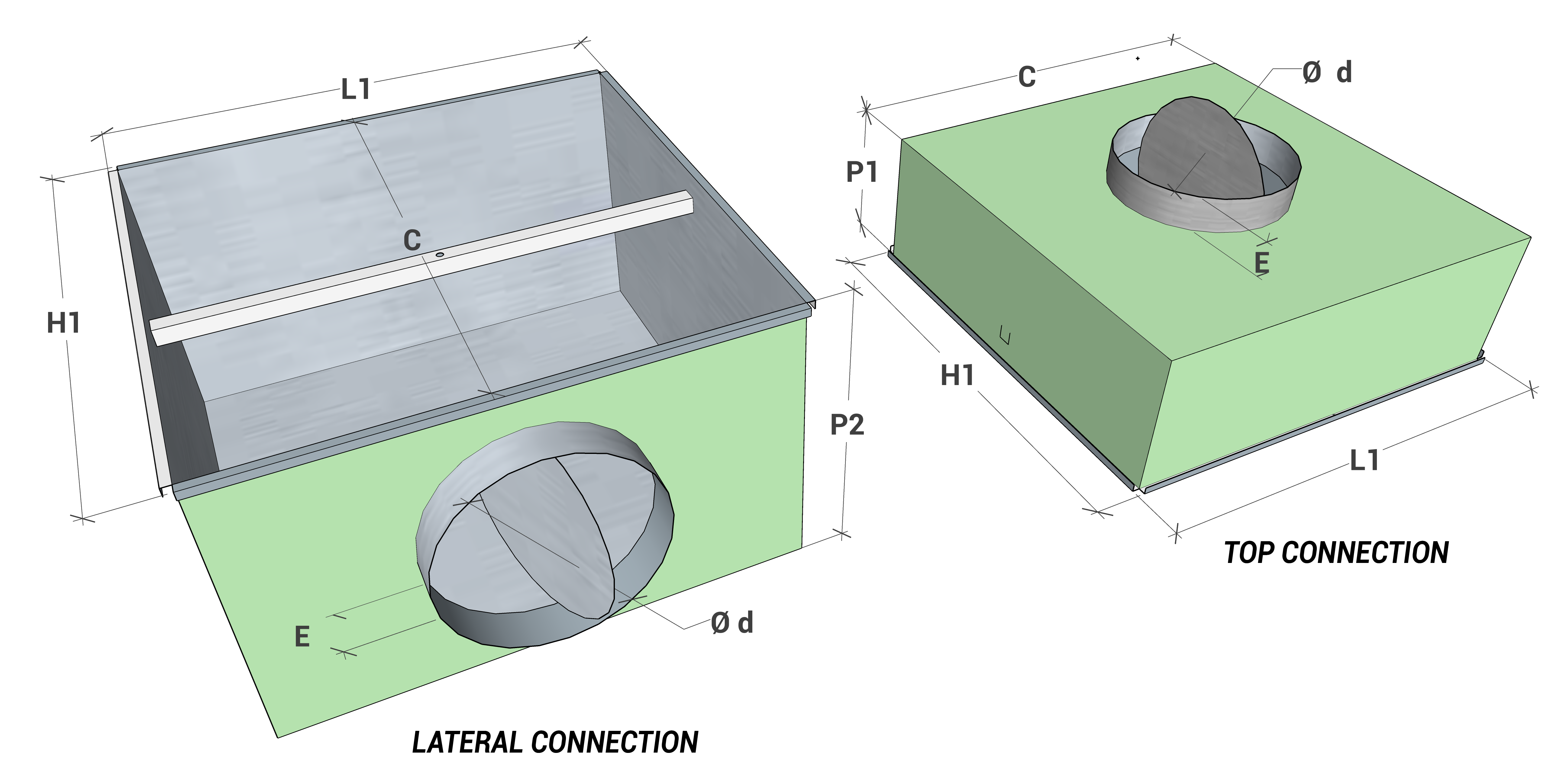

Plenum Box Dimensions
Plenum Box Model Compatible Diffuser Overall dimensions L1 × H1 Ø d P1 P2 〼 C E 400 EDQMQ 400 392x392 198 200 300 360 50 500 EDQMQ 500 492x492 198 200 300 460 50 600 EDQMQ 600 592x592 248 200 350 560 50
Price List
Price List for Plenum with Lateral Connection
Plenum with top connection, price on request
Models Description 400 500 600 euro euro euro EPZ-EDE Galvanised plenum box with damper and mounting bridge 91,25 106,02 124,93 EPZ-EDE-EQ Galvanised steel plenum box with damper, equalizer and mounting bridge 104,49 125,32 155,56 EPI-EDE Insulated plenum box with damper and mounting bridge 110,52 130,16 153,14 EPI-EDE-EQ Insulated plenum box with damper, equalizer and mounting bridge 124,59 150,18 184,96 Screw and Cap @DDD4000200
