EDRCS THERM - EDRCS-PQR THERM Variable geometry thermostatic diffusers
Description
Variable geometry diffusers with thermostatic actuator and equaliser.

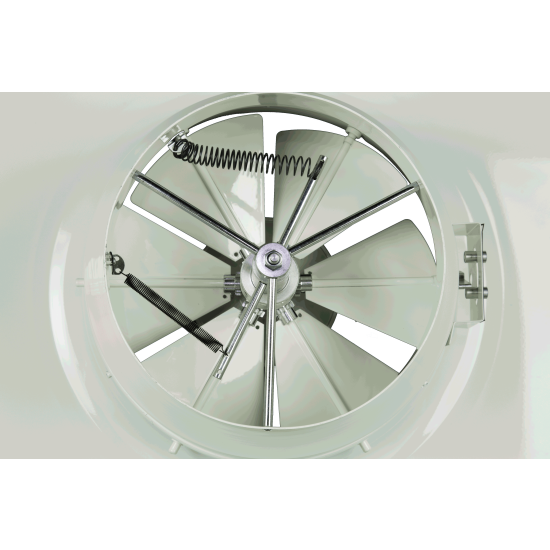

The diffuser blades are adjusted automatically, without the need for a power supply, by means of a thermostatic actuator consisting of special shape memory nickel-titanium spring which vary its length according to the temperature of the air supplied to the diffuser, opening and closing the blades.

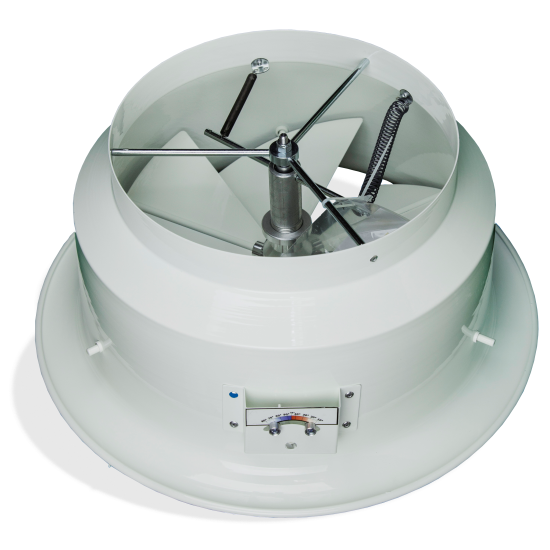

The blades provide the air with a helical movement and, at the same time, provide the direction of the air throw. On the neck of the diffuser there is a graduated scale indicating the angle of the blade during heating or cooling.
Characteristics
Material: aluminium structure with steel blades;
Finish: painted white RAL 9010.
Use
Diffusers suitable for heating and cooling in large rooms requiring and environments with minimum installation high 3.5 metres. For both duct and ceiling installation.
Models

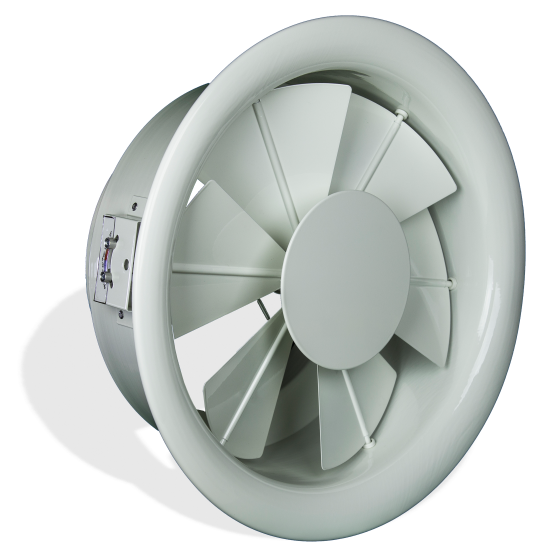

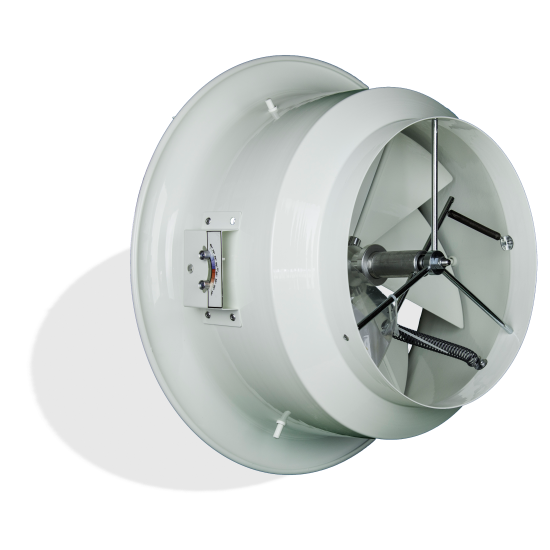

- EDRCS THERM: Variable geometry thermostatic diffusers with equaliser;

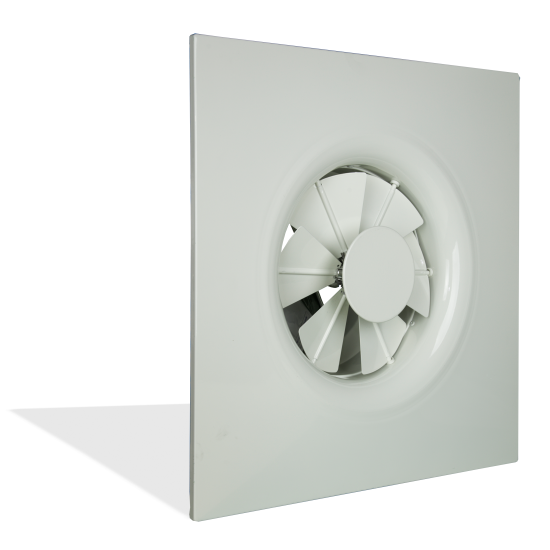

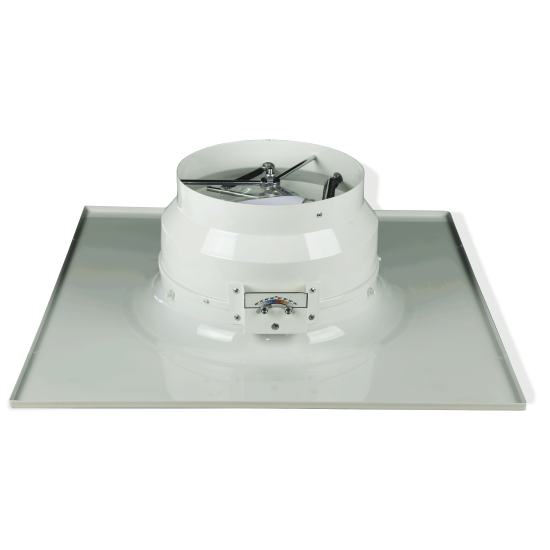

- EDRCS-PQR THERM: Variable geometry thermostatic diffusers with equaliser on square panel 595x595 mm.
On request
EDRCS THERM-PQR diffusers can be supplied without equaliser.

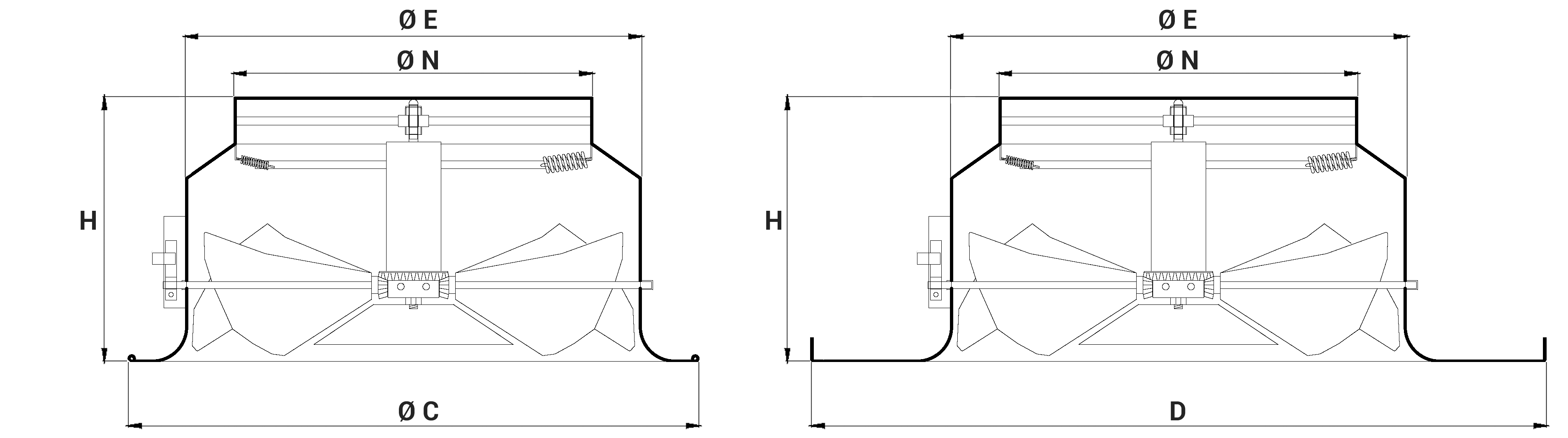

Dimensions
all dimensions are expressed in mm
| Models | 2 x digital output (6 terminalas, wire min. 0.5 mm² to max. 1.5 mm²) – NO/NC relays (125 V AC – 60 W) | EDRCS THERM | EDRCS-PQR THERM | ||||||
| m2 | Ø N | Ø C | Ø E | H | Ø N | DxD | Ø E | H | |
| 250 | 0,0569 | 248 | 400 | 298 | 205 | 248 | 595x595 | 298 | 205 |
| 315 | 0,0902 | 313 | 500 | 398 | 230 | 313 | 595x595 | 398 | 230 |
| 400 | 0,1243 | 398 | 615 | 465 | 270 | - | - | - | - |
| 500 | 0,1947 | 498 | 780 | 565 | 320 | - | - | - | - |
| 630 | 0,3095 | 628 | 935 | 665 | 390 | - | - | - | - |
Operating Data in Heating Mode with Blade Angle at 35°
Data referring to a terminal velocity Vt=0.25 m/s and with a temperature differential of 10 and 15°C
Vk: effective speed (m/s)
m³/h: air flow rate
Pa: pressure drops in Pascal
L(m): air throw in metres
dB(A): noise level
EDRCS THERM - EDRCS-PQ THERM Heating 35° Models m3/h 410 630 850 1000 1300
EDRCS THERM250 Δt (°C) 10 15 10 15 10 15 10 15 10 15 Vk (m/s) 2 3,1 4,1 4,9 6,3 L(m) 2,2 1,8 3,1 2,5 4 3,3 4,6 3,7 5,7 4,7 EDRCS-PQR THERM Pa 5 12 22 30 51 dB(A) 37 49 58 63 70
EDRCS THERM315 m3/h 650 1000 1350 1590 2060 Δt (°C) 10 15 10 15 10 15 10 15 10 15 Vk (m/s) 2 3,1 4,2 4,9 6,3 EDRCS-PQR THERM L(m) 2,6 2,1 4,1 3,3 5,5 4,5 6,4 5,3 8,3 6,8 Pa 5 12 22 31 52 dB(A) 39 51 60 65 72
EDRCS THERM400 m3/h 1040 1600 2160 2540 3290 Δt (°C) 10 15 10 15 10 15 10 15 10 15 Vk (m/s) 2,3 3,6 4,8 5,7 7,4 L(m) 2,8 2,3 4,3 3,5 5,9 4,8 6,9 5,7 8,9 7,3 Pa 5 12 22 31 52 dB(A) 41 54 63 67 75
EDRCS THERM500 m3/h 1640 2530 3425 4020 5210 Δt (°C) 10 15 10 15 10 15 10 15 10 15 Vk (m/s) 2,3 3,6 4,9 5,7 7,4 L(m) 3,2 2,6 5,1 4,1 6,9 5,6 8,2 6,7 10,7 8,7 Pa 5 12 22 31 52 dB(A) 42 55 64 68 76
EDRCS THERM630 m3/h 2570 3970 5370 6300 8170 Δt (°C) 10 15 10 15 10 15 10 15 10 15 Vk (m/s) 2,3 3,6 4,8 5,7 7,3 L(m) 3,4 2,8 5,3 4,3 7,2 5,9 8,5 6,9 11 9 Pa 5 12 22 31 52 dB(A) 42 55 64 69 76
Operating Data in Cooling Mode with Blade Angle at 46°
Data referring to a terminal velocity Vt = 0.25 m/s and with a temperature differential of 10 and 15°C
EDRCS THERM - EDRCS-PQ THERM Cooling 46° Models m3/h 410 630 850 1000 1300 EDRCS THERM 250 Δt (°C) 10 15 10 15 10 15 10 15 10 15 Vk (m/s) 2 3,1 4,1 4,9 6,3 L(m) 2,4 2,9 3,8 4,5 5,2 6 6,2 7,3 8,1 9,6 EDRCS-PQR THERM Pa 14 32 58 81 137 dB(A) 39 51 60 65 72 EDRCS THERM 315 m3/h 650 1000 1350 1590 2060 Δt (°C) 10 15 10 15 10 15 10 15 10 15 Vk (m/s) 2 3,1 4,2 4,9 6,4 L(m) 2,4 2,8 3,8 4,4 5,2 6,1 6,2 7,2 8,1 9,5 EDRCS-PQR THERM Pa 15 36 66 91 153 dB(A) 41 53 62 67 74 EDRCS THERM 400 m3/h 1040 1600 2160 2540 3290 Δt (°C) 10 15 10 15 10 15 10 15 10 15 Vk (m/s) 2,3 3,6 4,8 5,7 7,4 L(m) 2,3 2,7 3,6 4,2 4,9 5,8 5,8 6,9 7,6 8,9 Pa 16 37 67 93 157 dB(A) 43 56 65 69 76 EDRCS THERM 500 m3/h 1640 2530 3425 - - Δt (°C) 10 15 10 15 10 15 - - - - Vk (m/s) 2,3 3,6 4,9 - - L(m) 5 5,8 7,9 9,2 10,8 12,7 - - - - Pa 16 38 70 - - dB(A) 44 57 66 - - EDRCS THERM 630 m3/h 2570 3970 - - - Δt (°C) 10 15 10 15 - - - - - - Vk (m/s) 2,3 3,6 - - - L(m) 6,2 7,3 10 11,8 - - - - - - Pa 16 38 - - - dB(A) 44 57 - - -
