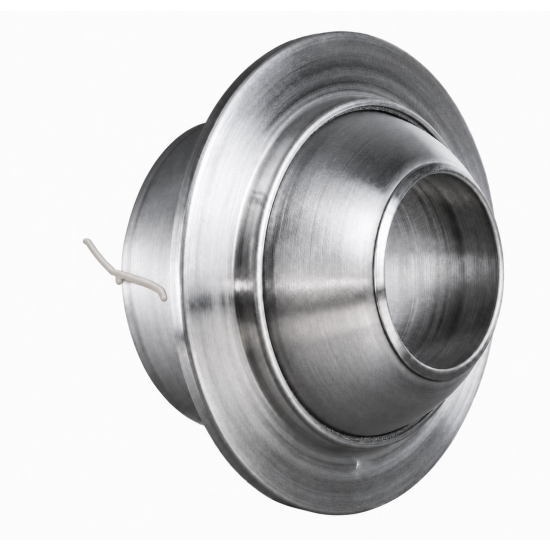

EDU-F Long range nozzle diffusers with connection for circular or flexible duct
Description
Long range aluminium diffusers, adjustable with a max. angle of 30°.
Characteristics
Material: aluminium.
Finish: satin aluminium.
Installation: con wall flange.
Installation height between 3 m and 30 m depending on the model.
Use
Installation in rooms with very high ceilings or where a long air throw is needed.
Dimensions
All dimensions are expressed in mm.
Ø Ø Ø Ø Ø Ø L1 E P 80 40 77 109 139 120 106 43 50 100 50 97 132 169 148 114 51 50 160 80 158 206 249 226 118 52 50 300 150 298 346 389 366 220 128 50 400 200 398 446 489 466 275 172 50 400 230 398 446 489 466 265 160 50Technical Drawing Models Effective Cross-Section (m2)
DN
DN1
A
B
C
F
40 0,0013 50 0,0020 80 0,0050 150 0,0177 200 0,0314 230 0,0415
Operating data
- Vk: effective speed (m/s).
- m³/h: flow rate.
- Pa: pressure drops in Pascal.
- L(m): air throw in metres calculated on ceiling installation, terminal velocity 0.25 m/s.
- dB(A): noise level.
| Models | Vk (m/s) | 2 | 4 | 6 | 8 | 10 |
| 40 | m³/h | 9 | 18 | 28 | 37 | 46 |
| L(m) | 2,3 | 4,5 | 7,0 | 9,2 | 11,5 | |
| Pa | 2 | 11 | 27 | 48,0 | 75 | |
| dB(A) | <20 | <20 | <20 | <20 | 20 | |
| 50 | m³/h | 14 | 28 | 43 | 57 | 72 |
| L(m) | 3,0 | 6,0 | 9,0 | 11,0 | 14 | |
| Pa | 2 | 10 | 25 | 44 | 72 | |
| dB(A) | <20 | <20 | <20 | <20 | 21 | |
| 80 | m³/h | 36 | 72 | 108 | 135 | 168 |
| L(m) | 5,0 | 9,0 | 14,0 | 17,0 | 21,0 | |
| Pa | 2 | 9 | 21 | 34 | 54 | |
| dB(A) | <20 | <20 | 20 | 21 | 23 | |
| 150 | m³/h | 127 | 254 | 382 | 509 | 637 |
| L(m) | 7,0 | 13,0 | 20,0 | 27,0 | 34,0 | |
| Pa | 2 | 8 | 19 | 34 | 55 | |
| dB(A) | <20 | <20 | 20 | 24 | 29 | |
| 200 | m³/h | 226 | 452 | 678 | 904 | 1130 |
| L(m) | 9,0 | 18 | 27 | 36,0 | 45 | |
| Pa | 2 | 8 | 18 | 32 | 51 | |
| dB(A) | <20 | <20 | <20 | 23 | 28 | |
| 230 | m³/h | 298 | 597 | 896 | 1195 | 1494 |
| L(m) | 10,0 | 21,0 | 31,0 | 40,0 | 46,0 | |
| Pa | 2 | 7 | 17 | 31 | 50 | |
| dB(A) | <20 | <20 | <20 | 22 | 27 |
