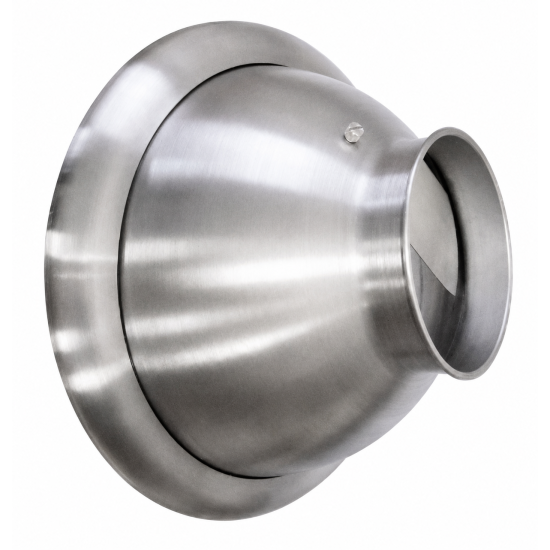

EDU-S - EDU-SM Long range nozzle diffusers with damper
Description
Long range aluminium diffusers, adjustable with a max. angle of 30°.
Characteristics
Material: aluminium.
Finish: satin aluminium.
Installation: with flange (on duct) or with fitting (on flexible duct).
Installation height between 3 m and 30 m depending on the model.
Models

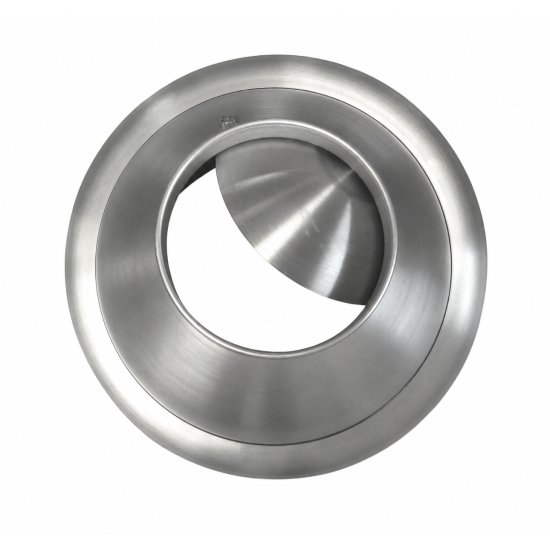

- EDU-S Long throw nozzle diffusers with damper.
- EDU-SM Long throw nozzle diffusers with damper with set-up for motor.
Use
Installation in rooms with very high ceilings or where a long air throw in needed.
Accessories
- Servomotors for EDU-S: the servomotor is supplied disassembled from the long range diffuser (installation by the customer);
- EDU-C - Screw cover;
- EDU-SW - Rear swirl (throw reducer);
- EDU-RF - Fitting for flexible duct;
- EDU-RC - Fitting for circular duct.
On request
Ral painting on request.
Dimensions
All dimensions are expressed in mm.
Ø D Ø S Ø C Ø F E L1 ØJ Ø Hole 80 160 245 226 92 149 249 205 150 300 385 366 173 276 389 352 200 400 485 466 226 367 489 452 230 400 485 466 216 357 489 452 250 400 485 466 208 349 489 452 300 400 485 466 184 325 489 452Technical Drawing Models Effective Cross-Section (m2)
80 0,0059 150 0,0183 200 0,0325 230 0,0432 250 0,0513 300 0,0745
Operating Data
- Vk: effective speed (m/s).
- m³/h: flow rate.
- Pa: pressure drops in Pascal.
- L(m): air throw in metres calculated on ceiling installation, terminal velocity 0.25 m/s.
- dB(A): noise level.
From model 40 to 200 made with central cone, model 230 without central cone
| Models | Vk (m/s) | 2 | 4 | 6 | 8 | 10 |
| 80 | m³/h | 36 | 72 | 108 | 135 | 168 |
| L(m) | 4,0 | 8,0 | 12,0 | 15,0 | 19,0 | |
| Pa | 2,0 | 10 | 22 | 36 | 57 | |
| dB(A) | <20 | <20 | <20 | 22 | 29 | |
| 150 | m³/h | 127 | 254 | 382 | 509 | 637 |
| L(m) | 6,0 | 12,0 | 19,0 | 25,0 | 32,0 | |
| Pa | 2 | 8 | 19 | 34 | 55 | |
| dB(A) | <20 | <20 | 21 | 29 | 37 | |
| 200 | m³/h | 226 | 452 | 678 | 904 | 1130 |
| L(m) | 8,0 | 17,0 | 25,0 | 34,0 | 42,0 | |
| Pa | 2 | 8 | 19 | 34 | 55 | |
| dB(A) | <20 | <20 | 20 | 28 | 35 | |
| 230 | m³/h | 298 | 597 | 896 | 1195 | 1494 |
| L(m) | 9,0 | 20,0 | 29,0 | 39,0 | 45,0 | |
| Pa | 2 | 8 | 19 | 34 | 55 | |
| dB(A) | <20 | <20 | 21 | 28 | 35 | |
| 250 | m³/h | 353 | 707 | 1060 | 1413 | 1766 |
| L(m) | 10,0 | 21,0 | 31,0 | 42,0 | 48,0 | |
| Pa | 2 | 8 | 19 | 34 | 55 | |
| dB(A) | <20 | <20 | 24 | 31 | 36 | |
| 300 | m³/h | 509 | 1017 | 1526 | 2035 | 2543 |
| L(m) | 13,0 | 25,0 | 36,0 | 44,0 | 51,0 | |
| Pa | 2 | 8 | 19 | 34 | 55 | |
| dB(A) | <20 | <20 | 23 | 30 | 35 |
EDU-S - Long range nozzle diffusers with set-up for motor
D* Screw Cover.
All measurements are expressed in mm.
A B C D* E F L R G min H min 80 158 200 258 204 50 25 80 38 60 150 313 283 388 352 60 35 150 70 85 200 398 283 488 452 60 50 200 70 85 230 398 283 488 452 60 50 200 70 85 250 398 283 488 452 60 50 200 70 85 300 398 283 488 452 60 50 200 70 85Available Actuators Models Actuator On / Off Modulating Servomotor 80 CM24-L / CM230-L CM24-SR-L 150 - 200 - 230 - 250 - 300 NM24A / NM230A NM24A-SR / NM230ASR Technical Drawing Dn
80 150 200 230 250 300
EDU-RF - Fitting for Flexible Duct
Technical Drawing Models Ø A Ø B C D E Ø F int L
EDU-RF 80 158 230 60 100 60 210 220 EDU-RF 150 248 378 60 130 60 358 250 EDU-RF 200 398 480 60 170 60 460 290 EDU-RF 230 398 480 60 170 60 460 290 EDU-RF 250 398 480 60 170 60 460 290 EDU-RF 300 398 480 60 170 60 460 290
Installation Example Render
EDU-RC - Fitting for Circular Duct
Technical Drawing Models L2 Ø D1 Ø D2 Duct min max
EDU-RC 80 200 210 230 315 630 EDU-RC 150 300 358 378 500 800 EDU-RC 200 350 460 480 500 1000 EDU-RC 230 350 460 480 500 1000 EDU-RC 250 350 460 480 500 1000 EDU-RC 300 350 460 480 500 1000
Installation Example Render
Swirl Deflector
The swirl deflector installed at the back of the nozzle diffuser generates a rotary motion that increases induction and reduces the throw of the diffuser by 40% and is particularly suitable for the supply of high air flow rates in medium-sized rooms as it prevents sensitive air currents in the occupied area.Description Photo
Assembly in Sets
Technical Drawing Models L - Minimum Distance (mm)
80 300 150 430 200 430 230 550 250 550 300 550
Price List
Models EDU-S - Diffuser with damper EDU-S - Diffuser prepared for servomotors Servomotors for EDU-SM EDU-C - Screw Cover EDU-SW - Rear Swirl EDU-RF - Fitting for Flexible Duct EDU-RC - Fitting for Circular Duct ON / OFF Modulating 24V 230V 24V 230V Eur Eur Eur Eur Eur Eur Eur Eur Eur Eur 80 147,82 352,71 212,42 224,73 304,78 - 31,63 51,26 32,38 70,99 150 279,28 462,03 309,40 320,17 443,32 507,97 45,91 67,79 54,76 98,36 200 357,64 541,53 57,35 77,96 73,06 134,88 230 373,01 549,35 57,35 77,96 73,06 143,00 250 387,45 556,11 300 397,43 567,57
