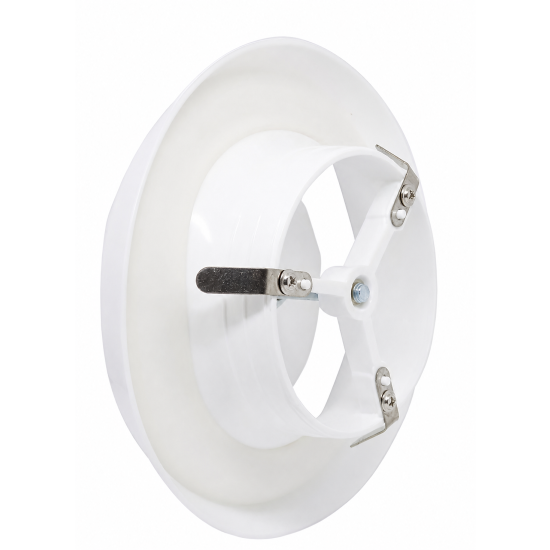

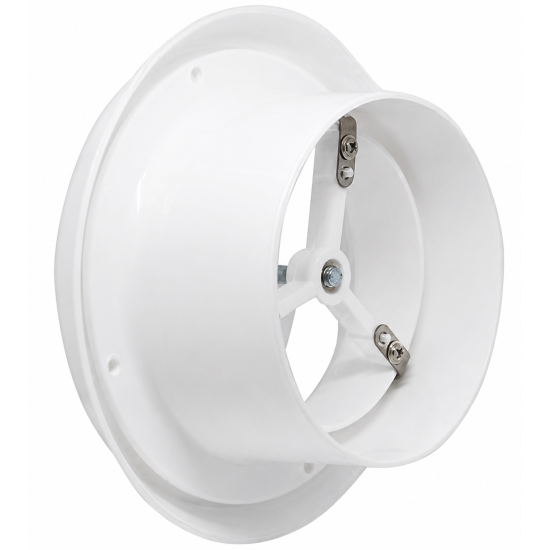

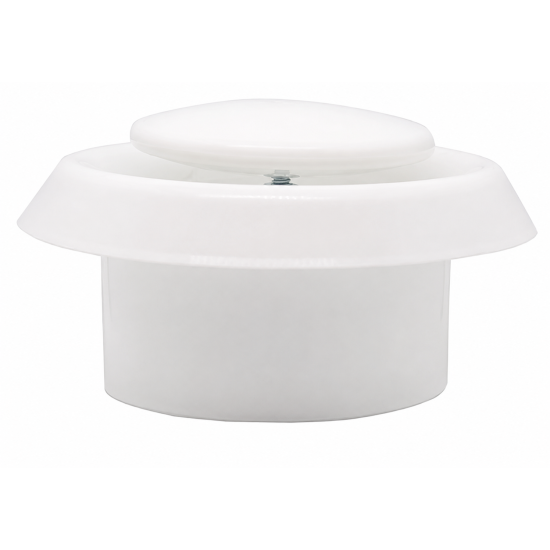

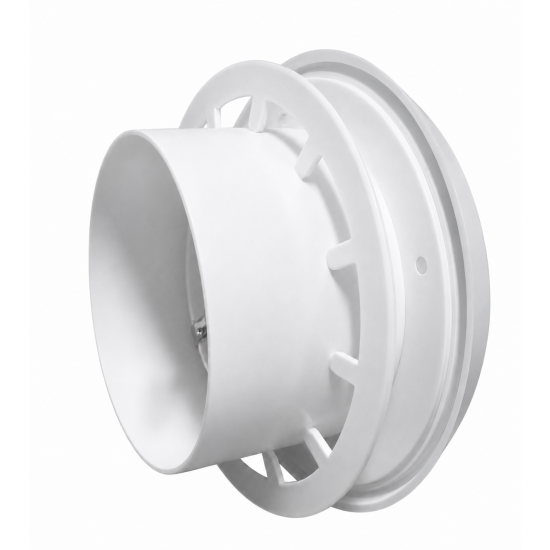

EVPMC Supply and exhaust ABS air valves
Description
ABS supply and exhaust air valves painted white RAL 9010, with adjustable central cone.
Characteristics
Material: ABS.
Finish: white RAL 9010.
Installation: by means of non-visible screws.
Finish: white RAL 9010.
Installation: by means of non-visible screws.
Use
Ceiling installation, directly on the duct, for air supply or exhaust in service rooms, bathrooms and shops.
Dimensions
Models A (mm) B (mm) C (mm) D (mm) EVPMC 100 99 149 89 20 EVPMC 125 124 165 109 20 EVPMC 150 148 185 130 20 EVPMC 160 158 195 130 20 EVPMC 200 199 230 177 20
Operating Data
- Vk: effective speed (m/s).
- m³/h: flow rate.
- Pa: pressure drops in Pascal.
- L(m): air throw in metres calculated on ceiling installation, terminal velocity 0.25 m/s.
- dB(A): noise level.
| Models | m³/h | Apertura "S" (mm) | Pressure Drop (Pa) | dB(A) |
| EVPMC 100 | 54 | 15 | 25 | 25 |
| 72 | 18 | 40 | 30 | |
| 108 | 20 | 80 | 38 | |
| EVPMC 125 | 72 | 9 | 58 | 38 |
| 108 | 17 | 68 | 35 | |
| 144 | 23 | 70 | 35 | |
| EVPMC 150 / 160 | 108 | 10 | 70 | 40 |
| 144 | 18 | 68 | 35 | |
| 180 | 25 | 70 | 33 | |
| EVPMC 200 | 108 | 17 | 60 | 38 |
| 144 | 22 | 68 | 35 | |
| 180 | 25 | 72 | 35 |
