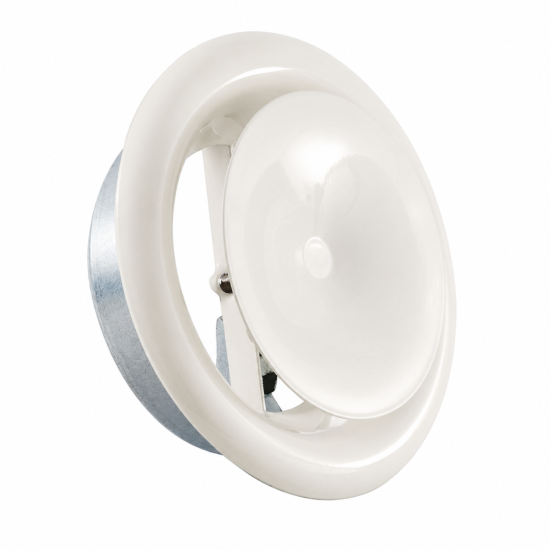

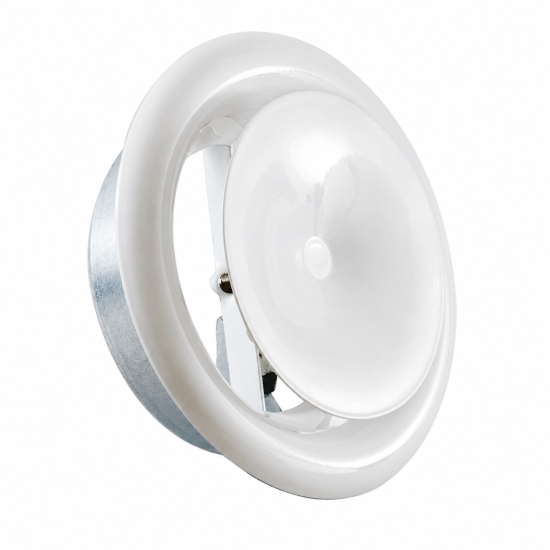

EVVMC - EVVMB Supply steel air valves
Description
Steel supply air valves painted white, with adjustable central cone.
Characteristics
Material: steel.
Finish EVVMC: painted white RAL 9010.
Finish EVVMB: painted white RAL 9016.
Installation: by means of non-visible screws.
Finish EVVMC: painted white RAL 9010.
Finish EVVMB: painted white RAL 9016.
Installation: by means of non-visible screws.
Use
Ceiling installation, directly on the duct, for air supply in service rooms, bathrooms and shops.
Dimensions
Models A (mm) B (mm) C (mm) D (mm) E (mm) EVVMC - EVVMB 80 116 80 38 105 79 EVVMC - EVVMB 100 140 93 38 125 99 EVVMC - EVVMB 125 166 112 45 150 124 EVVMC - EVVMB 150 203 137 50 175 149 EVVMC - EVVMB 160 210 148 50 186 159 EVVMC - EVVMB 200 250 195 56 225 199
Operating Data
- Vk: effective speed (m/s).
- m³/h: flow rate.
- Pa: pressure drops in Pascal.
- L(m): air throw in metres calculated on ceiling installation, terminal velocity 0.25 m/s.
- dB(A): noise level.
| Models | m³/h | Apertura "S" (mm) | Pressure Drop (Pa) | dB(A) |
| EVVMC - EVVMB 80 | 60 | 6 | 36 | 23 |
| 3 | 45 | 26 | ||
| 0 | 68 | 31 | ||
| 80 | 9 | 45 | 28 | |
| 6 | 60 | 30 | ||
| 3 | 76 | 34 | ||
| 0 | 120 | 37 | ||
| 100 | 12 | 80 | 35 | |
| EVVMC - EVVMB 100 | 100 | 10 | 50 | 25 |
| 5 | 90 | 28 | ||
| 0 | 180 | 35 | ||
| 125 | 10 | 70 | 28 | |
| 5 | 140 | 34 | ||
| 150 | 10 | 100 | 33 | |
| 5 | 200 | 38 | ||
| EVVMC - EVVMB 125 | 130 | 6 | 38 | 21 |
| 3 | 48 | 24 | ||
| 0 | 70 | 28 | ||
| -3 | 100 | 31 | ||
| 160 | 6 | 55 | 27 | |
| 3 | 75 | 28 | ||
| 0 | 110 | 34 | ||
| 190 | 9 | 70 | 30 | |
| 6 | 110 | 34 | ||
| EVVMC - EVVMB 150 / 160 | 160 | 5 | 46 | 22 |
| 0 | 70 | 24 | ||
| -5 | 120 | 30 | ||
| 190 | 5 | 70 | 25 | |
| 0 | 100 | 28 | ||
| -5 | 180 | 35 | ||
| 220 | 10 | 55 | 24 | |
| 5 | 85 | 28 | ||
| 0 | 130 | 32 | ||
| -5 | 180 | 35 | ||
| 250 | 10 | 70 | 27 | |
| 5 | 130 | 32 | ||
| 0 | 180 | 35 | ||
| EVVMC - EVVMB 200 | 300 | 10 | 35 | 22 |
| 0 | 65 | 32 | ||
| -5 | 88 | 30 | ||
| -10 | 140 | 36 | ||
| 350 | 10 | 49 | 26 | |
| 0 | 100 | 34 | ||
| 400 | 10 | 55 | 28 | |
| 0 | 120 | 35 |
