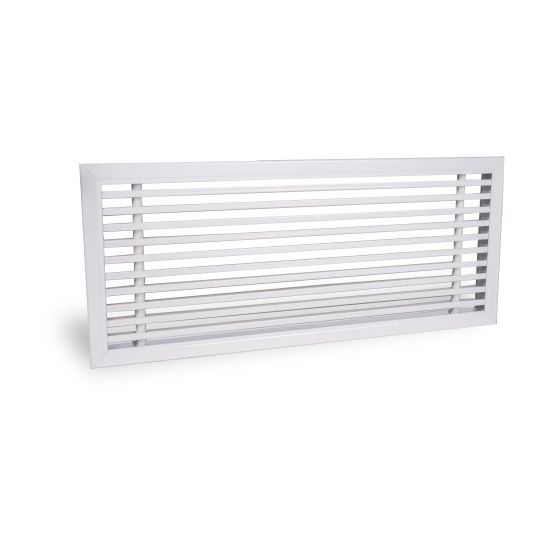

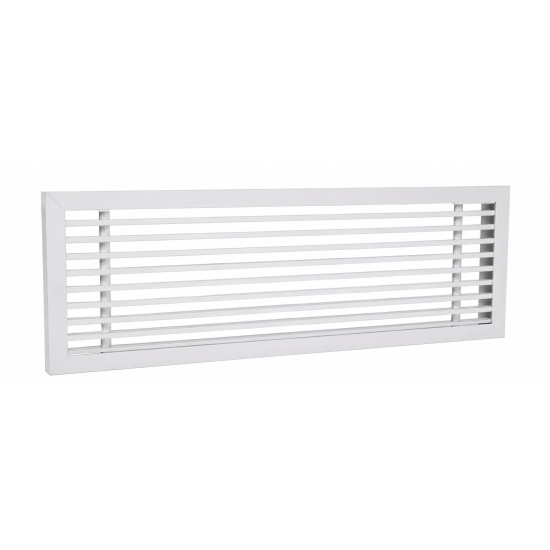

EBLR Linear grilles with horizontal fixed bars with 15 mm frame
Description
Air jets with horizontal aluminium fixed bars with 0° or 15° deflection with 15 mm frame.
Characteristics
Material: aluminium.
Finish: natural anodised.
Installation: magnet fastening.
Use
For air conditioning and ventilation systems, for wall installation, for fan coils, for floor installation (not walkable), for both supply and exhaust.
Model

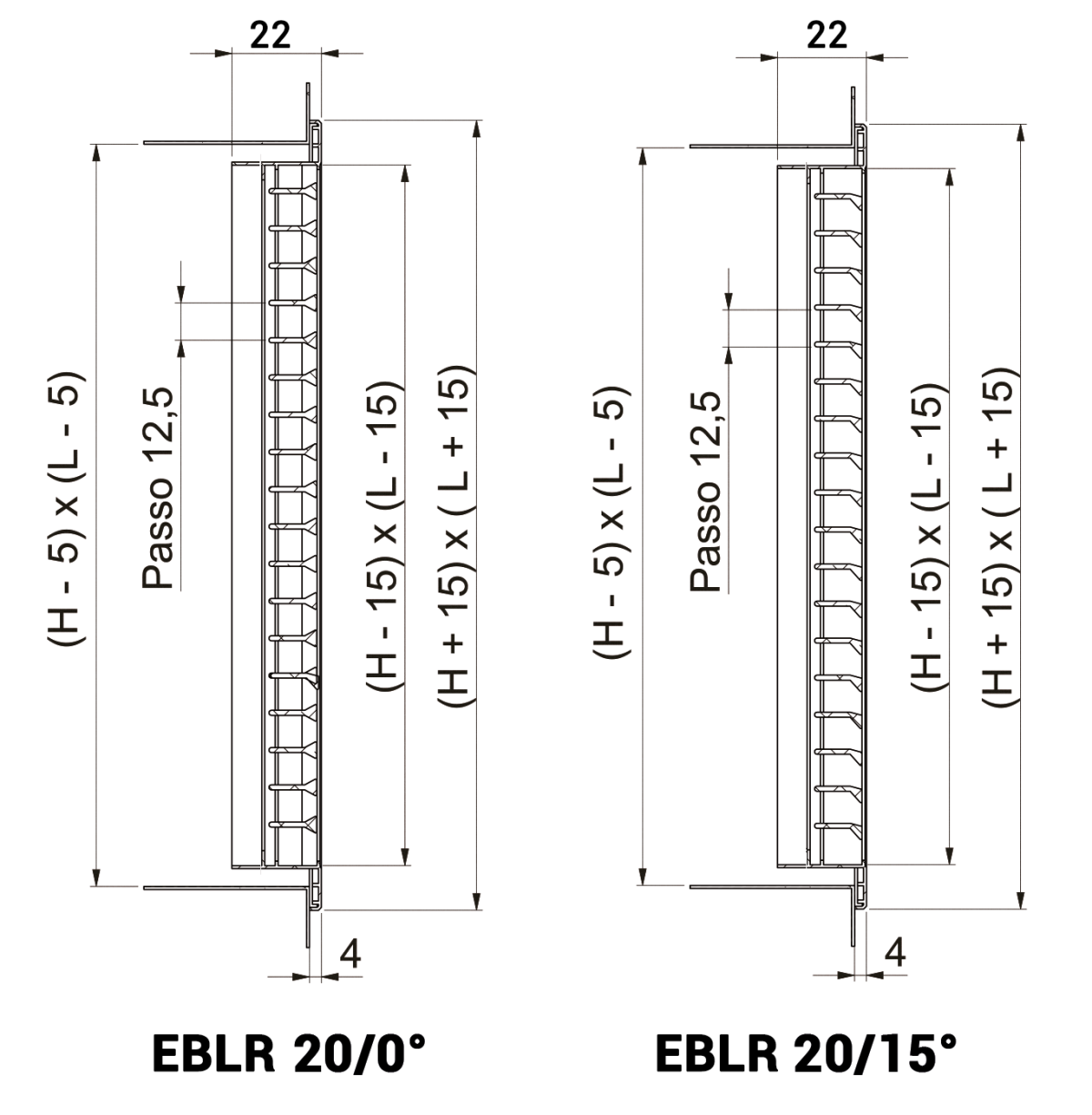

- EBLR 20/0°: Air jets with horizontal aluminium fixed bars with 0° deflection with 15 mm frame;
- EBLR 20/15°: Air jets with horizontal aluminium fixed bars with 15° deflection with 15 mm frame.
Accessories
- EPZR - Galvanised Plenum Box;
- EPIR - Insulated Plenum Box;
- SC - Galvanised steel regulation damper with blades with opposing movement.
On request
RAL9016 painting or other RAL colours.
Operating Data
- Vk: effective speed (m/s).
- m³/h: flow rate.
- Pa: pressure drops in Pascal.
- L1 (m): air throw referring to a terminal velocity Vt= 0.25 m/s and with a temperature differential of 10/12°C, installed near the ceiling (not beyond 3 m); for greater distances, correct the air throw by multiplying it by 0.7.
- dB(A): noise level.
All dimensions are expressed in mm.
| Dimensions LxH | Effective Section | Vk 3 m/s | Vk 4 m/s | Vk 5 m/s | |||
| m2 | m³/h | L1 | m³/h | L1 | m³/h | L1 | |
| 400x75 | 0,015 | 160 | 2,8 | 213 | 3,8 | 266 | 4,7 |
| 500x75 | 0,019 | 201 | 3 | 268 | 3,9 | 335 | 4,9 |
| 600x75 | 0,022 | 243 | 3,1 | 323 | 4,1 | 404 | 5,1 |
| 400x100 | 0,020 | 216 | 2,9 | 292 | 3,8 | 365 | 4,8 |
| 500x100 | 0,026 | 276 | 3 | 367 | 4 | 459 | 5 |
| 600x100 | 0,031 | 332 | 3,1 | 443 | 4,2 | 554 | 5,2 |
| 400x125 | 0,026 | 278 | 2,9 | 370 | 3,9 | 463 | 4,9 |
| 500x125 | 0,032 | 350 | 3,1 | 467 | 4,1 | 583 | 5,1 |
| 600x125 | 0,039 | 422 | 3,2 | 563 | 4,2 | 703 | 5,3 |
| 400x150 | 0,031 | 337 | 3 | 449 | 4 | 561 | 5 |
| 500x150 | 0,039 | 424 | 3,1 | 566 | 4,2 | 707 | 5,2 |
| 600x150 | 0,047 | 512 | 3,4 | 682 | 4,3 | 853 | 5,4 |
| 400x200 | 0,042 | 455 | 3,3 | 607 | 4,2 | 758 | 5,2 |
| 500x200 | 0,053 | 573 | 3,4 | 764 | 4,4 | 955 | 5,4 |
| 600x200 | 0,064 | 691 | 3,6 | 922 | 4,5 | 1152 | 5,6 |
| Pa | 5 | 10 | 15 | ||||
| dB(A) | 25 / 32 | 33 / 39 | 38 / 44 | ||||

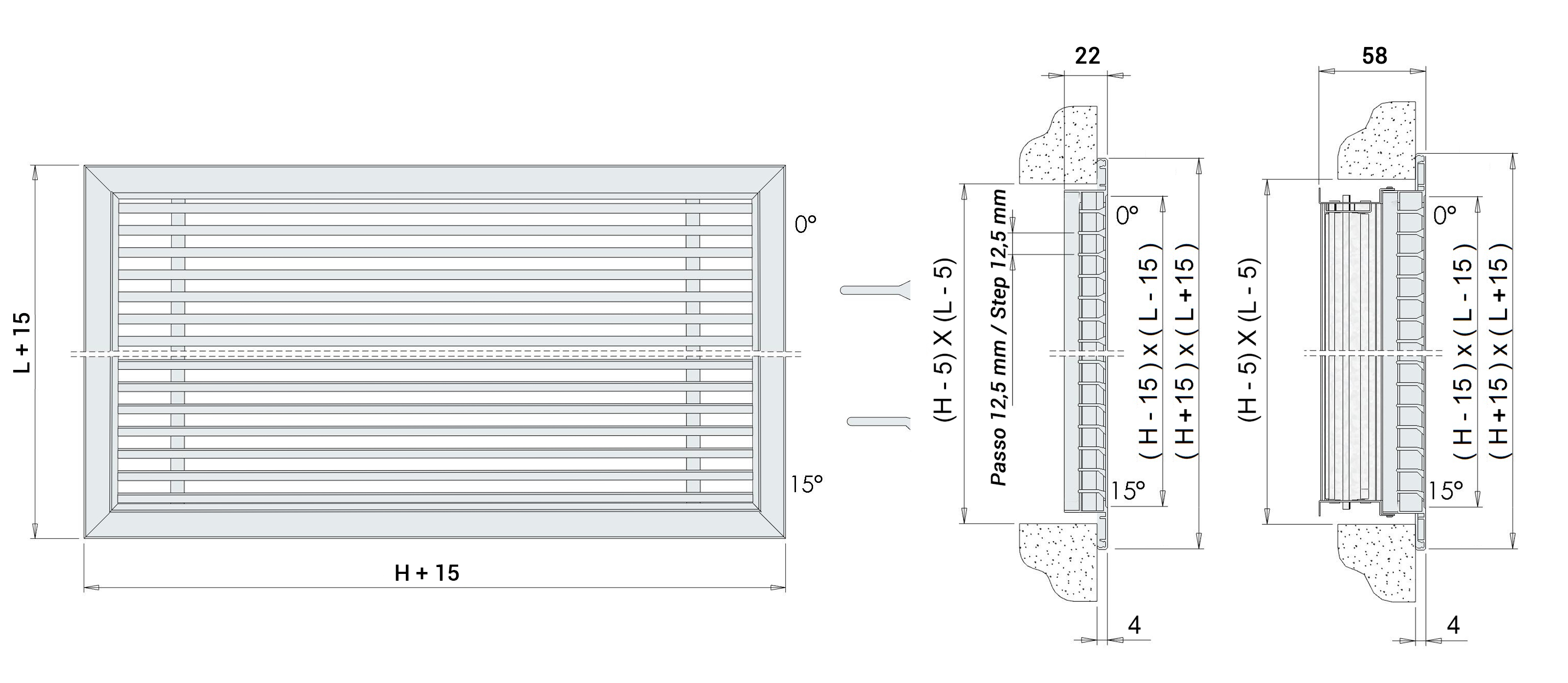

Configuration
All measurements are expressed in mm

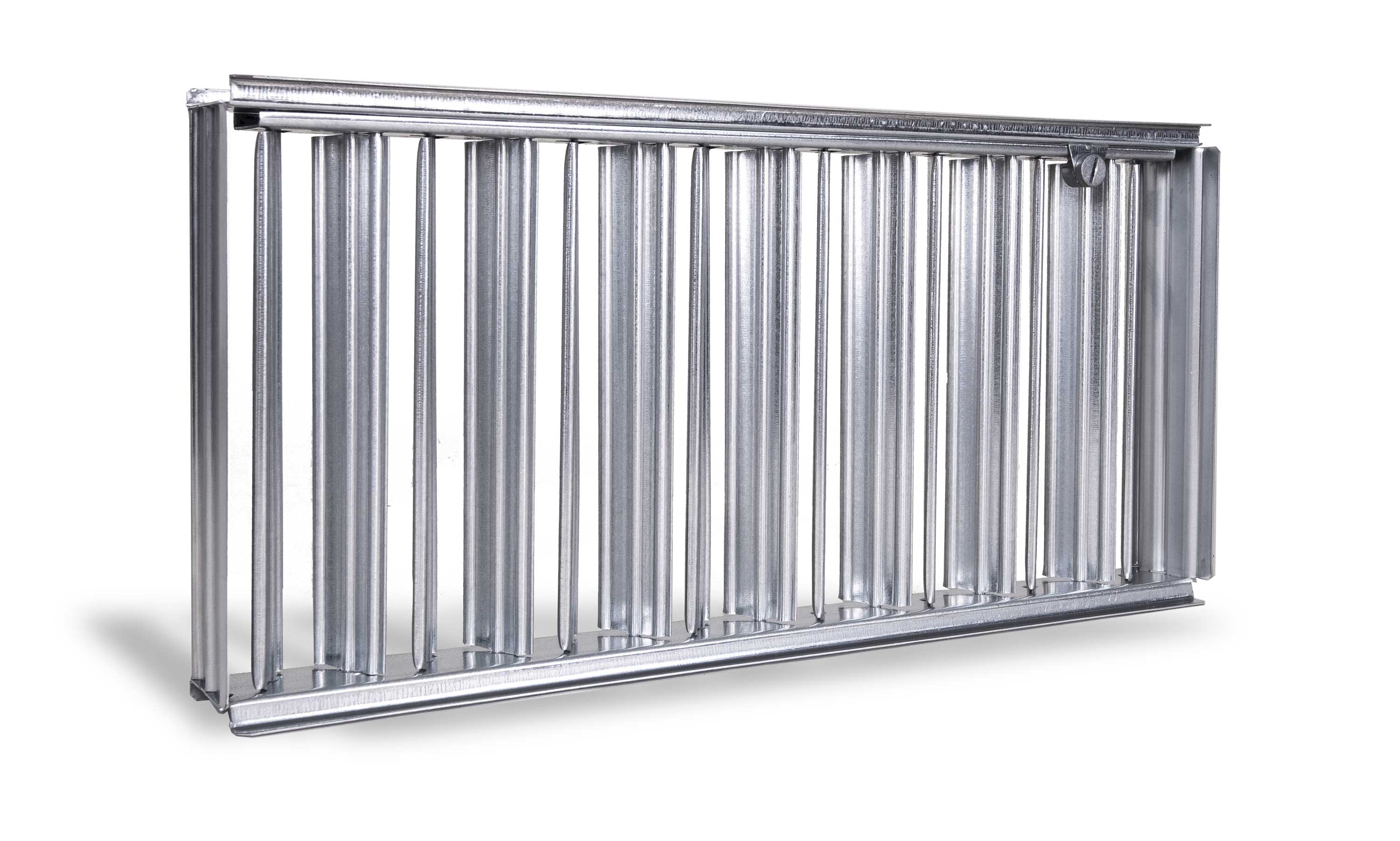

SC - Regulation Damper
Galvanised steel regulation damper with blades with opposing movement.
Plenum Box
All dimensions are expressed in mm.
Dimensions Dimensions Top Connection Lateral Connection E F L x H L1 x H1 P1 Nr. Connections Ø d P2 Nr. Connections Ø d 400x75 395x70 - - - 150 2 95 80 8 500x75 495x70 - - - 150 2 95 80 8 600x75 595x70 - - - 150 2 95 80 8 400x100 395x95 200 2 95 200 2 95 80 8 500x100 495x95 200 2 95 200 2 95 80 8 600x100 595x95 200 2 95 200 2 95 80 8 400x125 395x120 200 1 120 230 1 120 80 8 500x125 495x120 200 2 120 230 2 120 80 8 600x125 595x120 200 2 120 230 2 120 80 8 400x150 395x145 200 1 145 250 1 145 80 8 500x150 495x145 200 2 145 250 2 145 80 8 600x150 595x145 200 2 145 250 2 145 80 8 400x200 395x195 200 1 195 300 1 195 80 8 500x200 495x195 200 2 195 300 2 195 80 8 600x200 595x195 200 2 195 300 2 195 80 8
Price List
- Note: painted white RAL 9016 +20%.
- EBLR20: with fixed bars, available in:
- 0°: 0° deflection;
- 15°: 15° deflection.
| Dimensions | EBLR-20/0° | EBLR-20/15° |
| LxH | Eur | Eur |
| 400x75 | 26,96 | 26,96 |
| 500x75 | 33,37 | 33,37 |
| 600x75 | 36,01 | 36,01 |
| 400x100 | 33,37 | 33,37 |
| 500x100 | 38,71 | 38,71 |
| 600x100 | 41,42 | 41,42 |
| 400x125 | 36,94 | 36,94 |
| 500x125 | 41,42 | 41,42 |
| 600x125 | 47,76 | 47,76 |
| 400x150 | 41,42 | 41,42 |
| 500x150 | 43,24 | 43,24 |
| 600x150 | 52,21 | 52,21 |
| 400x200 | 56,77 | 56,77 |
| 500x200 | 66,67 | 66,67 |
| 600x200 | 71,15 | 71,15 |
Accessories
All dimensions are expressed in mm.
EBLR - Grille Dimensions Plenum Box Dimensions Top Connection Lateral Connection SC - Volume Damper EPZR - Galvanised Plenum Box EPIR - Insulated Plenum Box EPZR - Galvanised Plenum Box EPIR - Insulated Plenum Box LxH L1xH1 Eur Eur Eur Eur Eur 400x75 395x70 - - 42,12 55,80 17,73 500x75 495x70 - - 44,58 59,14 21,16 600x75 595x70 - - 47,04 62,45 24,21 400x100 395x95 42,12 55,80 42,12 55,80 17,73 500x100 495x95 44,58 59,14 44,58 59,14 21,16 600x100 595x95 47,04 62,45 47,04 62,45 24,21 400x125 395x120 36,12 49,88 39,74 54,80 20,46 500x125 495x120 45,96 60,83 50,53 66,90 23,69 600x125 595x120 48,54 64,33 53,38 70,71 27,00 400x150 395x145 37,39 51,46 41,12 56,57 20,46 500x150 495x145 47,31 62,60 52,03 68,79 23,69 600x150 595x145 50,00 66,17 54,99 72,75 27,00 400x200 395x195 39,89 54,65 43,85 60,06 25,31 500x200 495x195 50,07 66,10 55,07 67,29 29,73 600x200 595x195 63,10 80,51 69,40 88,54 34,25
