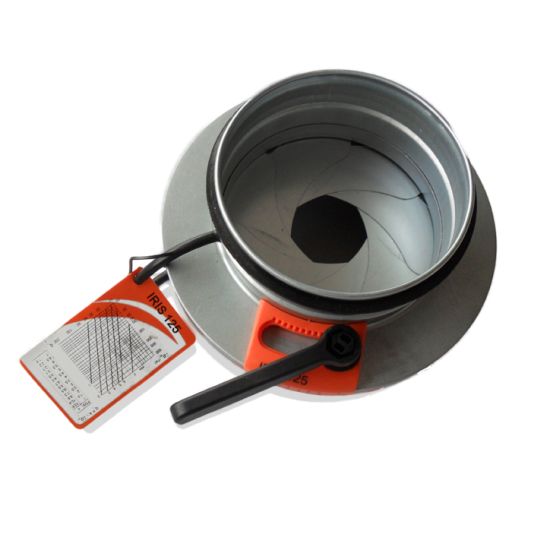

ESCI-C Circular iris regulation dampers
Description
Circular iris regulation dampers for air flow regulation with differential pressure test connections to calculate the flow rate.
Characteristics
Material: galvanised steel structure and blades.
Regulation is obtained using a handle located on the damper, which changes the opening diameter of the damping hole.
Tightness class C in accordance with the EN 1751 Standard.
Operating temperature from -10 to +80°C.
On request
ESCI-X - Stainless steel version.

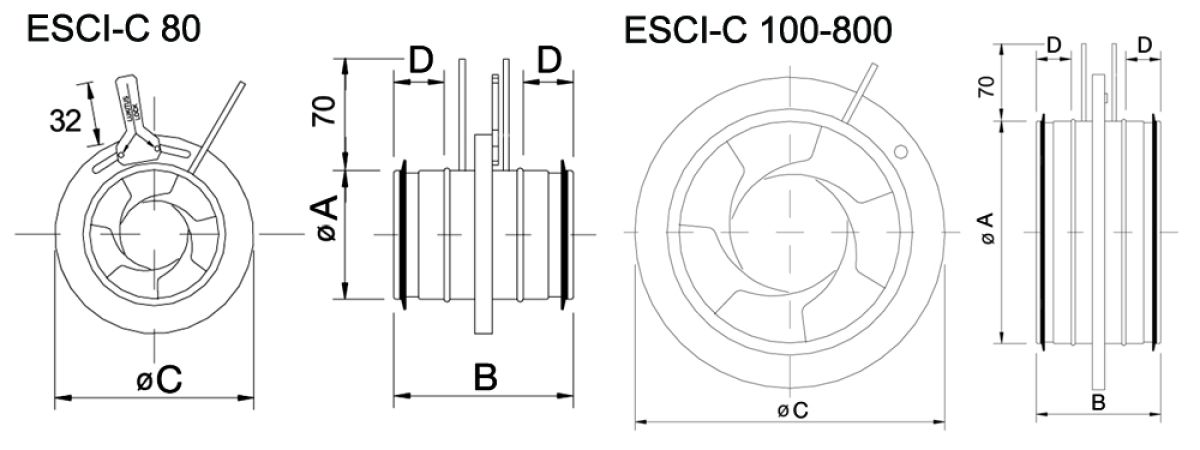

Dimensions
All dimensions are expressed in mm.
ESCI-C Ø A Ø C B D kg 80 79 125 115 35 0,5 100 99 165 115 30 0,6 125 124 188 115 30 0,7 150 149 230 115 30 1,0 160 159 230 115 30 1,0 200 199 285 120 30 1,4 250 249 335 135 40 2,0 300 299 405 140 40 2,6 315 314 405 140 40 2,6 400 399 525 150 55 6,5 500 499 655 150 52 9,0 630 629 815 160 60 16,0 800 799 1015 290 120 25,0
Flow Rates and Price List
* within the min-max range, accurate regulation is achieved without affecting the noise.
