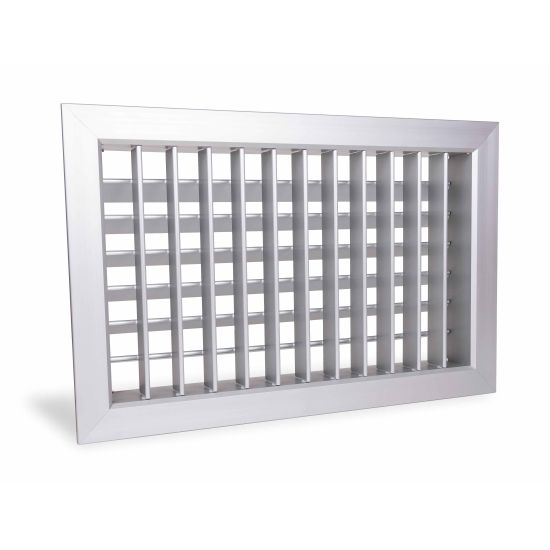

EBIA Industrial aluminium grilles 40 mm pitch
Description
Aluminium air jets with industrial pitch for high air flow rates and low pressure drops.
Characteristics
Material: aluminium.
Finish: natural anodised.
Installation: fastening by means of front screws. For greater flexibility of installation, the air jets are supplied without screw holes.
Maximum dimensions: 1600 mm x 1600 mm.
Use
Recommended for large rooms where high air flow rates and long air throw are required, for example industrial buildings, churches and hypermarkets.
Models
- EBIA-VO with 2 rows of vertical and horizontal blades;
- EBIA-OV with 2 rows of horizontal and vertical blades;
- EBIA-V with 1 row of vertical blades;
- EBIA-O with 1 row of horizontal blades.
Example: the VO version has the first vertical row near the front and the second horizontal row inside the air jet.
Accessories
- CTP - Counter-frame to set into wall.
On request
Painting in different RAL colours.
Operating Data
- Vk: effective speed (m/s).
- m³/h: flow rate.
- Pa: pressure drops in Pascal.
- L1 (m): air throw in metres calculated on ceiling installation, terminal velocity 0.25 m/s.
- dB(A): noise level.
All dimensions are expressed in mm.
| Dimensions LxH | Effective Section | m³/h | L1 | m³/h | L1 | m³/h | L1 |
| m2 | |||||||
| 500x200 | 0,075 | 810 | 11,5 | 1080 | 14,6 | 1350 | 19,5 |
| 600x200 | 0,090 | 972 | 13 | 1296 | 16 | 1620 | 22 |
| 700x200 | 0,105 | 1134 | 13,5 | 1512 | 18 | 1890 | 23 |
| 800x200 | 0,120 | 1296 | 14 | 1728 | 19 | 2160 | 24 |
| 1000x200 | 0,150 | 1620 | 16,5 | 2160 | 21 | 2700 | 25 |
| 500x300 | 0,120 | 1296 | 14 | 1728 | 18,1 | 2160 | 23 |
| 600x300 | 0,145 | 1566 | 16,2 | 2088 | 20,8 | 2610 | 25 |
| 700x300 | 0,170 | 1836 | 18,6 | 2448 | 23 | 3060 | 28 |
| 800x300 | 0,195 | 2106 | 20,8 | 2808 | 25 | 2564 | 30 |
| 1000x300 | 0,245 | 2646 | 23 | 3528 | 28 | 4410 | 35 |
| 1200x300 | 0,290 | 3132 | 24,8 | 4176 | 29,5 | 5220 | 36 |
| 1500x300 | 0,360 | 3888 | 26,6 | 5184 | 31 | 6480 | 37,5 |
| 600x400 | 0,200 | 1260 | 20,5 | 2880 | 25,8 | 3600 | 29 |
| 700x400 | 0,230 | 2484 | 23 | 3312 | 26,2 | 4140 | 32 |
| 800x400 | 0,260 | 2808 | 25,5 | 3744 | 30 | 4680 | 35 |
| 1000x400 | 0,330 | 3564 | 27,2 | 4752 | 33 | 5940 | 39 |
| 1200x400 | 0,410 | 4428 | 28,4 | 5900 | 34,8 | 7380 | 40,2 |
| 1500x400 | 0,510 | 5500 | 31,2 | 7350 | 37,7 | 9180 | 42 |
| 600x500 | 0,260 | 2808 | 21 | 3744 | 29 | 4680 | 36 |
| 700x500 | 0,300 | 3240 | 24 | 4320 | 31 | 5400 | 38 |
| 800x500 | 0,340 | 3672 | 27 | 4896 | 33 | 6120 | 39,5 |
| 1000x500 | 0,420 | 4536 | 29,5 | 6048 | 36 | 7560 | 41 |
| 1200x500 | 0,510 | 4536 | 31,2 | 7350 | 37,7 | 9180 | 42 |
| 1500x500 | 0,630 | 5500 | 32 | 9072 | 38,5 | 11340 | 43,2 |
| 600x600 | 0,310 | 6805 | 23,6 | 4464 | 30,1 | 5580 | 37,2 |
| 800x600 | 0,420 | 3348 | 28 | 6048 | 35 | 7560 | 40 |
| 1000x600 | 0,520 | 5637 | 32 | 7516 | 37 | 9396 | 47 |
| 1200x600 | 0,630 | 6804 | 33 | 9072 | 42 | 11340 | 49 |
| 1500x600 | 0,750 | 8100 | 34,8 | 10800 | 44 | 13500 | 50,6 |
| Vk (m/s) | 3 | 4 | 5 | ||||
Noise Level dB(A)
V
m/sDeflection 0° Deflection 0° Deflection 0° 3 25/30 28/33 30/35 4 30/35 33/38 35/40 5 35/40 38/43 40/45
Pressure Drop (Pa)
V
m/sDeflection 0° Deflection 0° Deflection 0° 3 5 7 10 4 10 13 18 5 15 21 33

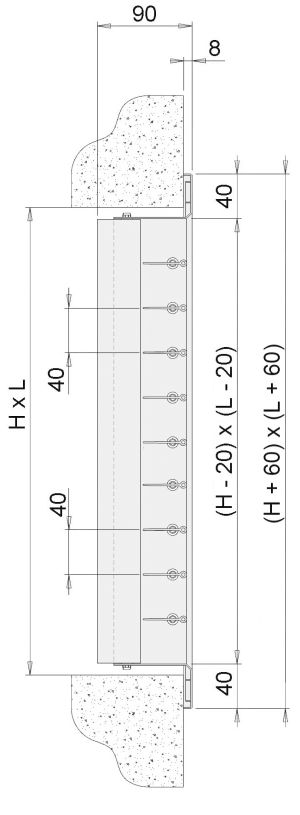

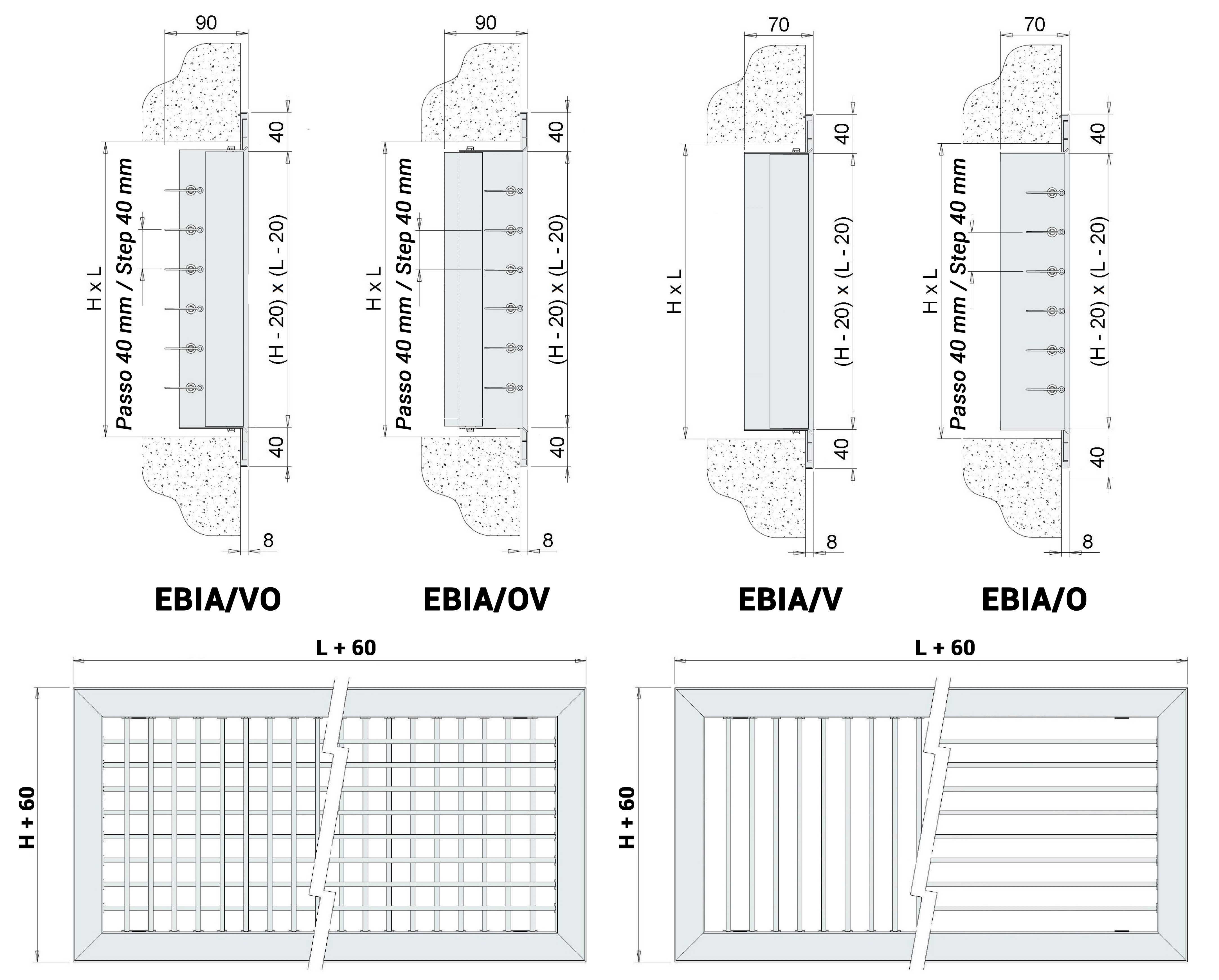

Configuration
All measurements are expressed in mm.

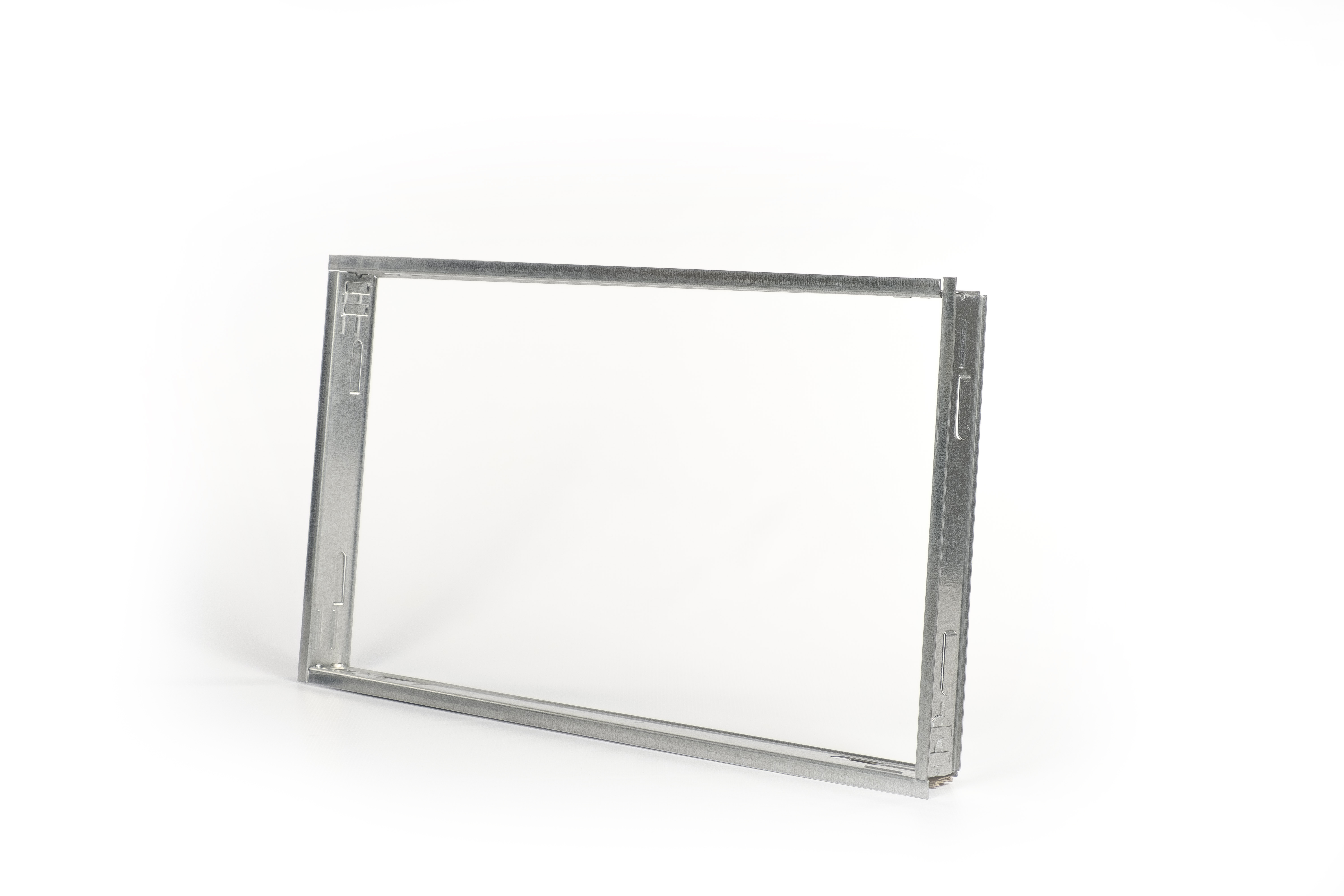

CTP - Counter-frame
Price List
Dimensions EBIA-VO EBIA-OV EBIA-O EBIA-V CTP LxH Eur Eur Eur Eur Eur 500x200 77,17 77,16 50,15 58,53 45,79 600x200 81,92 81,92 56,84 61,86 47,67 700x200 90,29 90,29 63,52 65,23 56,50 800x200 100,32 100,32 71,90 76,91 65,34 1000x200 110,35 110,35 75,24 81,92 68,83 500x300 93,63 93,63 62,71 66,89 51,15 600x300 109,70 109,70 69,83 80,70 56,50 700x300 120,38 120,38 77,77 91,12 65,34 800x300 131,49 131,49 85,24 100,65 67,09 1000x300 152,32 152,32 101,55 118,78 70,70 1200x300 172,29 172,29 116,97 137,84 79,71 1500x300 208,61 208,66 146,88 163,21 93,34 600x400 132,39 132,39 89,77 100,65 65,34 700x400 145,46 145,46 97,65 112,02 67,09 800x400 158,67 158,67 107,01 123,30 68,83
All dimensions are expressed in mm.
Dimensions EBIA-VO EBIA-OV EBIA-O EBIA-V CTP LxH Eur Eur Eur Eur Eur 1000x400 184,97 184,97 126,04 147,78 72,57 1200x400 213,09 213,09 146,00 168,65 86,84 1500x400 253,24 253,24 178,61 200,40 108,49 600x500 146,32 146,32 94,28 126,04 66,96 700x500 157,15 157,15 110,35 136,60 68,96 800x500 185,86 185,86 128,77 146,88 70,97 1000x500 219,44 219,44 152,32 174,10 81,41 1200x500 252,08 252,08 174,98 203,08 97,65 1500x500 307,86 307,86 204,00 241,21 121,84 600x600 170,45 170,45 129,11 129,13 68,83 800x600 214,88 214,88 149,60 171,36 78,33 1000x600 252,95 252,95 178,61 201,27 91,40 1200x600 291,05 291,05 217,61 235,74 115,70 1500x600 352,50 352,50 253,87 287,45 144,67
