EDLH-EDLHB Hidden multi-slot linear diffusers
Description
Hidden linear diffuser with single or multi slots, width 20 or 30 mm, with aluminium aerodynamic profile and adjustable deflectors for optimal air throw control. Also available with equalizer and sliding damper.
Features
Material: aluminium.
EDLH finish: RAL9005 black painted aluminium.
EDLHB finish: RAL9016 white painted aluminium
Slots number: from 1 to 3.
Slots width: 20 or 30 mm.
Installation: by plenum box with mounting bridge.
Possible dimensions in one piece:
- Minimum length 300 mm:
- Maximum length 2000 mm;
Use
Diffuser suitable for both air supply and exhaust in large rooms. Its modularity allows great freedom of design. The EDLH system is designed for the use on plasterboard walls and false ceiling with width 12,5 mm.
Models
- EDLH10-FA - EDLHB10-FA hidden linear diffusers 20 mm slot without deflectors (exhaust).
- EDLH20-FA - EDLHB20-FA hidden linear diffusers 20 mm slot with deflectors (supply).
- EDLH30-FA - EDLHB30-FA hidden linear diffusers 20 mm slot without deflectors, with sliding damper (exhaust).
- EDLH40-FA - EDLHB40-FA hidden linear diffusers 20 mm slot with deflectors and sliding damper (supply).
- EDLH10-FB - EDLHB10-FB hidden linear diffusers 30 mm slot without deflectors (exhaust).
- EDLH20-FB - EDLHB20-FB hidden linear diffusers 30 mm slot with deflectors (supply).
- EDLH30-FB - EDLHB30-FB hidden linear diffusers 30 mm slot without deflectors, with sliding damper (exhaust).
- EDLH40-FB - EDLHB40-FB hidden linear diffusers 30 mm slot with deflectors and sliding damper (supply).
Accessories
- EPZ-EDL - Galvanized steel plenum box;
- EPI-EDL - Insulated plenum box;
- Mounting bridge;
- Continues line kit.
On demand
Possibility of installation in continuity.
Plenum box with ovalised rear connection.
EDLH - EDLHB / 1F (Single-slot diffuser dimensions)
A (mm) B (mm) C (mm) D (mm) F (mm) Nr. of Mounting Bridges 20 mm Slot Version EDLH-FA EDLHB-FA 55 48 41 34 20 2 2 2 2 2 30 mm Slot Version EDLH-FB EDLHB-FB 65 58 51 44 30 2 2 2 2 2Technical Drawing EDLH-FA - EDLH-FB L (mm)
800 1000 1200 1500 2000 800 1000 1200 1500 2000
EDLH - EDLHB / 2F (Double-slot diffuser dimensions)
A (mm) B (mm) C (mm) D (mm) F (mm) Nr. of Mounting Bridges 20 mm Slot Version EDLH-FA EDLHB-FA 95 88 81 74 20 2 2 2 2 2 30 mm Slot Version EDLH-FB EDLHB-FB 115 108 101 94 30 2 2 2 2 2Technical Drawing LH-FA - EDLH-FB - 2F L (mm)
800 1000 1200 1500 2000 800 1000 1200 1500 2000
EDLH - EDLHB / 3F (Triple-slot diffuser dimensions)
A (mm) B (mm) C (mm) D (mm) F (mm) Nr. of Mounting Bridges 20 mm Slot Version EDLH-FA EDLHB-FA 135 128 121 114 20 2 2 2 2 2 30 mm Slot Version EDLH-FB EDLHB-FB 165 158 151 144 30 2 2 2 2 2Technical Drawing EDLH-FA - EDLH-FB - 3F L (mm)
800 1000 1200 1500 2000 800 1000 1200 1500 2000
Operating Data
Data refers to 1 m long diffusers, with a terminal velocity Vt = 0.25 m/s, flush-mounted on the ceiling and with horizontal air throw (Coanda effect). Values refer to the diffuser without damper or with sliding damper fully open. Values refer to the diffuser with deflectors set in operating position, with 50% free area reduction. The deflector position reduces the effective area. With deflectors fully open, or when the diffuser is used for return air, the airflow rates (m³/h) shown in the table may vary.
- Vk: effective speed (m/s).
- m³/h: flow rate.
- Pa: pressure drops in Pascal.
- L(m): air throw in metres calculated on ceiling installation, terminal velocity 0.25 m/s.
- dB(A): noise level.
| Slot | Dimensions Slot | Effective Cross-Section (m2) | Air-volume and Air-throw | ||||||
| 1 Slot | Slot da 20 mm | 0,0097 | m³/h | 70 | 105 | 140 | 175 | 210 | 245 |
| L(m) | 1.8 | 2.7 | 3.6 | 4.5 | 5.4 | 6.3 | |||
| Slot da 30 mm | 0,0146 | m3/h | 105 | 158 | 210 | 262 | 315 | 368 | |
| L(m) | 1,6 | 2,5 | 3,4 | 4,2 | 5 | 5,8 | |||
| Noise Level | dB(A) | <20 | 22 | 32 | 37 | 44 | 48 | ||
| 2 Slot | Slot da 20 mm | 0,0194 | m³/h | 140 | 210 | 280 | 350 | 420 | 490 |
| L(m) | 2,6 | 3,9 | 5,1 | 6,4 | 7,7 | 9,0 | |||
| Slot da 30 mm | 0,0292 | m³/h | 210 | 316 | 420 | 524 | 630 | 736 | |
| L(m) | 2,3 | 3,6 | 4,9 | 6,0 | 7,1 | 8,3 | |||
| Noise Level | dB(A) | <20 | 24 | 34 | 39 | 46 | 50 | ||
| 3 Slot | Slot da 20 mm | 0,0291 | m³/h | 210 | 315 | 420 | 525 | 630 | 735 |
| L(m) | 3,9 | 5,8 | 7,7 | 9,6 | 11,6 | 13,5 | |||
| Slot da 30 mm | 0,0438 | m³/h | 315 | 474 | 630 | 786 | 945 | 1104 | |
| L(m) | 3,4 | 5,4 | 7,3 | 9,0 | 10,7 | 12,4 | |||
| Noise Level | dB(A) | <20 | 26 | 36 | 41 | 48 | 52 | ||
| Vk | m/s | 2 | 3 | 4 | 5 | 6 | 7 | ||
| Pressure Drop | Pa | 7 | 15 | 26 | 41 | 59 | 80 | ||
Accessories
All measurements are expressed in mm.
Elemento estetico di raccordo tra i due linee di diffusori lineari con angolo di 90° e lunghezza 500 mm per lato. Non ha funzionalità di ventilazione. Il kit di continuità è un accessorio necessario per poter realizzare linee in continuità di diffusori lineari di lunghezza superiore ai 2 metri. E’ costituito da due piastrine di giunzione che permettono l'allineamento ed il collegamento di due componenti della linea.Angolo di collegamento Kit di continuità
Air Throw Characteristics
L’immagine illustra un esempio delle diverse configurazioni di lancio possibili di un diffusore lineare a feritoia, ottenibili mediante la regolazione dei deflettori interni: lancio orizzontale monodirezionale, lancio verticale e lancio inclinato/divergente. La possibilità di orientare il flusso d’aria consente di adattare la diffusione alle diverse esigenze impiantistiche e ambientali.Esempi di Configurazioni di Lancio dell’Aria

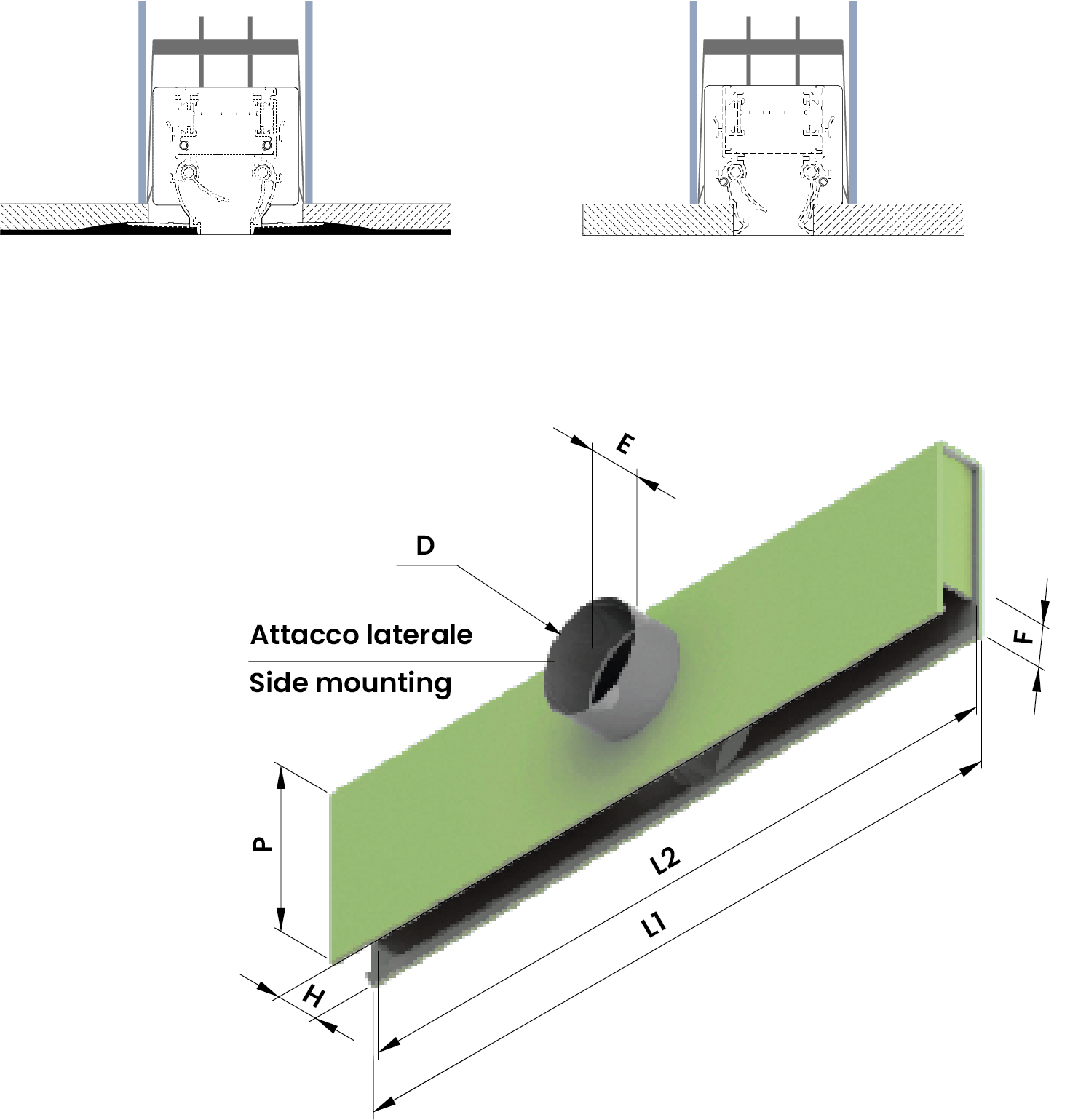

Plenum Dimensions and Fixing Bracket System
Technical Drawing Installation diagram of the linear slot diffuser complete with plenum and mounting bridge. The mounting bridge ensures proper support and accurate positioning of the diffuser within the suspended ceiling. Installation System with Plenum and Mounting Bridge EPI-EDL – Plenum for Linear Slot Diffuser with Side Inlet
1 SlotL Plenum Box Dimensions L1 L2 Nr. Lat. Connections Ø d P H E F Slot da 20 mm 800 800 770 1 145 240 65 80 49 1000 1000 970 1 1200 1200 1170 2 1500 1500 1470 2 2000 2000 1970 2 Slot da 30 mm 800 800 770 1 145 240 75 80 49 1000 1000 970 1 1200 1200 1170 2 1500 1500 1470 2 2000 2000 1970 2
2 SlotL Plenum Box Dimensions L1 L2 Nr. Lat. Connections Ø d P H E F Slot da 20 mm 800 800 770 2 145 300 105 80 49 1000 1000 970 2 1200 1200 1170 2 1500 1500 1470 2 2000 2000 1970 2 Slot da 30 mm 800 800 770 2 198 300 125 80 49 1000 1000 970 2 1200 1200 1170 2 1500 1500 1470 2 2000 2000 1970 2
3 SlotL Plenum Box Dimensions L1 L2 Nr. Lat. Connections Ø d P H E F Slot da 20 mm 800 800 770 2 198 300 145 80 49 1000 1000 970 2 1200 1200 1170 2 1500 1500 1470 2 2000 2000 1970 2 Slot da 30 mm 800 800 770 2 198 300 165 80 49 1000 1000 970 2 1200 1200 1170 2 1500 1500 1470 2 2000 2000 1970 2
Price List for EDLH-FA - 1 slot - black RAL9005 - 20 mm slot
EDLH-FA Lenght (m) EDLH10-FA EDLH20-FA EDLH30-FA EDLH40-FA EPZ-EDL - Plenum Box EPI-EDL - Insulated Plenum Box 1 Slot Eur Eur Eur Eur Eur Eur Slot da 20 mm 800 53,99 56,54 63,48 70,36 62,11 79,58 1000 60,66 63,65 70,50 78,46 67,58 86,87 1200 72,04 76,94 85,77 94,04 84,84 112,15 1500 82,00 87,99 96,26 106,28 91,44 117,60 2000 104,42 108,21 123,23 135,09 104,43 137,48
Price List for EDLH-FA - 2 slot - black RAL9005 - 20 mm slots
EDLH-FA Lenght (m) EDLH10-FA EDLH20-FA EDLH30-FA EDLH40-FA EPZ-EDL - Plenum Box EPI-EDL - Insulated Plenum Box 2 Slot Eur Eur Eur Eur Eur Eur Slot da 20 mm 800 94,35 101,40 111,47 126,38 72,78 95,99 1000 105,32 113,65 123,44 140,72 78,53 102,79 1200 124,39 136,88 150,00 168,67 90,16 119,48 1500 140,85 165,97 167,26 189,98 94,28 130,27 2000 178,93 216,03 214,13 241,62 107,98 152,86
Price List for EDLH-FA - 3 slot - black RAL9005 - 20 mm slots
EDLH-FA Lenght (m) EDLH10-FA EDLH20-FA EDLH30-FA EDLH40-FA EPZ-EDL - Plenum Box EPI-EDL - Insulated Plenum Box 3 Slot Eur Eur Eur Eur Eur Eur Slot da 20 mm 800 123,64 136,07 146,93 170,10 78,14 101,77 1000 138,23 152,66 163,12 189,81 85,05 111,26 1200 164,21 184,74 200,04 229,02 97,00 130,06 1500 185,98 224,06 222,81 257,81 103,23 143,33 2000 237,53 292,75 286,73 329,25 119,69 170,16
Price List for EDLH -FB - 1 slot - black RAL9005 - 30 mm slot
EDLH-FB Lenght (m) EDLH10-FB EDLH20-FB EDLH30-FB EDLH40-FB EPZ-EDL - Plenum Box EPI-EDL - Insulated Plenum Box 1 Slot Eur Eur Eur Eur Eur Eur Slot da 30 mm 800 55,06 61,27 64,75 71,77 62,70 81,70 1000 61,86 68,31 71,91 80,02 68,27 87,93 1200 79,25 86,84 94,34 103,46 88,44 112,60 1500 90,21 98,13 105,88 116,89 92,32 118,62 2000 106,50 117,60 125,68 137,78 105,55 138,21
Price List for EDLH -FB - 2 slot - black RAL9005 - 30 mm slots
EDLH-FB Lenght (m) EDLH10-FB EDLH20-FB EDLH30-FB EDLH40-FB EPZ-EDL - Plenum Box EPI-EDL - Insulated Plenum Box 2 Slot Eur Eur Eur Eur Eur Eur Slot da 30 mm 800 100,96 108,48 119,26 135,22 70,62 96,97 1000 112,69 121,60 132,06 150,56 77,73 107,07 1200 133,10 146,46 160,48 180,46 99,48 132,30 1500 150,71 177,58 178,96 203,27 105,11 145,01 2000 191,44 231,14 229,11 258,52 122,05 170,98
Price List for EDLH -FB - 3 slot - black RAL9005 - 30 mm slots
EDLH-FB Lenght (m) EDLH10-FB EDLH20-FB EDLH30-FB EDLH40-FB EPZ-EDL - Plenum Box EPI-EDL - Insulated Plenum Box 3 Slot Eur Eur Eur Eur Eur Eur Slot da 30 mm 800 132,28 145,59 157,21 182,00 79,41 104,01 1000 147,89 163,33 174,53 203,08 86,53 113,17 1200 175,69 197,67 214,03 245,03 99,48 132,30 1500 198,99 239,74 238,40 275,84 105,11 145,54 2000 254,14 313,22 306,79 352,29 122,05 173,01
Price List for EDLHB-FA - 1 slot - white RAL9016 - 20 mm slot
EDLHB-FA Lenght (m) EDLHB10-FA EDLHB20-FA EDLHB30-FA EDLHB40-FA EPZ-EDL - Plenum Box EPI-EDL - Insulated Plenum Box 1 Slot Eur Eur Eur Eur Eur Eur Slot da 20 mm 800 53,99 56,54 63,48 70,36 62,11 79,58 1000 60,66 63,65 70,50 78,46 67,58 86,87 1200 72,04 76,94 85,77 94,04 84,84 112,15 1500 82,00 93,54 96,26 106,28 91,44 117,60 2000 104,42 108,21 123,23 135,09 104,43 137,48
PriceList for EDLHB-FA - 2 slot - white RAL9016 - 20 mm slots
EDLHB-FA Lenght (m) EDLHB10-FA EDLHB20-FA EDLHB30-FA EDLHB40-FA EPZ-EDL - Plenum Box EPI-EDL - Insulated Plenum Box 2 Slot Eur Eur Eur Eur Eur Eur Slot da 20 mm 800 94,35 101,40 111,47 126,38 72,78 95,99 1000 105,32 113,65 123,44 140,72 78,53 102,79 1200 124,39 136,88 150,00 168,67 90,16 119,48 1500 140,85 165,97 167,26 189,98 94,28 130,27 2000 178,93 216,03 214,13 241,62 107,98 152,86
Price List for EDLHB-FA - 3 slot - white RAL9016 - 20 mm slots
EDLHB-FA Lenght (m) EDLHB10-FA EDLHB20-FA EDLHB30-FA EDLHB40-FA EPZ-EDL - Plenum Box EPI-EDL - Insulated Plenum Box 3 Slot Eur Eur Eur Eur Eur Eur Slot da 20 mm 800 123,64 136,07 146,93 170,10 78,14 101,77 1000 138,23 152,66 163,12 189,81 85,05 111,26 1200 164,21 184,74 200,04 229,02 97,00 130,06 1500 185,98 224,06 222,81 257,81 103,23 143,33 2000 237,53 292,75 286,73 329,25 119,69 170,16
Price List for EDLHB -FB - 1 slot - white RAL9016 - 30 mm slot
EDLHB-FB Lenght (m) EDLHB10-FB EDLHB20-FB EDLHB30-FB EDLHB40-FB EPZ-EDL - Plenum Box EPI-EDL - Insulated Plenum Box 1 Slot Eur Eur Eur Eur Eur Eur Slot da 30 mm 800 55,06 61,27 64,75 71,77 62,70 81,70 1000 61,86 68,31 71,91 80,02 68,27 87,93 1200 79,25 86,84 94,34 103,46 88,44 112,60 1500 90,21 98,13 105,88 116,89 92,32 118,62 2000 106,50 117,60 125,68 137,78 105,55 138,21
Price List for EDLHB-FB - 2 slot - white RAL9016 - 30 mm slots
EDLHB-FB Lenght (m) EDLHB10-FB EDLHB20-FB EDLHB30-FB EDLHB40-FB EPZ-EDL - Plenum Box EPI-EDL - Insulated Plenum Box 2 Slot Eur Eur Eur Eur Eur Eur Slot da 30 mm 800 100,96 108,48 119,26 135,22 70,62 96,97 1000 112,69 121,60 132,06 150,56 77,73 107,07 1200 133,10 146,46 160,48 180,46 99,48 132,30 1500 150,71 177,58 178,96 203,27 105,11 145,01 2000 191,44 231,14 229,11 258,52 122,05 170,98
Price List for EDLHB-FB - 3 slot - white RAL9016 - 30 mm slots
EDLHB-FB Lenght (m) EDLHB10-FB EDLHB20-FB EDLHB30-FB EDLHB40-FB EPZ-EDL - Plenum Box EPI-EDL - Insulated Plenum Box 3 Slot Eur Eur Eur Eur Eur Eur Slot da 30 mm 800 132,28 145,59 157,21 182,00 79,41 104,01 1000 147,89 163,33 174,53 203,08 86,53 113,17 1200 175,69 197,67 214,03 245,03 99,48 132,30 1500 198,99 239,74 238,40 275,84 105,11 145,54 2000 254,14 313,22 306,79 352,29 122,05 173,01
Price List
Mounting Bridge and Continuity Kit Eur Fixing bridge for single-slot diffusers, EDLS–EDLH series. 12,72 Fixing bridge for two-slots diffusers, EDLS–EDLH series, FA version. 12,72 Fixing bridge for two-slots diffusers, EDLS–EDLH series, FB version. 12,72 Fixing bridge for three-slots diffusers, EDLS–EDLH series, FA version. 12,72 Fixing bridge for three-slots diffusers, EDLS–EDLH series, FB version. 12,72 Continues Line Kit. 2,39
