EBL3 20/0° Linear grilles with horizontal fixed bars with filter
Description
Aluminium exhaust grilles with fixed horizontal blades with 0° deflection, with the insertion of a special profile or counter-frame that allows for a flat filter for coarse and fine dust to be housed.
Characteristics
Material: aluminium.
Finish: painted RAL9016.

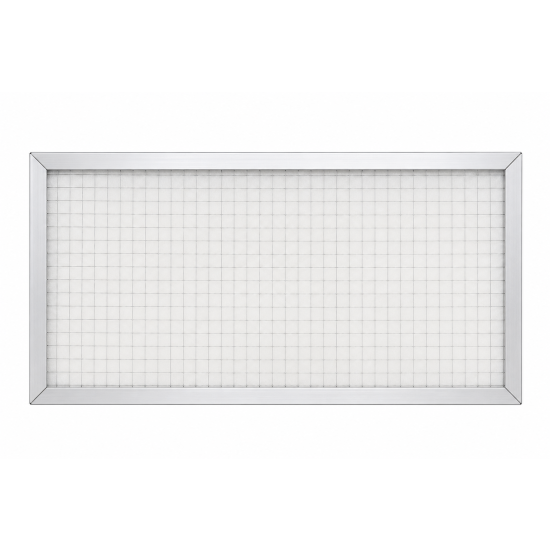

Filter: COARSE class (G2) thickness 12 mm.
Installation
Installation is carried out by opening the special brackets in the counter-frame or, alternatively, by securing the latter to the wall or duct using screws.
Use
For external or indoor air exhaust where dust pre-filtration is recommended. Initial pressure drop lower than 40 Pa with 1.5 m/s speed on the filter.
Models
EBL3 20/0°: grille with special counter-frame secured with a hinge to the grille frame to allow for easy filter maintenance. Closing by means of a screw mechanism.
Accessories
- EPZ - Galvanised Plenum Box;
- EPI - Insulated Plenum Box.
On request
Fastening with magnet or knob.
Dimensions
EBL3 20/0°Technical Drawing Front View
Effective Cross-Section
All dimensions are expressed in mm.
H L 400 500 600 800 1000 Effective Cross-Section (m2) 150 0,031 0,039 0047 0,064 0,080 200 0,042 0,053 0,064 0,086 0,108 300 0,063 0,079 0,097 0,130 0,164
Operating Data
- m³/h: flow rate.
- Pa: pressure drops in Pascal.
- dB(A): noise level.
- V: face velocity on the filter (m/s).
An air velocity on the filter of 1.5 m/s is recommended to contain pressure drops and maintain filtration efficiency;
the flow rate data in the table refers to the grille with the filter.
All dimensions are expressed in mm.
| H | V m/s | L | ||||
| 400 | 500 | 600 | 800 | 1000 | ||
| Face Velocity at the Filter | Airflow | |||||
| 150 | 1,5 | 324 | 405 | 486 | 648 | 810 |
| 2 | 432 | 540 | 648 | 864 | 1080 | |
| 200 | 1,5 | 400 | 505 | 605 | 810 | 1015 |
| 2 | 535 | 670 | 805 | 1080 | 1355 | |
| 300 | 1,5 | 610 | 765 | 925 | 1235 | 1550 |
| 2 | 810 | 1025 | 1230 | 1650 | 2065 | |
Noise Level dB(A) - Pressure Drop (Pa)
V
m/sdB(A) Pa 1,5 32/38 35/38 2 39/45 62/68
Plenum box for EBL3 20/0°
Model
L1 x H1Top Connection Lateral Connection E F P1 Nr. Connections Ø d P2 Nr. Connections Ø d 400x150 200 1 148 250 1 148 80 12 500x150 200 2 148 250 2 148 80 12 600x150 200 2 148 250 2 148 80 12 800x150 200 2 148 250 2 148 80 12 1000x150 200 3 148 250 3 148 80 12 400x200 200 1 198 300 1 198 80 12 500x200 200 1 198 300 1 198 80 12 600x200 200 2 198 300 2 198 80 12 800x200 200 2 198 300 2 198 80 12 1000x200 200 2 198 300 2 198 80 12 400x300 200 1 248 350 1 248 80 12 500x300 200 1 248 350 1 248 80 12 600x300 200 2 198 350 2 248 80 12 800x300 200 2 248 350 2 248 80 12 1000x300 200 2 248 350 2 248 80 12
Price List
Dimensions EBL3 20/0° - RAL9016 Top Connection Lateral Connection EPZ - Plenum Box EPI - Insulated Plenum Box EPZ - Plenum Box EPI - Insulated Plenum Box LxH € € € € € 400x150 126,01 39,08 53,83 41,64 57,27 500x150 139,95 41,92 66,30 53,35 70,38 600x150 144,05 53,11 70,06 56,63 74,78 800x150 172,44 69,98 89,28 74,38 95,24 1000x150 211,73 84,01 105,63 89,37 112,75 400x200 144,99 41,72 57,15 47,32 64,67 500x200 168,97 44,76 61,27 51,31 69,98 600x200 167,50 62,39 81,21 74,86 95,68 800x200 193,63 73,54 64,67 82,80 106,39 1000x200 244,02 79,65 102,12 79,65 117,02 400x300 183,62 57,55 74,78 67,34 87,92 500x300 177,65 61,07 79,49 72,22 94,52 600x300 202,92 72,30 92,24 80,69 103,51 800x300 251,88 88,37 116,90 103,71 137,48 1000x300 310,12 95,40 126,33 113,51 150,59
