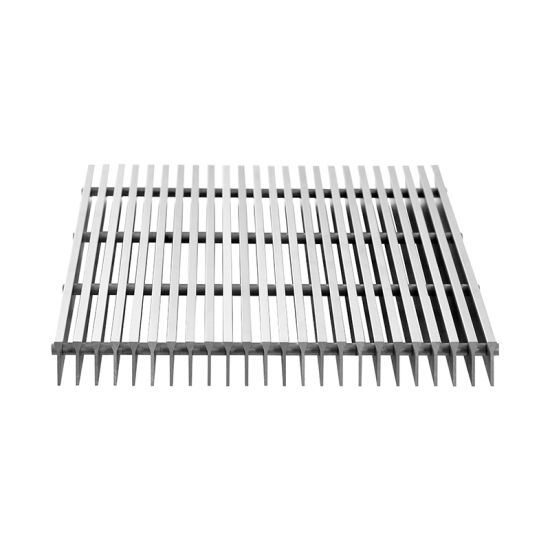

EBP EBP-R Floor grilles
Description
Floor grilles made up of horizontal fixed bar with a 12.5 mm pitch for floating floors.
Characteristics
Grille material: aluminium.
Grille finish: natural anodised.
Regulation damper material: galvanised steel.
Use
Air supply and exhaust in both heating and cooling mode.
Model
- EBP floor grilles with horizontal fixed bars;

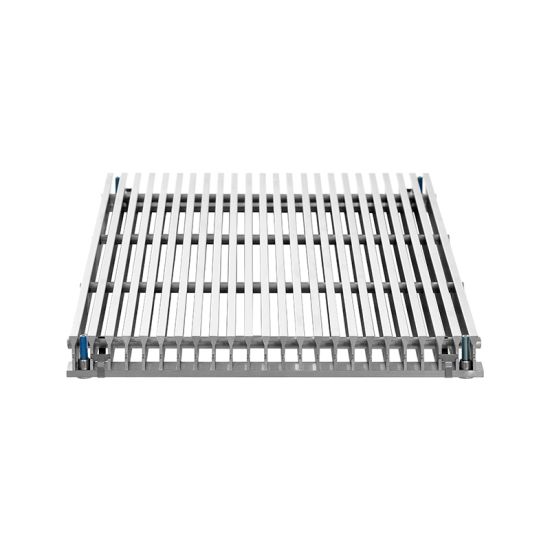

- EBP-R floor grilles with horizontal fixed bars adjustable in height: from 30 to 45 mm;
- EBP + SCPT floor grilles with horizontal fixed bars with regulation damper;
- EBP-R + SCPT floor grilles with horizontal fixed bars adjustable in height from 30 to 45 mm with regulation damper.
Accessories

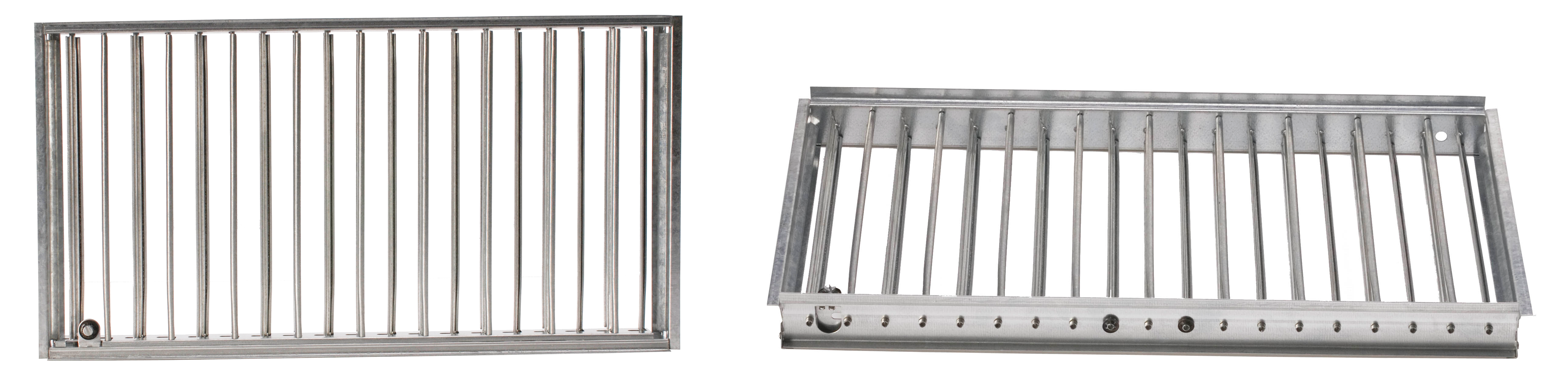

SCPT - Galvanised steel regulation damper with blades with opposing movement.

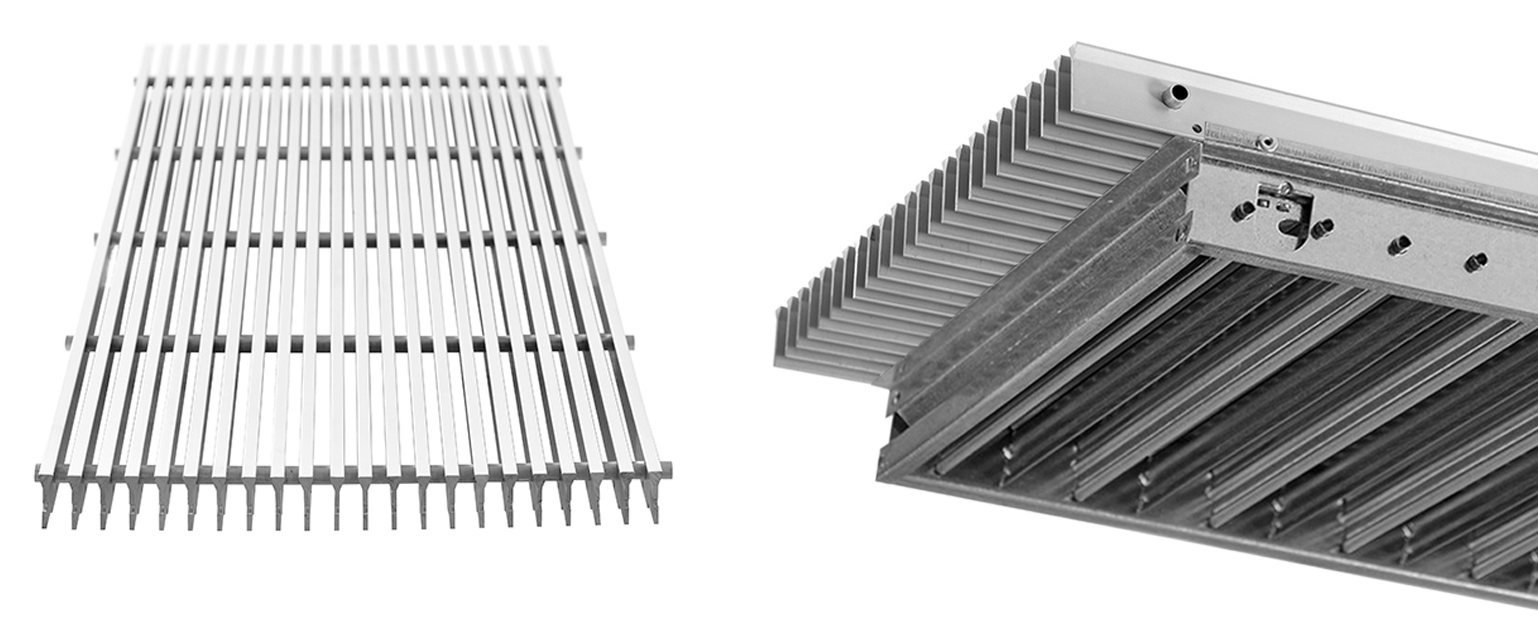

EBP - EBP with SCPT damper

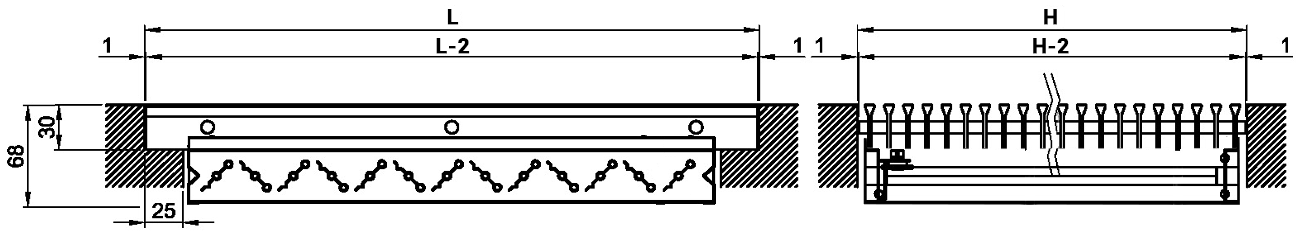

Dimensions EBP + SCPT
EBP-R - EBP-R with SCPT damper

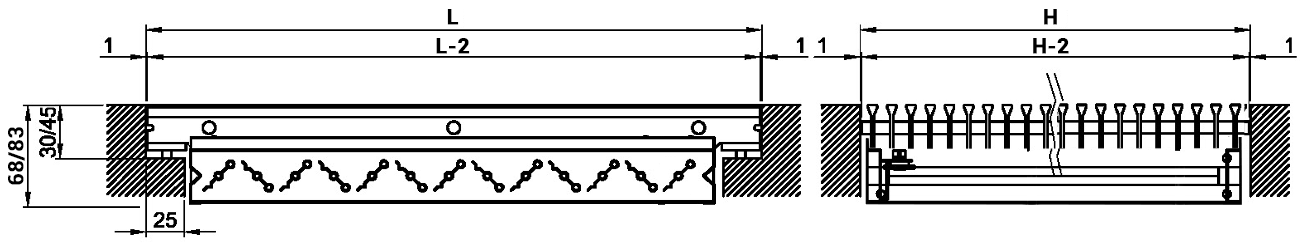

Dimensions EBP-R + SCPT
NOTE FOR FLOATING FLOORS
Since there is no unification of floating floors, the use of 600x600mm grilles in these floors is normally only possible with grille only versions with fixed or adjustable height.
If the regulation damper is required, the measurement compatible with most floating floors is 525x525mm.
However, it is advisable to indicate the characteristics of the specific floating floor when ordering, in order to identify the most suitable solution.
EBP operating data in air supply mode
Vk: effective speed (m/s)
m³/h: flow rate
Pa: pressure drops in Pascal
L(m): air throw in metres calculated with terminal velocity 0.25 m/s
dB(A): noise level
All dimensions are expressed in mm.
Dimensions LxH 2 x digital output (6 terminalas, wire min. 0.5 mm² to max. 1.5 mm²) – NO/NC relays (125 V AC – 60 W) Airflow (m³/h) H = 100 mm 100 150 200 250 300 350 400 500 600 300x100 0,0100 dB(A) <20 29 37 43 48 Vk (m/s) 2,8 4,2 5,6 6,9 8,3 Pa 6 14 25 37 54 L (m) 2,6 3,9 5,2 6,5 7,8 400x100 0,0135 dB(A) <20 21 29 35 41 45 49 Vk (m/s) 2,1 3,1 4,1 5,1 6,1 7,2 8,2 Pa 3 8 13 20 29 40 53 L (m) 2,3 3,4 4,5 5,6 6,7 7,8 8,9 500x100 0,0171 dB(A) <20 24 30 35 39 43 50 Vk (m/s) 2,5 3,3 4 4,9 5,7 6,5 8,1 Pa 5 8 13 18 25 33 52 L (m) 3 4 4,9 5,9 7 8 10 600x100 0,0206 dB(A) <20 <20 25 30 35 39 45 50 Vk (m/s) 2 2,7 3,3 4 4,7 5,4 6,7 8,1 Pa 3 6 9 13 17 23 35 51 L (m) 2,7 3,6 4,5 5,4 6,3 7,2 9,1 10,9
EBP-R with 100 mm height cannot be achieved.
EBP / EBP-R operating data in air supply mode
Vk: effective speed (m/s)
m³/h: flow rate
Pa: pressure drops in Pascal
L(m): air throw in metres calculated with terminal velocity 0.25 m/s
dB(A): noise level
All dimensions are expressed in mm.
Dimensions LxH 2 x digital output (6 terminalas, wire min. 0.5 mm² to max. 1.5 mm²) – NO/NC relays (125 V AC – 60 W) Airflow (m³/h) H = 200 mm 200 250 300 350 400 500 600 700 800 900 1000 1250 1500 2000 300x200 0,0268 dB(A) <20 <20 24 29 32 39 44 48 Vk (m/s) 2,1 2,6 3,1 3,6 4,1 5,2 6,2 7,2 Pa 3 5 7 10 13 21 30 41 L (m) 3,2 3,9 4,7 5,5 6,3 7,9 9,5 11,1 400x200 0,0362 dB(A) <20 <20 21 25 32 37 41 49 48 Vk (m/s) 1,9 2,3 2,7 3,1 3,8 4,6 5,4 6,1 6,9 Pa 3 4 6 7 11 17 22 29 37 L (m) 3,4 4,1 4,8 5,5 6,8 8,2 9,5 10,9 12,3 500x200 0,0458 dB(A) <20 <20 20 26 31 35 39 43 46 Vk (m/s) 1,8 2,1 2,4 3 3,6 4,2 4,9 5,5 6,1 Pa 3 4 5 7 10 14 18 23 29 L (m) 3,6 4,2 4,9 6,1 7,3 8,5 9,7 10,9 12,2 600x200 0,0554 dB(A) <20 <20 21 27 31 35 38 41 47 Vk (m/s) 1,8 2 2,5 3 3,5 4 4,5 5 6,3 Pa 2 3 5 7 10 13 16 20 31 L (m) 3,9 4,4 5,5 6,6 7,7 8,8 9,9 11,1 13,8
Dimensions LxH 2 x digital output (6 terminalas, wire min. 0.5 mm² to max. 1.5 mm²) – NO/NC relays (125 V AC – 60 W) Airflow (m³/h) H = 300 mm 300 350 400 500 600 700 800 900 1000 1250 1500 2000 2500 300x300 0,0436 dB(A) <20 <20 21 27 32 37 40 44 47 Vk (m/s) 1,9 2,2 2,5 3,2 3,8 4,4 5,1 5,7 6,4 Pa 3 4 5 8 11 15 20 26 32 L 3,7 4,3 5 6,2 7,5 8,7 10 11,2 12,5 400x300 0,0590 dB(A) <20 <20 20 25 29 33 36 39 46 Vk (m/s) 1,6 1,9 2,4 2,8 3,3 3,8 3,8 4,7 5,9 Pa 2 3 4 6 8 11 11 17 27 L 3,7 4,3 5,4 6,4 7,5 8,6 9,6 10,7 13,4 500x300 0,0745 dB(A) <20 20 24 28 31 34 40 45 Vk (m/s) 1,9 2,2 2,6 3 3,4 3,7 4,7 5,6 Pa 3 4 5 7 9 11 17 24 L 4,8 5,7 6,7 7,6 8,6 9,5 11,9 14,3 600x300 0,0902 dB(A) <20 <20 <20 23 26 29 36 41 49 Vk (m/s) 1,5 1,9 2,2 2,5 2,8 3,1 3,8 4,6 6,2 Pa 2 3 4 5 6 7 12 17 30 L 4,3 5,2 6 6,9 7,8 8,7 10,8 13 17,3
Dimensioni LxH 2 x digital output (6 terminalas, wire min. 0.5 mm² to max. 1.5 mm²) – NO/NC relays (125 V AC – 60 W) Airflow (m³/h) H = 400 mm 400 500 600 700 800 900 1000 1250 1500 2000 2500 300x400 0,0604 dB(A) <20 <20 25 29 33 36 39 45 50 Vk (m/s) 1,8 2,3 2,8 3,2 3,7 4,1 4,6 5,7 6,9 Pa 3 4 6 8 11 13 17 26 37 L (m) 4,2 5,3 6,4 7,4 8,5 9,5 10,6 13,2 15,9 400x400 0,0817 dB(A) <20 <20 22 25 29 32 38 43 Vk (m/s) 1,7 2 2,4 2,7 3,1 3,4 4,2 5,1 Pa 2 3 4 6 7 9 14 20 L (m) 4,6 5,5 6,4 7,3 8,2 9,1 11,4 13,7 500x400 0,1032 dB(A) <20 <20 20 23 26 32 38 46 Vk (m/s) 1,6 1,9 2,2 2,4 2,7 3,4 4 5,4 Pa 2 3 4 5 6 9 13 23 L (m) 4,9 5,7 6,5 7,3 8,1 10,1 12,1 16,2 600x400 0,1249 dB(A) <20 <20 <20 22 28 33 41 47 Vk (m/s) 1,6 1,8 2 2,2 2,8 3,3 4,5 5,6 Pa 2 2 3 4 6 9 15 24 L (m) 5,1 5,9 6,6 7,4 9,2 11 14,7 18,4
Dimensions LxH 2 x digital output (6 terminalas, wire min. 0.5 mm² to max. 1.5 mm²) – NO/NC relays (125 V AC – 60 W) Airflow (m³/h) H = 500 mm 500 600 700 800 900 1000 1250 1500 2000 2500 3500 300x500 0,0772 dB(A) <20 <20 23 27 30 33 39 44 Vk 1,8 2,2 2,5 2,9 3,2 3,6 4,5 5,4 Pa 3 4 5 6 8 10 16 23 L (m) 4,7 5,6 6,5 7,5 8,4 9,4 11,7 14 400x500 0,1044 dB(A) <20 <20 <20 23 26 32 37 45 Vk 1,6 1,9 2,1 2,4 2,7 3,3 4 5,3 Pa 2 3 4 4 6 9 12 22 L (m) 4,8 5,6 6,4 7,2 8,1 10,1 12,1 12,1 16,1 500x500 0,1319 dB(A) <20 <20 <20 20 27 32 40 46 Vk 1,5 1,7 1,9 2,1 2,6 3,2 4,2 5,3 Pa 2 2 3 3 5 8 14 22 L (m) 5 5,7 6,4 7,2 8,9 10,7 14,3 17,9 600x500 0,1597 dB(A) <20 <20 22 27 35 42 Vk 1,6 1,7 2,2 2,6 3,5 4,3 Pa 2 2 4 5 9 15 L (m) 5,9 6,5 8,1 9,8 13 16,3
Dimensions LxH 2 x digital output (6 terminalas, wire min. 0.5 mm² to max. 1.5 mm²) – NO/NC relays (125 V AC – 60 W) Airflow (m³/h) H = 600 mm 600 700 800 900 1000 1250 1500 2000 2500 3500 300x600 0,0940 dB(A) <20 <20 22 25 28 35 40 48 Vk 1,8 2,1 2,4 2,7 3 3 4,4 5,9 Pa 2 3 4 6 7 7 15 27 L (m) 5,1 5,9 6,8 7,6 8,5 8,5 12,7 17 400x600 0,1271 dB(A) <20 <20 <20 21 27 33 41 47 Vk 1,5 1,7 2 2,2 2,7 3,3 4,4 5,5 Pa 2 2 3 4 6 8 15 23 L (m) 5,1 5,8 6,6 7,3 9,1 10,9 14,6 18,2 500x600 0,1606 dB(A) <20 <20 22 27 35 41 Vk 1,6 1,7 2,2 2,6 3,5 4,3 Pa 2 2 4 5 9 15 L (m) 5,8 6,5 8,1 9,7 13 16,2 600x600 0,1944 dB(A) <20 <20 22 31 37 46 Vk 1,4 1,8 2,1 2,9 3,6 5 Pa 2 2 4 6 10 19 L (m) 5,9 7,4 8,9 11,8 4,7 20,6
Accessories
Galvanised steel SCPT regulation damper with blades with opposing movement.
Price List
Models EBP EBP-R SCPT LxH euro euro euro 300x100 a.r. - O.R. 400x100 a.r. - O.R. 500x100 a.r. - O.R. 600x100 a.r. - O.R. 300x200 a.r. a.r. O.R. 400x200 a.r. a.r. O.R. 500x200 a.r. a.r. O.R. 600x200 a.r. a.r. O.R. 300x300 a.r. a.r. O.R. 400x300 a.r. a.r. O.R. 500x300 a.r. a.r. O.R. 600x300 a.r. a.r. O.R. 300x400 a.r. a.r. O.R. 400x400 a.r. a.r. O.R. 500x400 a.r. a.r. O.R. 600x400 a.r. a.r. O.R. 300x500 a.r. a.r. O.R. 400x500 a.r. a.r. O.R. 500x500 a.r. a.r. O.R. 600x500 a.r. a.r. O.R. 300x600 a.r. a.r. O.R. 400x600 a.r. a.r. O.R. 500x600 a.r. a.r. O.R. 600x600 a.r. a.r. O.R.
