EBP-T EBP-TR Floor grilles
Description

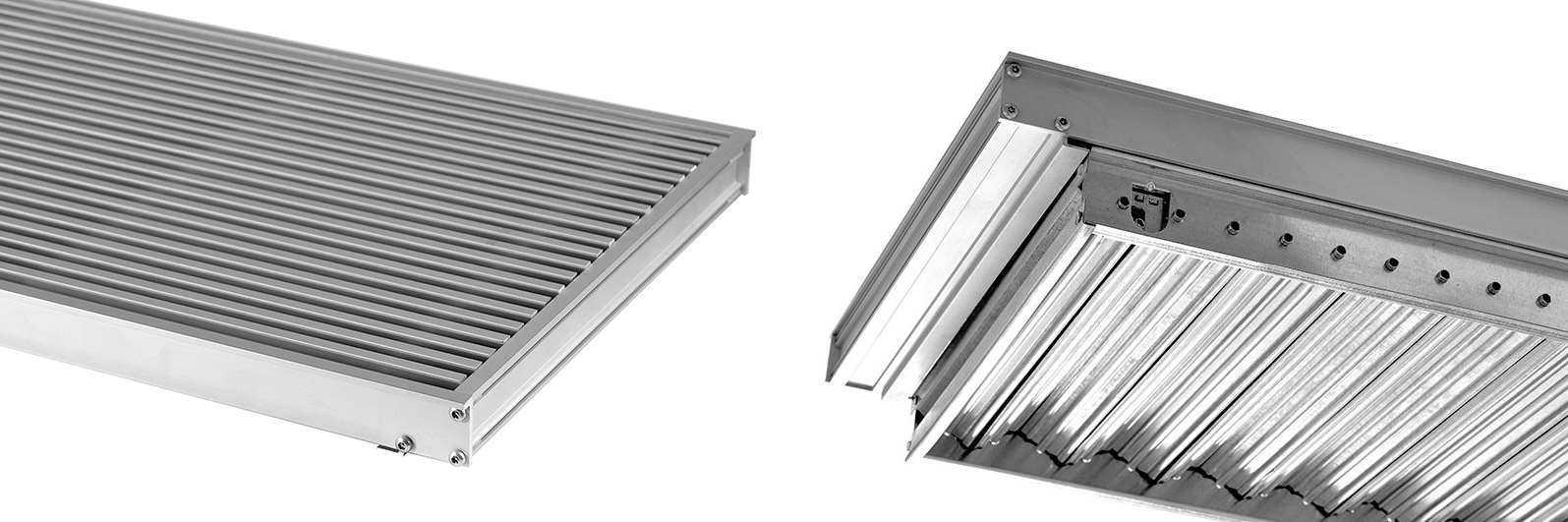

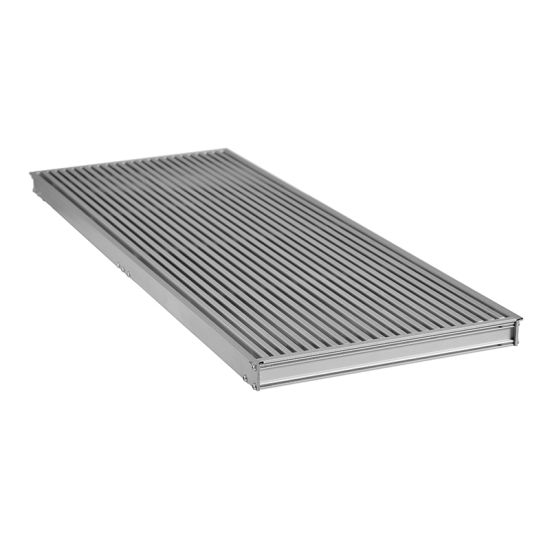

Floor grilles made up of horizontal fixed bar with a 12.5 mm pitch with frame for floating floors.
Characteristics
Grille material: aluminium.
Grille finish: natural anodised.
Regulation damper material: galvanised steel.
Use
Air supply and exhaust in both heating and cooling mode.
Models
- EBP-T floor grilles with horizontal fixed bars with frame; - EBP-TR floor grilles with horizontal fixed bars with frame adjustable in height from 30 to 45 mm;
- EBP-T + SCPT floor grilles with horizontal fixed bars with frame and regulation damper;
- EBP-TR + SCPT floor grilles with horizontal fixed bars with frame adjustable in height from 30 to 45 mm and regulation damper;
- EBP-T + SCPT-CR + CRP floor grilles with horizontal fixed bars with regulation damper and dust collection basket;
- EBP-TR + SCPT-CR + CRP floor grilles with horizontal fixed bars with adjustable in height from 30 to 45 mm with regulation damper and dust collection basket.

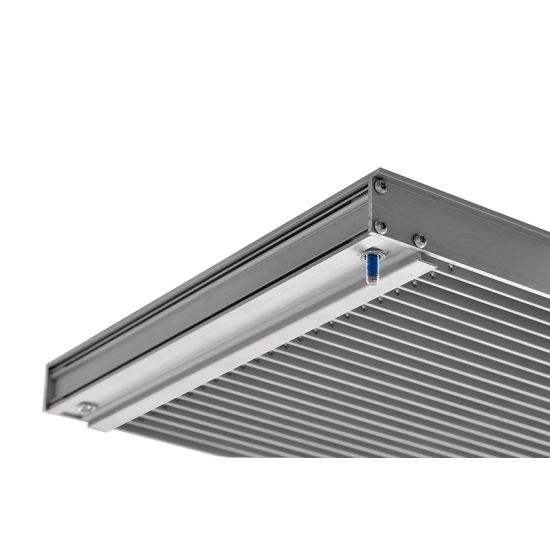

- EBP-TR walkable grids with horizontal fixed bars with frame adjustable in height from 30 to 45 mm;
- EBP-T + SCPT walkable grates with horizontal fixed bars with frame and adjustment shutter;
- EBP-TR + SCPT walkable grids with horizontal fixed bars with frame adjustable in height from 30 to 45 mm and adjustment shutter;
- EBP-T + SCPT-CR + CRP walkable grids with horizontal fixed bars with adjustment shutter and dust collection basket;
- EBP-TR + SCPT-CR + CRP walkable grids with horizontal fixed bars adjustable in height from 30 to 45 mm with adjustment shutter and dust collection basket.
Accessories
- SCPT galvanised steel regulation damper with blades with opposing movement;
- SCPT-CR galvanised steel regulation damper with blades with opposing movement to be used with the CRP dust collection basket;
- CRP dust collection basket.
EBP-T - EBP-T with SCPT damper
Dimensions EBP-T

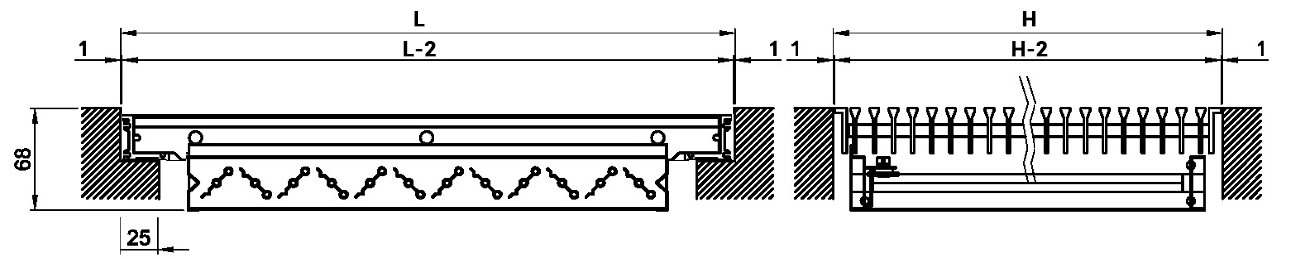

Dimensions EBP-T + SCPT

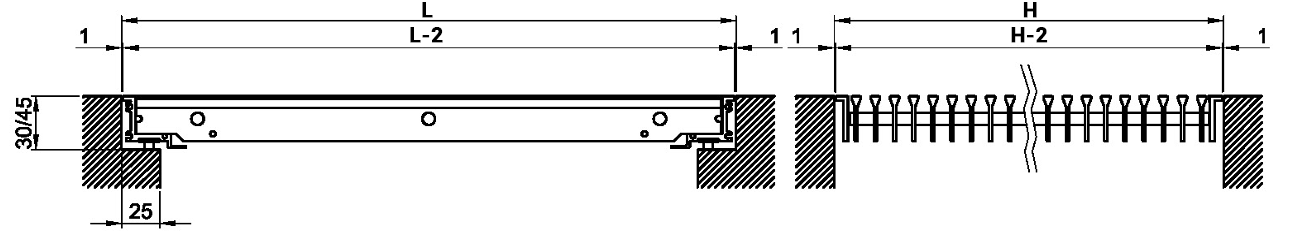

Dimensions EBP-TR

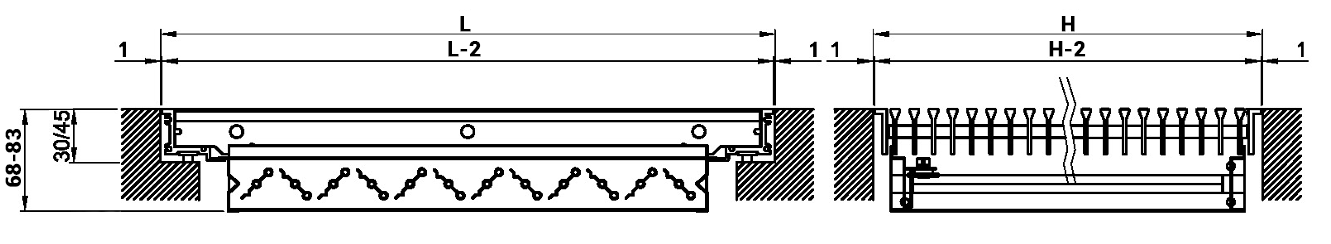

Dimensions EBP-TR + SCPT

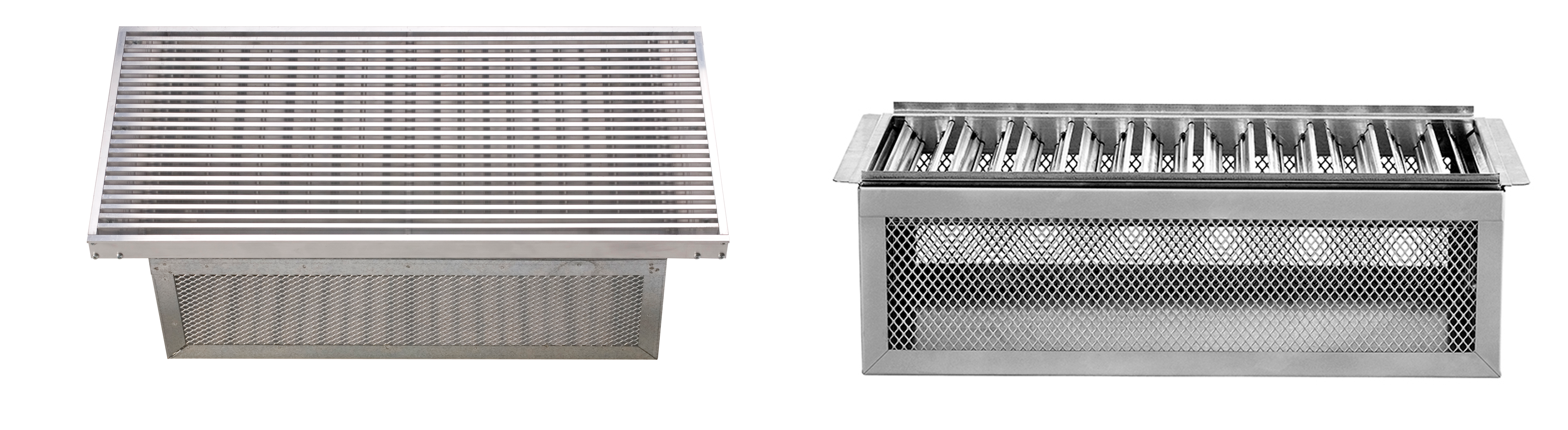

EBP-T - EBP-TR with SCPT damper and CRP dust collection basket

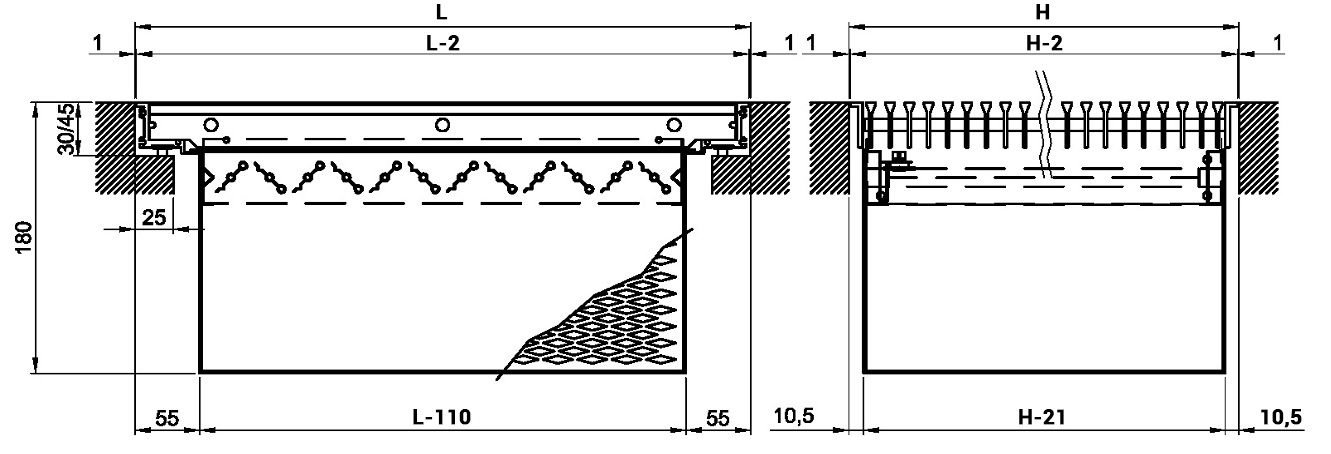

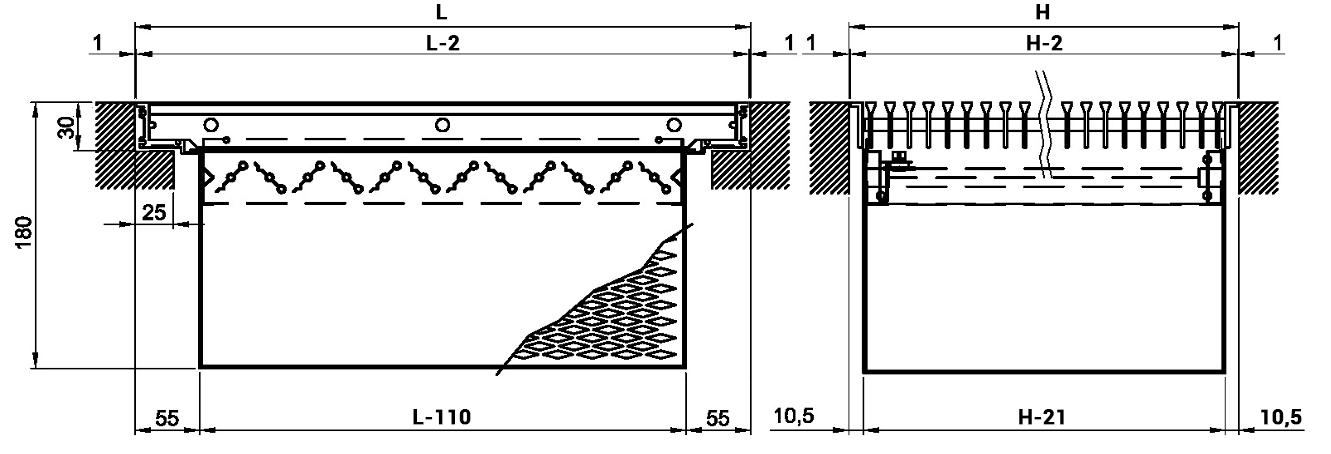

Dimensions EBP-T + SCPT-CR + CRP
Dimensions EBP-TR + SCPT-CR + CRP

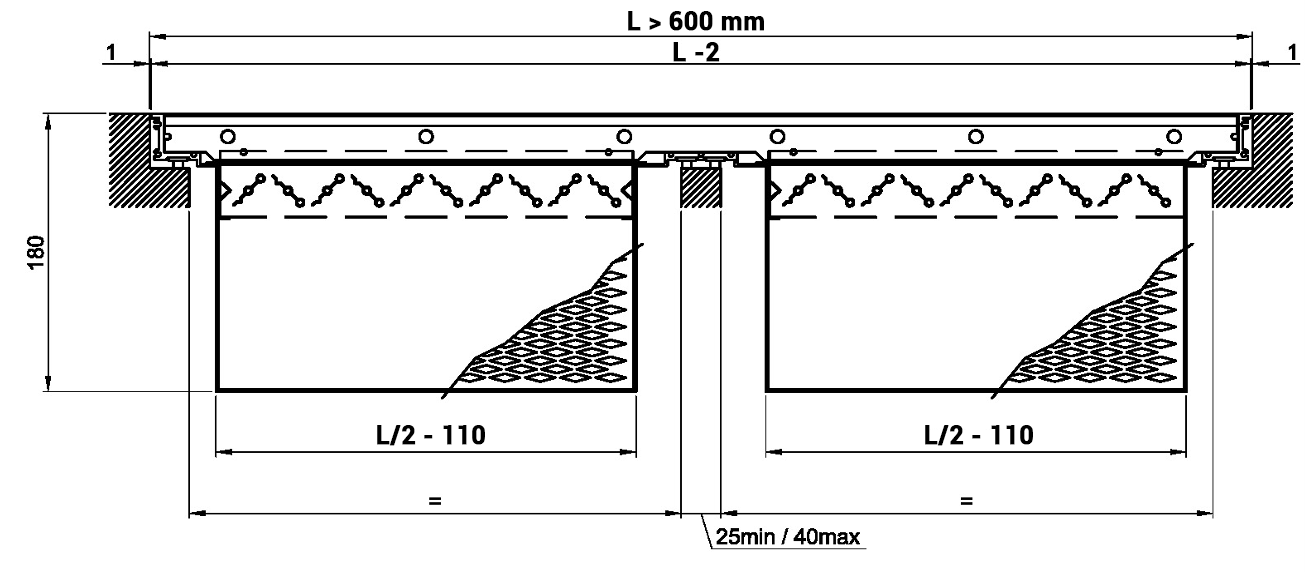

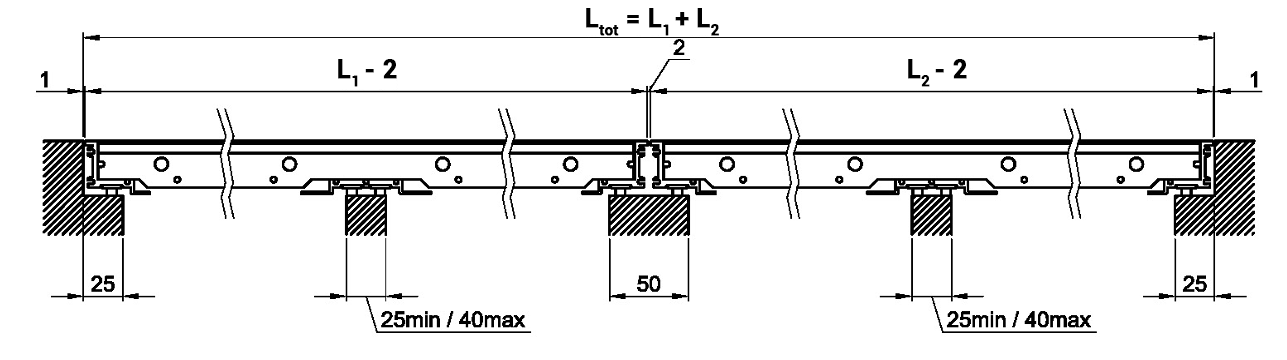

Construction EBP-T EBP-TR with L > 600 mm
Floor grilles with length L greater than 600 mm are classified according to the EN 13264 Standard only if complete with frame and installation with intermediate support with a maximum width of 40 mm.
The maximum length for EBP-T EBP-TR is 1200 mm (Ltot = L1 + L2 + ... = 1200 mm + 1200 mm + ....).
NOTE FOR FLOATING FLOORS
Since there is no unification of floating floors, the use of 600x600mm grilles in these floors is normally only possible with floor grilles EBP-T EBP-TR with fixed or adjustable height (only in this case, EBP-TR has an adjustment from 35 mm to 45mm). If the regulation damper is required, the measurement compatible with most floating floors is 525x525mm. However, it is advisable to indicate the characteristics of the specific floating floor when ordering, in order to identify the most suitable solution.
EBP-T operating data in air supply mod
Vk: effective speed (m/s)
m³/h: flow rate
Pa: pressure drops in Pascal
L(m): air throw in metres calculated with terminal velocity 0.25 m/s
dB(A): noise level
All dimensions are expressed in mm.
Dimensions LxH 2 x digital output (6 terminalas, wire min. 0.5 mm² to max. 1.5 mm²) – NO/NC relays (125 V AC – 60 W) Airflow (m³/h) H = 100 mm 100 150 200 250 300 350 400 500 600 700 800 900 300x100 0,0083 dB(A) 22 33 41 47 Vk (m/s) 3,4 5,1 6,7 8,3 Pa 9 20 35 54 L (m) 3,6 5,4 7,2 8,9 400x100 0,0112 dB(A) <20 26 34 40 45 49 Vk (m/s) 2,5 3,7 5 6,1 7,4 8,6 Pa 5 11 19 29 43 58 L (m) 3,1 4,6 6,2 7,6 9,2 10,7 500x100 0,0142 dB(A) 20 28 34 39 44 48 Vk (m/s) 3 3,9 4,9 5,9 6,8 7,8 Pa 7 12 18 27 36 48 L (m) 4,1 5,5 6,8 8,2 9,5 10,9 600x100 0,0172 dB(A) <20 24 30 35 39 43 49 Vk (m/s) 2,4 3,3 4 4,8 5,6 6,5 8,1 Pa 5 8 13 18 25 33 51 L (m) 3,7 5 6,2 7,4 8,7 9,9 12,4 800x100 0,0232 dB(A) <20 22 28 32 36 42 47 Vk (m/s) 2,4 3 3,6 4,2 4,8 6 7,2 Pa 5 7 10 14 18 28 40 L (m) 3,4 4,2 5,1 6 6,8 8,5 10,3 1000x100 0,0293 dB(A) <20 <20 22 26 30 37 42 46 50 Vk (m/s) 1,9 2,4 2,8 3,3 3,8 4,7 5,7 6,6 7,6 Pa 3 4 6 9 11 18 25 34 45 L (m) 3,1 3,8 4,5 5,3 6,1 7,6 9,1 10,6 12,1 1200x100 0,0355 dB(A) <20 <20 22 26 32 37 41 45 49 Vk (m/s) 1,9 2,3 2,7 3,1 3,9 4,7 5,5 6,3 7 Pa 3 4 6 8 12 17 23 30 39 L (m) 3,4 4,1 4,8 5,5 6,9 8,3 5,6 11 12,4
EBP-TR with 100 mm height cannot be achieved.
EBP-T / EBP-TR operating data in air supply mode
Dimensions LxH 2 x digital output (6 terminalas, wire min. 0.5 mm² to max. 1.5 mm²) – NO/NC relays (125 V AC – 60 W) Airflow (m³/h) H = 200 mm 200 250 300 350 400 500 600 700 800 900 1000 1250 1500 2000 300x200 0,0251 dB(A <20 21 26 30 34 40 45 50 Vk (m/s) 2,2 2,7 3,3 3,9 4,4 5,5 6,6 7,7 Pa 4 6 9 12 15 24 34 47 L (m) 3,3 4,1 4,9 5,7 6,6 8,2 9,9 11,5 400x200 0,0340 dB(A) <20 <20 23 27 33 38 43 46 50 Vk (m/s) 2 2,4 2,9 3,3 4,1 4,9 5,7 6,5 7,4 Pa 3 5 6 8 13 19 25 33 42 L (m) 4,4 5,3 6,2 7 8,8 10,6 12,3 14,1 15,9 500x200 0,0429 dB(A) <20 <20 21 28 33 37 41 44 47 Vk (m/s) 1,9 2,3 2,6 3,2 3,9 4,5 5,2 5,8 6,5 Pa 3 4 5 8 12 16 21 26 33 L (m) 4,7 5,5 6,3 7,9 9,4 11 12,5 14,1 15,7 600x200 0,0519 dB(A) <20 <20 23 28 32 36 40 43 49 Vk (m/s) 1,9 2,1 2,7 3,2 3,7 4,3 4,8 5,4 6,7 Pa 3 4 6 8 11 14 18 22 35 L (m) 5 5,7 7,1 8,6 10 11,4 12,8 14,3 17,8 800x200 0,0702 dB(A) <20 21 25 29 32 35 42 47 Vk (m/s) 2 2,4 2,8 3,2 3,6 4 4,9 5,9 Pa 3 4 6 8 10 12 19 28 L (m) 6,1 7,4 8,6 9,8 11 12,3 15,3 18,4 1000x200 0,0887 dB(A) <20 <20 20 23 27 30 36 41 49 Vk (m/s) 1,6 1,9 2,2 2,5 2,8 3,1 3,9 4,7 6,3 Pa 2 3 4 5 6 8 12 17 31 L (m) 5,5 6,6 7,6 8,7 9,8 10,9 13,6 16,4 21,8 1200x200 0,1074 dB(A) <20 <20 <20 22 25 31 37 45 Vk (m/s) 1,6 1,8 2,1 2,3 2,6 3,2 3,9 5,2 Pa 2 3 3 4 5 8 12 21 L (m) 4,8 5,5 6,3 7,1 7,9 9,9 11,9 15,9
Dimensions LxH 2 x digital output (6 terminalas, wire min. 0.5 mm² to max. 1.5 mm²) – NO/NC relays (125 V AC – 60 W) Airflow (m³/h) H = 300 mm 300 350 400 500 600 700 800 900 1000 1250 1500 2000 2500 3500 300x300 0,0419 dB(A) <20 <20 22 28 33 37 41 45 48 Vk (m/s) 2 2,3 2,6 3,3 4 4,6 5,3 6 6,6 Pa 3 4 5 9 12 17 22 28 34 L (m) 3,8 4,4 5,1 6,4 7,6 8,9 10,1 11,4 12,7 400x300 0,0567 dB(A) <20 <20 21 26 30 34 37 40 47 Vk (m/s) 1,7 2 2,5 2,9 3,4 3,9 4,4 4,9 6,1 Pa 2 3 5 7 9 12 15 19 29 L (m) 3,8 4,4 5,5 6,6 7,6 8,7 9,8 10,9 13,6 500x300 0,0716 dB(A) <20 20 25 29 32 35 41 46 Vk (m/s) 1,9 2,3 2,7 3,1 3,5 3,9 4,8 5,8 Pa 3 4 6 7 10 12 18 26 L (m) 6,1 7,3 8,5 9,7 10,9 12,2 15,2 18,2 600x300 0,0867 dB(A) <20 <20 20 24 27 30 37 42 50 Vk (m/s) 1,6 1,9 2,2 2,6 2,9 3,2 4 4,8 6,4 Pa 2 3 4 5 6 8 12 18 32 L (m) 5,5 6,6 7,7 8,8 9,9 11 13,8 16,6 22,1 800x300 0,1172 dB(A) <20 <20 20 23 29 35 48 49 Vk (m/s) 1,7 1,9 2,1 2,4 3 3,6 4,7 5,9 Pa 2 3 4 4 7 10 18 27 L (m) 6,6 7,6 8,5 9,5 11,9 14,3 19 23,7 1000x300 0,1481 dB(A) <20 <20 <20 24 29 37 43 Vk (m/s) 1,5 1,7 1,9 2,3 2,8 3,8 4,7 Pa 2 2 3 4 6 11 17 L (m) 6,7 7,6 8,5 10,6 12,7 16,9 21,1 1200x300 0,1793 dB(A) <20 <20 <20 24 33 39 48 Vk (m/s) 1,4 1,6 1,9 2,3 3,1 3,9 5,4 Pa 2 2 3 4 8 12 23 L (m) 5,5 6,1 7,7 9,2 12,3 15,3 21,5
Dimensions LxH 2 x digital output (6 terminalas, wire min. 0.5 mm² to max. 1.5 mm²) – NO/NC relays (125 V AC – 60 W) Airflow (m³/h) H = 400 mm 350 400 500 600 700 800 900 1000 1250 1500 2000 2500 3500 300x400 0,0587 dB(A) <20 <20 20 25 29 33 37 40 46 Vk (m/s) 1,7 1,9 2,4 2,8 3,3 3,8 4,3 4,7 5,9 Pa 2 3 4 6 9 11 14 17 27 L (m) 3,7 4,3 5,4 6,4 7,5 8,6 9,7 10,7 13,4 400x400 0,0794 dB(A) <20 <20 22 26 29 32 39 44 Vk (m/s) 1,8 2,1 2,4 2,8 3,1 3,5 4,4 5,3 Pa 2 3 5 6 8 10 15 22 L (m) 4,6 5,5 6,4 7,4 8,3 9,2 11,5 13,9 500x400 0,0716 dB(A) <20 20 25 29 32 35 41 46 Vk (m/s) 1,9 2,3 2,7 3,1 3,5 3,9 4,8 5,8 Pa 3 4 6 7 10 12 18 26 L (m) 6,1 7,3 8,5 9,7 10,9 12,2 15,2 18,2 600x400 0,0867 dB(A) <20 <20 20 24 27 30 37 42 50 Vk (m/s) 1,6 1,9 2,2 2,6 2,9 3,2 4 4,8 6,4 Pa 2 3 4 5 6 8 12 18 32 L (m) 5,5 6,6 7,7 8,8 9,9 11 13,8 16,6 22,1 800x400 0,1172 dB(A) <20 <20 20 23 29 35 48 49 Vk (m/s) 1,7 1,9 2,1 2,4 3 3,6 4,7 5,9 Pa 2 3 4 4 7 10 18 27 L (m) 6,6 7,6 8,5 9,5 11,9 14,3 19 23,7 1000x400 0,1481 dB(A) <20 <20 <20 24 29 37 43 Vk (m/s) 1,5 1,7 1,9 2,3 2,8 3,8 4,7 Pa 2 2 3 4 6 11 17 L (m) 6,7 7,6 8,5 10,6 12,7 16,9 21,1 1200x400 0,2511 dB(A) <20 <20 24 31 40 Vk (m/s) 1,4 4,7 2,2 2,8 3,9 Pa 1 2 4 6 12 L (m) 6,5 7,8 10,4 13 18,2
Dimensions LxH 2 x digital output (6 terminalas, wire min. 0.5 mm² to max. 1.5 mm²) – NO/NC relays (125 V AC – 60 W) Airflow (m³/h) H = 500 mm 500 600 700 800 900 1000 1250 1500 2000 2500 3500 300x500 0,0755 dB(A) <20 <20 23 27 31 34 40 45 Vk (m/s) 1,8 2,2 2,6 2,9 3,3 3,7 4,6 5,5 Pa 3 4 5 7 9 11 16 24 L (m) 4,7 5,7 6,6 7,6 8,5 9,5 11,8 14,2 400x500 0,1021 dB(A) <20 <20 20 23 26 33 38 46 Vk (m/s) 1,6 1,9 2,2 2,4 2,7 3,4 4,1 5,4 Pa 2 3 4 5 6 9 13 23 L (m) 4,9 5,7 6,5 7,3 8,1 10,2 12,2 16,3 500x500 0,1290 dB(A) <20 <20 <20 21 27 32 40 47 Vk (m/s) 1,5 1,7 1,9 2,2 2,7 3,2 4,3 5,4 Pa 2 2 3 4 6 8 14 23 L (m) 6,3 7,2 8,1 9,1 11,3 13,6 18,1 22,6 600x500 0,1562 dB(A) <20 <20 <20 22 28 36 42 Vk (m/s) 1,4 1,6 1,8 2,2 2,7 3,6 4,4 Pa 2 2 2 4 6 10 15 L (m) 5,3 5,9 6,6 8,2 9,9 13,2 16,4 800x500 0,2112 dB(A) <20 20 29 35 44 Vk (m/s) 1,6 2 2,6 3,3 4,6 Pa 2 3 5 8 17 L (m) 7,1 8,5 11,3 14,1 19,8 1000x500 0,2668 dB(A) <20 <20 23 29 39 Vk (m/s) 1,3 1,6 2,1 2,6 3,6 Pa 1 2 3 5 10 L (m) 6,3 7,6 10,1 12,6 17,6 1200x500 0,3230 dB(A) <20 <20 25 34 Vk (m/s) 1,3 1,7 2,1 3 Pa 1 2 4 7 L (m) 6,9 9,2 11,4 16
Dimensions LxH 2 x digital output (6 terminalas, wire min. 0.5 mm² to max. 1.5 mm²) – NO/NC relays (125 V AC – 60 W) Airflow (m³/h) H = 600 mm 600 700 800 900 1000 1250 1500 2000 2500 3500 300x600 0,0923 dB(A) <20 <20 22 26 29 35 40 48 Vk (m/s) 1,8 2,1 2,4 2,7 3 3,8 4,5 6 Pa 3 3 5 6 7 11 16 28 L (m) 5,1 6 6,8 7,7 8,6 10,7 12,8 17,1 400x600 0,1248 dB(A) <20 <20 <20 22 28 33 41 47 Vk (m/s) 1,6 1,8 2 2,2 2,8 3,3 4,5 5,6 Pa 2 2 3 4 6 9 15 24 L (m) 5,1 5,9 6,6 7,4 9,2 11 14,7 18,4 500x600 0,1577 dB(A) <20 <20 <20 22 27 36 42 Vk (m/s) 1,4 4,6 4,8 2,2 2,6 3,5 4,4 Pa 2 2 2 4 5 10 15 L (m) 5,2 5,9 6,6 8,2 9,8 13,1 16,4 600x600 0,1910 dB(A) <20 <20 23 31 37 47 Vk (m/s) 1,5 1,8 2,2 2,9 3,6 5,1 Pa 2 3 4 7 10 20 L (m) 7,4 9,3 11,2 14,9 18,6 25 800x600 0,2582 dB(A) <20 <20 24 30 40 Vk (m/s) 1,3 1,6 2,2 2,7 3,8 Pa 1 2 4 6 11 L (m) 6,4 7,7 10,2 12,8 17,9 1000x600 0,3262 dB(A) <20 <20 24 34 Vk (m/s) 1,3 1,7 2,1 3 Pa 1 2 4 7 L (m) 6,8 9,1 11,4 15,9 12000x600 0,3949 dB(A) <20 20 29 Vk (m/s) 1,4 1,8 2,5 Pa 2 2 5 L (m) 8,3 10,3 14,5
