Description

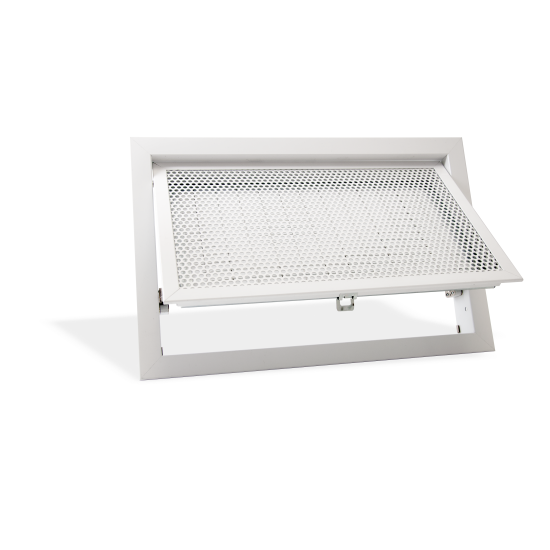

Exhaust grille with perforated panel, with double frame (15 mm internal) and hinge opening and push-pull system for easy filter installation and replacement.

Characteristics

Aluminium perimeter frame.

Galvanised steel panel.

Finish: painted white RAL9016.

Installation: resting on false ceiling structure.

Filter: COARSE class (G2) thickness 10 mm.

Opening/closing: with push-pull system.

The perforated mesh is made according to the following specifications:

  •  60° alternating round holes;
  • empty/full ratio 46%;
  • diameter of holes 5mm;
  • distance between centres 7mm.

Use

Grille for air exhaust in rooms where pre-filtration is recommended. Initial pressure drop lower than 40Pa with 1.5 m/s speed on the filter.

On request

Painting in different RAL colours.

Operating Data and Dimensions

An air velocity on the filter of 1.5 m/s is recommended to contain pressure drops and maintain filtration efficiency; the flow rate data in the table refers to the grille with the filter.

All measurements are expressed in mm.

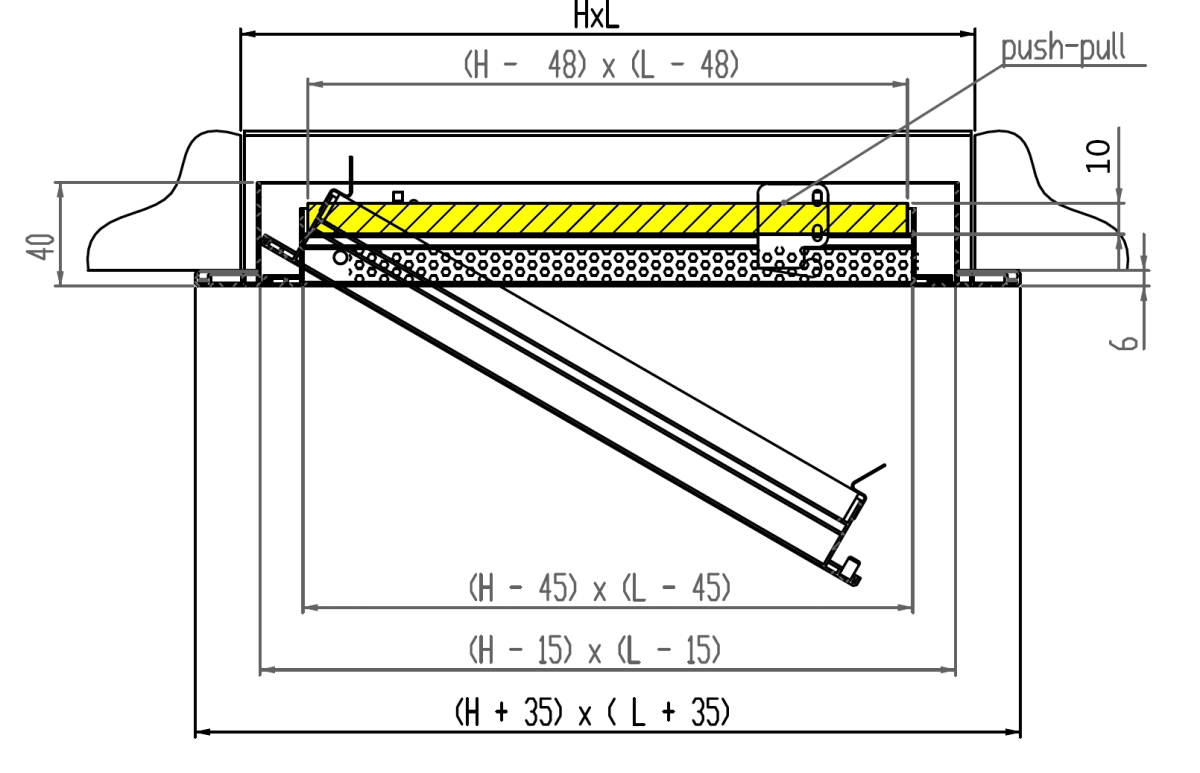

Technical DrawingModelOverall Frame DimensionsEffective Filter AreaFilter Face VelocityAirflow

mm

m2

m/s

m3/h

EGFR-PUSH

595x595

0,238

1,5

1285

2

1713

Noise Level dB(A) - Pressure Drop (Pa)

V
m/s
dB(A)Pa
1,5<2025/30
220/2545/50

Plenum Box



Model
 L1 x H1
Lateral ConnectionEF
P2Nr. ConnectionsØ d
560x56030012508012

Price List

ModelOverall Frame Dimensions€
mm
EGFR-PUSH595x595158,55

Plenum Box

DimensionsLateral Connection
EPZ – Galvanized Steel PlenumEPI - Insulated Plenum Box
L1xH1€€
560x56094,75 128,01
