EGQ-PUSH Exhaust egg crate grille 13x13 mm with filter
Description

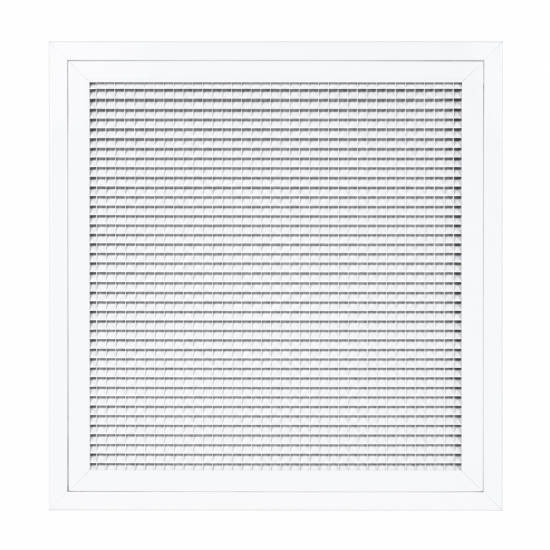

Exhaust egg crate grille 13x13 mm for false ceiling with double frame and hinge opening and push-pull system for easy filter installation and replacement.
Characteristics
Material: aluminium.
Finish: natural anodised.
Fastening: with visible screws.
Filter: COARSE class (G2) thickness 12 mm.
Opening/closing: with push-pull system.

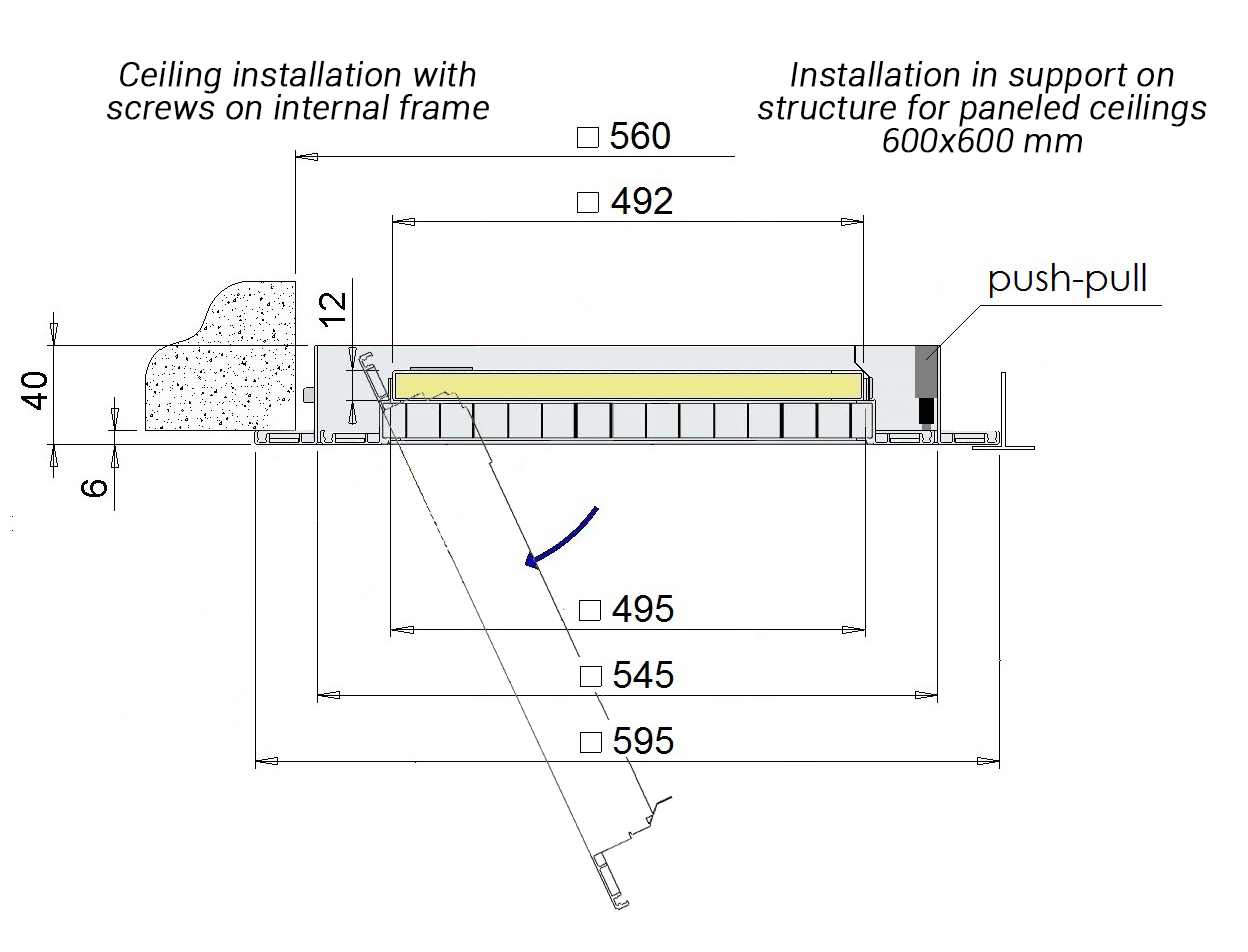

Installation
Installation is carried out by securing the external frame of the grille to the wall using screws or, for installation on modular 600x600 false ceilings, resting on the metal structure in place of the panel.
Use
Grille for external or indoor air exhaust where dust pre-filtration is recommended. Initial pressure drop lower than 40 Pa with 1.5 m/s speed on the filter.
Accessories
- EPZ - Galvanised Plenum Box;
- EPI - Insulated Plenum Box.
On request
- Closing with screw or magnet;
- RAL 9016 painting or other RAL colours;
- Special dimensions.
Effective cross-section
H L 200 300 400 500 600 800 1000 2 x digital output (6 terminalas, wire min. 0.5 mm² to max. 1.5 mm²) – NO/NC relays (125 V AC – 60 W) 200 0,018 0,031 0,045 0,058 0,071 0,098 0,124 300 0,031 0,054 0,078 0,101 0,124 0,170 0,217 400 0,045 0,078 0,111 0,144 0,177 0,243 0,309 500 0,058 0,101 0,144 0,187 0,230 0,315 0,401 600 0,071 0,124 0,177 0,230 0,282 0,388 0,493
Operating Data
m³/h: flow rate
Pa: pressure drops in Pascal
dB(A): noise level
An air velocity on the filter of 1.5 m/s is recommended to contain pressure drops and maintain filtration efficiency;
the flow rate data in the table refers to the grille with the filter.
All dimensions are expressed in mm.
H V
m/sL 200 300 400 500 600 800 1000 Face Velocity at the Filter Flow Rate m3/h 200 1,5 63 121 180 238 296 413 530 2 84 162 240 317 395 551 706 300 1,5 121 234 346 458 571 795 1020 2 162 312 461 611 761 1060 1360 400 1,5 180 346 512 679 845 1178 1510 2 240 461 683 905 1127 1570 2014 500 1,5 238 458 679 899 1119 1560 2000 2 317 611 905 1199 1492 2080 2667 600 1,5 296 571 845 1119 1394 1942 2491 2 395 761 1127 1492 1858 2590 3321
Operating data for the version for suspended ceilings
Models Overall Frame Dimensions 2 x digital output (6 terminalas, wire min. 0.5 mm² to max. 1.5 mm²) – NO/NC relays (125 V AC – 60 W) Effective Filter Area Face Velocity at the Filter Airflow mm m2 m2 m/s m3/h EGQ-PUSH 595x595 0,229 0,218 1,5 1180 2 1570
Noise Level dB(A)
V
m/sdB(A) 1,5 <20 2 20/25
Pressure Drop (Pa)
V
m/sPa 1,5 25/30 2 45/50
Plenum Box
Models
L1 x H1Top Connection Lateral Connection E F Models
L1 x H1Top Connection Lateral Connection E F P1 Nr. Connections Ø d P2 Nr. Connections Ø d P1 Nr. Connections Ø d P2 Nr. Connections Ø d 200x200 200 1 198 300 1 198 80 12 500x300 200 1 248 350 1 248 80 12 300x200 200 1 198 300 1 198 80 12 600x300 200 2 198 350 2 248 80 12 400x200 200 1 198 300 1 198 80 12 800x300 200 2 248 350 2 248 80 12 500x200 200 1 198 300 1 198 80 12 1000x300 200 2 248 350 2 248 80 12 600x200 200 2 198 300 2 198 80 12 400x400 200 1 298 350 1 298 80 12 800x200 200 2 198 300 2 198 80 12 500x400 200 1 298 350 1 298 80 12 1000x200 200 2 198 300 2 198 80 12 600x400 200 2 198 350 2 248 80 12 300x300 200 1 248 350 1 248 80 12 800x400 200 2 298 350 2 298 80 12 400x300 200 1 248 350 1 248 80 12 1000x400 200 2 298 400 2 298 80 12
Plenum for grille version for square false ceiling
All dimensions are espressed in mm.
Models
L1 x H1Lateral Connection E F P2 Nr. Connections Ø d 560x560 300 1 250 80 12
Price List
Painted white RAL 9016 + 20%
H L 200 300 400 500 600 800 1000 euro euro euro euro euro euro euro 200 59,89 62,51 78,17 92,06 103,08 121,81 158,56 300 62,51 79,25 96,60 110,68 127,02 160,68 185,92 400 78,17 96,60 110,72 137,87 159,62 199,74 226,87 500 92,06 110,68 137,87 161,77 194,28 226,87 268,14 600 103,08 127,02 159,62 194,28 217,00 265,98 320,23
Price list for grille version for square false ceiling
White painted RAL 9016 + 20%
| Models | Overall Frame Dimensions | euro |
| mm | ||
| EGQ-PUSH | 595x595 | 165,05 |
Plenum Box
Dimensions Top Connection Lateral Connection EPZ - Plenum Box EPI - Insulated Plenum Box EPZ - Plenum Box EPI - Insulated Plenum Box L1xH1 euro euro euro euro 200x200 34,24 47,08 37,85 51,92 300x200 37,16 50,99 41,70 57,07 400x200 40,12 54,95 45,50 62,18 500x200 43,04 58,91 49,34 67,29 600x200 59,99 78,09 71,98 92,00 800x200 70,71 90,27 79,62 102,30 1000x200 76,59 98,19 76,59 112,52 300x300 41,20 56,14 49,27 67,06 400x300 55,34 71,90 64,75 84,54 500x300 58,72 76,43 69,44 90,88 600x300 69,52 88,69 77,59 99,53 800x300 84,97 112,40 99,72 132,19 1000x300 91,73 121,47 109,14 144,80 400x400 59,76 77,70 74,09 96,96 500x400 63,60 82,78 79,70 104,45 600x400 82,31 108,98 91,23 121,01 800x400 99,26 128,97 115,32 150,49 1000x400 117,67 153,18 142,65 186,69
Plenum for grille version for square false ceiling
| Dimensions | Lateral Connection | |
| EPZ - Plenum Box | EPI - Insulated Plenum Box | |
| L1xH1 | euro | euro |
| 560x560 | 91,11 | 123,09 |
