EGQ1-4 Egg crate grilles with filter
Description
Aluminium exhaust grilles with 13x13 mm pitch, with the insertion of a special profile or counter-frame that allows for a flat filter for coarse or fine dust to be housed.
Characteristics
Material: aluminium.
Finish: natural anodised.
Filter: COARSE class (G2) thickness 12 mm.
Installation
Installation is carried out by opening the special brackets in the counter-frame or, alternatively, by securing the latter to the wall or duct using screws.
EGQ1 - EGQ2: for wall installation only, ceiling installation is not recommended, closing with magnet.
EGQ3 - EGQ4: Closing with screw.
Use
For air exhaust. Its nice design and large effective cross-section make it ideal for civil installations. Initial pressure drop lower than 40Pa with 1.5 m/s speed on the filter.
Models

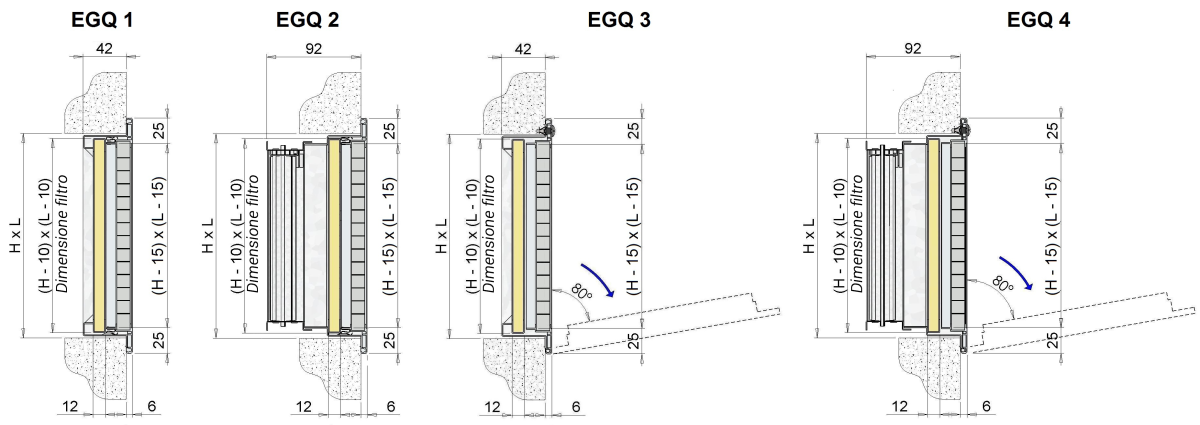

- EGQ1: grille with filter;
- EGQ2: grille with filter and damper;

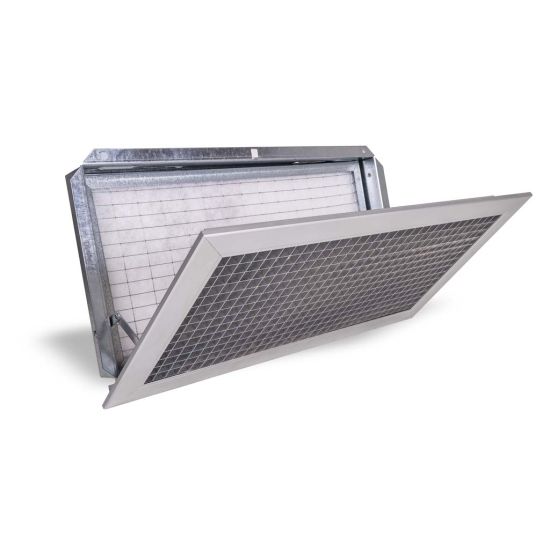

- EGQ3: grille with special counter-frame secured with a hinge to the frame to allow for 80° opening for easy filter maintenance;
- EGQ4: grille with damper and special counter-frame secured with a hinge to the frame to allow for 80° opening for easy filter maintenance.
On request
- Fastening with magnet or knobs (EGQ3 - EGQ4);
- Egg crate grille version 13x13 mm with an inclination of 45°.
Effective Cross-Section
H L 200 300 400 500 600 800 1000 Effective Cross-Section (m2) 200 0,030 0,046 0,058 0,076 0,092 0,130 0,170 300 0,046 0,070 0,092 0,126 0,156 0,206 0,258 400 0,058 0,092 0,130 0,170 0,210 0,288 0,356 500 0,076 0,130 0,170 0,205 0,258 0,364 0,450 600 0,092 0,170 0,210 0,258 0,328 0,440 0,550 800 0,130 0,210 0,288 0,364 0,440 0,580 0,720 1000 0,170 0,288 0,356 0,450 0,550 0,720 0,890
Operating Data
- m³/h: flow rate.
- Pa: pressure drops in Pascal.
- dB(A): noise level.
- L: width. H: height.
All dimensions are expressed in mm.
An air velocity on the filter of 1.5 m/s is recommended to contain pressure drops and maintain filtration efficiency; the flow rate data in the table refers to the grille with the filter.
| H | V m/s | L | ||||||
| 200 | 300 | 400 | 500 | 600 | 800 | 1000 | ||
| Face Velocity at the Filter | Flow Rate (m3/h) | |||||||
| 200 | 1,5 | 145 | 235 | 325 | 415 | 500 | 680 | 855 |
| 2 | 195 | 315 | 430 | 550 | 670 | 905 | 1140 | |
| 300 | 1,5 | 235 | 380 | 520 | 665 | 805 | 1090 | 1380 |
| 2 | 315 | 505 | 695 | 885 | 1075 | 1455 | 1840 | |
| 400 | 1,5 | 325 | 520 | 715 | 915 | 1110 | 1505 | 1895 |
| 2 | 430 | 695 | 955 | 1220 | 1480 | 2005 | 2530 | |
| 500 | 1,5 | 415 | 665 | 915 | 1165 | 1420 | 1920 | 2420 |
| 2 | 550 | 885 | 1220 | 1550 | 1890 | 2555 | 3225 | |
| 600 | 1,5 | 500 | 805 | 1110 | 1420 | 1720 | 2330 | 2940 |
| 2 | 670 | 1075 | 1480 | 1890 | 2290 | 3105 | 3920 | |
| 800 | 1,5 | 680 | 1090 | 1505 | 1920 | 2330 | 3155 | 3980 |
| 2 | 905 | 1455 | 2010 | 2555 | 3105 | 4205 | 5305 | |
| 1000 | 1,5 | 855 | 1375 | 1900 | 2420 | 2940 | 3980 | 5020 |
| 2 | 1140 | 1835 | 2530 | 3225 | 3920 | 5305 | 6695 | |
Noise Level dB(A)
V
m/sdB(A) 1,5 <20 2 20/25
Pressure Drop (Pa)
V
m/sPa* 1,5 25/30 2 45/50
SC - Regulation damper

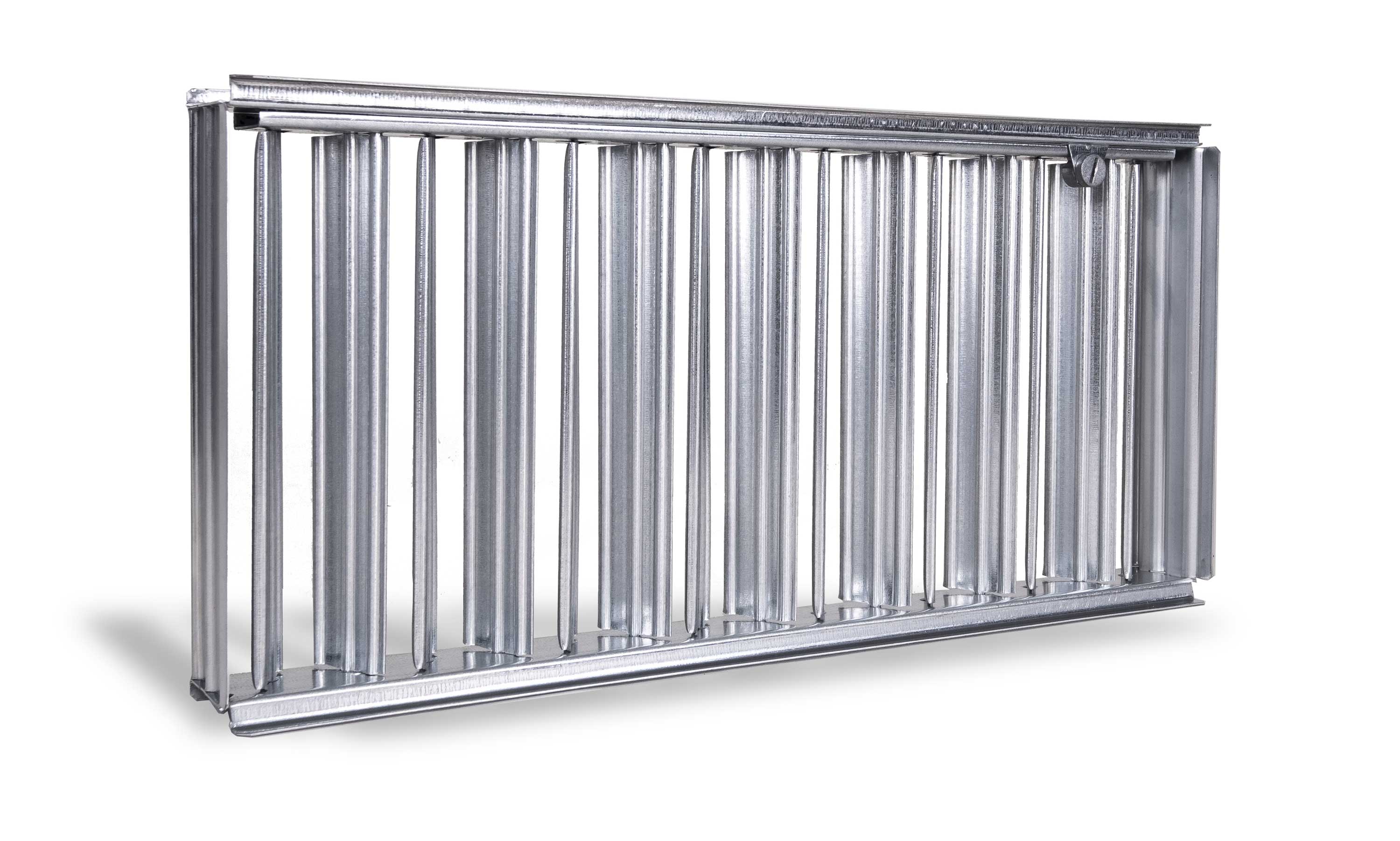

Galvanised steel regulation damper with blades with opposing movement.
Maximum dimensions L x H for construction in one piece 1000 mm x 600 mm.
Plenum Box
All measurements are expressed in mm.
Models
L1 x H1Top Connection Lateral Connection E F Models
L1 x H1Top Connection Lateral Connection E F P1 Nr. Connections Ø d P2 Nr. Connections Ø d P1 Nr. Connections Ø d P2 Nr. Connections Ø d 200x200 200 1 198 300 1 198 80 12 500x300 200 1 248 350 1 248 80 12 300x200 200 1 198 300 1 198 80 12 600x300 200 2 198 350 2 248 80 12 400x200 200 1 198 300 1 198 80 12 800x300 200 2 248 350 2 248 80 12 500x200 200 1 198 300 1 198 80 12 1000x300 200 2 248 350 2 248 80 12 600x200 200 2 198 300 2 198 80 12 400x400 200 1 298 350 1 298 80 12 800x200 200 2 198 300 2 198 80 12 500x400 200 1 298 350 1 298 80 12 1000x200 200 2 198 300 2 198 80 12 600x400 200 2 198 350 2 248 80 12 300x300 200 1 248 350 1 248 80 12 800x400 200 2 298 350 2 298 80 12 400x300 200 1 248 350 1 248 80 12 1000x400 200 2 298 400 2 298 80 12
EGQ1 Price List
Note: painted white RAL 9016 + 20%.
H L 200 300 400 500 600 800 1000 Eur Eur Eur Eur Eur Eur Eur 200 54,78 62,68 75,00 92,00 105,42 120,93 150,28 300 63,04 75,00 92,00 105,42 120,93 152,97 190,12 400 75,45 87,85 104,81 131,27 151,94 190,17 236,32 500 91,46 102,77 129,20 154,01 185,03 214,76 268,44 600 104,81 120,22 151,94 182,95 205,48 253,26 314,72 800 120,93 158,26 195,22 224,30 253,79 304,90 378,89 1000 150,28 197,80 244,05 278,72 317,26 378,89 473,63
EGQ3 Price List
H L 200 300 400 500 600 800 1000 Eur Eur Eur Eur Eur Eur Eur 200 96,45 105,02 117,22 141,73 150,08 166,14 206,44 300 105,02 117,92 142,56 149,21 166,14 200,32 250,40 400 117,92 138,28 149,21 177,95 200,43 240,84 301,07 500 142,56 147,89 167,89 203,66 235,81 268,55 335,70 600 150,08 166,14 199,38 247,21 258,95 310,86 386,29 800 166,14 209,04 248,66 278,68 312,99 366,57 455,54 1000 206,44 259,77 309,04 346,31 388,96 455,54 569,43
EGQ2 and EGQ4 Price List on request
