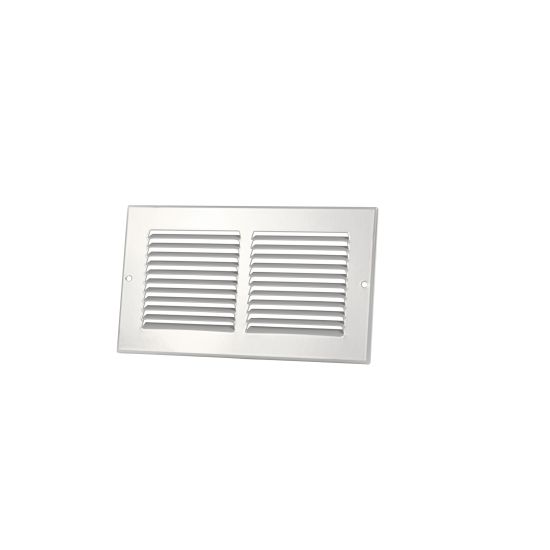

EGS Moulded grilles for air extraction
Description
Use
EGS series grilles have been designed to be used in air conditioning, ventilation and heating systems. They are used for air supply and exhaust in large areas, car parks or domestic installations.
Operating Data
Vk: effective speed (m/s)
m³/h: flow rate
Pa: pressure drops in Pascal
dB(A): noise level

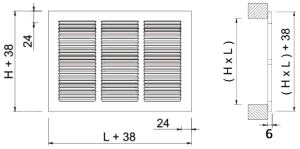

All dimensions are expressed in mm
Models
LxH2 x digital output (6 terminalas, wire min. 0.5 mm² to max. 1.5 mm²) – NO/NC relays (125 V AC – 60 W) Flow Rate m3/h m2 Vk 2 m/s Vk 3 m/s Vk 4 m/s Vk 5 m/s 200x100 0,014 100 150 200 250 300x100 0,021 151 227 302 378 400x100 0,029 209 313 418 522 150x150 0,017 61 122 183 245 300x150 0,033 238 356 475 594 400x150 0,044 317 475 633 792 200x200 0,029 209 313 418 522 300x200 0,043 310 465 620 774 400x200 0,058 418 626 835 1044 300x300 0,065 468 702 936 1170 400x300 0,087 626 940 1253 1566 Pa 3 6 10 15 dB(A) 20/25 25/30 30/35 35/40
