ERVC-N Circular variable air flow regulators with servomotor LMV-D3MP
Description
The ERVC-N regulators are designed for the control and maintainance of indoor air quality in VAV (Variable Air Volume) systems.
Characteristics
- Galvanized steel casing Z200;
- Casing thickness 0,8 mm from d.125 mm to d.250 mm and 1 mm for d.315 mm to 400 mm;
- Galvanized steel damper with thickness 0,8 mm from d.125 mm to d.200, 1 mm from d.200 mm to d.250 mm and 1,5 mm from d.315 mm to 400 mm;
- Bronze bushing d.8 mm from 125 mm to 250 mm and 12 mm nylon bushing from 315 mm to 400 mm;
- Male connections with external silicon seals;
- Dynamic dp probe to measure and maintain the air flow rate according to the room demand;
- Nylon pression gauges;
- Version with external insulation made of polyester fiber with a density of 15 kg/m3, a thickness of 30 mm and complete with an second case with a thickness of 0,8 mm; - Insulation with fire reaction class accordind to regulations UNI EN 13510-1 Bs2;
- Pressure range from 20 to 1000 Pa; - Working range temperature from 0°C to +50 °C;
- Flow rate adjustment and control by means of a linearised motor controller;
- Test on self-generated and radiated noise according to regulation EN ISO 3741;
- Damper leakage test according to regulation EN 1751;
- Air flow regulator VAV-Compact, AC/DC 24V, Mp-bus, IP54 LMV-D3-MP (5 Nm) (STANDARD);
- Configurable via NFC and Assistant App2 application;
Use
The regulator of the series ERVC-N represent an ideal solution for modern enviroment in residential, commercial, and industrial. optimized regulation of system branches ensures stable comfort and reduced energy consumption compared to traditional systems. Double casing versions are available for both summer cooling and winter heating applications
Models
ERVC-I double case.
On request
- Air flow regulator VAV-Compact, AC/DC 24V, BACnet MS/TP, Modbus RTU, MP-Bus, IP54 LMV-D3-MOD (5Nm);
- Air flow regulator VAV -Compact, AC/DC 24 V, KNX (S-Mode) IP54 LMV-D3-KNX (5Nm);
- ZTH EU service tool for LMV-D3-MP actuator and ZK1-GEN connection cable;
- Available with high speed servomotors for hospital applications;
Notes
Operating Data
When ordering, indicate the minimum and maximum air flow rates to be programmed.
To prevent noise propagation that could reduce the comfort inside the building, it is advisable to consider maximum flow rate with an VAV internal air speed of 10 m/s.
Models Minimum Air Flow (v=1,2 m/s) Minimum Air Flow (v=1 m/s) Nominal Airflow Rate (v = 12 m/s) mm m3/h m3/h m3/h 125 53 445 530 160 87 725 870 200 138 1130 1380 250 212 1770 2120 315 337 2810 3370 355 428 3570 4280 400 543 4525 5430

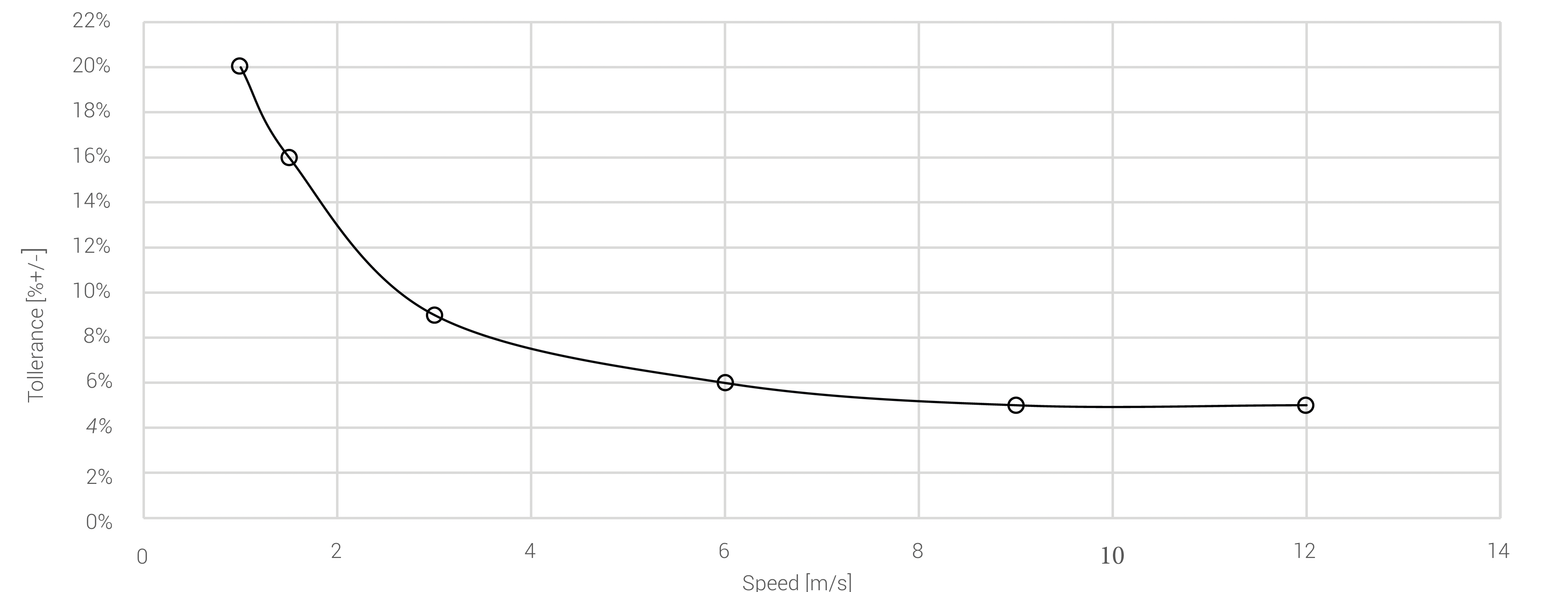

The uncertainty of the probe reading at various flow rates is shown below. We recommend use in the range 6-8 m/s:
The generated and radiated noise are available in the technical data sheet in the "Documentation" section of the website.
Dimensions
All dimensions are expressed in mm, intermediate sizes on demand.
Models H L P S T mm mm mm mm mm mm 125 185 60 310 220 8 160 220 60 400 220 8 200 260 60 400 220 8 250 310 60 400 310 8 315 375 100 500 310 12 355 415 100 500 410 12 400 460 100 500 410 12
Installation specifications and further construction details, are available in the technical data sheet in the "Documentation" section of the website.
Price List
Models ERVC-N - Control signal 2…10V ERVC-N Control signal 0…10V ERVC-N-I - Control signal 2…10V ERVC-N-I Control signal 0…10V mm Eur Eur Eur Eur 125 541,33 541,33 572,89 572,89 160 554,86 554,86 587,93 587,93 200 568,38 568,38 605,97 605,97 250 586,42 586,42 633,03 633,03 315 610,48 610,48 663,09 663,09 355 631,52 631,52 688,65 688,65 400 655,57 655,57 718,71 718,71
Supply and installation of a circular variable flow regulator from the ERVC-N series by Ecoclima S.r.l., case in galvanised sheet metal with sealed damper, equipped with integrated measuring cross, pressure and adjustment sockets, automatic air flow control with 24 V AC/DC power supply, suitable for use in controlled mechanical ventilation and variable flow air conditioning systems. Device compliant with EN ISO 3741 and EN1751 standards with an operating range from 20 to 1000 Pa and working flow rates between 53 and 4525 m³/h depending on the damper diameter available between 125 mm and 400 mm.
Supply and installation of an isolated circular variable flow regulator from the ERVC-N-I series by Ecoclima S.r.l., case in galvanised sheet metal with sealed damper, equipped with integrated measuring cross, pressure and adjustment sockets, automatic air flow control with 24 V AC/DC power supply, suitable for use in controlled mechanical ventilation and variable flow air conditioning systems. Device compliant with EN ISO 3741 and EN1751 standards with an operating range from 20 to 1000 Pa and working flow rates between 53 and 4525 m³/h depending on the damper diameter available between 125 mm and 400 mm.
