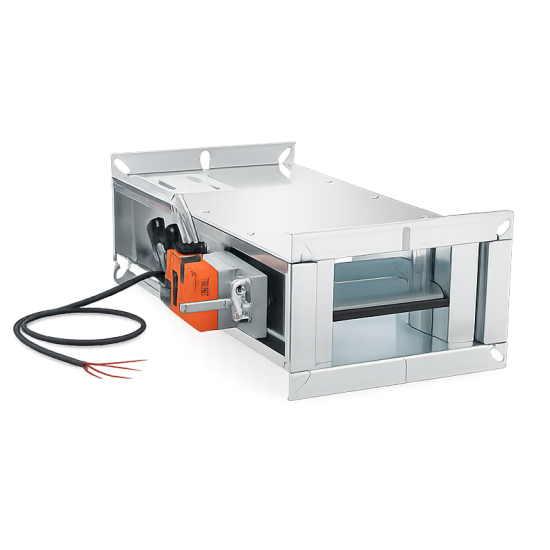

ERVR-N Rectangular variable air flow regulators with servomotor LMV-D3MP
Description
These regulators are used to control and maintain the amount of air in VAV systems.
Characteristics
- Galvanised steel sheet casing;
- Double case version with rockwool with density 50 kg/m3 and Bs2 fire reaction class according to regulation UNI EN 13510-1;
- Connection flange with 9x22 buttonholes;
- Dynamic dp probe to measure and maintain the air flow rate according to the room demand;
- Galvanised steel damper with sealing gaskets;
- Nylon pression gauges;
- Operating range between 20 and 1500 Pa;
- Working temperature between 0°C and +50°C;
- Flow rate adjustment and control by means of a linearised motor controller;
- Self-generated and radiated noise tests according to the EN ISO 3741 Standard;
- Damper tightness test performed according to the EN 1751 Standard;
- VAV-COMPACT, AC/DC 24 V, MP-Bus, IP54 LMV-D3-M (5nm) (Standard);
- Configurable via NFC and Assistant App2 application;
Use
The regulator of the series ERVR-N represent an ideal solution for modern enviroment in residential, commercial, and industrial. optimized regulation of system branches ensures stable comfort and reduced energy consumption compared to traditional systems. Double casing versions are available for both summer cooling and winter heating applications
Models

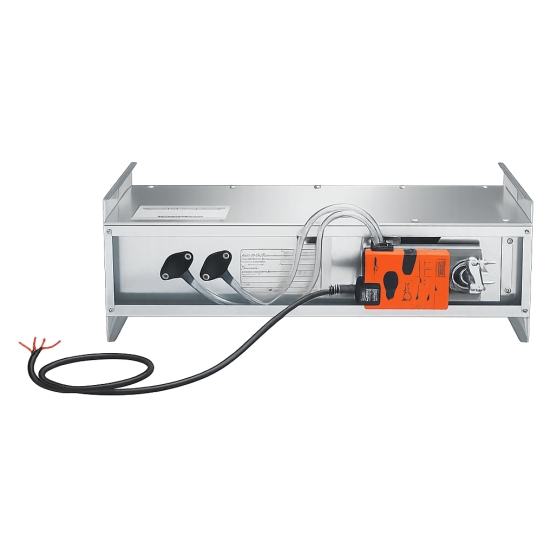

- ERVR single casing.

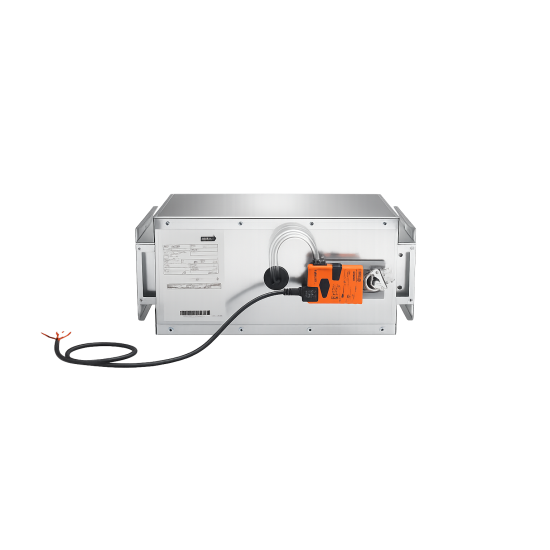

- ERVR-I double casing.
On request
- VAV-Compact, AC/DC 24 V, Bacnet MS/TP, Modbus RTU, MP-Bus, IP54 LMV-D3-MOD (5Nm);
- VAV-Compact, AC/DC 24 V, KNX (S-Mode), IP54 LMV-D3-KNX (5Nm);
Notes
For correct pressure readings and for a flow rate tolerance of 5%, a straight duct with a length equal to 2/3 times the regulator diameter must be provided upstream. Otherwise, the air flow rate may vary between 10% and 20% from the calibrated value.
Operating data
When placing the order, specify the minimum and maximum airflow rates to be set.
To prevent noise propagation that could reduce comfort inside the building, it is advisable to consider a maximum airflow with an internal velocity in the VAV of 10 m/s.
Models Minimum Air flow(v=2 m/s) Nominal Air Flow (v=10 m/s) Maximum Air flow (v=12 m/s) mm mm m3/h m3/h m3/h 200 110 160 790 950 400 110 315 1580 1900 600 110 475 2375 250 400 210 605 3040 3650 600 210 905 4540 5450 800 210 1210 6040 7250 600 310 1340 6710 8050 800 310 1785 8915 10700 1000 310 2230 11150 13400 600 410 1770 8875 10650 800 410 2360 11790 14150 1000 410 2950 14750 17700

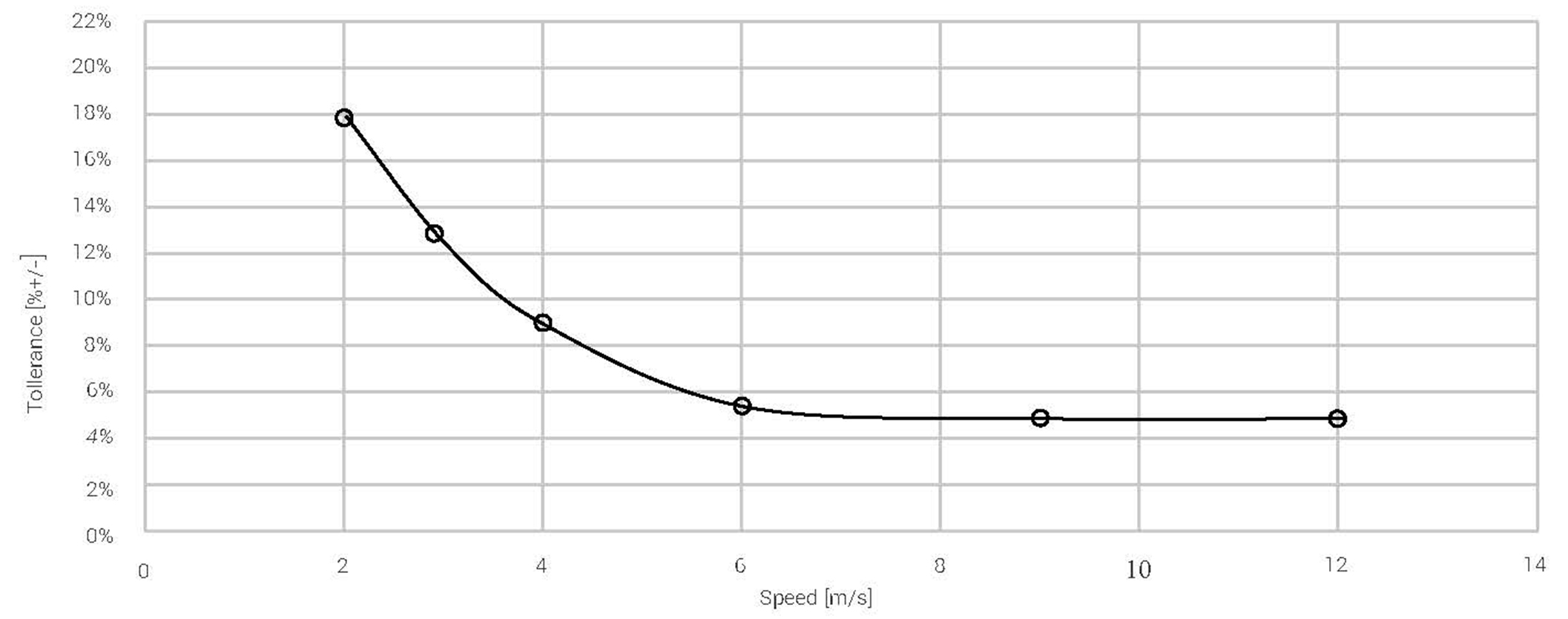

The uncertainty of the probe reading at various flow rates is shown below. We recommend use in the range 6-8 m/s:
The generated and radiated noise are available in the technical data sheet in the "Documentation" section of the website
Dimensions
All dimensions are expressed in mm, intermediate sizes on demand.
Models Base holes Height Holes mm mm N° buttonholes X N° buttonholes X 200 110 1 116,1 0 0 400 110 1 216,1 0 0 600 110 1 316,1 0 0 400 210 1 216,1 1 116,6 600 210 1 316,1 1 116,6 800 210 2 266,1 1 116,6 600 310 1 316,1 1 166,6 800 310 2 266,1 1 166,6 1000 310 3 216,1 1 166,6 600 410 1 316,1 1 216,6 800 410 2 266,1 1 216,6 1000 410 3 216,1 1 216,6
Installation specifications and further construction details, are available in the technical data sheet in the "Documentation" section of the website.
Price list:
Models ERVR-N - Control signal 2...10V ERVR-N - Control signal 0…10V ERVR-N-I - Control signal 2…10V ERVR-N-I Control signal 0…10V mm Eur Eur Eur Eur 200x110 638,27 638,27 738,56 738,56 400x110 688,72 688,72 809,18 809,18 600x110 739,16 739,16 879,80 879,80 400x210 734,06 734,06 872,66 872,66 600x210 788,84 788,84 949,35 949,35 800x210 839,70 839,70 1.020,54 1.020,54 600x310 836,71 836,71 1.016,38 1.016,38 800x310 891,88 891,88 1.093,61 1.093,61 1000x310 944,93 944,93 1.167,89 1.167,89 600x410 884,60 884,60 1.083,42 1.083,42 800x410 944,08 944,08 1.166,69 1.166,69 1000x410 1.017,29 1.017,29 1.269,16 1.269,16
SINGLE CASE VERSION
Supply and installation of a rectangular variable air volume (VAV) regulator from the ERVR-N series by Ecoclima S.r.l.. The valve body is made of galvanized sheet metal with blades in natural extruded aluminum and airtight silicone sealing gasket. The dedicated linkage mechanisms for blade actuation are made of galvanized steel. The regulators are equipped with an integrated measuring cross, pressure taps, and automatic airflow control with 24 V AC/DC power supply, suitable for use in controlled mechanical ventilation and variable air volume air conditioning systems. The device complies with EN ISO 3741 and EN 1751 standards, with an operating range from 20 to 1000 Pa and airflow rates between 160 and 16,050 m³/h depending on the damper dimensions (BxH), available from 200×110 mm up to 1200×310 mm.
DOUBLE CASE VERSION
Supply and installation of an insulated rectangular variable air volume (VAV) regulator from the ERVR-N-I series by Ecoclima S.r.l.. The valve body is made of galvanized sheet metal with blades in natural extruded aluminum, a silicone sealing gasket, and insulation with a thickness of 30 mm, with fire reaction class according to UNI EN 13501-1 Bs2. The linkage mechanisms dedicated to blade actuation are made of galvanized steel. The regulators are equipped with an integrated measuring cross, pressure taps, and automatic airflow control with 24 V AC/DC power supply, suitable for use in controlled mechanical ventilation systems and variable air volume air conditioning systems. The device complies with EN ISO 3741 and EN 1751 standards, with an operating range from 20 to 1000 Pa and airflow rates between 160 and 16,050 m³/h depending on the damper dimensions (BxH), available from 200×110 mm up to 1200×310 mm.
