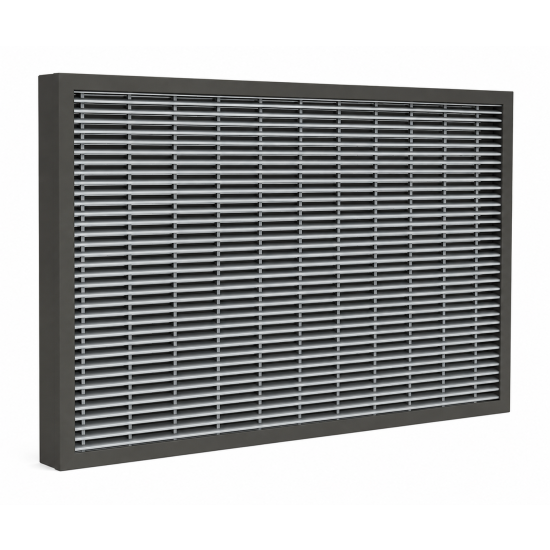

GE120-XL Large-Format Fire Grilles
Description
Grilles with fire resistance EI 120 (Ve i ↔ o) certified according to the EN 1364-1 Standard, suitable for the natural ventilation of technical rooms.
Characteristics
Linear bars made of synthetic material with inside fire-resistant intumescent material up to 100°C.
For indoor use and suitable for installation in rigid walls. HDF-reinforced external frame.
Use
The GE120-XL grille can be used as a fire resistant grille or as a transfer grille in a rigid wall. It is not suitable for installation on ducts or ducted boxes. When used as a transfer grille, the air must move naturally without any forced air flow (e.g. pressurised or negative-pressure room).
Important Note
The GE120-XL grille is tested in standardised constructions according to the EN 1634-1 / EN 1364-1 / EN 1364-2 Standards.
The results achieved are valid for similar supporting structures with a fire resistance, thickness and density equal to or greater than the supporting construction used during the test.
Certification Table
Installazione su Caratteristiche Certificazione Parete Rigida parete in calcestruzzo aerato spessore ≥ 100 mm EI 120 (Ve i ↔ o)
Dimensions
Dimensioni min/max realizabile Minima 900x200 mm Massima 1200x800 mm
Price List
h: Height (mm) B: Width (mm) 200 300 400 500 600 700 800 900 1000 1100 1200 Eur Eur Eur Eur Eur Eur Eur Eur Eur Eur Eur 200 - - - - - - - 1.217,63 1.284,41 1.448,45 1.612,60 300 - - - - - - - 1.506,74 1.604,43 1.779,95 1.955,62 400 - - - - - - - 2.278,05 2.411,82 2.739,93 3.068,03 500 1.137,73 1.283,25 1.455,29 1.652,54 1.782,67 1.912,06 2.426,31 2.556,01 2.685,63 3.135,51 3.585,26 600 1.195,22 1.362,95 1.566,21 1.803,31 1.952,08 2.193,58 2.661,41 2.856,68 3.051,79 3.649,15 4.246,34 700 1.422,30 1.624,08 1.857,01 2.119,93 2.336,04 2.565,63 3.197,47 3.426,14 3.654,80 4.209,23 4.763,71 800 1.648,09 1.884,30 2.147,46 2.436,63 2.719,90 2.937,51 3.733,61 3.995,67 4.257,82 4.769,44 5.281,03
