EADD Air diffuser in ABS
Description
Air diffuser in white ABS with rear circular spigot, with adjustable deflectors to control the air throw on the 4 directions.
Connection collar for Ø 80 and Ø 125 in plastic material, while for Ø 100, Ø 160 and Ø 200 in galvanized steel.
Dimensions
All dimensions are espressed in mm.
| Models | A | B | C | øF |
| EADD-80 | 136 | 151 | 20,0 | 80 |
| EADD-100 | 185 | 205 | 30,0 | 100 |
| EADD-125 | 185 | 205 | 30,0 | 125 |
| EADD-160 | 230 | 250 | 36,8 | 160 |
| EADD-200 | 275 | 300 | 45,8 | 200 |

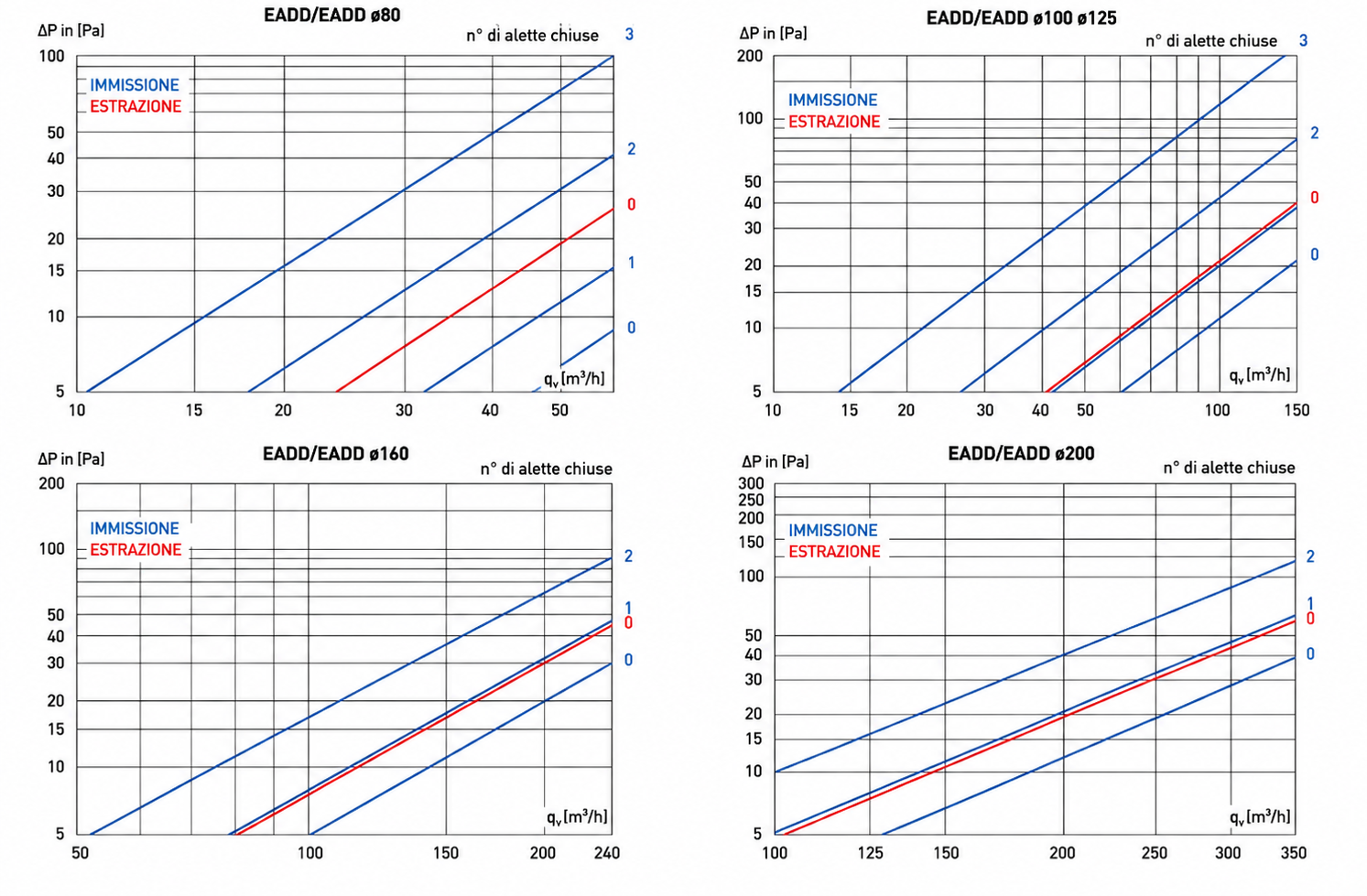

Technical Features
Models Airflow (m3/h) Manicotto Materiale Height (mm) EADD-80 15 - 60 Plastica 100 EADD-100 15 - 75 Metallico 150 EADD-125 45 - 150 Plastica 100 EADD-160 120 - 240 Metallico 150 EADD-200 240 - 350 Metallico 150
Direction of Air Flow

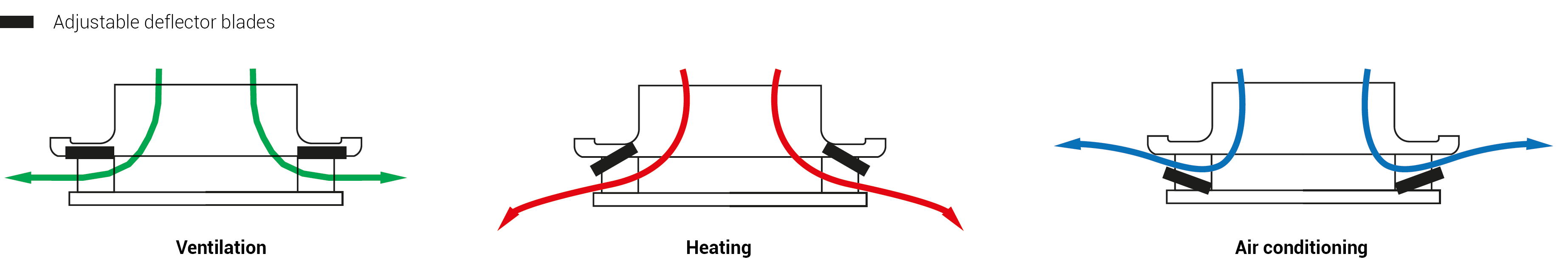

Possible Settings
