EDLSV - EDLSVB Hidden linear diffusers
Description
Concealed linear diffusers for vmc systems with a 30 mm slot with an aerodynamic aluminium profile and adjustable deflectors for optimal air throw control.
Features
Material: aluminium.
EDLSV finish: RAL9005 black painted aluminium.
EDLSVB finish: RAL9016 white painted aluminium.
Slots number: 1 width 30 mm.
Installation: by plenum box with mounting bridge, ceiling finishing with anti-crack tape on the frame and subsequent plaster skimming.
Dimensions avaible:
- Lenght 500 mm;
- Lenght 800 mm.
Use
Diffuser suitable for air-supply or return in residential and commercial environments.
Models
- EDLSV - Concealed linear supply air diffuser with deflectors and 30 mm slot, finished in black RAL 9005.
- EDLSVB - Concealed linear supply air diffuser with deflectors and 30 mm slot, finished in white RAL 9016.
Accessories
- EPLS - Insulated plenum box;
- P1- EDL - Mounting bridge;
- M63-EASY - Ø63 mm spigot;
- M76-EASY - Ø75 mm spigot;
- S-EASY - Balancing damper for spigot;
- T-EASY - Closing cap.

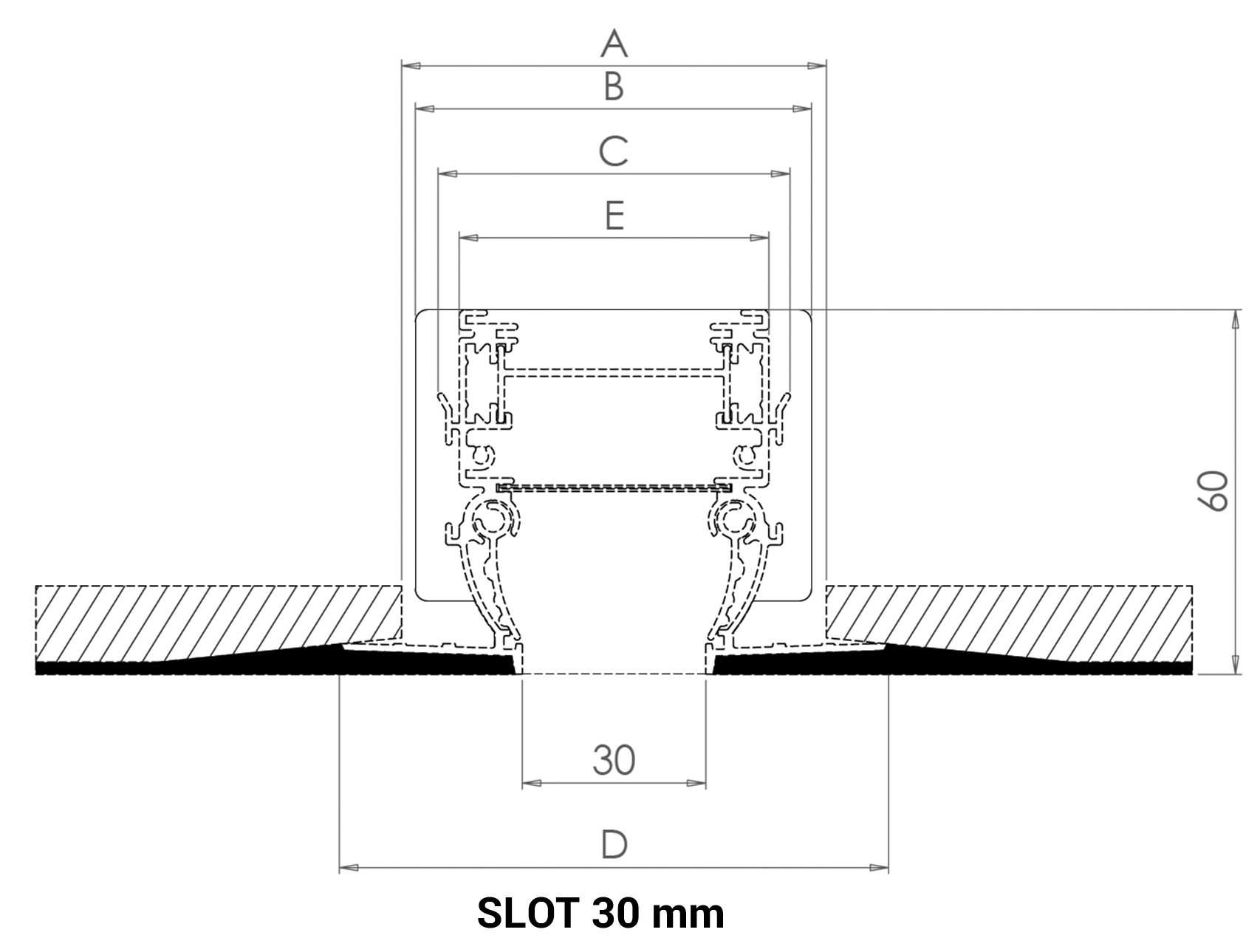

Hidden Linear Diffusers Dimensions
Dimensions are expressed in mm.
L A B C E D Nr. of Mounting Bridges 500 70 65 58 51 90 2 800 2

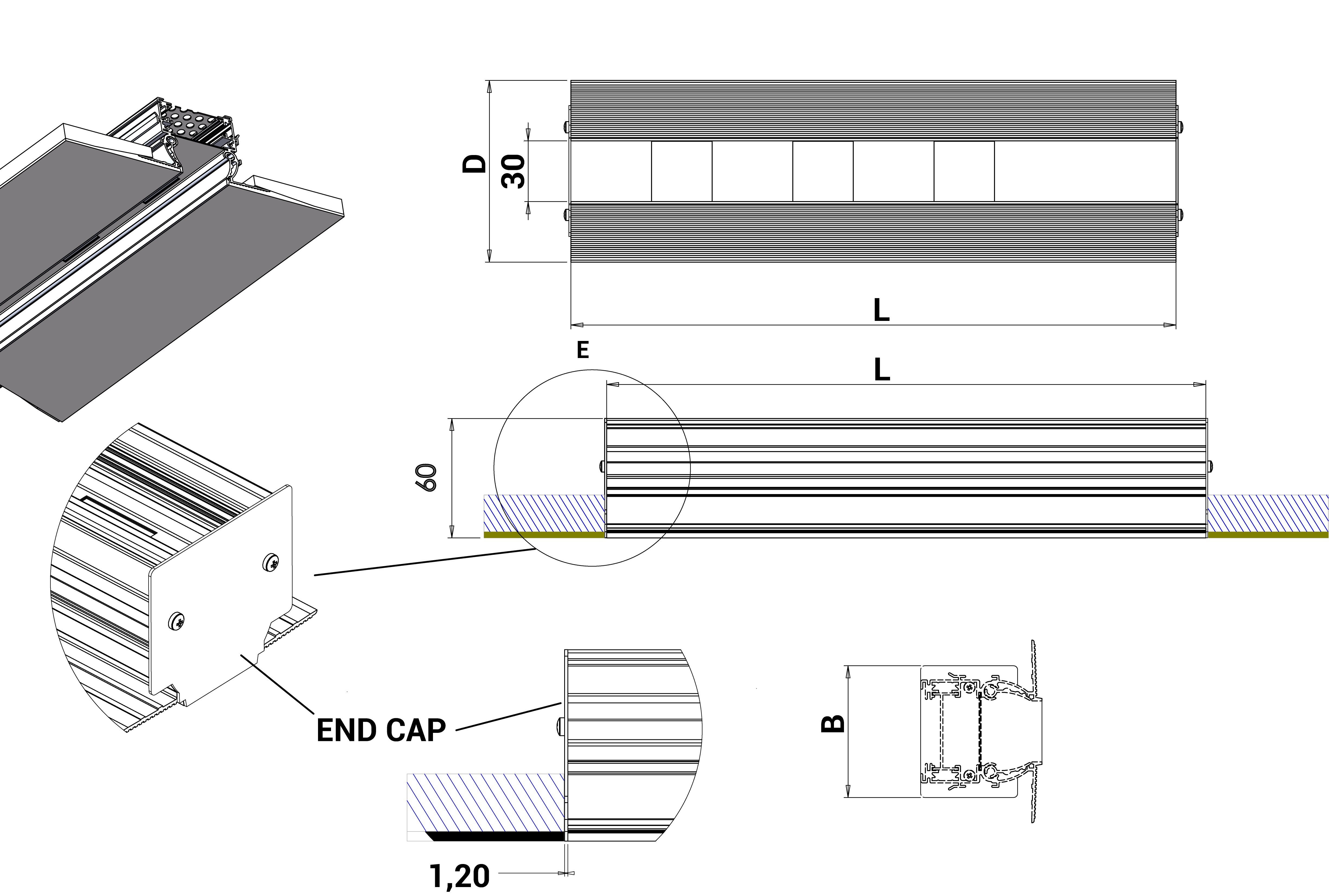

Diffuser Dimensional Details
Operating Data
Data referring a terminal throw velocity Vt = 0.25 m/s and with a temperature differential of 10/12°C in ceiling insallation and side air throw.
Operation data concerning to diffuser without damper or with open sliding damper.
Operation data concerning to diffuser with deflectors in working position with 50% reduction of the effective air passage surface.
The position of the deflectors reduce the effective section. When the deflectors are open or in return mode, the air flow (m³/h) could be increased.
Vk: effective speed (m/s).
m³/h: air flow.
Pa: pressure drop in Pascal.
L(m): air throw in meters.
dB(A): noise level.
| Lenght EDLSV-EDLSVB | Effective Cross-Section (m2) | Air-volume and Air-throw | ||||||
| 500 mm | 0,0073 | m³/h | 52 | 79 | 105 | 132 | 158 | 184 |
| L(m) | 1,6 | 2,5 | 3,4 | 4,2 | 6 | 5,8 | ||
| 800 mm | 0,0116 | m3/h | 83 | 125 | 167 | 208 | 250 | 292 |
| L(m) | 1,6 | 2,5 | 3,4 | 4,2 | 5 | 5,8 | ||
| Vk | m/s | 2 | 3 | 4 | 5 | 6 | 7 | |
| Pressure Drop | Pa | 8 | 15 | 26 | 40 | 55 | 70 | |
| Noise Level | dB(A) | <20 | 22 | 32 | 37 | 44 | 48 | |
Features Air Throw

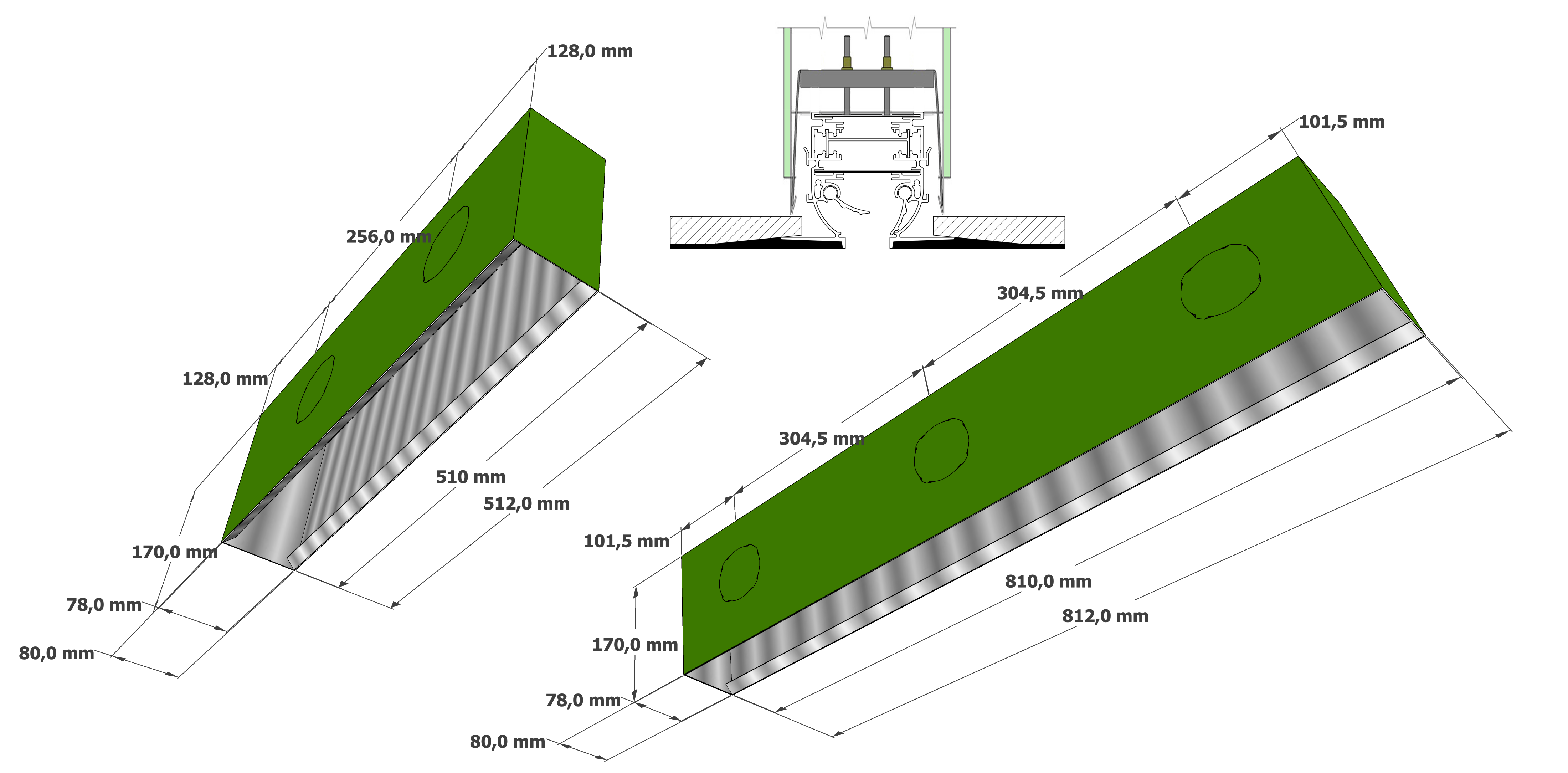

Plenum Dimensions and Mounting System with Fixing Bridges
- Plenum EPLS 500 including 2 sleeve type A Ø 63mm;
- Plenum EPLS 800 including 3 sleeve type A Ø 63mm;
- Damper type C and sleeve type B Ø 75mm optional to be purchased separately.
Pre-cuts Present on the Plenums
