EVALI Self-adjusting intake grilles
Description
Landing extraction vents for installation in kitchens, bathrooms or other rooms that need air extraction. Made of plastic material. Accessories to be chosen to be ordered in support of the Evali Bocchetta: -junction Ø125 and Ø100mm junction with gasket (MGA) -Amanicotto for ceiling installation in Ø80, 100, 125mm (MPG) -Ø80 and Ø125mm wall crossing lamination (MTD)
Features
Polystyrene casing, white color.
Removable central grille in white color (standard).
The humidity-controlled extract air valves are supplied complete with mounting sleeve and airtight sealing gasket.
Operating range: from 80 to 160 Pa.
Accessories
Optional accessories to be ordered according to the selected EVALI valve:
- EMGA – Connection sleeve Ø125 and Ø100 mm with gasket;
- EMEC – Sleeve for plasterboard ceiling installation Ø80, 100, 125 mm;
- EMTD – Wall penetration sleeve Ø80 and Ø125 mm.

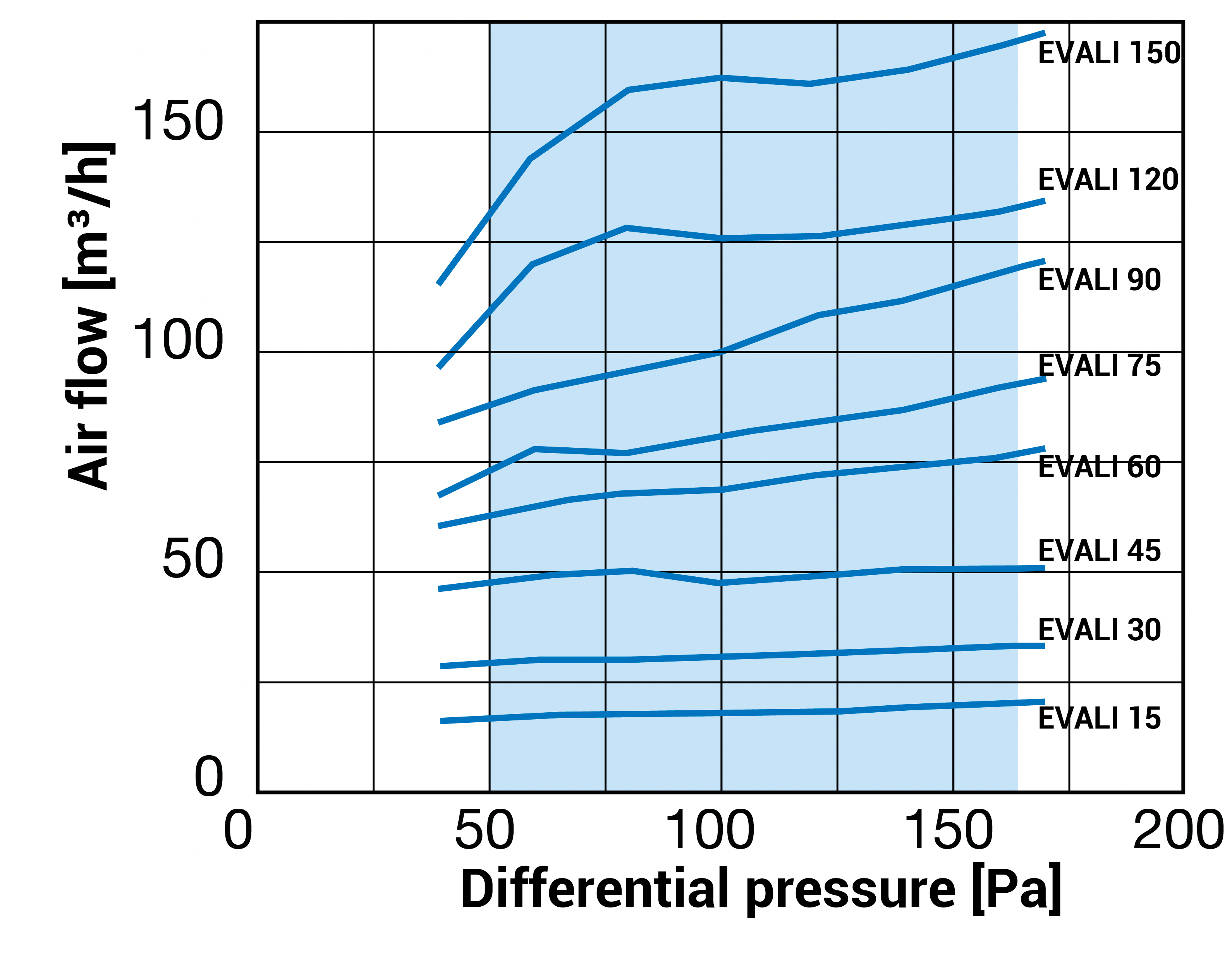

Aeraulic Performances
Accessories Selection
- n.a.: not available.
- ◉ Compatible accessory.
- EMGA: Connection sleeve Ø100 and Ø125 mm with gasket.
- EMEC: Sleeve for plasterboard ceiling installation Ø80, Ø100, Ø125 mm.
- EMTD: Wall penetration sleeve Ø80 and Ø125 mm.
| Models | EMGA | EMEC | EMTD | ||||
| Ø100 | Ø125 | Ø100 | Ø125/80 | Ø125 | Ø125 | Ø125/80 | |
| EVALI 15 | ◉ | ◉ | ◉ | ◉ | ◉ | ◉ | ◉ |
| EVALI 30 | ◉ | ◉ | ◉ | ◉ | ◉ | ◉ | ◉ |
| EVALI 45 | ◉ | ◉ | ◉ | ◉ | ◉ | ◉ | ◉ |
| EVALI 60 | ◉ | ◉ | ◉ | ◉ | ◉ | ◉ | ◉ |
| EVALI 75 | ◉ | ◉ | ◉ | ◉ | ◉ | ◉ | ◉ |
| EVALI 90 | ◉ | ◉ | ◉ | ◉ | ◉ | ◉ | ◉ |
| EVALI 120 | n.d | ◉ | n.d | ◉ | ◉ | ◉ | ◉ |
| EVALI 150 | n.d | ◉ | n.d | ◉ | ◉ | ◉ | ◉ |
EMGA – Connection Sleeve Ø125 and Ø100 with Gasket
EMEC – Sleeve for Plasterboard Ceiling Installation Ø80, 100, 125
EMTD – Wall Penetration Sleeve Ø80 and Ø125
Price List
Accessories Price List
Models Description Eur EMGA Connection sleeve ø 100 mm with gasket 5,10 EMGA Connection sleeve ø 125 mm with gasket 5,10 EMPG Sleeve for plasterboard ceiling installation ø 80 mm 9,17 EMPG Sleeve for plasterboard ceiling installation ø 100 mm 9,17 EMPG Sleeve for plasterboard ceiling installation ø 125 mm 9,17 EMTD Wall penetration sleeve ø 80 mm 18,14 EMTD Wall penetration sleeve ø 125 mm. 16,31
