EVREA Air diffuser in ABS
Description
White ABS air diffuser with circular rear connection, with movable deflectors to adjust the air throw on 4 sides. Connection collar in plastic material.
Features
EVREA diffusers are made of white plastic material and are suitable for both supply air and return air. In the body of the diffuser it is possible to mount from 1 to 3 EVREA-DF deflectors (optional to be purchased separately) to convey the air in a throw from 1 to 3 ways. The diffusers can also be used without deflectors, thus obtaining a 4-way throw. Furthermore, installation in combination with ERDR series ribbed flow regulators is possible. The installation can be carried out on any duct from Ø 80 mm to Ø 200 mm. It is also possible to install the diffuser on plasterboard false ceilings using the EVREA-M sleeve.
Dimensions
All dimensions are espressed in mm.
| Models | ØD | A | B | C |
| EVREA-80 | 73 | 119 | 21 | 29 |
| EVREA-100 | 93 | 185 | 29 | 30 |
| EVREA-125 | 118 | 185 | 29 | 30 |
| EVREA-160 | 148 | 236 | 33 | 38 |
| EVREA-200 | 185 | 280 | 33 | 38 |

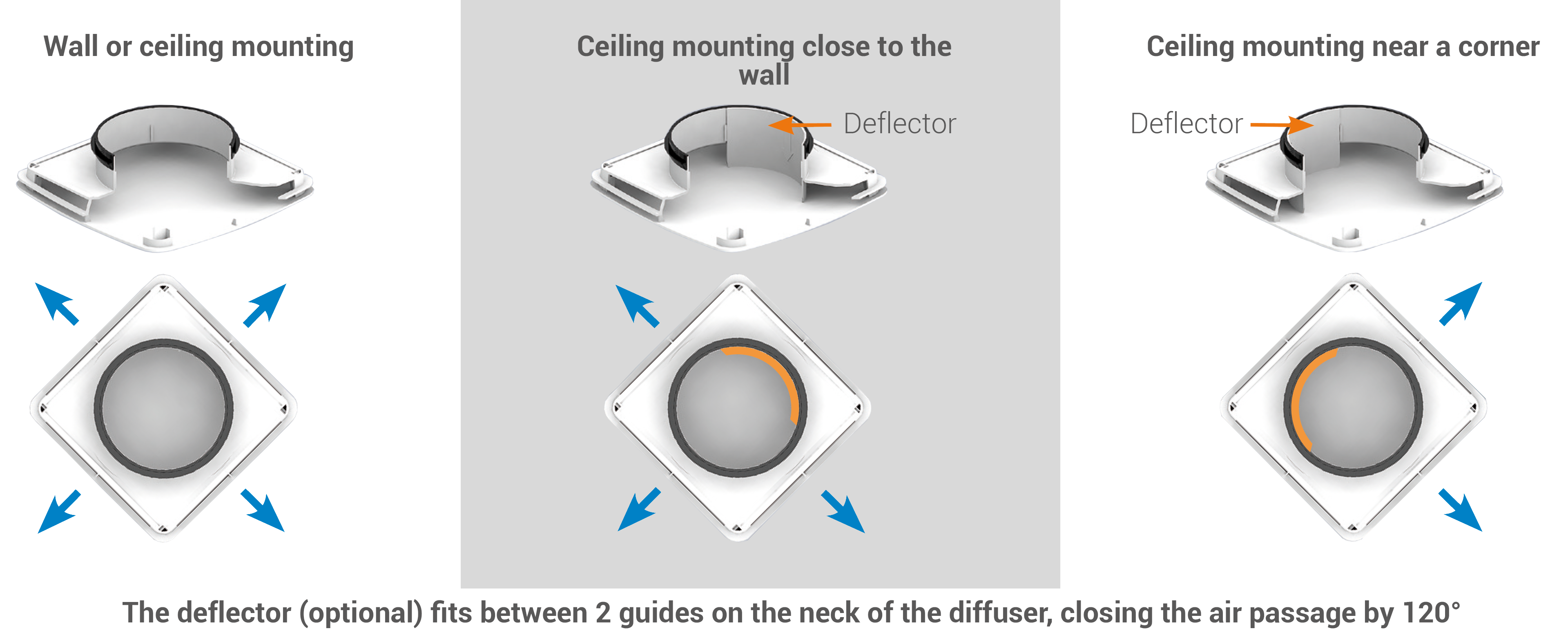

Installation and Configurations
Installation on Supply
Installation in Air Intake
EVREA-M Sleeve for False Ceiling Installation
| Models | Ø D1 (mm) | Ø D2 (mm) | H (mm) |
| EVREA-M - 80 | 76 | 99 | 100 |
| EVREA-M - 100 | 96 | 134 | 100 |
| EVREA-M - 125 | 118 | 154 | 100 |
| EVREA-M - 160 | 148 | 195 | 100 |
| EVREA-M - 200 | 190 | 234 | 100 |
Technical Characteristics
Pa: pressure drops in pascals.
dB(A): noise index.
Vk(m/s): air speed.
| Models | Airflow | Supply Air Without Deflectors | Supply Air with Deflectors | Return Air | ||||||
| m3/h | Pa | Vk(m/s) | dB(A) | Pa | Vk(m/s) | dB(A) | Pa | Vk(m/s) | dB(A) | |
| EVREA-80 | 15 | 2 | 2,1 | 22 | 5 | 3,3 | 22 | 3 | 2,4 | 23 |
| 30 | 8 | 4,2 | 23 | 19 | 6,5 | 28 | 9 | 4,5 | 23 | |
| 45 | 18 | 6,3 | 29 | 43 | 9,8 | 38 | 18 | 4,3 | 25 | |
| 60 | 32 | 8,4 | 37 | - | - | - | 33 | 8,6 | 32 | |
| EVREA-100 | 30 | 2 | 1,8 | 23 | 4 | 3,0 | 23 | 3 | 2,6 | 23 |
| 45 | 4 | 2,8 | 23 | 9 | 4,5 | 24 | 6 | 3,7 | 23 | |
| 60 | 7 | 4,0 | 23 | 16 | 6,0 | 28 | 11 | 5,0 | 23 | |
| 75 | 11 | 5,0 | 26 | 24 | 7,3 | 34 | 16 | 6,0 | 25 | |
| 90 | 15 | 5,8 | 29 | 36 | 9,0 | 40 | 23 | 7,2 | 28 | |
| EVREA-125 | 45 | 3 | 2,6 | 22 | 6 | 3,7 | 23 | 4 | 2,8 | 22 |
| 60 | 5 | 3,3 | 22 | 11 | 5,2 | 26 | 6 | 3,7 | 23 | |
| 75 | 8 | 4,2 | 23 | 19 | 6,5 | 31 | 9 | 4,5 | 23 | |
| 90 | 12 | 5,2 | 26 | 27 | 7,8 | 35 | 13 | 5,4 | 23 | |
| 120 | 21 | 6,8 | 33 | 47 | 10,2 | 42 | 22 | 7,0 | 31 | |
| 150 | 33 | 8,6 | 39 | 73 | 12,8 | 49 | 35 | 8,8 | 34 | |
| EVREA-160 | 120 | 11 | 5,0 | 25 | 24 | 7,3 | 33 | 9 | 4,5 | 23 |
| 150 | 17 | 6,2 | 29 | 37 | 9,1 | 39 | 14 | 5,6 | 24 | |
| 180 | 25 | 7,9 | 35 | 54 | 11,0 | 45 | 20 | 6,7 | 28 | |
| 210 | 34 | 8,7 | 40 | 72 | 12,7 | 49 | 27 | 7,8 | 34 | |
| 240 | 44 | 9,9 | 43 | 94 | 14,5 | 53 | 36 | 9,0 | 36 | |
| 270 | - | - | - | - | - | - | 45 | 10,0 | 38 | |
| EVREA-200 | 240 | 30 | 8,2 | 37 | 66 | 12,1 | 47 | 23 | 7,2 | 33 |
| 270 | 38 | 9,2 | 41 | 83 | 13,6 | 51 | 29 | 8,0 | 36 | |
| 300 | 46 | 10,1 | 44 | 102 | 15,1 | 54 | 35 | 8,8 | 37 | |
| 350 | 62 | 11,8 | 48 | 133 | 17,2 | 58 | 46 | 10,1 | 40 | |
| 400 | 80 | 13,4 | 52 | 169 | 19,4 | 61 | 58 | 11,4 | 43 | |
ERDR dimension
Models d1 d2 L 80 76 76 55 100 96 93 70 125 120 117 86 160 145 148 91 200 190 195 91
Price List
Models Description Eur EVREA-80 EVREA 80 – Diffuser without deflectors 14,92 EVREA-100 EVREA 100 – Diffuser without deflectors 21,53 EVREA-125 EVREA 125 – Diffuser without deflectors 22,39 EVREA-160 EVREA 160 – Diffuser without deflectors 50,23 EVREA-200 EVREA 200 – Diffuser without deflectors 76,06 EVREA-DF-80 Deflettore per EVREA-80 1,72 EVREA-DF-100 Deflettore per EVREA-100 2,01 EVREA-DF-125 Deflettore per EVREA-125 2,30 EVREA-DF-160 Deflettore per EVREA-160 3,16 EVREA-DF-200 Deflettore per EVREA-200 4,88 EVREA-M 80 Manicotto in plastica per EVREA-80 lunghezza 100mm 7,45 EVREA-M 100 Manicotto in plastica per EVREA-100 lunghezza 100mm 11,97 EVREA-M 125 Manicotto in plastica per EVREA-125 lunghezza 100mm 11,97 EVREA-M 160 Manicotto in plastica per EVREA-160 lunghezza 100mm 17,82 EVREA-M 200 Manicotto in plastica per EVREA-200 lunghezza 100mm 22,61
