EVSLC Ductable fan coil
Description
EVSLC is a recessed fan coil unit which, in combination with a heat pump, allows for the optimal heating and cooling of both residential environments and those of the service sector.
Characteristics
EVSLC has a compact size, thanks to which it can be easily installed concealed in ceilings and walls. The structure consists of a self-supporting frame made of galvanised sheet metal with internal thermal and acoustic insulation, a water coil adequately sized for satisfactory heat exchange, and a low pressure drop and easily removable filtering section. Each unit is also equipped with an EC centrifugal fan with low energy consumption, with forward blades for reduced noise. In addition to this, the motors are of the constant flow type, and this allows for self-adaptation to the plant made. Four sizes are available with different heating and cooling capacities to allow for the most suitable one to be chosen according to plant requirements.
Control electronics
On-board electrical panel with microprocessor and dedicated control. The unit is sold with a remote panel that allows the user to control speed, temperature and operating modes. It is possible to choose between simple remote control and control with a Wi-Fi module which allows the operation of the fan coil unit to be managed locally and remotely using an App.
The displays available for this unit are:
- EVCNV2-N advanced remote control with built-in sensors, black.
- EVCNV2-B advanced remote control with built-in sensors, white.
- EVCNW2-N advanced remote control with built-in sensors and Wi-Fi, black.
- EVCNW2-B advanced remote control with built-in sensors and Wi-Fi, white.
Technical Specifications
- (1) Coil water temperature 7/12°C, room air temperature 27°C d.b. and 19°C w.b. (EU Regulation 2016/2281).
- (2) Coil water temperature 45/40°C, room air temperature 20°C (EU Regulation 2016/2281).
- (3) Data referring to the UNI EN 3741 and UNI EN 3744 Standards.
EVSLC 40 60 80 100 120 Nominal Airflow at Maximum Speed m3/h 390 560 730 905 1150 Portata Aria Nominale Med Velocità m3/h 260 350 440 550 750 Portata Aria Nominale Min Velocità m3/h 120 180 240 260 280 Available Pressure Pa 90 130 110 140 140 Rated Power Consumption of Recirculation Fan kW 0,085 0,15 0,17 0,17 0,24 Heating / Cooling Performance 40 60 80 100 120 Total Cooling Capacity 1 kW 1,9 3,0 3,5 4,4 5,9 Sensible Cooling Capacity 1 kW 1,4 2,2 2,8 3,6 4,2 Water Flow Rate m3/h 0,33 0,52 0,60 0,76 1,0 Pressure Drop kPa 3,9 11 21 14 16 Total Cooling Capacity 2 kW 2,3 3,2 3,9 5,3 6,2 Water Flow Rate m3/h 0,39 0,55 0,67 0,91 1,1 Pressure Drop kPa 7,5 11 21 16 19 Acoustic Data 3 40 60 80 100 120 Sound Power Lw Transmitted Through the Structure dB(A) 55 59 60 62 63 Sound Power Lw Radiated into the Duct dB(A) 59 64 68 69 71 Average Sound Pressure Level Lp at 1 m dB(A) 43 46 48 49 50 Average Sound Pressure Level Lp at 3 m dB(A) 37 38 40 41 42 Electrical data 40 60 80 100 120 Power Supply V / ph / Hz 230 / 1 / 50 Maximum Power Consumption kW 0,09 0,19 0,19 0,28 0,28 Maximum Current Draw A 0,7 1,3 1,3 1,9 1,9
Dimensions
All dimensions are expressed in mm
Models A B C D E F G Weight kg Air Supply Return Air H I J K EVSLC 40 590 550 240 695 570 637 90 32 460 150 430 160 EVSLC 60 790 750 240 695 770 637 90 42 660 150 630 160 EVSLC 80 990 950 240 695 970 637 90 46 860 150 830 160 EVSLC 100 1190 1150 240 695 1170 637 90 54 1060 150 1030 160 EVSLC 120 1480 1440 240 695 1460 637 90 65 1320 150 1320 160
Standard configuration, water coil connections on the LEFT with respect to the air flow.
On request, water coil connections on the RIGHT with respect to the air flow.
Models Water Coil Connection Size Condensate Drain Size 1 - Input 2 - Out 3 – Horizontal Version (mm) 4 – Vertical Version (mm) EVSLC 40 3/4" F 3/4" F 18 20 EVSLC 60 3/4" F 3/4" F 18 20 EVSLC 80 3/4" F 3/4" F 18 20 EVSLC 100 3/4" F 3/4" F 18 20 EVSLC 120 3/4" F 3/4" F 18 20

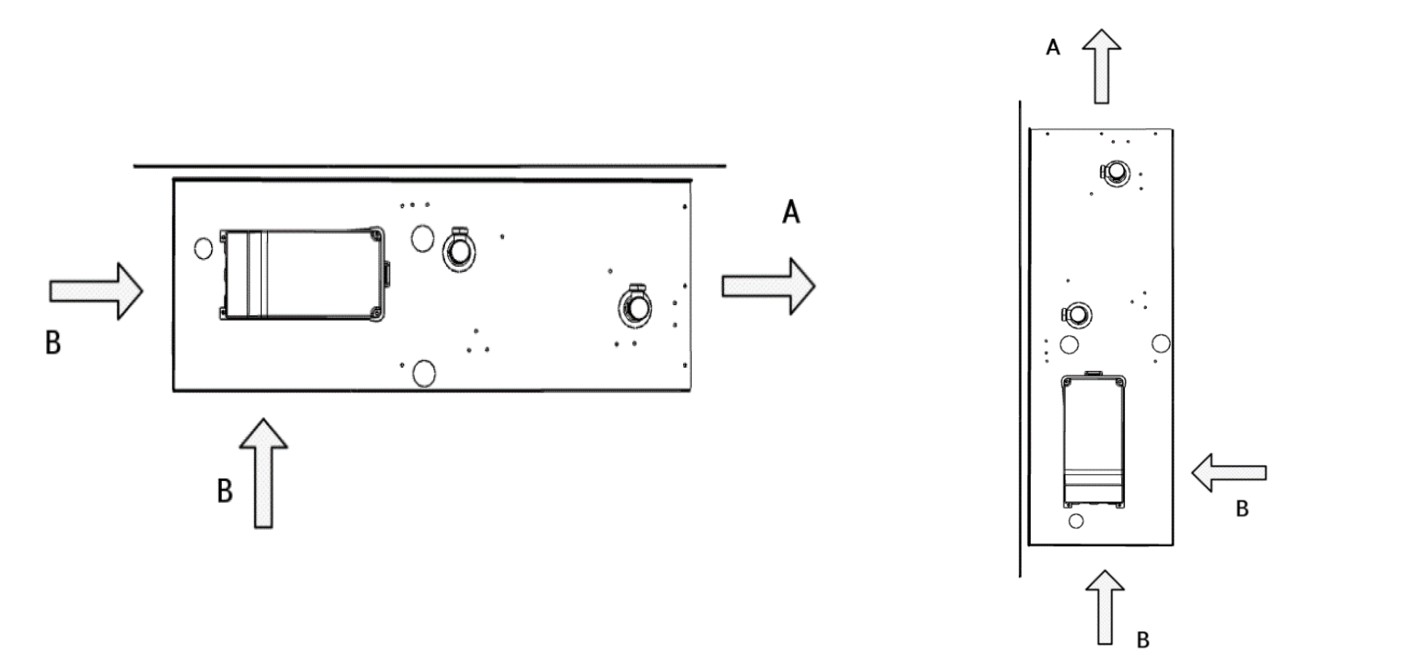

Horizontal Installation
A: air supply
B: air exhaust
Vertical Installation
A: air supply
B: air exhaust
Exhaust Air Configuration
In EVSLC units, it is possible to change the air exhaust outlet from rear to lateral.
Accessories for Air Supply and Exhaust
Models Description EVSLC 40 Supply Plate with 2 Circular Outlets for Flexible Duct ø 160 mm Return Plenum with 2 Circular Inlets for Flexible Duct ø 160 mm EVSLC 60 Supply Plate with 3 Circular Outlets for Flexible Duct ø 160 mm Return Plenum with 3 Circular Inlets for Flexible Duct ø 160 mm EVSLC 80 Supply Plate with 4 Circular Outlets for Flexible Duct ø 160 mm Return Plenum with 4 Circular Inlets for Flexible Duct ø 160 mm EVSLC 100 Supply Plate with 6 Circular Outlets for Flexible Duct ø 160 mm Return Plenum with 6 Circular Inlets for Flexible Duct ø 160 mm EVSLC 120 Supply Plate with 7 Circular Outlets for Flexible Duct ø 160 mm Return Plenum with 7 Circular Inlets for Flexible Duct ø 160 mm
Price List
Models Eur EVCNV2-N - Black EVCNV2 -B - White EVCNW2-N - Wi-Fi - Black EVCNW2-B - Wi-Fi - White Supply Plate Return Plenum Replacement Filter 2-Way On/Off Valve 3-Way On/Off Valve EVSLC 40 1.352,85 230,88 230,88 285,05 285,05 62,92 188,75 42,84 321,00 380,78 EVSLC 60 1.488,77 230,88 230,88 285,05 285,05 84,34 199,46 53,55 321,00 380,78 EVSLC 80 1.794,91 230,88 230,88 285,05 285,05 105,76 251,67 73,63 321,00 380,78 EVSLC 100 1.924,48 230,88 230,88 285,05 285,05 136,55 273,09 95,05 321,00 380,78 EVSLC 120 2.446,57 230,88 230,88 285,05 285,05 157,96 301,20 100,40 321,00 380,78
