EVHRN-T Heat exchanger cross flow up to 3000m³/h and 80% efficiency
Description
Non-residential dual flow ventilation unit with medium efficiency for heat recovery (η> 73%). Ideal solution to get the highest energy certification of buildings in the tertiary, industrial and collective residential sector (centralized condominium systems).
All sizes of the evhrn-t recovery unit can be installed both horizontally and vertical as inside they all have a double condensate collection tank.
The installation can be done both indoors and outdoors (with protective roof), with an ambient temperature between -15°C and + 50°C.
Technical Features
Structure composed of self-supporting galvanized sheet metal frame with 10+15mm thick polyethylene adhesive insulation. Condensate collection tank in galvanized sheet metal, counter-current aluminum static heat exchanger with 80% efficiency, automatic by-pass, automatic defrosting of the exchanger (via anti-freeze strategy), backward curved radial fans with EC motors with electronic speed control, low consumption (Erp 2018), single-phase (up to size 200) and three-phase (size 250, 300) which guarantee high static pressure values available to the ducting. Circular inlets for connection to the air ducts. Low pressure drop filters (EN 779) class ePM 10 50% (M5) for extract air and ePM 2.5 65% (F7) for supply air. Side access doors and internal technical spaces for easy filter inspection / maintenance. Horizontal or vertical installation.
Use
Offices, shops, bars and restaurants, collective residential buildings. Ideal for air exchange with efficiencies up to 80%.
IN2 Version - Elettronic Control Device
Version IN2: equipped with electronic control board for 3-step fan speed management, antifreeze function and automatic bypass. Remote touch wall-mounted control panel for 503 box installation. On-board temperature sensors and possibility to manage an auxiliary hot water coil. Humidity / air quality sensors integrated into the remote display.
EVCNV2-N: advanced remote controller with integrated humidity and VOC/CO₂ sensors, black finish.
EVCNV2-B: advanced remote controller with integrated humidity and VOC/CO₂ sensors, white finish.
EVCNW2-N: advanced remote controller with integrated humidity and VOC/CO₂ sensors, with integrated Wi-Fi, black finish.
EVCNW2-B: advanced remote controller with integrated humidity and VOC/CO₂ sensors, with integrated Wi-Fi, white finish.
Adjustment configuration IN2
The machine will be delivered with H5-A or V1-A configuration. A B configurations selectable by electronics.
Elettronica di Comando - Version S
Version S: the unit is supplied without electronic control board and fan speed is controlled via 0–10V input signal.
The EVTDV remote terminal with LCD display is available as an optional accessory for fan speed and bypass control, including several advanced functions such as:
- independent control of each fan speed, allowing operation in positive or negative pressure mode;
- timed dirty filter alarm;
- possibility to connect the EVSQV air quality sensor, sold separately.
Accessories
- EVBE model ON / OFF duct electric heater.
- EVBER model duct electric heater with integrated regulation.
- EVBAC model heating / post heating coil.
- EVBAF model cooling / post-cooling coil.

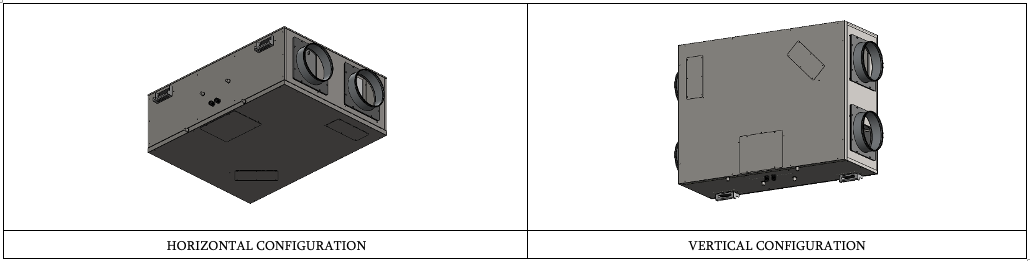

Installation

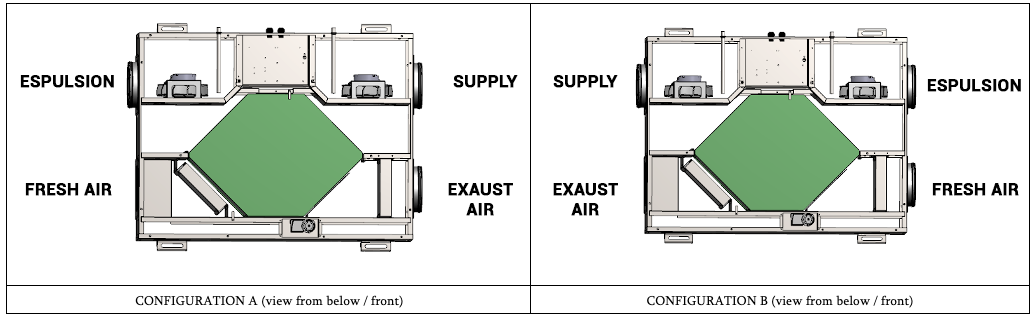

Configurations
Dimensions
EVHRN-T 70 100 150 200 250 300 A mm 1210 1210 1210 1210 1410 1410 B mm 990 990 990 990 1110 1110 C mm 320 420 520 620 720 720 Air Connection Diameter Ø mm 200 250 315 355 355 400 Water Connection Diameter Ø mm 18 18 18 18 18 18 Weight kg 60,5 69 85 95 133 133 Weight Including Packaging kg 68 77,5 93 102 140 140
Technical Features
Models 70 100 150 200 250 300 Fan Type rushless fans with electronically commutated motor (EC motor) and modulating control Nr. Funs Nr 2 Maximum Air flow m³/h 700 1000 1500 2000 2500 3000 Available External Static Pressure Pa 120 240 200 140 220 140 Sound Power Level Lw (EN 3747) Radiated from the Casing dB(A) 61 62 64 68 69 72 Sound Power Level Lw (EN 3747) Radiated from the Duct dB(A) 71 74 76 79 81 83 Recovery Efficiency Piastre in alluminio controcorrente Heat Recovery Efficiency % 75/80% Dati Riferiti alle seguenti condizioni (UNI EN 13141-7) :
-portata aria nominale
-aria esterna 5°C con 72% ur / aria espulsa 25°C con 28% urFilter Type Rinnovo ePM 2.5 - 65 % (F7) / Estrazione ePM 10 - 50 % (M5) Supply Voltage V 230V / 1 / 50 Hz 400V / 3 / 50Hz Maximum Power Consumption kw 0,29 0,34 0,62 0,78 1,50 1,90 Maximum Current Draw A 1,5 1,5 2,2 4,1 3,2 3,5 Protection Rating IP 20 IP 20 IP 20 IP 20 IP 20 IP 20 Dati riferiti ai valori nominali dichiarati dal costrutture dei ventilatori
Le unità devono essere collegate ai canali di distribuzione
Le prestazioni sono state verificate con filtri a bassa perdita di carico in dotazione "puliti".
Price List of Recuperators and Accessories - Version S
Models EVHRN-T EVTDV SI-EVTDV - Flush-Mounted Box for EVTDV Unit EVSQV EVFHRNT – Pair Filter Kit Eur Eur Eur Eur Eur 70 2.668,00 188,78 17,78 262,66 190,54 100 3.040,00 188,78 17,78 262,66 190,54 150 3.884,00 188,78 17,78 262,66 190,54 200 5.096,00 188,78 17,78 262,66 215,95 250 6.860,00 188,78 17,78 262,66 266,76 300 7.644,00 188,78 17,78 262,66 266,76
Price List of Recuperators and Accessories - Version IN2
Models EVHRN-T EVCNV2-N - Black EVCNV2-B - White EVCNW2-N - Wi-Fi - Black EVCNW2-B - Wi-Fi - White EVFHRNT – Pair Filter Kit Eur Eur Eur Eur Eur Eur 70 3.320,00 230,88 230,88 285,05 285,05 190,54 100 3.700,00 230,88 230,88 285,05 285,05 190,54 150 4.560,00 230,88 230,88 285,05 285,05 190,54 200 5.800,00 230,88 230,88 285,05 285,05 215,95 250 7.600,00 230,88 230,88 285,05 285,05 266,76 300 8.400,00 230,88 230,88 285,05 285,05 266,76
Roof Protection
Feet kit (4 pieces)
