EVHRC 08 Highly efficient decentralized heat recovery unit for flow rates up to 80 m³/h
Description
Decentralised double-flow ventilation unit with high efficiency heat recovery. The unit is particularly suitable for residential units with the possibility of installing as many units as necessary to cover the air exchange requirements of the home. Each unit covers approximately 50-60m² of surface area. Constant flow rate selectable in 3 levels.
Characteristics
Self-supporting sheet metal frame with polyethylene insulated internal structure. RAL9003 painted external shells.
High efficiency counter-current cross-flow polypropylene heat exchanger. Low freezing temperatures. Very high heat exchange efficiency. Available in sensible or enthalpy operation.
Forward-curved Brushless centrifugal fans with electronic motor and modulating control; very high efficiency and low noise levels.
ePM1 80% filters with low pressure drop for both supply and exhaust, easily removable.
Free cooling made with automatic management by means of temperature probes.
INTEGRATED IN2 version control electronics
Electronic board for 3-step speed management, antifreeze function and automatic bypass.
Wall-mounted remote touch panel on 503 box.
Temperature sensors on board the machine.
Humidity / air quality regulators built into the remote display.
EVCNW2-B: advanced remote control with built-in humidity and VOC/CO₂ sensors and built-in Wi-Fi, white.
Technical Specifications
Size EVHRC 08 Fan Type Forward-Curved Centrifugal Fans – Direct-Coupled Brushless Electronic Motor – 0–10 V Signal Nr. Funs Nr. 2 Airflow m³/h 80 Available Pressure Pa 15 Heat Exchanger (Data according to UNI EN 13141-7: Indoor Temp. 20°C – Indoor Humidity 28% – Outdoor Temp. 7°C – Outdoor Humidity 72%) Recovery efficiency Ounterflow Plates – Polypropylene Material Number of Heat Exchangers Nr. 1 Sensible Recovery Efficiency EN 13141-7 % 90.2% (High-Efficiency Counterflow) Sensible Recovery Efficiency EN 13141-7 / Latent % 80.5% / 61% (Counterflow with Enthalpic Membrane) Filters Tipo di Filters Filters Pleated Filtration class ePM1 80% Acoustic data (Data according to UNI EN 3741 and UNI EN 3744) Sound Power Lw Transmitted Through the Structure dB(A) 48 Sound Pressure at 1 m dB(A) 36,6 Sound Pressure at 3 m dB(A) 29,5 Electrical data Power Supply V / ph / Hz 230 / 1 / 50 Power Input W 35 Protection Rating IP X2

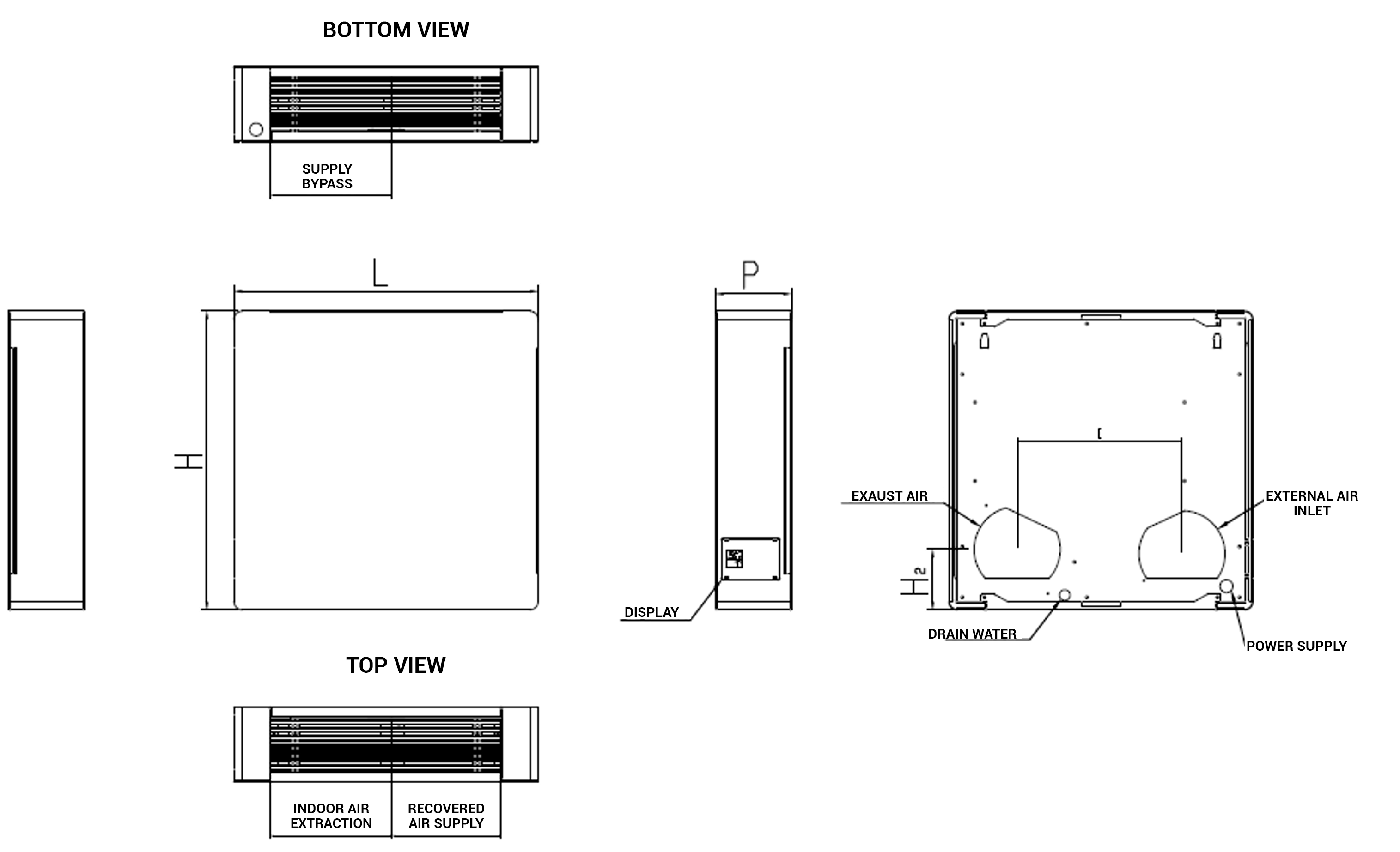

Dimensions
Dimensions EVHRC 08 Width L mm 565 Depht mm 148 Height H mm 555 External Hole Diameter mm 2 x 160 Hole Center Distance I mm 306 Distance H2 mm 112 Condensate Drain mm 15 Weight Kg Sensible Enthalpic 20 21
Installation
The unit must be installed close to the wall with the ducts facing outwards.
Silencer kit (Accessory)
Silencers to be inserted into the inlet and outlet ducts for noise attenuation.
IN2 Version Price List

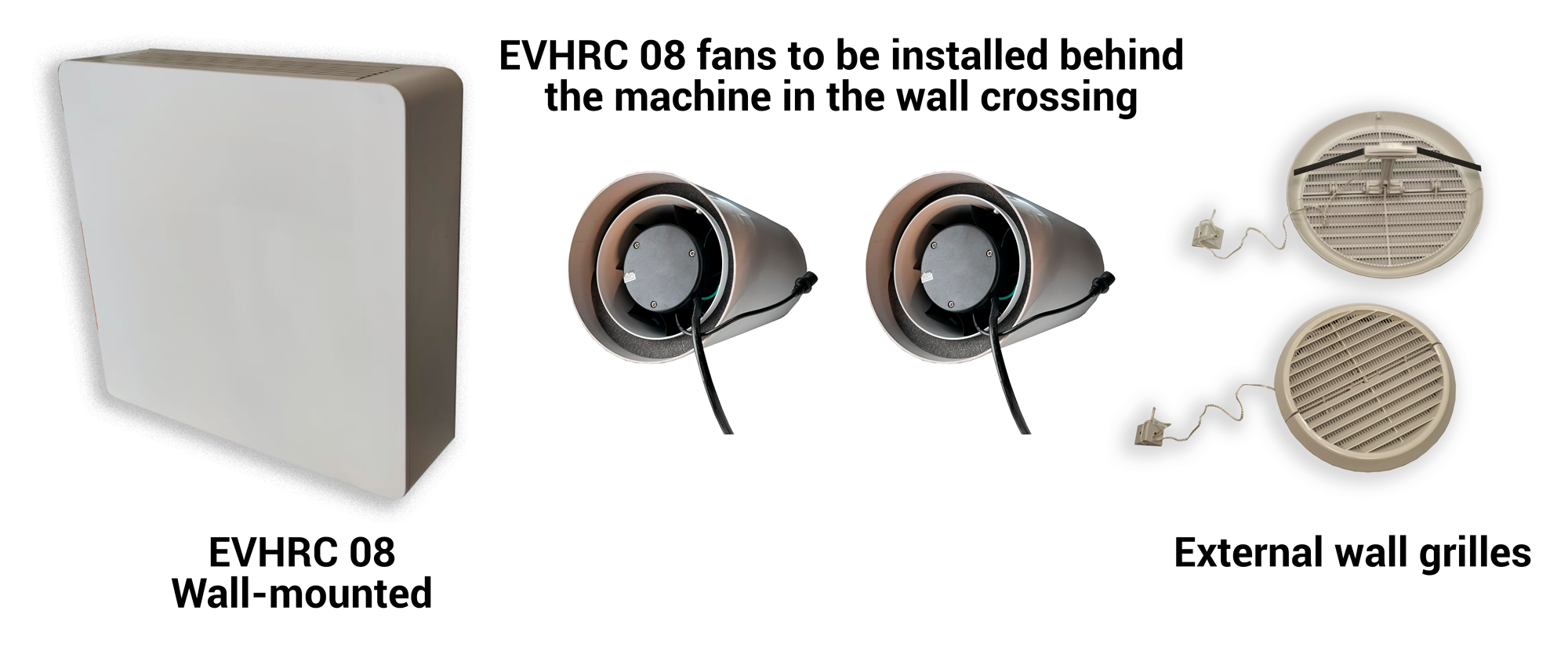

Scope of Supply
