EVHRP-LARGE Heat recovery unit, with an efficiency more as 90% and flow rates from 630 to 780 m³/h
Description
Ventilation unit with very high efficiency heat recovery, compact size for ceiling, wall or floor installation. The unit is particularly suitable for individual family units, flats and in all cases where the nominal air exchange rates are less than 780 m³/h. Tested and classified according to the European Ecodesign regulation ref. 1253/2014 and 1254/2014.
Characteristics
Galvanised sheet metal self-supporting frame painted RAL9003 on the outside, shaped EPS internal structure with density 40kg/m³, compact size and reduced height for easy installation with lower panel easily accessible for maintenance and inspections.
Very high efficiency polypropylene static heat exchanger with counter-current flows.
Backward-curved radial centrifugal fans with EC motors with electronic speed control and low energy consumption.
Filters class ePM1 70-80% with low pressure drop.
Motorised bypass with motor inserted in the electrical panel for easy maintenance.
Use
Houses, surgeries and shops for air exchange with up to 90% reduction in energy waste.
Control electronics
With electronic board for 3-step speed management, antifreeze function and automatic bypass.
Wall-mounted remote touch panel on 503 box.
On-board temperature sensors and possibility of managing auxiliary hot water coil.
Humidity / air quality regulators built into the remote display.
EVCNV2-N: advanced remote control with built-in humidity and VOC/CO₂ sensors, black.
EVCNV2-B: advanced remote control with built-in humidity and VOC/CO₂ sensors, white.
EVCNW2-N: advanced remote control with built-in humidity and VOC/CO₂ sensors and built-in Wi-Fi, black.
EVCNW2-B: advanced remote control with built-in humidity and VOC/CO₂ sensors and built-in Wi-Fi, white.
On request
Version with enthalpy exchange pack (only for size 600).
Version for recessed installation (only for size 700).
Technical Specifications
Size EVHRP-LARGE 600 H 700 V Fan Type Forward-Curved Centrifugal Fan – Directly Coupled Brushless Electronic Motor Nr. Funs Nr. 2 Airflow m³/h 630 780 Available Pressure Pa 100 100 Heat Exchanger (Data Referenced to Standard UNI EN 13141-7: Indoor Temp. 20°C – Indoor Humidity 28% – Outdoor Temp. 7°C – Outdoor Humidity 72%) Recovery efficiency Ounterflow Plates – Polypropylene Material Number of Heat Exchangers Nr. 1 Heat recovery efficiency % 86,1 85,9 Filters Tipo di Filters Filters Planes Filtration class ePM1 80% Acoustic data (Data according to UNI EN 3741 and UNI EN 3744) Sound Power Lw Transmitted Through the Structure dB(A) 65 64 Sound Power Lw Radiated into the Duct dB(A) 72 70 Average Sound Pressure Level Lp at 1 m dB(A) 50,5 49,3 Average Sound Pressure Level Lp at 3 m dB(A) 43,1 42,5 Electrical data Power Supply V / ph / Hz 230 / 1 / 50 Current Draw A 2,2 2,8 Power Input W 390 440 Protection Rating IP X0 X0 Dimensions Width mm 1478 Exposed Version Recessed Version 642 595 Depht mm 955 603 595 Height mm 283 1483 1400 Connection Diameter mm 200 200 Condensate Drain mm 20 20

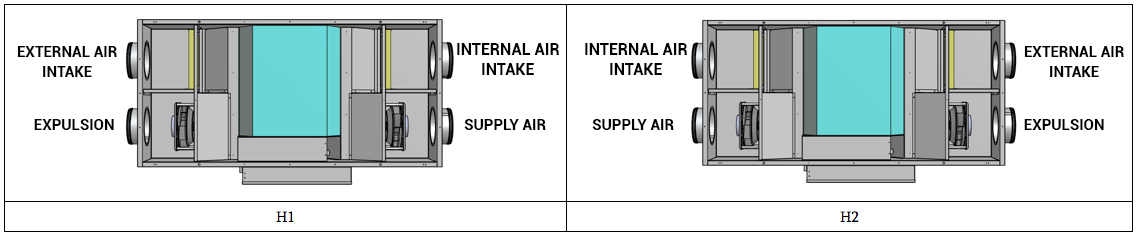

Horizontal Version Configurations (size 600H)
The units are shown from above.
Standard H1 configuration.

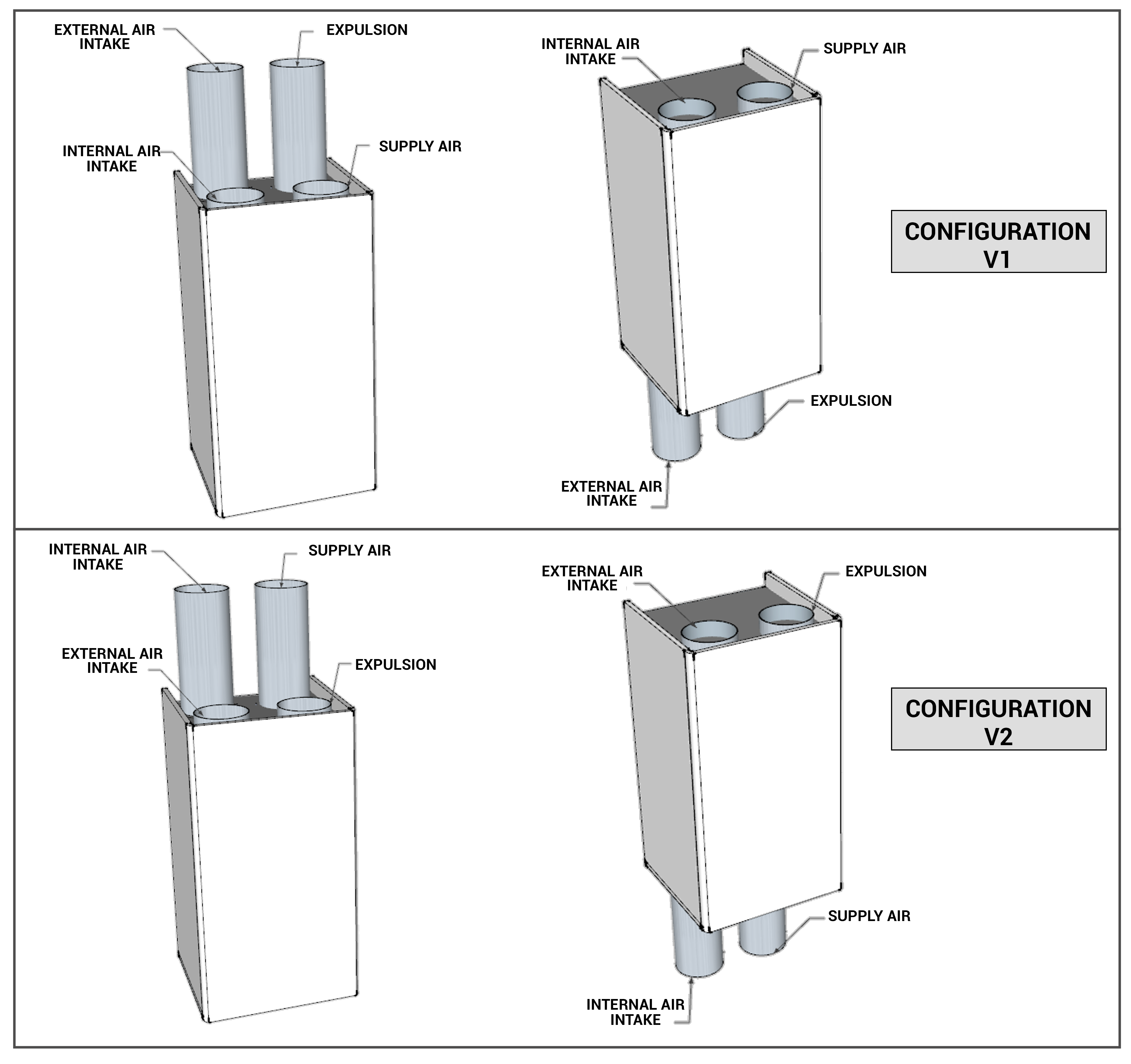

Vertical Version Configurations (size 700V)
The units are shown from above.
Standard V1 configuration.
Installation of Visible EVHRP LARGE
Installation of Recessed EVHRP LARGE
