EVHRP-PS High efficiency heat recovery unit for flow rates from 150 up to 500 m³/h
Description
Ventilation unit with very high efficiency heat recovery, compact size for ceiling, wall or floor installation. The unit is particularly suitable for individual family units, flats and in all cases where the nominal air exchange rates are less than 500 m³/h. Tested and classified according to the European Ecodesign regulation ref. 1253/2014 and 1254/2014.
Characteristics
Galvanised sheet metal self-supporting frame painted RAL9003 on the outside, shaped EPS internal structure with density 40kg/m³, compact size and reduced height for easy installation with lower panel easily accessible for maintenance and inspections.
Very high efficiency polypropylene static heat exchanger with counter-current flows.
Backward-curved radial centrifugal fans with EC motors with electronic speed control and low energy consumption.
Filters class ePM1 70-80% with low pressure drop.
Motorised bypass with motor inserted in the electrical panel for easy maintenance.
Control electronics
IN2 Version: with electronic control board for 3-speed fan management, anti-freeze operation, and automatic bypass.
Wall-mounted touch remote panel on 503-type box.
On-board temperature sensors with the possibility to manage an auxiliary hot water coil.
Humidity / air quality sensors integrated in the remote display.
EVCNV2-N: advanced remote control with integrated humidity and VOC/CO₂ sensors, black color.
EVCNV2-B: advanced remote control with integrated humidity and VOC/CO₂ sensors, white color.
EVCNW2-N: advanced remote control with integrated humidity and VOC/CO₂ sensors, with built-in Wi-Fi, black color.
EVCNW2-B: advanced remote control with integrated humidity and VOC/CO₂ sensors, with built-in Wi-Fi, white color.
Configurations
Configurations A or B selectable by electronics.
Use
Houses, surgeries and shops for air exchange with up to 90% reduction in energy waste.
On request
Version with enthalpy exchange pack.
Technical Specifications
Size EVHRP-PS 200 H 200 V 300 H 300 V 400 H 400 V 500 H 500 V Fan Type Backward-Curved Centrifugal Fans – Directly Coupled Electronic Motor – 0–10 V Signal Nr. Funs Nr. 2 Airflow m³/h 155 160 300 300 340 380 455 450 Available Pressure Pa 100 100 100 100 100 100 100 100 Heat Exchanger (Data according to UNI EN 13141-7: Indoor Temp. 20°C – Indoor Humidity 28% – Outdoor Temp. 7°C – Outdoor Humidity 72%) Recovery efficiency Ounterflow Plates – Polypropylene Material Number of Heat Exchangers Nr. 1 Heat recovery efficiency % 86,0 86,0 85,0 86,0 89,0 87,0 88,0 86,0 Filters Tipo di Filters Filters Planes Filtration class ePM1 70-80% Acoustic data (Data according to UNI EN 3741 and UNI EN 3744) Sound Pressure at 3 m dB(A) 35,0 34,0 37,0 36,0 39,0 38,0 43,0 40,0 Electrical data Power Supply V / ph / Hz 230 / 1 / 50 Current Draw A 0,7 0,7 1,6 1,6 1,6 1,6 2,5 2,5 Power Input W 110 110 180 180 350 350 420 420 Protection Rating IP X2 Dimensions Width mm 487 630 590 787 709 787 709 787 Lenght mm 793 - 789 - 1147 - 1147 - Depht mm - 475 - 619 - 749 - 749 Height mm 258 570 304 670 289 670 289 670 Weight kg 26,0 32,0 31,0 38,0 39,0 42,0 40,0 43,0 Connection Diameter mm 160 160 160 160 160 160 160 160 Condensate Drain mm 12 20 12 20 12 20 12 20 Model classification according to European Regulation 1253/2014 and 1254/2014 With EVCNV2 – EVCNW2 Remote Control (RH / VOC – CO₂) - A A A A A A A A
Configurations

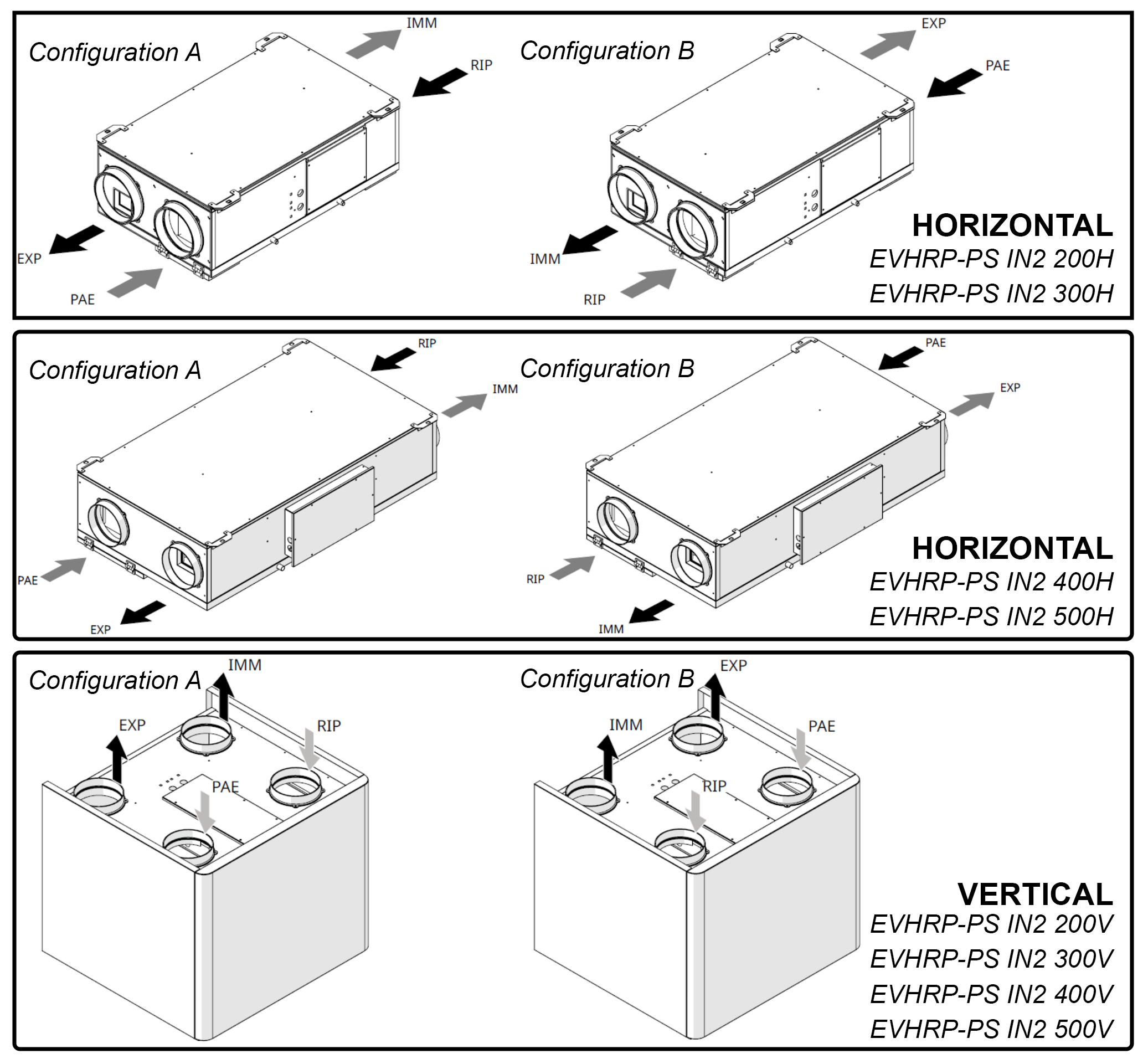

Units are shown top view.
Standard configuration A.
Heat Recovery Units Price List
Standard versions A
Accessory Price List – IN2 Version
Models EVCNV2-N - Black EVCNV2 -B - White EVCNW2-N - Wi-Fi - Black EVCNW2-B - Wi-Fi - White Floor-Mount Feet (for Vertical Configuration Only) Eur Eur Eur Eur Eur 200 230,88 230,88 285,05 285,05 110,81 300 230,88 230,88 285,05 285,05 110,81 400 230,88 230,88 285,05 285,05 110,81 500 230,88 230,88 285,05 285,05 110,81
Spare Filters List
