EVCCT " 400°C two hours " fan box
Description
Fan box with double transmission inlet for industrial use .
Features
Compounds from the plenum or demountable body in galvanized steel .
Use
Used for extraction systems where there are problems of fumes and temperatures up to 200 °C with continuous service or 400 °C for two hours. Capacity from 1.500 to 34.000 m³ / h and static pressures from 100 to 1.800 Pa .
Upon request
Rain roof.

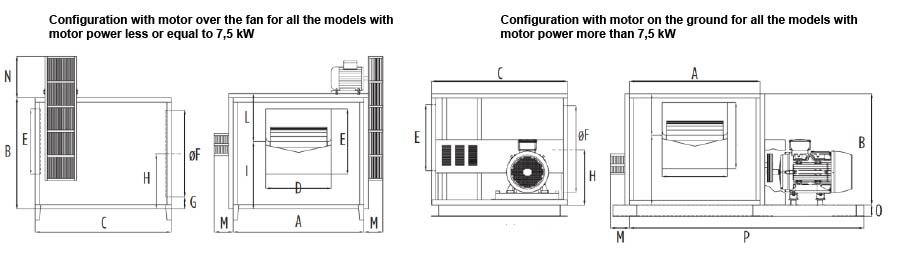

Dimensions
all measures are in mm
Model A B C D E øF G H I L M N O P Weight mm mm mm mm mm mm mm mm mm mm mm mm (min/max) mm mm kg EVCCT 250 600 600 650 300 300 405 100 300 370 230 158 270/350 100 1100 60 EVCCT 300 700 680 730 350 350 500 100 340 425 255 173 340/410 100 1200 85 EVCCT 350 800 750 860 400 400 610 100 375 470 280 173 340/410 100 1580 130 EVCCT 400 900 840 1030 450 450 650 100 420 535 305 173 360/420 100 1680 180 EVCCT 450 1000 960 1200 500 500 750 100 480 630 330 173 350/420 120 1850 230 EVCCT 500 1200 1020 1250 600 600 800 100 510 640 380 173 380/420 120 2150 280
Operating Data
Pa : pressure drop in Pascal
Model Potenza Max Motore Speed Sound Pressure Level Static Pressure kW rpm dB(A) 100 Pa 200 Pa 300 Pa 400 Pa 600 Pa 800 Pa 1000 Pa 1200 Pa 1400 Pa 1600 Pa 1800 Pa Airflow m3/h EVCCT 250 A 2,2 1800 66 5600 5300 3900 B 1,5 1600 64 4800 4300 700 C 1,1 1400 61 4300 3800 1100 D 0,75 1200 57 3400 1000 E 0,37 1000 53 3100 1200 EVCCT 300 A 5,50 1800 72 9800 9000 7400 2300 B 4,00 1600 69 8900 8500 7200 2000 C 3,00 1400 67 7500 6900 1900 D 2,20 1200 63 6600 5800 3100 E 1,10 1000 59 5500 4800 1700 EVCCT 350 A 11,00 1600 74 13500 12800 11400 4900 B 5,50 1400 71 11700 10100 3400 C 4,00 1200 68 10000 9100 2900 D 2,20 1000 64 8400 7200 3000 E 1,10 800 59 7000 5700 EVCCT 400 A 11,00 1400 74 18300 17200 15200 7000 2000 B 7,50 1200 72 15600 13100 3500 C 4,00 1000 68 12500 11100 2000 D 2,20 800 63 9500 6500 2000 EVCCT 450 A 22,00 1400 74 25500 24000 21500 15000 5500 B 15,00 1200 72 22000 20500 17000 6000 C 7,50 1000 68 18000 17000 12500 2500 D 4,00 800 63 15000 13000 9000 E 1,50 600 60 11000 9000 EVCCT 500 A 30,00 1400 82 34000 33000 30000 26000 13000 6000 B 22,00 1200 78 29000 27000 23000 9000 C 15,00 1000 74 25000 22000 12000 D 7,50 800 70 19000 17000 5000 E 2,00 600 64 14000 7000
Price List
Model EVCCT EVCCT 4/6 P A B C D E A B C D E € € EVCCT 250 4.588,12 4.328,06 4.202,59 4.080,74 3.889,80 5.151,85 4.819,06 4.664,49 4.562,66 4.357,16 EVCCT 300 5.859,26 5.433,72 5.095,48 4.906,36 4.537,20 6.612,12 6.342,98 5.668,31 5.586,47 5.022,73 EVCCT 350 10.434,63 6.499,37 6.012,01 5.502,83 5.133,67 11.918,55 7.381,35 6.946,72 6.073,84 5.741,05 EVCCT 400 11.543,93 7.514,10 6.392,08 5.895,62 13.046,02 10.329,17 7.304,97 6.510,29 EVCCT 450 14.835,44 12.944,18 9.821,79 7.725,05 6.950,36 17.275,89 15.173,68 13.046,02 8.637,94 7.432,27 EVCCT 500 19.445,37 15.711,97 9.821,79 11.580,30 8.463,36 26.401,19 18.532,48 16.250,24 11.380,26 9.074,38
