EVTO Roof fan with horizontal jet
Description
Centrifugal roof extractors with backward curved blades, in galvanized sheet and plastic cap resistant to atmospheric agents.
Characteristics
material :
- Base , network and steel impeller galvanized;
- Cap in plastic material.
Installation : Roof.
use
Extracting stale air from kitchens, toilets, sheds with maximum temperature of 80 ° C in continuous service . Flow rates from 300 to 18,000 m³/h. Static pressure up to 600 Pa .
Accessories
- ESGT - Damper gravity;
- ECMT - Counterbase to wall;
- Single-phase speed controllers;
- Inverter.
On demand
ATEX executions.

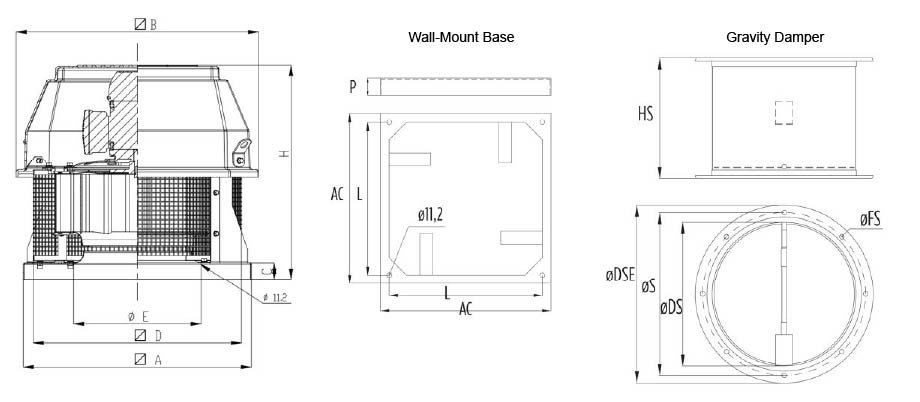

Dimensions Roof
all measurements are in mm
Models 〼A 〼B C 〼D ØE H kg 05 400 470 40 350 200 460 14 20 400 470 40 350 250 460 18 30 560 595 40 460 300 560 25 40 560 595 40 460 350 560 30 50 710 800 40 610 400 620 40 60 710 800 40 610 450 620 48 70 900 1000 40 800 500 790 57 80 900 1000 45 800 550 830 76 90 900 1000 45 800 600 870 96 100 900 1000 45 800 600 880 110
Dimensions Accessories
all measurements are in mm
ECMT - Wall-Mount Base ESGT - Gravity Damper Models AC L P ØDS ØS ØDSE ØFS HS 05 390 350 40 200 235 259 3x8M 150 20 390 350 40 250 283 309 3x8M 210 30 550 460 40 300 330 359 3x8M 210 40 550 460 40 350 381 409 4x8M 230 50 700 610 40 400 431 460 4x8M 250 60 700 610 40 450 485 510 5x8M 300 70 890 800 40 500 533 560 5x8M 300 80 890 800 45 550 585 620 6x8M 320 90 890 800 45 600 636 661 7x8M 320 100 890 800 45 600 636 661 7x8M 320
Operating Data
P4 : 4-pole motor
P6 : 6-pole motor
P8 : 8 pole motor
LP: Potenza Sonora [dB(A)]. Livello di pressione sonora alla distanza di 5 mt. con macchina appoggiata su un piano orizzontale in campo libero.
Models Speed (RPM) Potenza (kW) Flow Rate m3/h LP
dB (A)10 Pa 50 Pa 100 Pa 150 Pa 200 Pa 250 Pa 300 Pa 400 Pa 500 Pa 600 Pa 05 P4 1400 0.12 1150 950 800 600 52 05 P6 900 0.09 700 480 42 20 P4 1400 0.18 1800 1700 1500 1300 1000 750 58 20 P6 900 0.09 1200 900 570 49 30 P4 1400 0.25 3050 2800 2600 2400 2100 1800 1450 61 30 P6 900 0.18 1900 1700 1200 650 51 30 P8 700 0.12 1400 1100 49 40 P4 1400 0.37 4050 3800 3600 3400 3100 2800 2400 1600 62 40 P6 900 0.18 2600 2300 1600 1300 52 40 P8 700 0.12 1550 1180 50 50 P4 1400 0.75 5700 5500 5300 4800 4600 4300 3800 3000 1900 67 50 P6 900 0.37 3700 3200 2800 2200 1400 57 50 P8 700 0.18 2320 1920 1400 55 60 P4 1400 1.5 8100 7800 7500 7400 7000 6500 6300 5400 4300 2800 70 60 P6 900 0.37 5200 4800 4300 3700 2800 1700 59 60 P8 700 0.18 3400 3000 2500 1700 54 70 P6 900 0.75 7000 6800 6100 5500 5000 4300 3600 63 70 P8 700 0.37 4700 4200 3400 2900 1700 56 80 P6 900 1.1 10800 10500 9700 9000 8300 7200 6800 4500 67 80 P8 700 0.55 8300 7000 6250 5300 4500 3250 59 90 P6 900 2.2 13750 13600 12500 12000 11500 10500 9000 7500 4500 72 90 P8 700 1.1 9500 8600 7800 6900 6000 4800 3300 63 100 P6 900 3 18500 17500 16800 16500 15500 14500 13750 12000 9000 6500 76 100 P8 700 2.2 12800 12500 11900 11200 9500 8700 7300 1500 66
Speed Control
Models Potenza (kW) Tipo regolatore Eur 05 P4 M 0,12 Non regolabile -- 05 P4 T 0,12 Inverter 715,70 05 P6 T 0,09 Inverter 715,70 20 P4 M 0,18 Non regolabile -- 20 P4 T 0,18 Inverter 715,70 20 P6 T 0,09 Inverter 715,70 20 P4/6 T 0,26 / 0,09 Two-Speed Selector 442,61 30 P4 M 0,25 Non regolabile -- 30 P4 T 0,25 Inverter 715,70 30 P6 T 0,18 Inverter 715,70 30 P8 T 0,12 Inverter 715,70 30 P4/6 T 0,26 / 0,09 Two-Speed Selector 442,61 40 P4 M 0,37 Non regolabile -- 40 P4 T 0,37 Inverter 715,70 40 P6 T 0,18 Inverter 715,70 40 P8 T 0,12 Inverter 715,70 40 P4/6 T 0,55 / 0,18 Two-Speed Selector 442,61 50 P4 M 0,75 Non regolabile -- 50 P4 T 0,75 Inverter 843,78 50 P6 T 0,37 Inverter 843,78 50 P8 T 0,18 Inverter 843,78 50 P4/6 T 0,75 / 0,25 Two-Speed Selector 442,61 50 P6/8 T 0,37 / 0,15 Two-Speed Selector 442,61 60 P4 T 1,5 Inverter 843,78 60 P6 T 0,37 Inverter 843,78 60 P8 T 0,18 Inverter 843,78 60 P4/6 T 1,1 / 0,37 Two-Speed Selector 442,61 60 P6/8 T 0,37 / 0,15 Two-Speed Selector 442,61 70 P4 T 2,2 Inverter 1.039,65 70 P6 T 0,75 Inverter 715,70 70 P8 T 0,37 Inverter 715,70 70 P4/6 T 2,2 / 0,75 Non disponibile -- 70 P6/8 T 1,25 / 0,60 Two-Speed Selector 442,61 80 P6 T 1,1 Inverter 843,78 80 P8 T 0,55 Inverter 843,78 80 P6/8 T 1,25 / 0,60 Two-Speed Selector 442,61 90 P6 T 2,2 Inverter 1.039,65 90 P8 T 1,1 Inverter 843,78 90 P6/8 T 1,84 / 0,81 Non disponibile -- 100 P6 T 3 Inverter 1.212,93 100 P8 T 2,2 Inverter 1.212,93 100 P6/8 T 3 / 1,5 Non disponibile --
Price list
Version 2015 ERP
| Models | EVTO - Three-Phase | EVTO - Single-Phase |
| Eur | Eur | |
| 05 P4 | 1.518,75 | 1.362,54 |
| 05 P6 | 1.431,96 | |
| 20 P4 | 1.562,14 | 1.388,57 |
| 20 P6 | 1.475,36 | |
| 20 P4/6 | 1.709,68 | |
| 30 P4 | 1.562,14 | 1.666,29 |
| 30 P6 | 1.701,00 | |
| 30 P8 | 1.727,04 | |
| 30 P4/6 | 1.909,29 | |
| 40 P4 | 1.770,43 | 1.805,14 |
| 40 P6 | 1.865,89 | |
| 40 P8 | 1.770,43 | |
| 40 P4/6 | 1.909,29 | |
| 50 P4 | 2.516,79 | 2.273,79 |
| 50 P6 | 2.430,00 | |
| 50 P8 | 2.534,14 | |
| 50 P4/6 | 2.690,36 | |
| 50 P6/8 | 2.646,96 | |
| 60 P4 | 2.916,00 | |
| 60 P6 | 2.898,64 | |
| 60 P8 | 2.872,61 | |
| 60 P4/6 | 3.280,50 | |
| 60 P6/8 | 2.933,36 | |
| 70 P6 | 3.436,71 | |
| 70 P8 | 3.280,50 | |
| 70 P6/8 | 3.974,79 | |
| 80 P6 | 3.645,00 | |
| 80 P8 | 3.462,75 | |
| 80 P6/8 | 4.669,07 | |
| 90 P6 | 4.443,43 | |
| 90 P8 | 4.148,36 | |
| 90 P6/8 | 5.198,46 | |
| 100 P6 | 5.606,36 | |
| 100 P8 | 5.024,89 | |
| 100 P6/8 | 6.934,18 |
