EVTV Roof fan with vertical jet
Description
Centrifugal roof extractors with backward curved blades, engine cover structure and special conveyor for vertical air launch, everything in galvanized steel.
Features
Material: base, security net, conveyor and motor cover in galvanized steel.
Finish: galvanized.
Installation: Roof.
Use
Extraction of contaminated air from kitchens, restrooms, and industrial halls, with an operating temperature range from -20°C to 80°C. The vertical discharge allows the use of the stack near air intakes or windows without interference from unpleasant odours or harmful substances.
Accessories
- ESGT - Gravity damper
- ECMT - Wall mounted counterbase
- Inverter
Special executions
Explosion-proof, non-sparking , 400°C 2 hours approved.

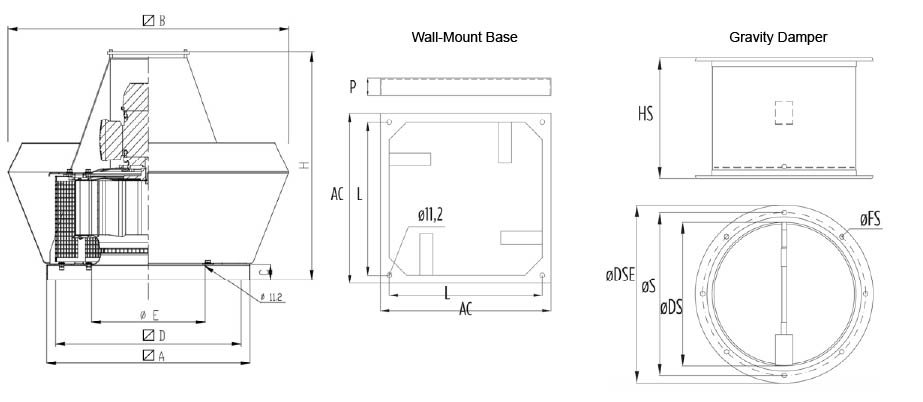

Dimensions of Roof fans
All measures are in mm
Model 〼A 〼B C 〼D ØE H Peso mm mm mm mm mm mm kg EVTV 05 400 590 40 350 200 480 18 EVTV 20 400 590 40 350 250 500 22 EVTV 30 560 780 40 460 300 630 30 EVTV 40 560 780 40 460 350 630 37 EVTV 50 710 930 40 610 400 700 48 EVTV 60 710 930 40 610 450 730 58 EVTV 70 900 1210 40 800 500 780 69 EVTV 80 900 1210 45 800 550 820 91 EVTV 90 900 1210 45 800 600 860 112
Dimensions of Accessories
All measures are in mm.
Model ECMT - Wall-Mount Base ESGT - Gravity Damper AC L P ØDS ØS ØDSE ØFS HS mm mm mm mm mm mm mm mm EVTV 05 390 350 40 200 235 259 3x8M 150 EVTV 20 390 350 40 250 283 309 3x8M 210 EVTV 30 550 460 40 300 330 359 3x8M 210 EVTV 40 550 460 40 350 381 409 4x8M 230 EVTV 50 700 610 40 400 431 460 4x8M 250 EVTV 60 700 610 40 450 485 510 5x8M 300 EVTV 70 890 800 40 500 533 560 5x8M 300 EVTV 80 890 800 45 550 585 620 6x8M 320 EVTV 90 890 800 45 600 636 661 7x8M 320
Operating Data
P4 : 4-pole motor
P6 : 6-pole motor
P8 : 8 pole motor
LP: Sound Power [dB(A)]. Level of sound pressure at 5m, measured with the machine on horizontal surface in free field.
Model Speed Power Static Pressure LP 10 Pa 50 Pa 100 Pa 150 Pa 200 Pa 250 Pa 300 Pa 400 Pa 500 Pa 600 Pa RPM kW Flow Rate m3/h dB(A) EVTV 05 P4 1400 0.12 1100 950 800 600 50 EVTV 05 P6 900 0.09 700 480 40 EVTV 20 P4 1400 0.18 1800 1600 1500 1300 1000 800 56 EVTV 20 P6 900 0.09 1180 900 530 47 EVTV 30 P4 1400 0.25 3000 2800 2700 2300 2200 1800 1450 59 EVTV 30 P6 900 0.18 1980 1650 1250 600 49 EVTV 30 P4/6 1400 0.26/0.09 1980/3050 1650/2800 1200/2700 650/2300 -/2200 -/1700 -/1400 59/49 EVTV 40 P4 1400 0.37 4000 3800 3600 3400 3100 2800 2500 1600 60 EVTV 40 P4/6 1400/900 0.55/0.18 2600/4000 2400/3800 1800/3600 1200/3400 -/3100 -/2800 -/2500 -/1600 60/50 EVTV 50 P4 1400 0.75 5600 5500 5200 4900 4600 4400 3800 3000 1900 65 EVTV 50 P8 700 0.18 2600 2300 1500 53 EVTV 50 P4/6 1400/900 0.75/0.25 3600/5600 3400/5500 2800/5200 2300/4800 1300/4600 -/4500 -/3900 -/3000 -/1900 65/55 EVTV 60 P4 1400 1.5 7800 7700 7600 7200 7000 7800 6200 5300 4300 2900 68 EVTV 60 P6 900 0.37 5100 4800 4400 3650 2900 1600 57 EVTV 60 P8 700 0.18 3900 3500 2600 1100 52 EVTV 60 P4/6 1400/900 1.1/0.37 5100/7800 4500/7700 4200/7600 3500/7200 3000/7000 1200/6600 -/6200 -/5400 -/4400 -/3000 68/57 EVTV 70 P6 900 0.75 7000 6500 6000 5500 5000 4200 3400 61 EVTV 70 P8 700 0.37 5500 4900 4200 3300 2300 54 EVTV 80 P6 900 1.1 10700 10200 9600 8800 8200 7400 6700 4600 65 EVTV 80 P8 700 0.55 8400 7600 6800 5800 4800 3200 57 EVTV 80 P6/8 900/700 1,4/0,6 8400/10700 7700/10200 6900/9800 6000/9000 4600/8200 3000/7400 -/6600 -/4500 65/57 EVTV 90 P6 900 2.2 14000 13000 12500 11500 11000 10000 9000 7500 4500 70 EVTV 90 P8 700 1.1 11000 10000 9200 8000 6800 5300 3600 61 EVTV 90 P6/8 900/700 1.84/0.81 11000/14000 10000/13000 9000/12500 8000/12000 7000/11500 6000/10500 3500/8500 -/8000 -/4500 70/61
Speed Control
Model Power Control type € EVTV 05 P4 M 0,12 Not adjustable -- EVTV 05 P4 T 0,12 Inverter 744,33 EVTV 05 P6 T 0,09 Inverter 744,33 EVTV 20 P4 M 0,18 Not adjustable -- EVTV 20 P4 T 0,18 Inverter 744,33 EVTV 20 P6 T 0,09 Inverter 744,33 EVTV 30 P4 M 0,25 Not adjustable -- EVTV 30 P4 T 0,25 Inverter 744,33 EVTV 30 P6 T 0,18 Inverter 744,33 EVTV 30 P4/6 T 0,26 / 0,09 Two-Speed Selector 460,31 EVTV 40 P4 M 0,37 Not adjustable -- EVTV 40 P4 T 0,37 Inverter 744,33 EVTV 40 P6 T 0,18 Inverter 744,33 EVTV 40 P4/6 T 0,55 / 0,18 Two-Speed Selector 460,31 EVTV 50 P4 M 0,75 Not adjustable -- EVTV 50 P4 T 0,75 Inverter 877,53 EVTV 50 P6 T 0,37 Inverter 877,53 EVTV 50 P8 T 0,18 Inverter 877,53 EVTV 50 P4/6 T 0,75 / 0,25 Two-Speed Selector 460,31 EVTV 60 P4 T 1,5 Inverter 877,53 EVTV 60 P6 T 0,37 Inverter 877,53 EVTV 60 P8 T 0,18 Inverter 877,53 EVTV 60 P4/6 T 1,1 / 0,37 Two-Speed Selector 460,31 EVTV 70 P4 T 2,2 Inverter 1.081,24 EVTV 70 P6 T 0,75 Inverter 744,33 EVTV 70 P8 T 0,37 Inverter 744,33 EVTV 80 P6 T 1,1 Inverter 877,53 EVTV 80 P8 T 0,55 Inverter 877,53 EVTV 80 P6/8 T 1,25 / 0,60 Two-Speed Selector 460,31 EVTV 90 P6 T 2,2 Inverter 1.081,24 EVTV 90 P8 T 1,1 Inverter 877,53 EVTV 90 P6/8 T 1,84 / 0,81 Not adjustable --
Price list
Version 2015 ERP
Model Three-Phase Single-Phase € € EVTV 05 P4 1.471,19 1.660,73 EVTV 05 P6 1.380,93 EVTV 20 P4 1.265,41 1.413,42 EVTV 20 P6 1.278,05 EVTV 30 P4 1.494,66 1.682,40 EVTV 30 P6 1.525,35 EVTV 30 P4/6 1.868,32 EVTV 40 P4 1.566,86 1.821,39 EVTV 40 P4/6 2.626,48 EVTV 50 P4 2.491,10 2.211,30 EVTV 50 P8 2.418,89 EVTV 50 P4/6 2.888,23 EVTV 60 P4 3.122,90 EVTV 60 P6 2.144,51 EVTV 60 P8 2.400,84 EVTV 60 P4/6 2.964,04 EVTV 70 P6 3.023,61 EVTV 70 P8 3.402,69 EVTV 80 P6 3.655,41 EVTV 80 P8 3.586,81 EVTV 80 P6/8 4.251,11 EVTV 90 P6 4.630,19 EVTV 90 P8 4.205,98 EVTV 90 P6/8 4.982,19
