EVVRC - EVVRB Valvole di ventilazione per l'estrazione dell'aria
Descrizione
Valvole di ripresa costruite in acciaio verniciato di colore bianco, con cono centrale regolabile.
Caratteristiche
Materiale: acciaio.
Finitura EVVRC: verniciato bianco RAL 9010.
Finitura EVVRB: verniciato bianco RAL 9016.
Installazione: con viti non apparenti.
Finitura EVVRC: verniciato bianco RAL 9010.
Finitura EVVRB: verniciato bianco RAL 9016.
Installazione: con viti non apparenti.
Impiego
Montati a soffitto, direttamente a canale, per la ripresa dell'aria in locali di servizio, bagni e negozi.

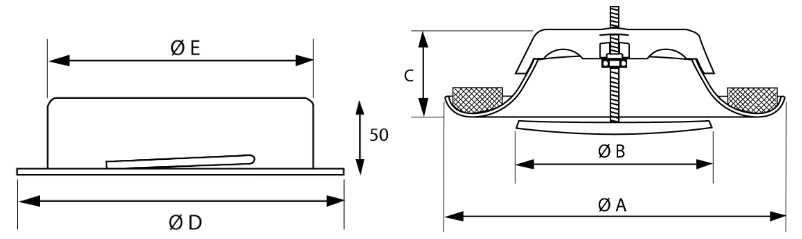

Dimensioni
Modello A (mm) B (mm) C (mm) D (mm) E (mm) EVVRC - EVVRB 80 116 60 38 105 79 EVVRC - EVVRB 100 140 76 38 125 99 EVVRC - EVVRB 125 166 100 45 150 124 EVVRC - EVVRB 150 203 120 50 175 149 EVVRC - EVVRB 160 210 130 50 186 159 EVVRC - EVVRB 200 250 160 56 225 199
Dati di Funzionamento
- Vk: velocità efficace (m/s).
- m³/h: portata.
- Pa: perdite di carico in Pascal.
- L(m): lancio in metri calcolato con installazione a filo soffitto e velocità terminale 0,25 m/s.
- dB(A): indice di rumorosità.

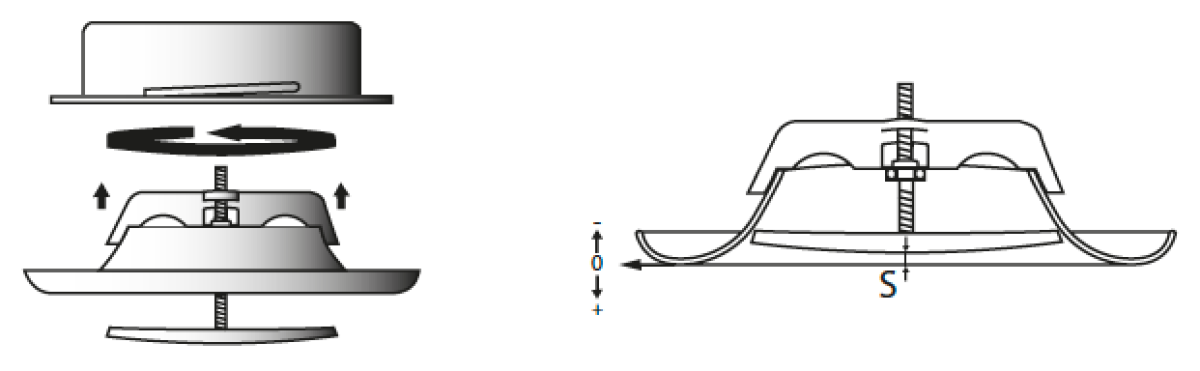

| Modello | m³/h | Apertura "S" (mm) | Perdita di Carico (Pa) | dB(A) |
| EVVRC - EVVRB 80 | 40 | 3 | 35 | 22 |
| 0 | 80 | 31 | ||
| 60 | 9 | 40 | 30 | |
| 6 | 55 | 32 | ||
| 3 | 100 | 38 | ||
| EVVRC - EVVRB 100 | 80 | 8 | 35 | 25 |
| 6 | 55 | 30 | ||
| 4 | 85 | 34 | ||
| 100 | 10 | 58 | 33 | |
| 8 | 72 | 36 | ||
| 120 | 10 | 68 | 36 | |
| EVVRC - EVVRB 125 | 100 | 6 | 35 | 23 |
| 3 | 50 | 26 | ||
| 0 | 90 | 34 | ||
| 140 | 15 | 28 | 25 | |
| 12 | 34 | 27 | ||
| 9 | 45 | 28 | ||
| 6 | 65 | 33 | ||
| 3 | 100 | 36 | ||
| 180 | 15 | 45 | 32 | |
| 12 | 50 | 33 | ||
| 9 | 70 | 35 | ||
| EVVRC - EVVRB 150 / 160 | 160 | 10 | 25 | 20 |
| 5 | 42 | 23 | ||
| 2 | 70 | 30 | ||
| 0 | 90 | 35 | ||
| 200 | 10 | 40 | 24 | |
| 5 | 68 | 30 | ||
| 2 | 95 | 35 | ||
| 250 | 15 | 38 | 26 | |
| 10 | 59 | 30 | ||
| 5 | 95 | 36 | ||
| EVVRC - EVVRB 200 | 300 | 20 | 25 | 25 |
| 15 | 35 | 27 | ||
| 12 | 50 | 30 | ||
| 9 | 68 | 32 | ||
| 6 | 100 | 35 | ||
| 350 | 20 | 35 | 30 | |
| 15 | 55 | 33 | ||
| 12 | 70 | 35 | ||
| 400 | 20 | 50 | 34 | |
| 15 | 65 | 36 |
