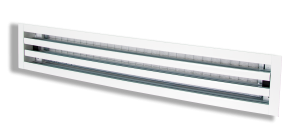

EDFLB-FL Linear diffusers for air extraction with slot and filter
Description
The EDFLB-FL series diffusers are designed exclusively for return air applications in environments with large surface areas and relatively low ceiling heights.
They are equipped with an internal filter, secured by magnetic fixing, and are suitable for air extraction in offices, open-plan spaces, banks, large hotel lobbies, business centers, retail stores, courthouses, and similar applications.
The diffusers are manufactured from extruded aluminum profiles, engineered to achieve a highly aerodynamic and aesthetically refined design. Standard lengths are 800, 1000, 1500, and 2000 mm, available with a minimum of 3 and a maximum of 4 slots.
The standard finish is painted in RAL 9016; upon request, other रंग finishes are available using epoxy powder coating, electrostatically applied and oven-cured. This type of coating ensures high resistance to impact and abrasion, maintaining its aesthetic properties over time.

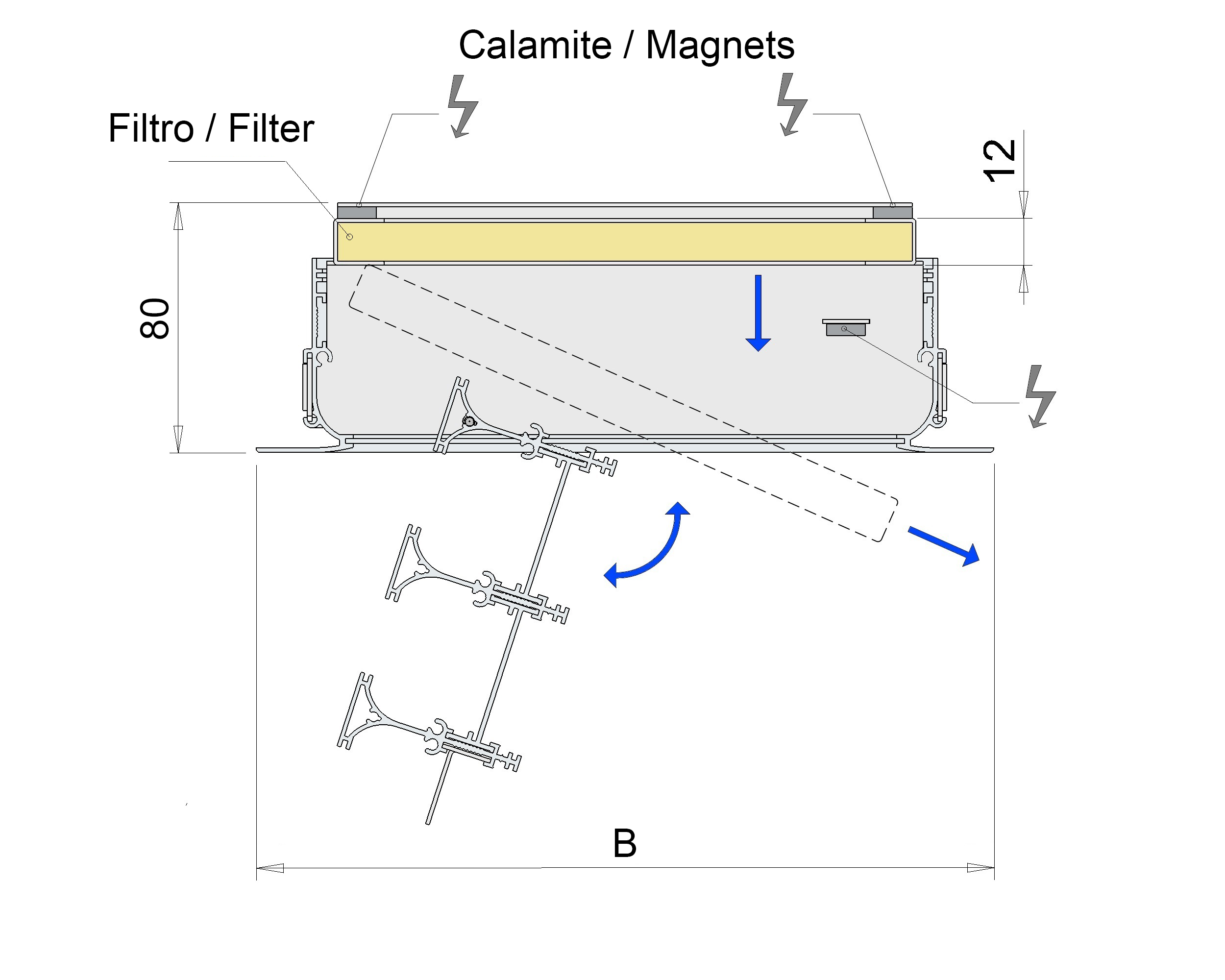

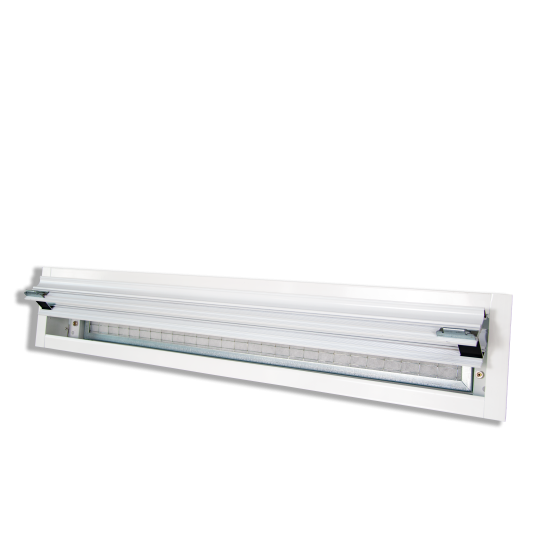

The diffuser is fixed to the plenum by means of concealed mounting bridges. It is equipped with dedicated internal tabs within the blade assembly, allowing the core to be opened like a hinged panel, enabling filter replacement without removing the entire diffuser.
Use
EDFLB-FL are used to extract the air from offices, open spaces, banks, large halls of hotels, business centers, shops, courts, etc…
Charateristics
- Material: aluminum;
- EDFLB-FL finish: Ral 9016 painted alluminium frame and Ral 9016 deflectors;
- Slots: only 3 or 4 slots;
- Installation height: from 2,5 to 3,1 m;
- Installation: directly on duct or on plenum box with mounting bridge.
Standard Lengths
L (mm) Nr. Slots 800 3 ÷ 4 1000 3 ÷ 4 1500 3 ÷ 4 2000 3 ÷ 4

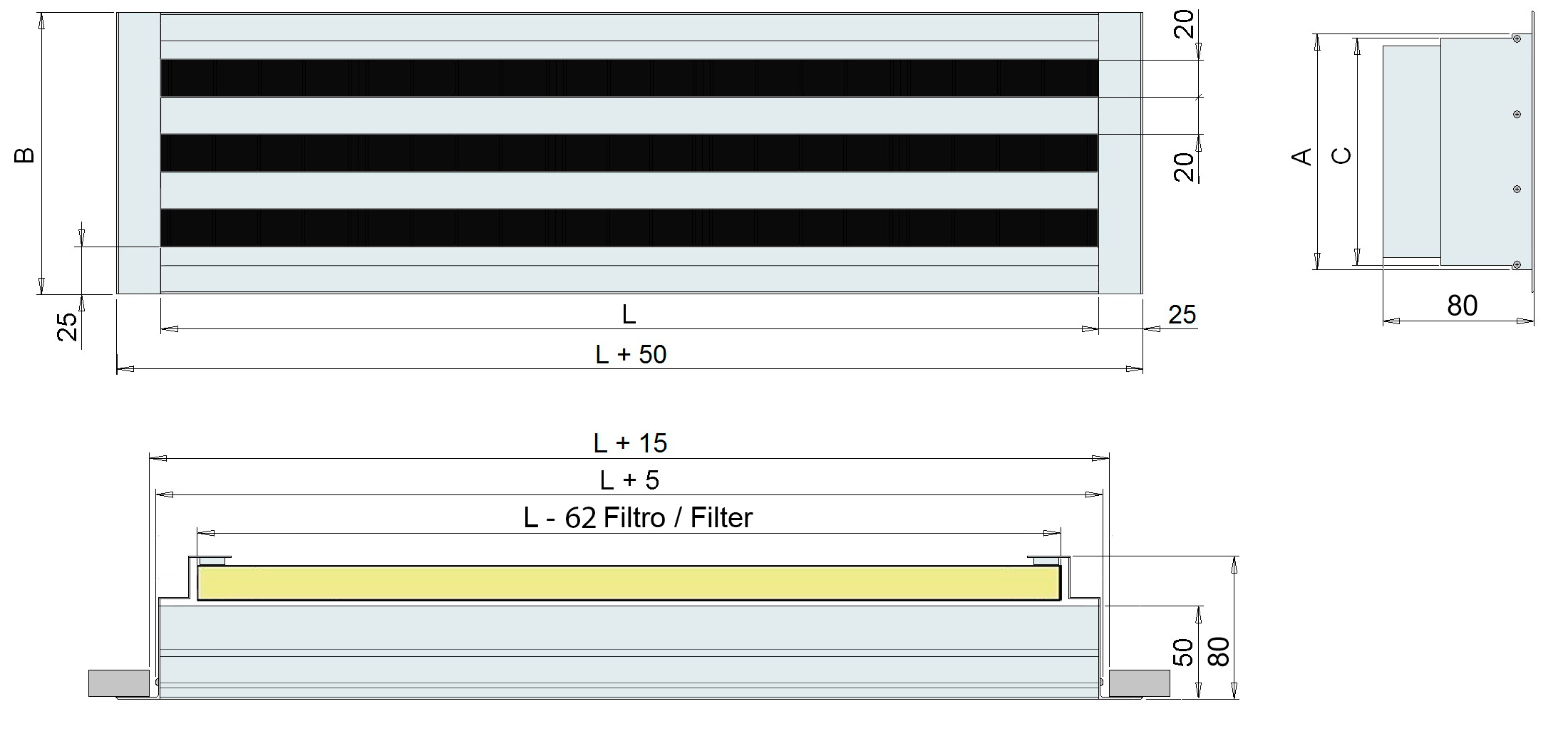

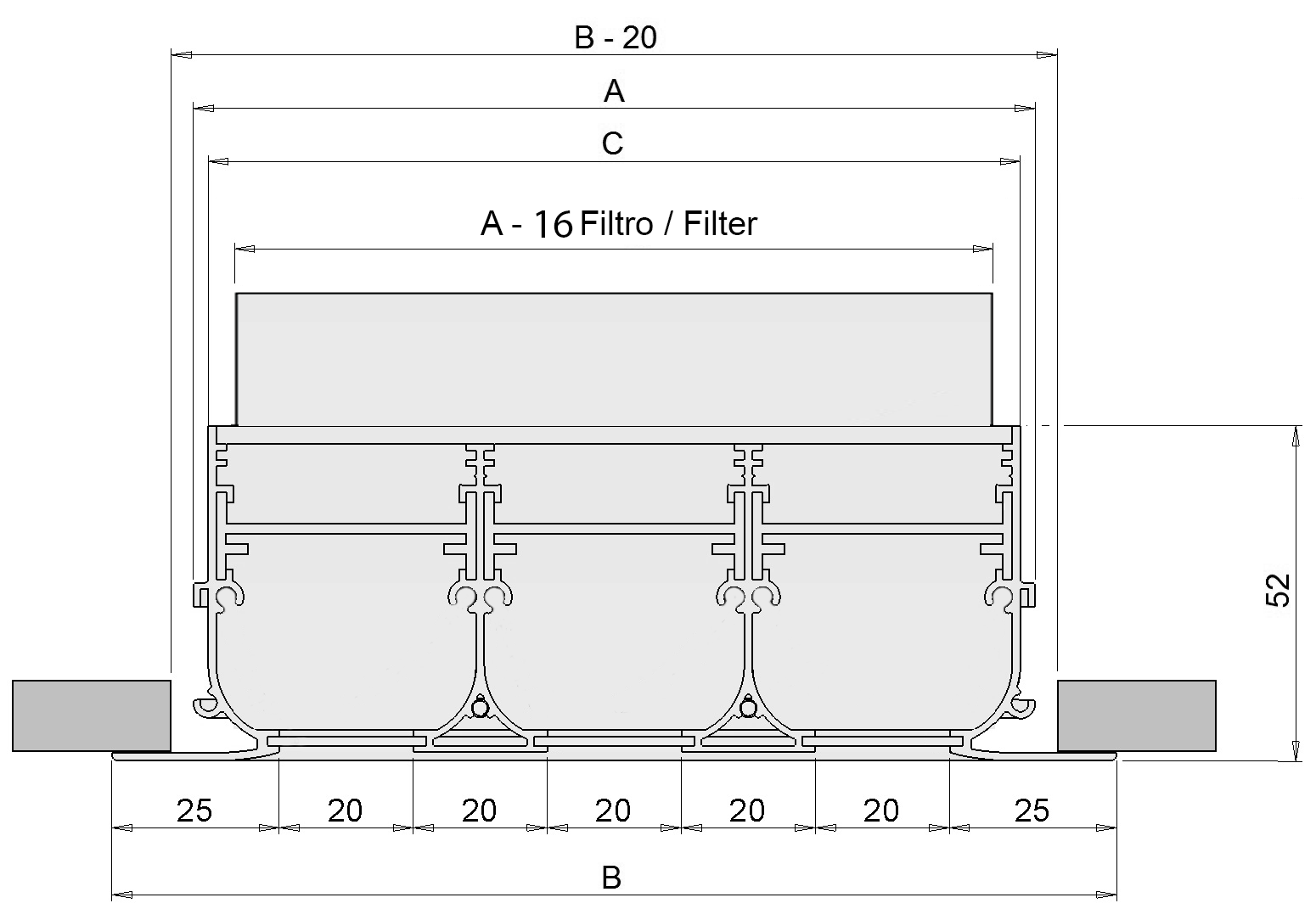

Diffuser Dimensions
Nr. Slots A
(mm)B
(mm)C
(mm)3 126 150 121 4 166 190 161
Plenum dimensions and mounting system with fixing bridges
Nr. Slots L Plenum Box Dimensions L1 L2 Nr. Lat. Connections Ø d P H E 3 Slot 800 845 815 1 198 300 138 80 1000 1045 1015 1 1500 1545 1515 2 2000 2045 2015 2 4 Slot 800 845 815 1 198 300 178 80 1000 1045 1015 1 1500 1545 1515 2 2000 2045 2015 2
Operating Data
Nr. Slots Air Speed M/s 800 mm 1000 mm 1500 mm 2000 mm m3/h Pa dB(A) m3/h Pa dB(A) m3/h Pa dB(A) m3/h Pa dB(A) 3 1,5 440 33 35 560 34 37 855 34 39 1150 35 40 2 590 45 36 745 61 44 1140 62 47 1540 63 48 4 1,5 600 35 37 760 35 38 1165 36 41 1570 37 42 2 800 63 45 1015 64 45 1555 65 48 2095 66 50
Price List
Nr. Slots Euro 800 mm 1000 mm 1500 mm 2000 mm 3 O.R. O.R. O.R. O.R. 4 O.R. O.R. O.R. O.R.
