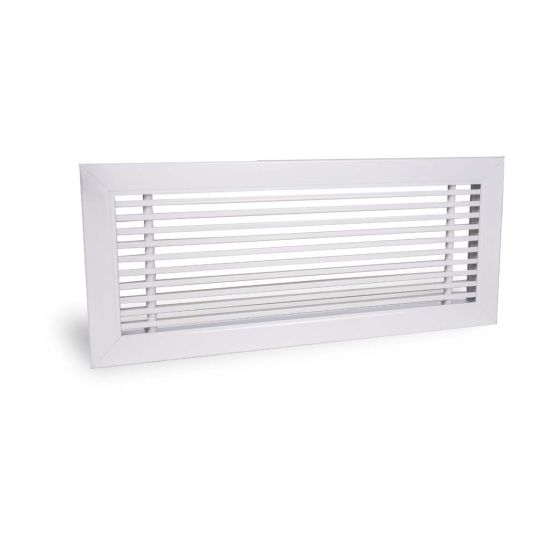

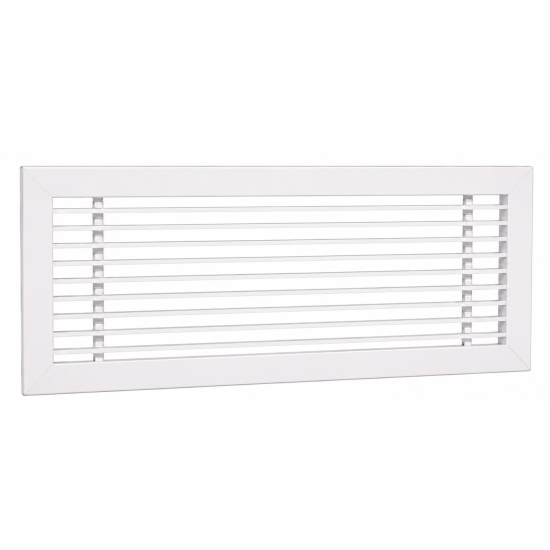

EBL Linear grilles with horizontal fixed bars

Description

Air jets with horizontal aluminium fixed bars with 0° or 15° deflection.

Characteristics

Material: aluminium.

Finish: natural anodised.

Installation: clip fastening for EBL 20 and EBL 21 and fork clip fastening for EBL 22.

Max length achievable in one piece: 2000 mm.

Use

Air jets used in air conditioning and ventilation systems for both supply and exhaust. They can be installed on the ceiling, on the wall and on the floor in non-walkable areas. They are also used as grilles in fan coils.

Models

EBL20-0: with frame and front fixed bars with 0° deflection;
EBL20-15: with frame and front fixed bars with 15° deflection;
EBL21-0: with frame, front fixed bars with 0° deflection and adjustable rear blades;
EBL21-15: with frame, front fixed bars with 15° deflection and adjustable rear blades;
EBL22-0: without frame, only fixed bars with 0° deflection;
EBL22-15: without frame, only fixed bars with 15° deflection.

Accessories

EPZ _ Galvanised Plenum Box;
EPI - Insulated Plenum Box;
SC - Galvanised steel regulation damper with blades with opposing movement;
CT - Galvanised steel counter-frame to set into wall.
Fork clips for EBL 22

On request

Painting in different RAL colours.
Holes on frame for installation with screws.
Removable finned pack (EBL 20 version only in special construction with 40mm deep frame).
Continuous EBL 20/0 and EBL 20/15 for lengths greater than 2000 mm with the possibility of also adding inspection doors.
On request, continuous EBL 20/0 or EBL20/15 inspection doors.

Operating data

Vk: effective speed (m/s)
m³/h: flow rate
Pa: pressure drops in Pascal
L1 (m): air throw referring to a terminal velocity Vt= 0.25 m/s and with a temperature differential of 10/12°C, installed near the ceiling (not beyond 3 m); for greater distances, correct the air throw by multiplying it by 0.7
dB(A): noise level

All dimensions are expressed in mm.

Dimensions LxH	2 x digital output (6 terminalas, wire min. 0.5 mm² to max. 1.5 mm²) – NO/NC relays (125 V AC – 60 W)	Vk 3 m/s		Vk 4 m/s		Vk 5 m/s
Dimensions LxH	m²	m³/h	L1	m³/h	L1	m³/h	L1
400x75	0,015	160	2,8	213	3,8	266	4,7
500x75	0,019	201	3	268	3,9	335	4,9
600x75	0,022	243	3,1	323	4,1	404	5,1
800x75	0,030	326	3,3	434	4,3	543	5,4
1000x75	0,038	408	3,4	545	4,5	681	5,7
400x100	0,020	216	2,9	292	3,8	365	4,8
500x100	0,026	276	3	367	4	459	5
600x100	0,031	332	3,1	443	4,2	554	5,2
800x100	0,041	446	3,3	595	4,4	743	5,5
1000x100	0,052	560	3,5	746	4,6	933	5,8
400x125	0,026	278	2,9	370	3,9	463	4,9
500x125	0,032	350	3,1	467	4,1	583	5,1
600x125	0,039	422	3,2	563	4,2	703	5,3
800x125	0,052	566	3,4	755	4,5	944	5,6
1000x125	0,066	711	3,5	947	4,7	1184	5,9
400x150	0,031	337	3	449	4	561	5
500x150	0,039	424	3,1	566	4,2	707	5,2
600x150	0,047	512	3,3	682	4,3	853	5,4
800x150	0,064	687	3,4	916	4,6	1145	5,7
1000x150	0,080	862	3,6	1149	4,8	1436	6
400x200	0,042	455	3,1	607	4,2	758	5,2
500x200	0,053	573	3,3	764	4,4	955	5,4
600x200	0,064	691	3,4	922	4,5	1152	5,6
800x200	0,086	927	3,6	1237	4,8	1546	6
1000x200	0,108	1164	3,8	1552	5	1940	6,3
600x300	0,097	1050	3,6	1400	4,8	1750	6
800x300	0,130	1409	3,8	1879	5,1	2348	6,4
1000x300	0,164	1768	4	2357	5,3	1947	6,7
Pa		5		10		15
dB(A)		25 / 32		33 / 39		38 / 44

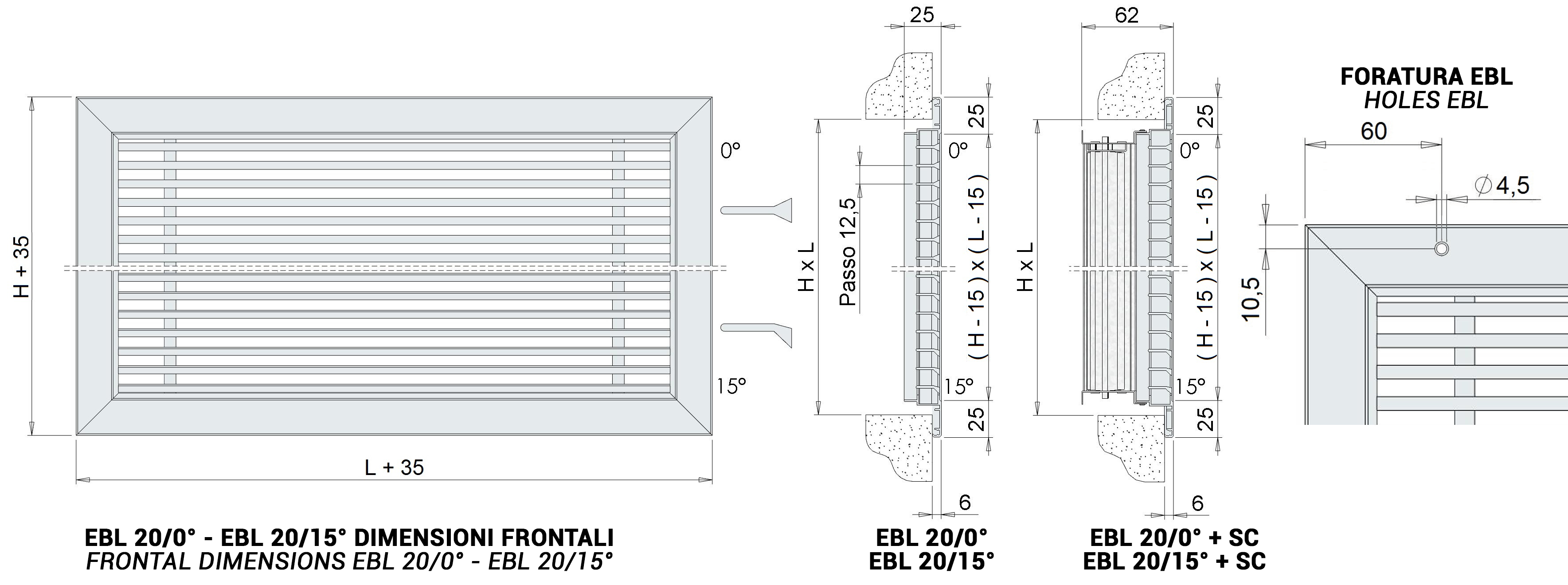

Dimensions EBL 20/0° EBL 20/15°

Holes on request.

Dimensions EBL 21/0° EBL 21/15°

Holes on request.

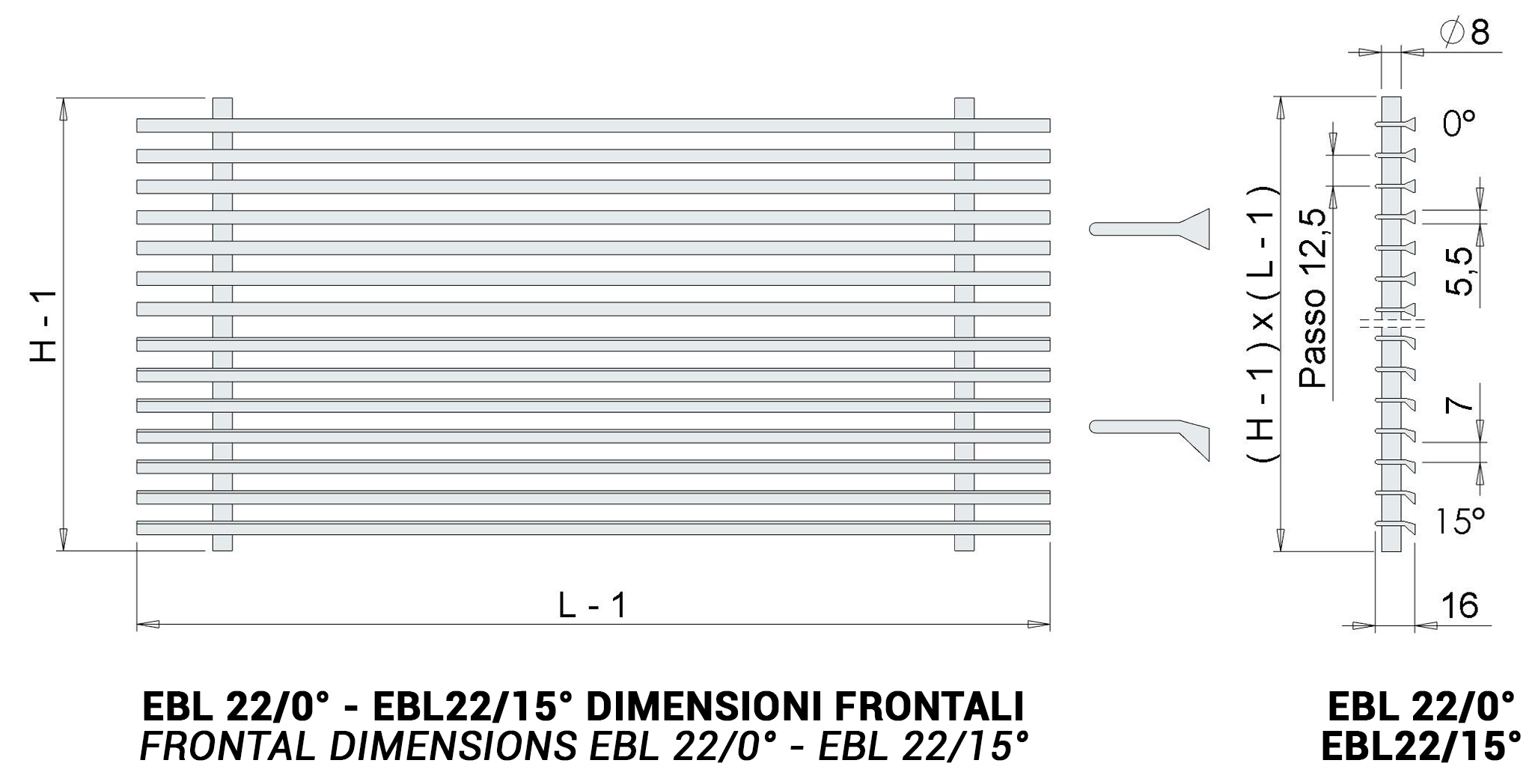

Dimensions EBL 22/0° EBL 22/15°

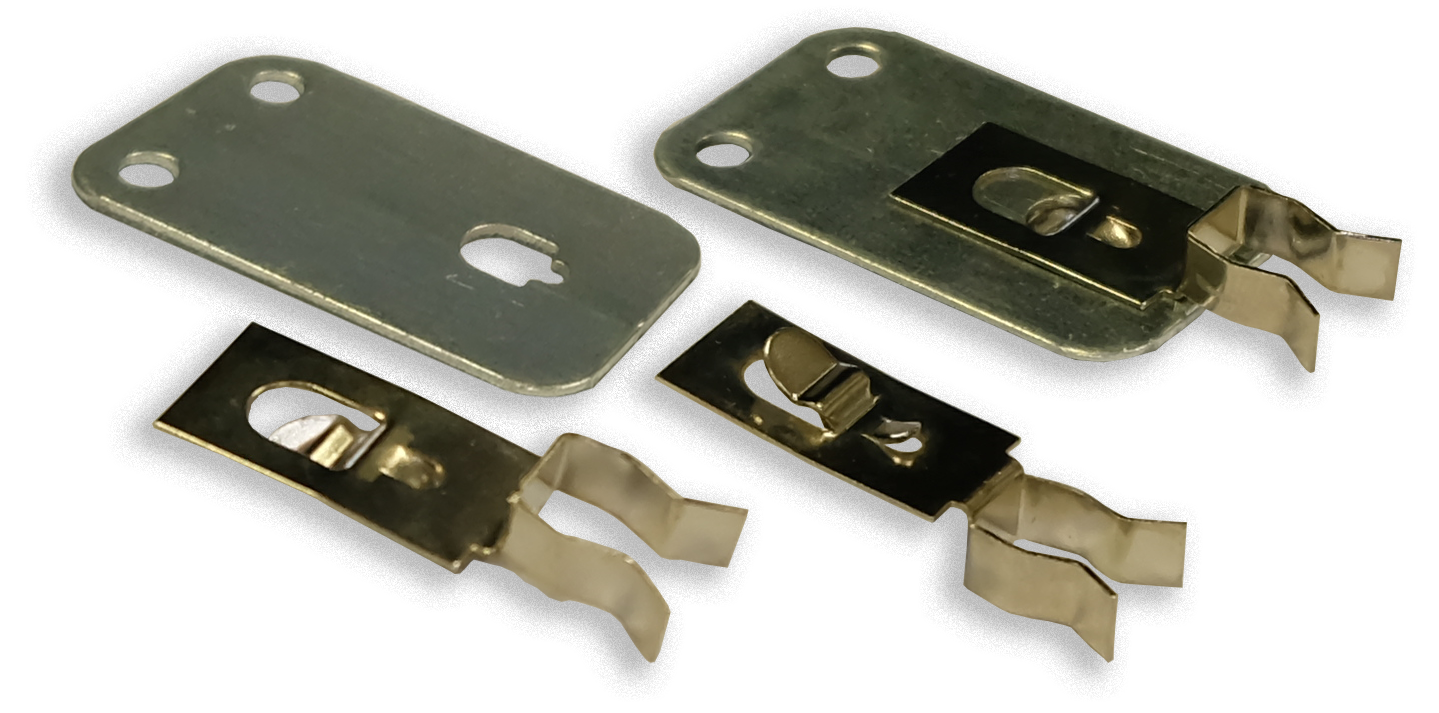

Fork clips with plate for EBL 22/0° EBL 22/15°.

Models	Lenght	Numero tubi verticali	Numero forcelle
Models	L	Numero tubi verticali	Numero forcelle
EBL 22/0° EBL 22/15°	fino a 502 mm	2	4
	da 503 mm a 901 mm	3	6
	da 902 mm a 1277 mm	4	8
	da 1278 mm a 1577 mm	5	10
	da 1578 mm a 1877 mm	6	12
	da 1878 mm a 2000 mm	7	14

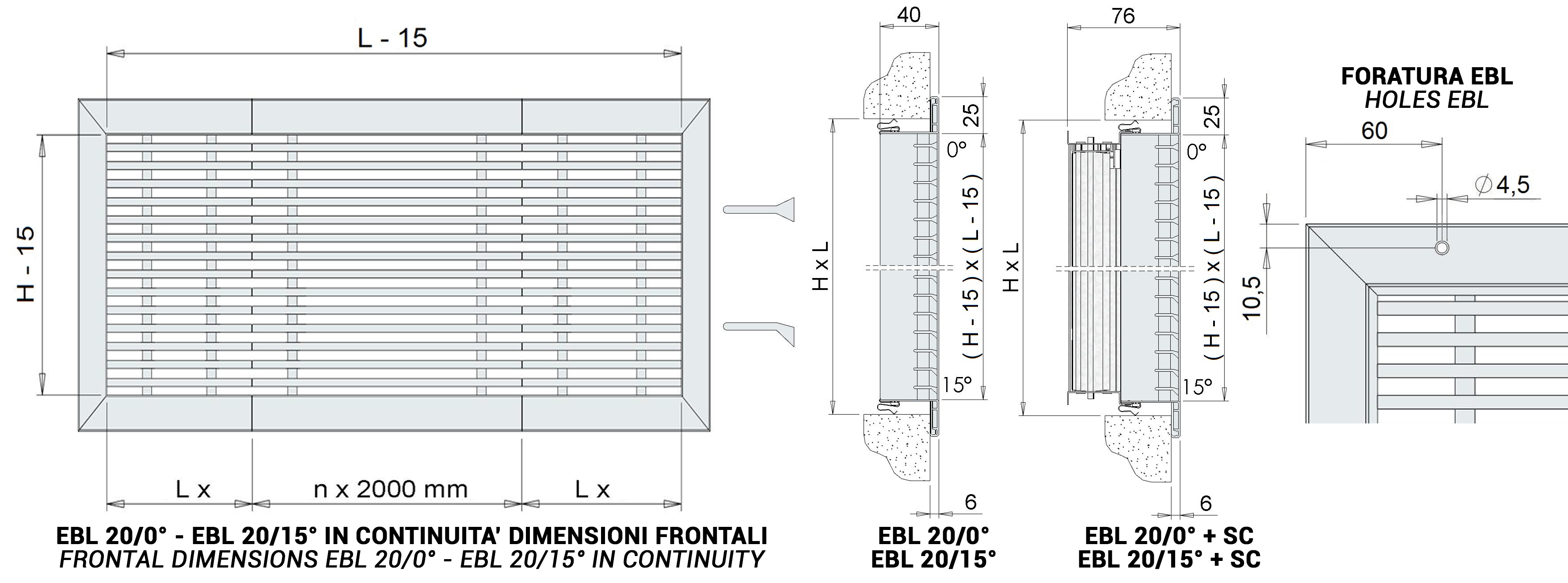

Continuous EBL 20/0° EBL 20/15° dimensions

- Length L ≤ 2000 mm in one piece;
- Length L > 2000 mm ≤ 4000 mm: in two parts of length L/2;
- Length L > 4000 mm: in a number of central parts of length L = 2000 and two end parts of length Lx > 1000 mm < 2000 mm.

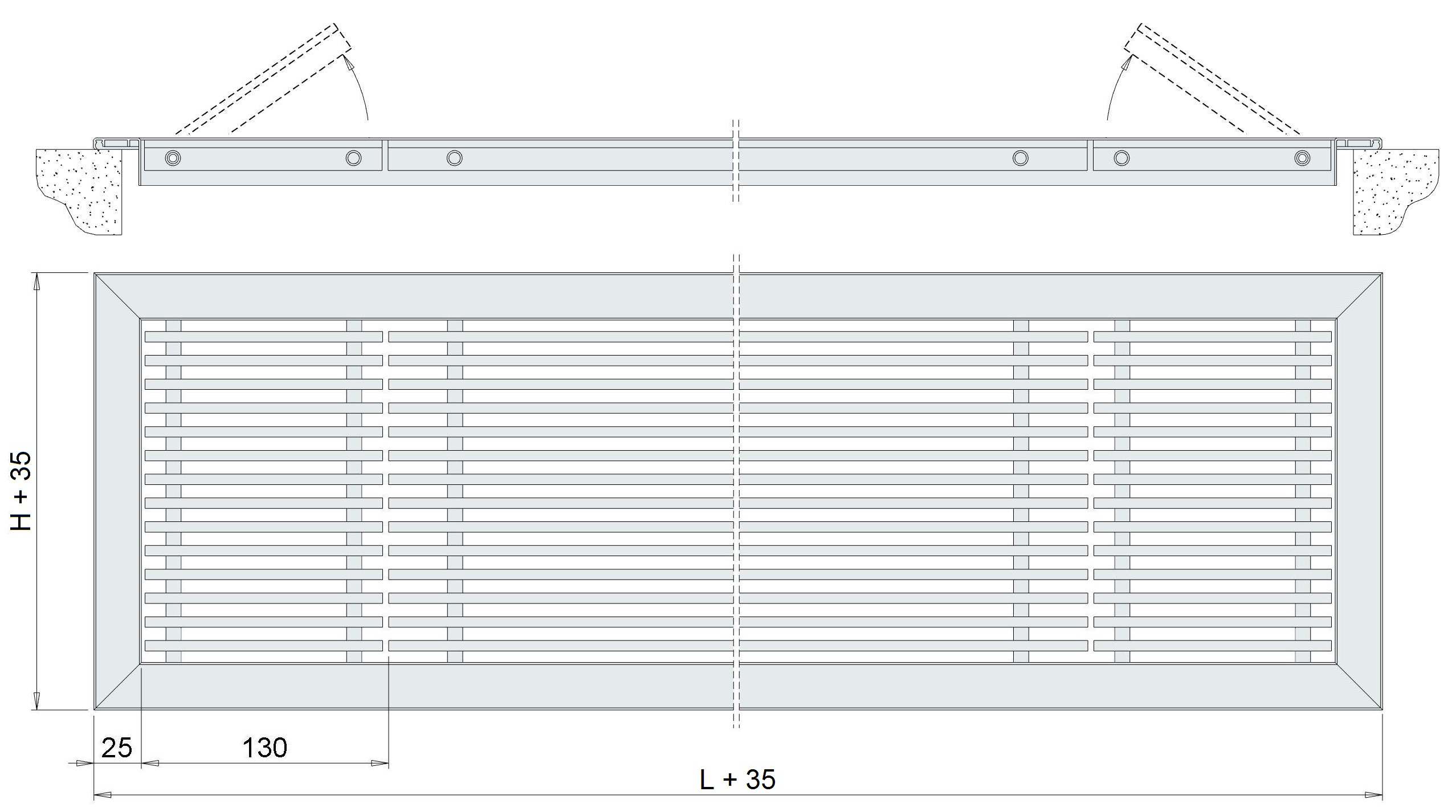

On request, inspection doors for continuous EBL 20-0 or 20-15.

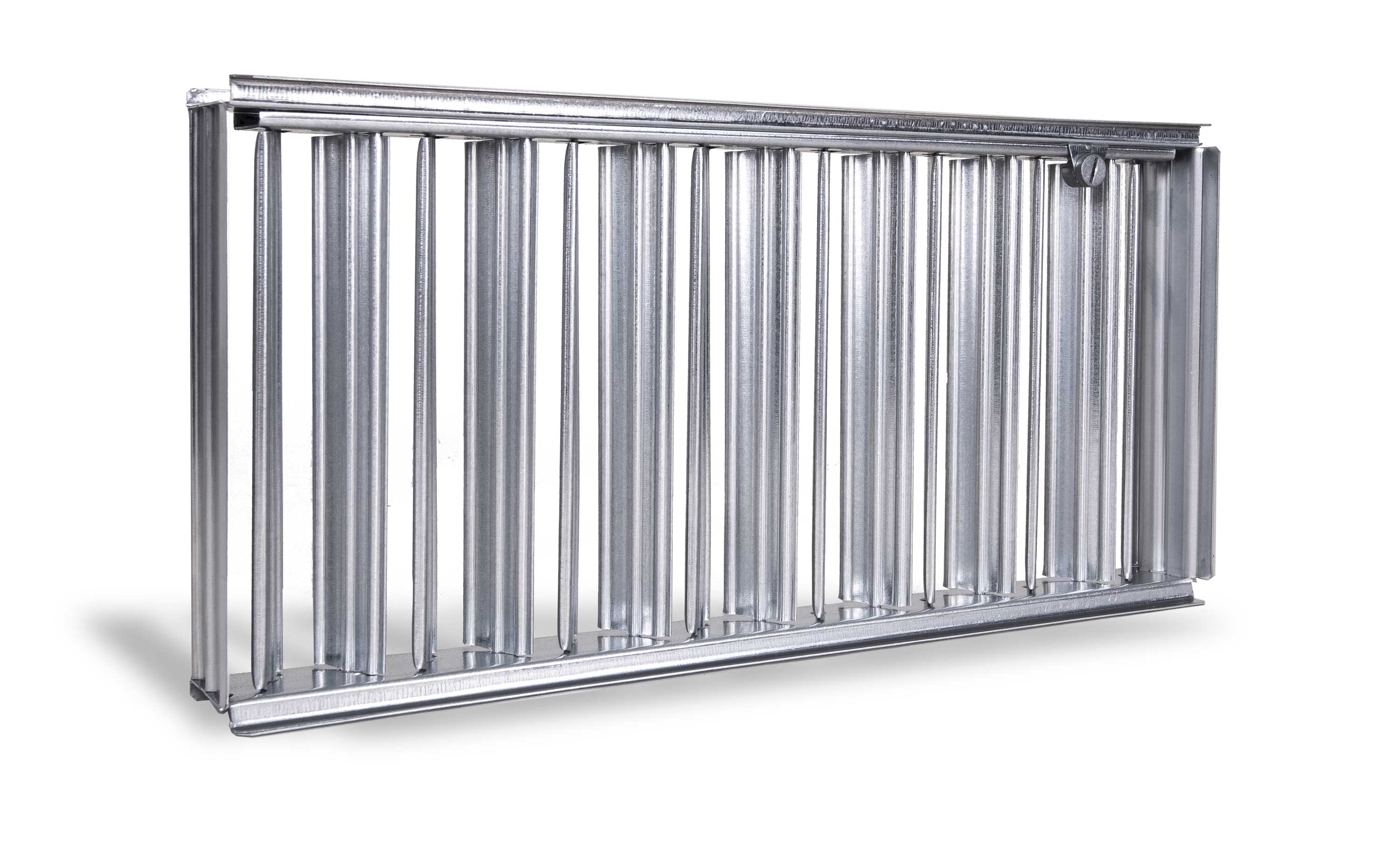

SC - Regulation damper for EBL 20 and EBL 21

Galvanised steel regulation damper with blades with opposing movement.

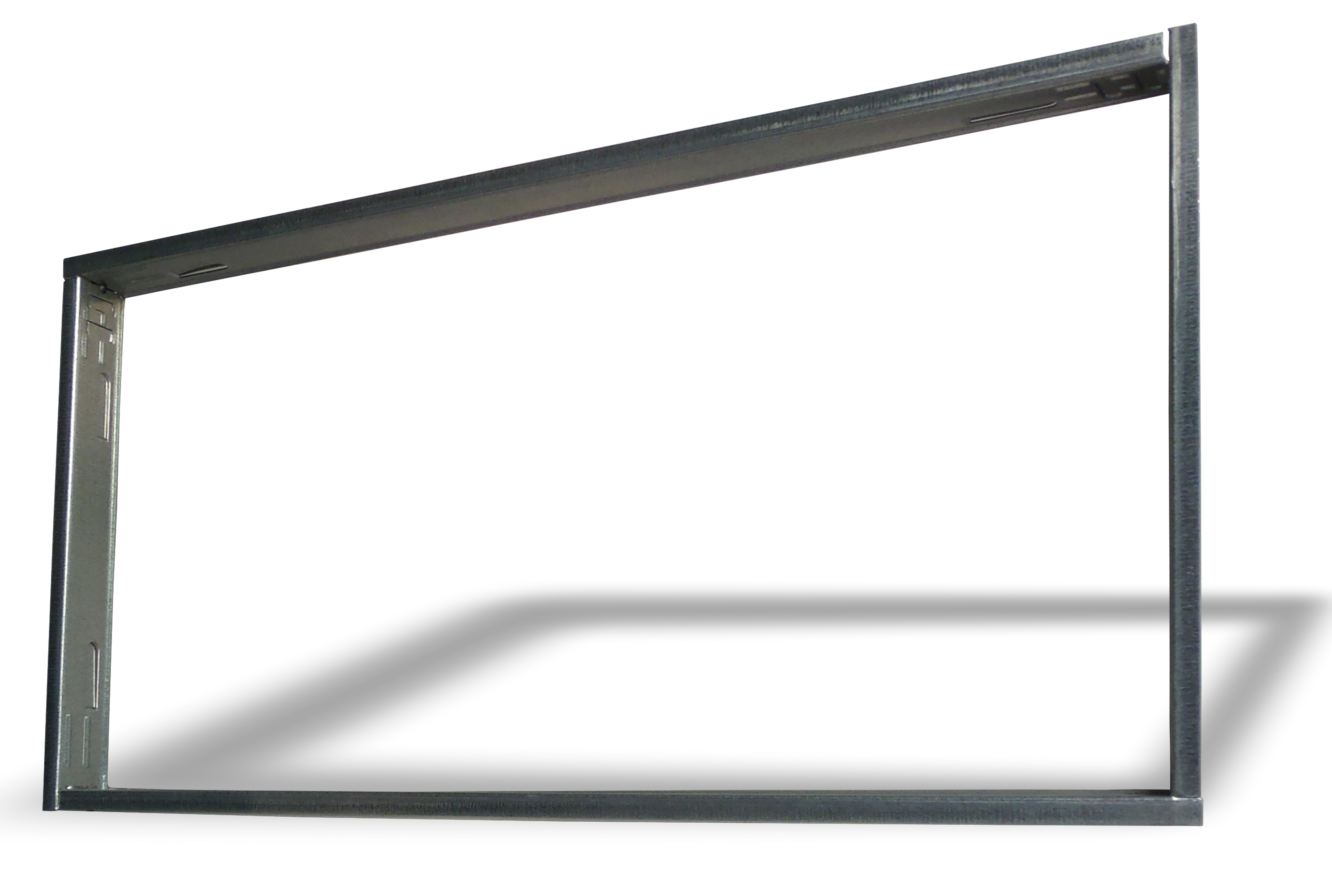

CT counter-frame for EBL 20 and EBL 21

Plenum for EBL 20 and EBL 21

EBL price list

EBL 20 removable pack +20%.

Continuous EBL 20-0 EBL 20-15 prices on request.

Dimensions	EBL-20/0°	EBL-20/15°	EBL-21/0°	EBL-21/15°	EBL-22/0°	EBL-22/15°
LxH	euro	euro	euro	euro	euro	euro
400x75	27,22	27,22	34,26	34,26	17,13	17,13
500x75	33,59	33,59	41,46	41,46	19,84	19,84
600x75	36,30	36,30	45,03	45,03	23,44	23,44
800x75	42,64	42,64	53,62	53,62	27,90	27,90
1000x75	49,91	49,91	67,39	67,39	32,44	32,44
400x100	33,59	33,59	41,46	41,46	18,93	18,93
500x100	39,04	39,04	50,48	50,48	21,62	21,62
600x100	41,76	41,76	52,25	52,25	25,22	25,22
800x100	48,10	48,10	62,49	62,49	27,90	27,90
1000x100	57,19	57,19	78,63	78,63	34,84	34,84
400x125	37,22	37,22	44,18	44,18	21,62	21,62
500x125	41,76	41,76	53,17	53,17	25,22	25,22
600x125	48,10	48,10	60,38	60,38	33,35	33,35
800x125	52,63	52,63	71,25	71,25	39,65	39,65
1000x125	67,16	67,16	89,92	89,92	45,96	45,96
400x150	41,76	41,76	55,87	55,87	32,44	32,44
500x150	43,57	43,57	65,78	65,78	36,04	36,04
600x150	52,63	52,63	70,29	70,29	41,46	41,46
800x150	68,97	68,97	81,07	81,07	51,38	51,38
1000x150	78,97	78,97	101,24	101,24	59,47	59,47
400x200	57,19	57,19	71,18	71,18	42,33	42,33
500x200	67,16	67,16	82,01	82,01	48,65	48,65
600x200	71,69	71,69	88,28	88,28	54,08	54,08
800x200	86,21	86,21	107,23	107,23	69,40	69,40
1000x200	105,28	105,28	126,17	126,17	81,07	81,07
600x300	98,03	98,03	118,06	118,06	82,91	82,91
800x300	126,15	126,15	151,37	151,37	101,82	101,82
1000x300	150,54	150,54	187,34	187,34	123,03	123,03

Models L1 x H1	Top Connection			Lateral Connection			E	F	Models L1 x H1	Top Connection			Lateral Connection			E	F
Models L1 x H1	P1	Nr. Connections	Ø d	P2	Nr. Connections	Ø d	E	F	Models L1 x H1	P1	Nr. Connections	Ø d	P2	Nr. Connections	Ø d	E	F
400x75	-	-	-	150	2	98	80	12	1000x125	200	3	123	230	3	123	80	12
500x75	-	-	-	150	2	98	80	12	400x150	200	1	148	250	1	148	80	12
600x75	-	-	-	150	2	98	80	12	500x150	200	2	148	250	2	148	80	12
800x75	-	-	-	150	2	98	80	12	600x150	200	2	148	250	2	148	80	12
1000x75	-	-	-	150	2	98	80	12	800x150	200	2	148	250	2	148	80	12
400x100	200	2	98	200	2	98	80	12	1000x150	200	3	148	250	3	148	80	12
500x100	200	2	98	200	2	98	80	12	400x200	200	1	198	300	1	198	80	12
600x100	200	2	98	200	2	98	80	12	500x200	200	1	198	300	1	198	80	12
800x100	200	2	98	200	2	98	80	12	600x200	200	2	198	300	2	198	80	12
1000x100	200	3	98	200	3	98	80	12	800x200	200	2	198	300	2	198	80	12
400x125	200	1	123	230	1	123	80	12	1000x200	200	2	198	300	2	198	80	12
500x125	200	2	123	230	2	123	80	12	600x300	200	2	198	350	2	248	80	12
600x125	200	2	123	230	2	123	80	12	800x300	200	2	248	350	2	248	80	12
800x125	200	2	123	230	2	123	80	12	1000x300	200	2	248	350	2	248	80	12

EBL price list painted white RAL 9016

EBL 20 removable pack +20%.

Continuous EBL 20-0 EBL 20-15 prices on request.

Dimensions	EBL-20/0°	EBL-20/15°	EBL-21/0°	EBL-21/15°	EBL-22/0°	EBL-22/15°
LxH	euro	euro	euro	euro	euro	euro
400x75	32,40	32,35	41,09	41,09	20,53	20,53
500x75	39,99	39,93	49,70	49,70	23,78	23,78
600x75	43,20	43,14	54,00	54,00	28,11	28,11
800x75	50,77	50,69	64,30	64,30	33,46	33,46
1000x75	59,41	59,32	80,81	80,81	38,89	38,89
200x100	24,09	24,05	32,54	32,54	16,22	16,22
300x100	30,25	30,20	38,78	38,78	18,38	18,38
400x100	39,99	39,93	49,70	49,70	22,69	22,69
500x100	46,46	46,39	60,52	60,52	25,91	25,91
600x100	49,69	49,62	62,63	62,63	30,25	30,25
800x100	57,24	57,15	74,92	74,92	33,46	33,46
1000x100	68,08	67,98	94,32	94,32	41,30	41,30
400x125	44,31	44,24	52,96	52,96	25,91	25,91
500x125	49,69	49,62	63,76	63,76	30,25	30,25
600x125	57,24	57,15	72,39	72,39	39,99	39,99
800x125	62,63	62,54	85,46	85,46	47,56	47,56
1000x125	79,93	79,81	107,77	107,77	55,12	55,12
400x150	49,69	49,62	67,00	67,00	38,89	38,89
500x150	51,85	51,77	78,98	78,87	43,22	43,22
600x150	62,63	62,54	84,28	84,28	49,70	49,70
800x150	82,10	81,98	97,22	97,22	61,59	61,59
1000x150	94,00	93,86	121,40	121,40	71,32	71,31
400x200	68,08	67,98	85,36	85,36	50,76	50,76
500x200	79,93	79,81	98,32	98,32	58,33	58,33
600x200	85,34	85,21	105,86	105,86	64,86	64,86
800x200	102,62	102,47	128,57	128,57	83,21	83,20
1000x200	125,31	125,12	151,29	151,29	97,22	97,21
500x300	97,20	97,05	118,85	118,85	83,21	83,20
600x300	116,66	116,49	141,55	141,55	99,41	99,40
800x300	150,16	149,93	181,50	181,50	122,10	122,09
1000x300	179,21	178,93	224,62	224,62	147,52	147,52

Accessories

Dimensions	Top Connection		Lateral Connection		SC - Volume Damper	CT - Mounting-frame
Dimensions	EPZ - Plenum Box	EPI - Insulated Plenum Box	EPZ - Plenum Box	EPI - Insulated Plenum Box	SC - Volume Damper	CT - Mounting-frame
L1xH1	euro	euro	euro	euro	euro	euro
400x75	-	-	43,12	56,91	17,73	16,14
500x75	-	-	45,61	60,26	21,16	17,76
600x75	-	-	48,11	63,60	24,21	19,41
800x75	-	-	53,11	70,32	30,43	23,26
1000x75	-	-	61,10	85,81	37,34	26,53
400x100	43,12	56,91	43,12	56,91	17,73	16,14
500x100	45,61	60,26	45,61	60,26	21,16	17,76
600x100	48,11	63,60	48,11	63,60	24,21	19,41
800x100	53,11	70,32	53,11	70,32	30,43	23,26
1000x100	50,00	68,60	66,40	91,00	37,34	26,53
400x125	36,32	50,07	37,74	51,99	20,46	16,99
500x125	47,00	61,99	48,69	64,29	23,69	19,55
600x125	49,57	65,48	51,53	68,10	27,00	21,31
800x125	54,80	72,51	57,30	75,82	34,58	24,91
1000x125	80,78	90,04	68,48	108,41	41,67	28,30
400x150	37,58	51,76	40,04	55,07	20,46	17,76
500x150	40,31	63,75	51,30	67,67	23,69	21,31
600x150	51,07	67,37	54,45	71,90	27,00	23,26
800x150	67,29	85,85	71,52	91,58	34,58	26,53
1000x150	80,78	101,57	85,93	108,41	41,67	30,11
400x200	40,12	54,95	45,50	62,18	25,31	20,53
500x200	43,04	58,91	49,34	67,29	29,73	23,26
600x200	59,99	78,09	71,98	92,00	34,25	24,91
800x200	70,71	90,27	79,62	102,30	41,97	30,11
1000x200	76,59	98,19	76,59	112,52	46,84	33,58
600x300	69,52	88,69	77,59	99,53	42,63	30,11
800x300	84,97	112,40	99,72	132,19	51,72	35,55
1000x300	91,73	121,47	109,14	144,80	62,36	40,43

clips a forcella con piastra EBL 22
Models	euro
Fork	2,86
