CT Counter-frame for air jets and grilles
Description
Galvanised steel counter-frames for air jets and grilles. The counter-frames are equipped with special brackets that are bent during installation to anchor them to the walls.
Use
Accessory compatible with EDC series diffusers, EBA - EBV - EBL series air jets and EGA - EGQ - EGF series grilles.
Notes

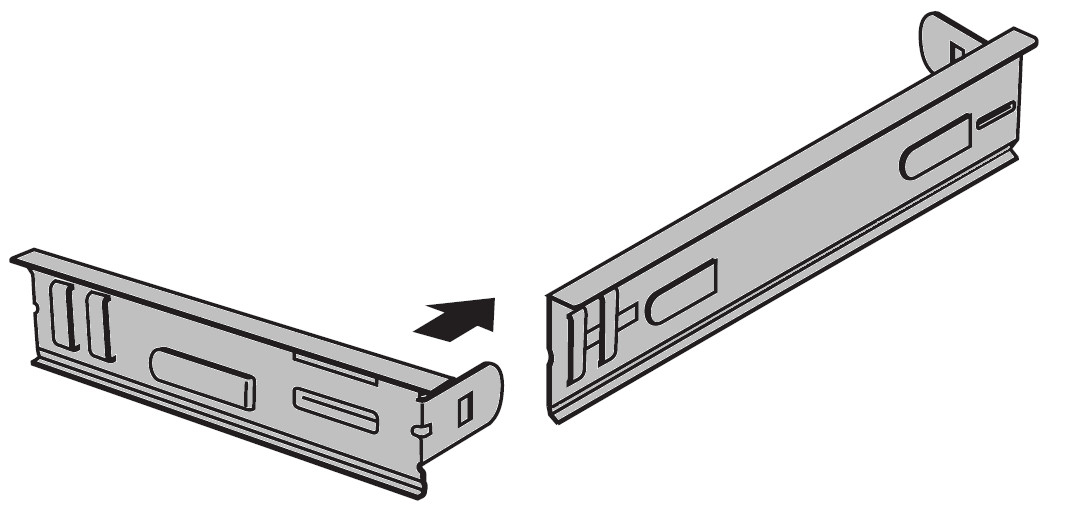

The frame is supplied disassembled and must be assembled on site.

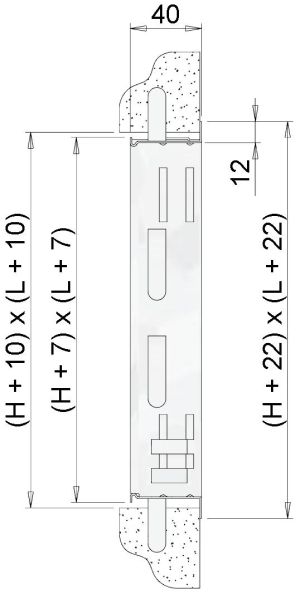

Assembly Detail
Price List
CT - Mounting-frame H L 200 300 400 500 600 700 800 900 1000 1200 euro euro euro euro euro euro euro euro euro euro 100 14,54 14,54 16,14 17,76 19,41 a.r. 23,26 a.r. 26,53 35,55 150 14,54 16,14 17,76 21,31 23,26 a.r. 26,53 a.r. 30,11 a.r. 200 16,14 17,76 20,53 23,26 24,91 a.r. 30,11 a.r. 33,58 38,78 300 17,76 21,31 24,91 28,43 30,11 a.r. 35,55 a.r. 40,43 43,95 400 20,53 24,91 28,43 31,70 35,55 a.r. 40,43 a.r. 45,86 49,09 500 23,26 28,43 31,70 35,55 38,78 a.r. 44,32 a.r. 49,50 54,67 600 24,91 30,11 35,55 38,78 42,34 a.r. 47,50 a.r. 54,93 59,82 800 30,11 35,55 40,43 44,32 47,50 a.r. 54,93 a.r. 61,74 68,48 1000 33,58 40,43 45,86 49,50 54,93 a.r. 61,74 a.r. 77,20 a.r.
