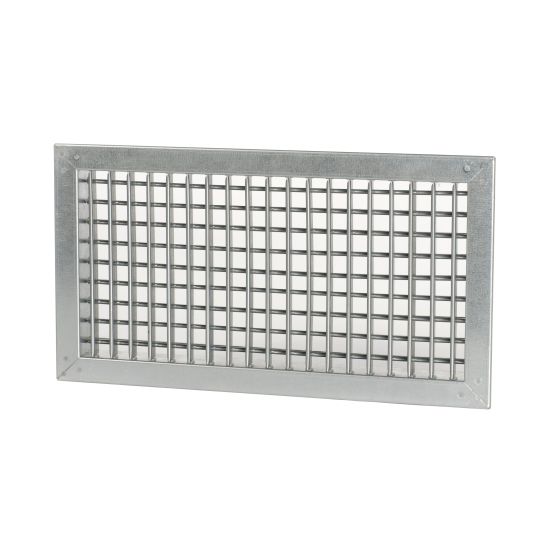

EBV Supply steel grilles 20 mm pitch
Description
Steel supply air jets with 1 or 2 rows of individually adjustable blades.
Characteristics
Material: steel.
Finish: galvanised.
Installation: with screws on frame.
Use
For air supply with wall or duct installation in ventilation and air conditioning systems.
Models
- EBV-VO with 2 rows of vertical and horizontal blades;
- EBV-OV with 2 rows of horizontal and vertical blades;
- EBV-V with 1 row of vertical blades;
- EBV-O with 1 row of horizontal blades.
Example: the VO version has the first vertical row near the front and the second horizontal row inside the air jet.
Accessories
- EPZ _ Galvanised Plenum Box;
- EPI - Insulated Plenum Box;
- SC - Galvanised steel regulation damper with blades with opposing movement;
- CT - Galvanised steel counter-frame to set into wall.
On request
- RAL9016 painting or other RAL colours.
- Clips for wall installation.
Operating data
Vk: effective speed (m/s)
m³/h: flow rate
Pa: pressure drops in Pascal
L1 (m): air throw referring to air jets without damper, with a blade deflection of 0°, with coanda (ceiling) effect, terminal velocity 0.25 m/s and T max 15°C
dB(A): noise level
All dimensions are expressed in mm
| Dimensions LxH | 2 x digital output (6 terminalas, wire min. 0.5 mm² to max. 1.5 mm²) – NO/NC relays (125 V AC – 60 W) | m³/h | L1 | m³/h | L1 |
| m2 | |||||
| 200x100 | 0,013 | 100 | 3 | 160 | 5 |
| 300x100 | 0,018 | 140 | 3.7 | 230 | 5.6 |
| 400x100 | 0,025 | 200 | 4.5 | 320 | 6.8 |
| 500x100 | 0,033 | 260 | 6 | 420 | 8 |
| 300x150 | 0,029 | 230 | 4.3 | 370 | 7 |
| 400x150 | 0,039 | 310 | 5 | 500 | 8 |
| 500x150 | 0,051 | 400 | 5.8 | 640 | 9 |
| 600x150 | 0,059 | 470 | 6 | 750 | 9.5 |
| 300x200 | 0,044 | 350 | 5.5 | 560 | 8 |
| 400x200 | 0,057 | 450 | 5.8 | 720 | 9 |
| 500x200 | 0,071 | 560 | 6.5 | 900 | 10 |
| 600x200 | 0,086 | 680 | 9 | 1080 | 14 |
| 800x200 | 0,115 | 910 | 10 | 1450 | 15 |
| 1000x200 | 0,145 | 1150 | 9 | 1830 | 14 |
| 600x300 | 0,136 | 1080 | 9.6 | 1730 | 15 |
| 800x300 | 0,178 | 1410 | 10.5 | 2250 | 16 |
| 1000x300 | 0,226 | 1790 | 13 | 2860 | 18 |
| 600x400 | 0,180 | 1430 | 11 | 2290 | 17 |
| 800x400 | 0,245 | 1940 | 12 | 3080 | 18 |
| 1000x400 | 0,310 | 2460 | 16 | 3940 | 20 |
| V (m/s) | 2,2 | 3,5 | |||
Noise level dB(A)
| Vk m/s | defl. 0° | defl. 20° | defl. 40° |
| dB(A) | dB(A) | dB(A) | |
| 2.2 | 15/20 | 18/23 | 20/25 |
| 3.5 | 20/25 | 23/28 | 25/30 |
Pressure drop (Pa)
| Vk m/s | defl. 0° | defl. 20° | defl. 40° |
| Pa | Pa | Pa | |
| 2.2 | 4 | 5.5 | 7 |
| 3.5 | 9 | 13 | 16 |

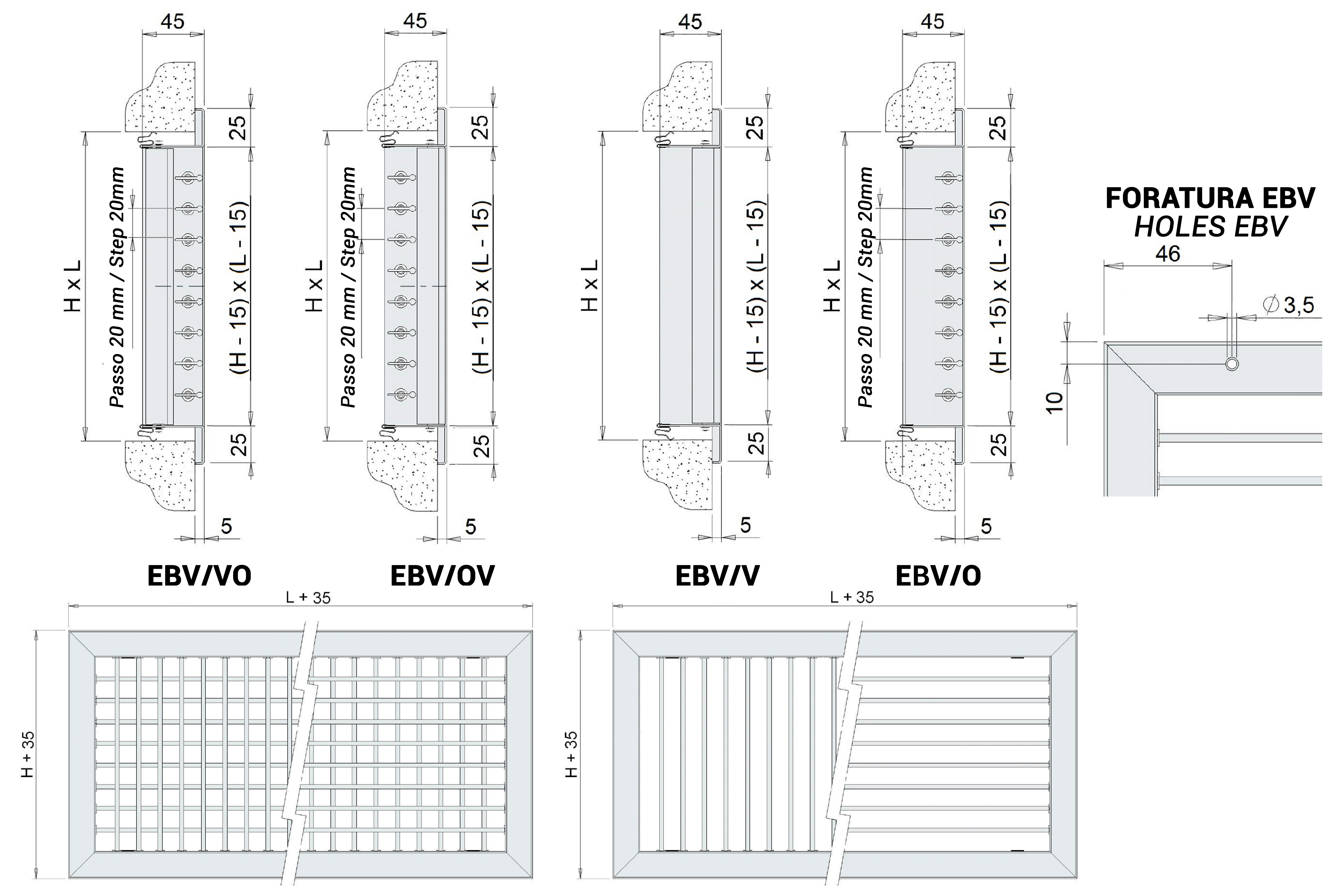

Configuration
All measurements are expressed in mm.

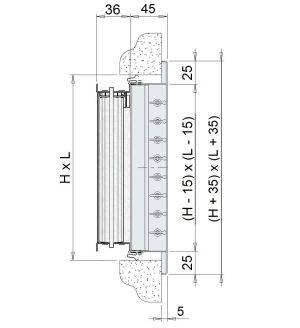

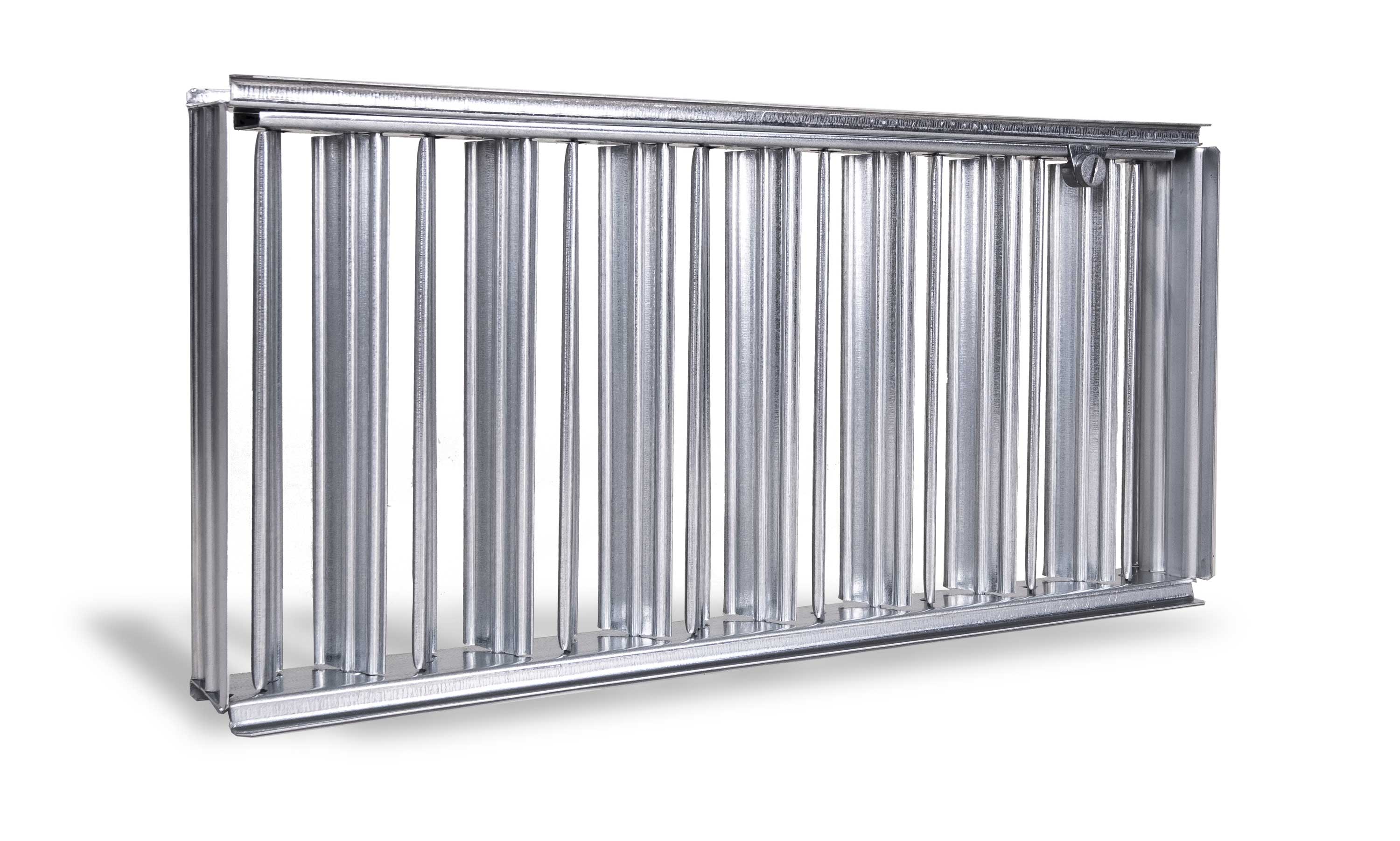

SC - Regulation damper
Galvanised steel regulation damper with blades with opposing movement.

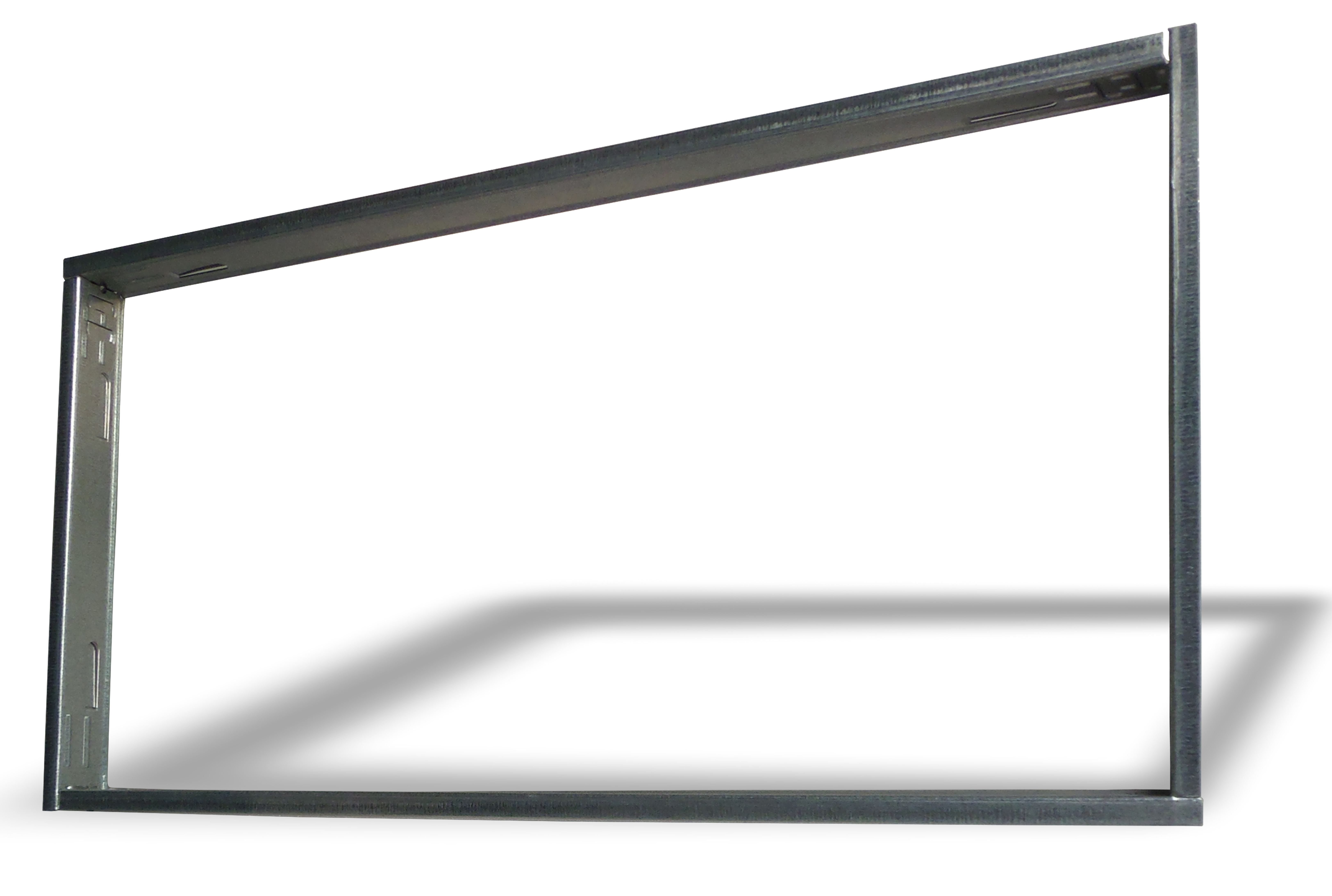

CT - Counter-frame
Plenum Box
Models
L1 x H1Top Connection Lateral Connection E F Models
L1 x H1Top Connection Lateral Connection E F P1 Nr. Connections Ø d P2 Nr. Connections Ø d P1 Nr. Connections Ø d P2 Nr. Connections Ø d 200x100 200 1 98 200 1 98 80 12 500x200 200 1 198 300 1 198 80 12 300x100 200 1 98 200 1 98 80 12 600x200 200 2 198 300 2 198 80 12 400x100 200 2 98 200 2 98 80 12 800x200 200 2 198 300 2 198 80 12 500x100 200 2 98 200 2 98 80 12 1000x200 200 2 198 300 2 198 80 12 300x150 200 1 148 250 1 148 80 12 500x300 200 1 248 350 1 248 80 12 400x150 200 1 148 250 1 148 80 12 600x300 200 2 198 350 2 248 80 12 500x150 200 2 148 250 2 148 80 12 800x300 200 2 248 350 2 248 80 12 600x150 200 2 148 250 2 148 80 12 1000x300 200 2 248 350 2 248 80 12 800x150 200 2 148 250 2 148 80 12 600x400 200 2 198 350 2 248 80 12 300x200 200 1 198 300 1 198 80 12 800x400 200 2 298 350 2 298 80 12 400x200 200 1 198 300 1 198 80 12 1000x400 200 2 298 400 2 298 80 12
Price List
Dimensions EBV-VO EBV-OV EBV-O EBV-V LxH euro euro euro euro 200x100 24,66 24,66 19,75 19,75 300x100 29,85 29,85 21,05 21,05 400x100 34,94 34,94 22,38 22,38 500x100 40,11 40,11 26,30 26,30 300x150 34,23 34,23 25,01 25,01 400x150 40,82 40,82 28,95 28,95 500x150 45,69 45,69 30,24 30,24 600x150 52,65 52,65 32,89 32,89 800x150 68,49 68,49 38,17 38,17 300x200 40,82 40,82 28,95 28,95 400x200 46,06 46,06 31,53 31,53 500x200 53,91 53,91 35,53 35,53 600x200 60,06 60,06 40,82 40,82 800x200 81,33 81,33 46,06 46,06 1000x200 95,47 95,47 50,00 50,00 500x300 66,03 66,03 46,06 46,06 600x300 75,09 75,09 50,01 50,01 800x300 104,28 104,28 63,20 63,20 1000x300 122,40 122,40 73,68 73,68 600x400 90,78 90,78 63,20 63,20 800x400 127,34 127,34 77,64 77,64 1000x400 149,36 149,36 98,07 98,07
