EGA Exhaust aluminium grilles 25 mm pitch
Description

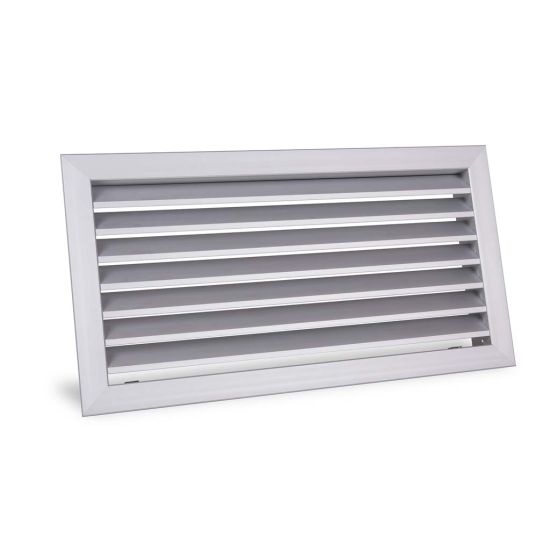

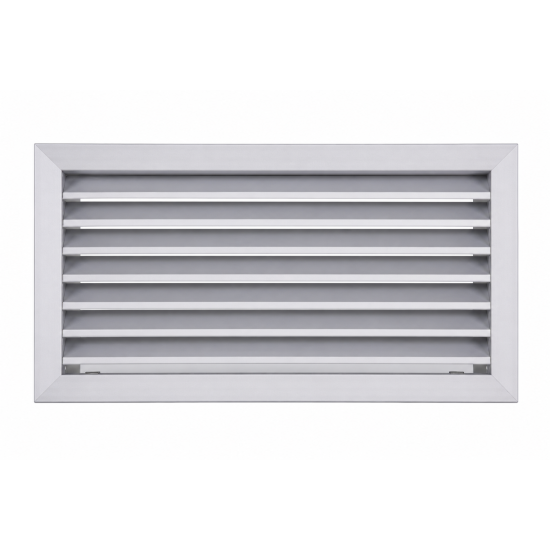

Aluminium exhaust grilles with horizontal fixed bars with 45° inclination.
Characteristics
Material: aluminium.
Finish: natural anodised.
Installation: clip fastening.
Dimensions achievable in one piece: - min. base 100 mm x height 100 mm; - max. base 1500 mm x height 1000 mm.
Use
Recommended for air exhaust, can be installed both inside and outside civil and industrial environments.
Models
- EGA Aluminium exhaust grilles 25 mm pitch.
- EGA 595x595 false ceiling version dim. 595x595 mm (external frame).
Accessories
- EPZ _ Galvanised Plenum Box;
- EPI - Insulated Plenum Box;
- SC - Galvanised steel regulation damper with blades with opposing movement;

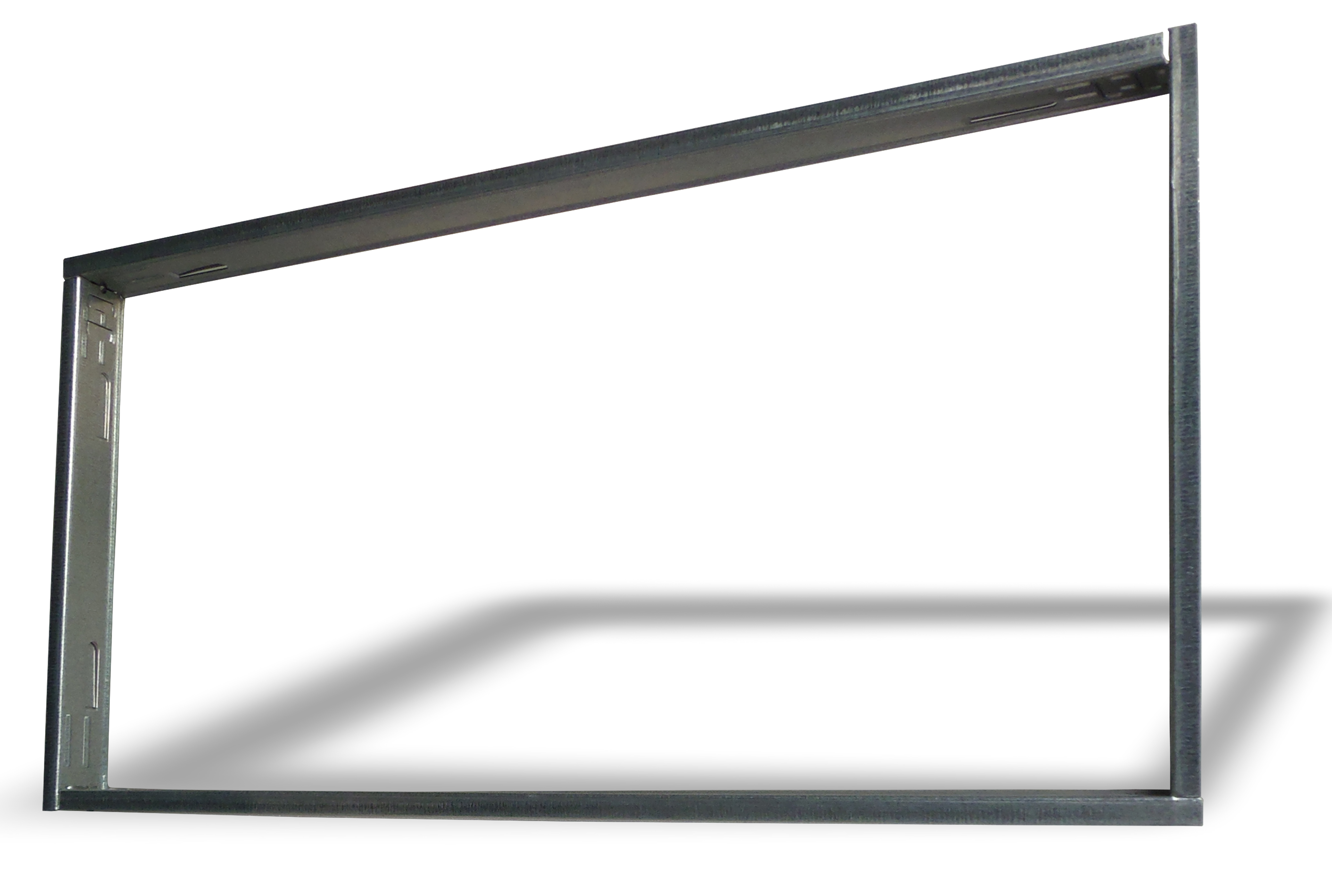

- CT - Galvanised steel counter-frame to set into wall.
On request
- White RAL9016 painting or other RAL colours;
- With bird mesh;
- With mosquito mesh;
- Holes on frame for installation with screws.
Effective Cross-section
All dimensions are expressed in mm.
H L 200 300 400 500 600 800 1000 1200 Effective Cross-Section (m2) 100 0,009 0,014 0,019 0,024 0,029 0,039 0,049 0,059 200 0,019 0,030 0,040 0,050 0,061 0,081 0,102 0,123 300 0,029 0,045 0,061 0,076 0,092 0,124 0,155 0,187 400 0,039 0,060 0,081 0,102 0,123 0,166 0,208 0,250 500 0,049 0,075 0,102 0,128 0,155 0,208 0,261 0,314 600 0,059 0,091 0,123 0,154 0,186 0,250 0,313 0,377 800 0,079 0,121 0,164 0,206 0,249 0,334 0,419 0,504 1000 0,099 0,152 0,205 0,258 0,312 0,418 0,525 0,631
Operating Data
- Vk: effective speed (m/s).
- m³/h: flow rate.
- Pa: pressure drops in Pascal.
- dB(A): noise level.
- L: base. H: height.
All dimensions are expressed in mm.
| H | L | ||||||||
| Vk | 200 | 300 | 400 | 500 | 600 | 800 | 1000 | 1200 | |
| m/s | m3/h | ||||||||
| 100 | 4 | 130 | 200 | 275 | 346 | 420 | 560 | 705 | 850 |
| 6 | 195 | 300 | 410 | 520 | 625 | 840 | 1060 | 1275 | |
| 8 | 260 | 400 | 545 | 691 | 835 | 1120 | 1410 | 1700 | |
| 200 | 4 | 275 | 430 | 575 | 720 | 880 | 1165 | 1470 | 1770 |
| 6 | 410 | 650 | 860 | 1080 | 1320 | 1750 | 2203 | 2660 | |
| 8 | 545 | 865 | 1150 | 1440 | 1760 | 2335 | 2940 | 3542 | |
| 300 | 4 | 420 | 650 | 880 | 1095 | 1325 | 1785 | 2230 | 2695 |
| 6 | 625 | 970 | 1320 | 1640 | 1990 | 2680 | 3350 | 4040 | |
| 8 | 835 | 1295 | 1760 | 2190 | 2650 | 3570 | 4465 | 5385 | |
| 400 | 4 | 560 | 865 | 1165 | 1470 | 1770 | 2390 | 2995 | 3600 |
| 6 | 840 | 1295 | 1750 | 2200 | 2655 | 3585 | 4495 | 5400 | |
| 8 | 1120 | 1730 | 2335 | 2940 | 3540 | 4780 | 5990 | 7200 | |
| 500 | 4 | 705 | 1080 | 1470 | 1845 | 2230 | 2995 | 3760 | 4520 |
| 6 | 1060 | 1620 | 2200 | 2765 | 3350 | 4495 | 5640 | 6780 | |
| 8 | 1410 | 2160 | 1940 | 3685 | 4465 | 5990 | 7515 | 9040 | |
| 600 | 4 | 850 | 1310 | 1770 | 2220 | 2680 | 3600 | 4505 | 5430 |
| 6 | 1275 | 1965 | 2660 | 3325 | 4020 | 5400 | 5760 | 8140 | |
| 8 | 1700 | 2620 | 3545 | 4435 | 5360 | 7200 | 9015 | 10860 | |
| 800 | 4 | 1140 | 1740 | 2360 | 2965 | 3585 | 4810 | 6035 | 7260 |
| 6 | 1705 | 2615 | 3540 | 4450 | 5380 | 7210 | 9050 | 10885 | |
| 8 | 2275 | 3485 | 4725 | 5930 | 7170 | 9620 | 12065 | 14515 | |
| 1000 | 4 | 1430 | 2190 | 2950 | 3715 | 4490 | 6020 | 7560 | 9085 |
| 6 | 2140 | 3280 | 4430 | 5570 | 6740 | 9030 | 11340 | 13630 | |
| 8 | 2850 | 4380 | 5905 | 7430 | 8985 | 12040 | 15120 | 18170 | |
Noise Level dB(A)
Vk
m/sdB(A) 4 25/30 6 35/45 8 45/50
Pressure Drop (Pa)
Vk
m/sPa 4 16 6 45 8 80

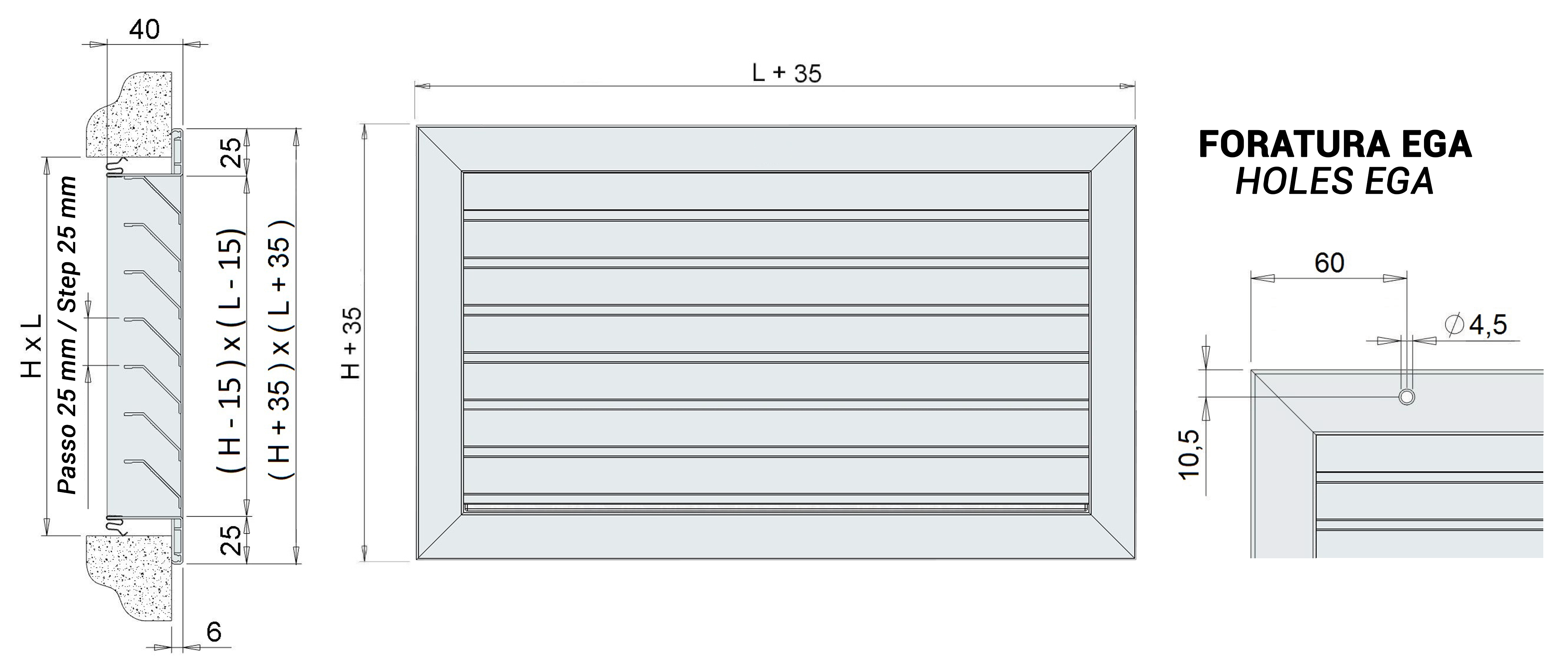

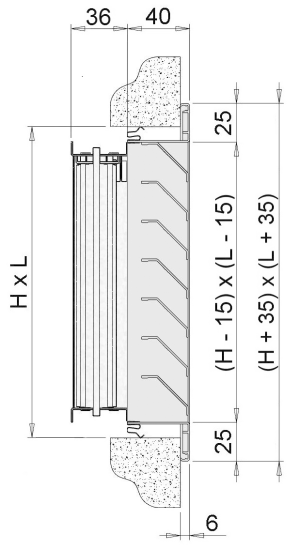

Configuration
SC - Regulation damper

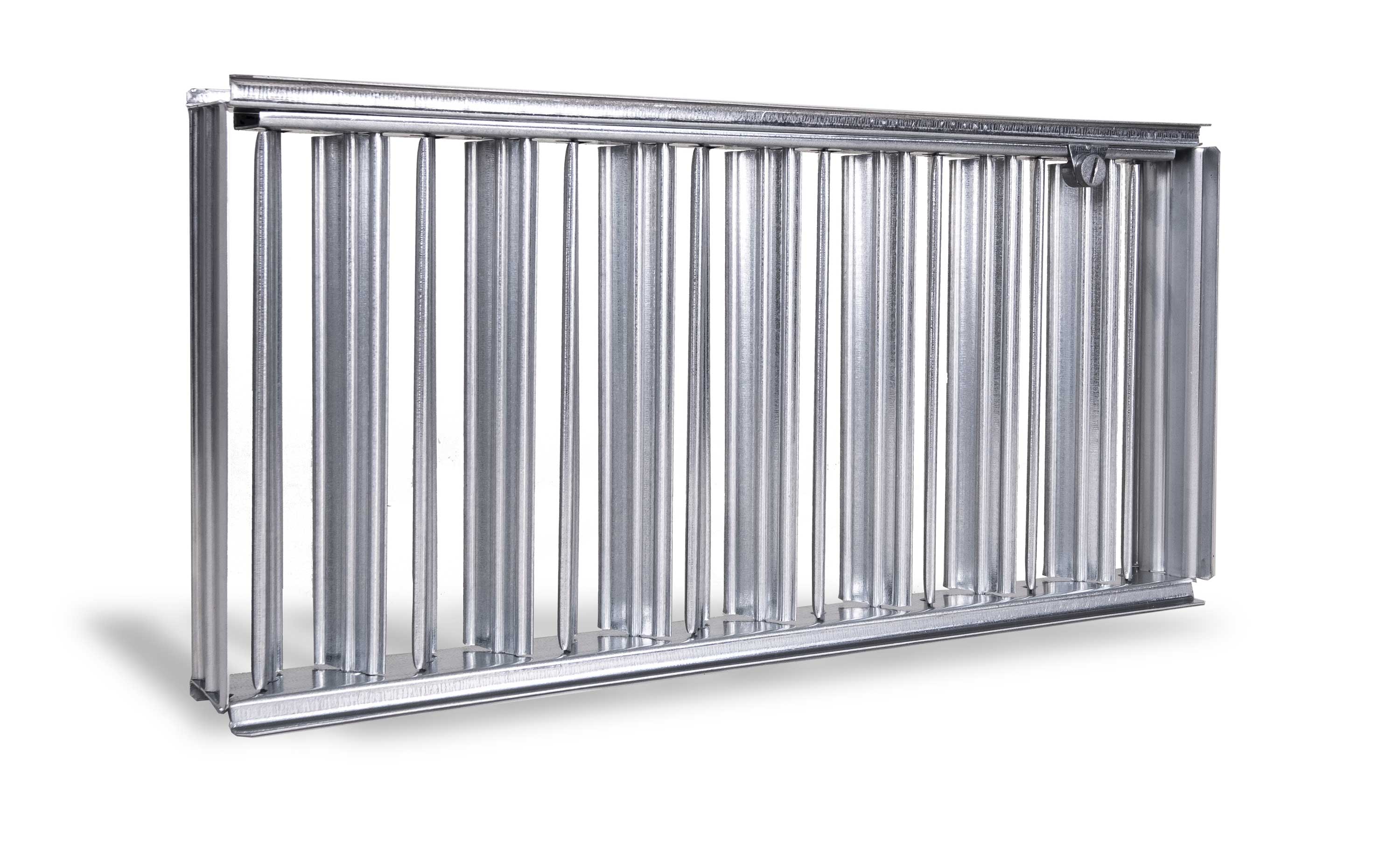

Galvanised steel regulation damper with blades with opposing movement.
Maximum dimensions L x H for construction in one piece 1000 mm x 600 mm.
CT - Counter-frame
Plenum Box
All measurements are expressed in mm.
Models
L1 x H1Top Connection Lateral Connection E F Models
L1 x H1Top Connection Lateral Connection E F P1 Nr. Connections Ø d P2 Nr. Connections Ø d P1 Nr. Connections Ø d P2 Nr. Connections Ø d 200x100 200 1 98 200 1 98 80 12 1000x200 200 2 198 300 2 198 80 12 300x100 200 1 98 200 1 98 80 12 300x300 200 1 248 350 1 248 80 12 400x100 200 2 98 200 2 98 80 12 400x300 200 1 248 350 1 248 80 12 500x100 200 2 98 200 2 98 80 12 500x300 200 1 248 350 1 248 80 12 600x100 200 2 98 200 2 98 80 12 600x300 200 2 198 350 2 248 80 12 800x100 200 2 98 200 2 98 80 12 800x300 200 2 248 350 2 248 80 12 200x200 200 1 198 300 1 198 80 12 1000x300 200 2 248 350 2 248 80 12 300x200 200 1 198 300 1 198 80 12 400x400 200 1 298 350 1 298 80 12 400x200 200 1 198 300 1 198 80 12 500x400 200 1 298 350 1 298 80 12 500x200 200 1 198 300 1 198 80 12 600x400 200 2 198 350 2 248 80 12 600x200 200 2 198 300 2 198 80 12 800x400 200 2 298 350 2 298 80 12 800x200 200 2 198 300 2 198 80 12 1000x400 200 2 298 400 2 298 80 12 560x560 - - - 300 1 248 80 12
Price List
Notes:
- with bird mesh + 20%;
- painted white RAL 9016 + 20%;
- mosquito mesh price on request;
- drip tile + 10%.
| EGA | ||||||||
| H | L | |||||||
| 200 | 300 | 400 | 500 | 600 | 800 | 1000 | 1200 | |
| Eur | Eur | Eur | Eur | Eur | Eur | Eur | Eur | |
| 100 | 17,27 | 20,00 | 24,54 | 29,10 | 32,71 | 40,00 | 51,80 | 59,06 |
| 150 | 20,91 | 23,63 | 28,14 | 34,54 | 40,89 | 48,15 | 55,42 | 66,34 |
| 200 | 22,73 | 28,14 | 30,91 | 39,07 | 49,97 | 57,26 | 67,24 | 76,35 |
| 300 | 28,14 | 34,54 | 41,80 | 51,80 | 61,81 | 75,43 | 90,89 | 107,24 |
| 400 | 33,34 | 43,62 | 56,35 | 67,24 | 76,35 | 97,23 | 110,12 | 134,50 |
| 500 | 40,89 | 53,62 | 69,98 | 77,24 | 90,89 | 115,41 | 139,03 | 167,19 |
| 600 | 51,80 | 64,53 | 79,07 | 92,70 | 107,24 | 134,50 | 167,19 | 189,01 |
| 800 | 59,06 | 79,07 | 105,40 | 118,15 | 138,13 | 171,74 | 214,44 | 248,99 |
| 1000 | 73,84 | 98,83 | 131,79 | 147,70 | 172,66 | 214,68 | 268,04 | 311,24 |
Models Overall Frame Dimensions Dimensions L x H Description Euro EGA 595 x 595 560 x 560 Version for installation in 600 mm × 600 mm modular suspended ceilings. 92,02
